Лидер продаж, вертикальные картофельные чипсы/машина для упаковки кукурузы от производителя

Share on (60746743237):


Price:

Quantity:


Product Overview

Description



Product Description


Function
Suit for the quantitative weighing of Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.



Main performance and structure features
1:New design with perfect fashion, more reasonable structure, more advanced technology.

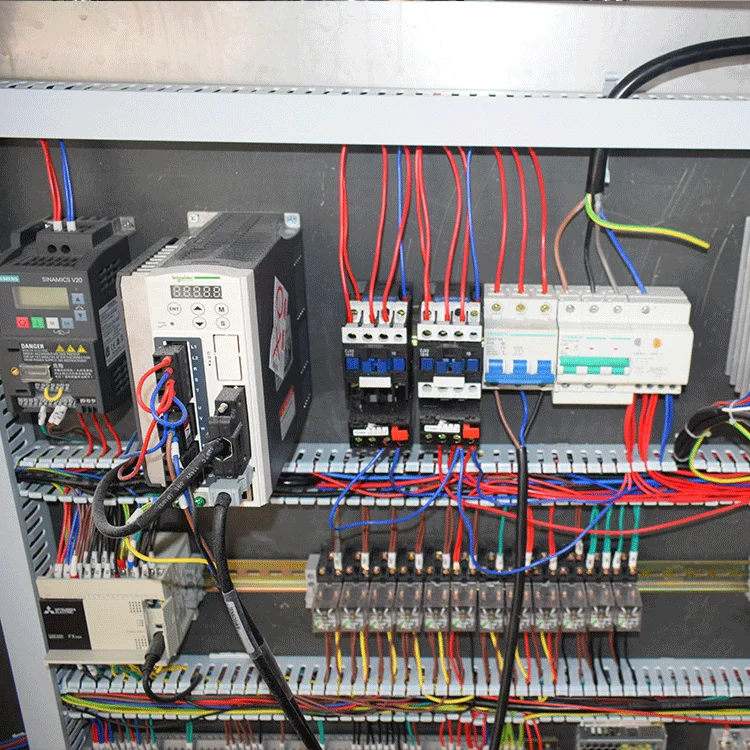

2.Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
3.Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
4. with auto warning protection function to minimize loss
5.Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc



Features
Simple construct, reliable circulator, easy maintenance.
The machine adopt the screw pole putting material, adopting servo-code and the.microcomputer technology control is the main technology feature. Code.
Simultaneous control, sensitive action, low noise, outstanding, reliable measure,speed quickly, high precise soon. Another it can display the measure counter

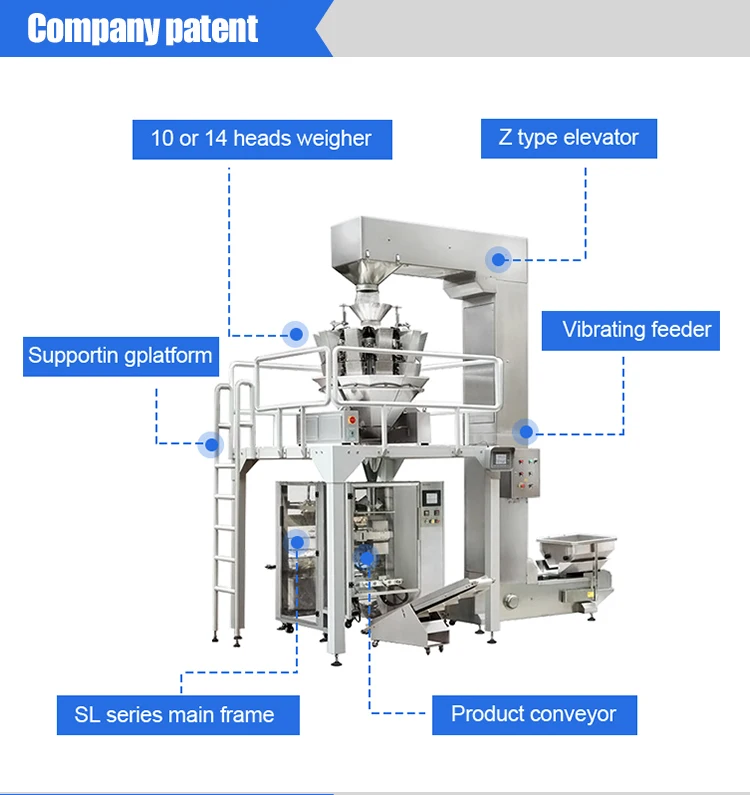

_07








Specification














































































Machine model



SL-420



SL-520



SL-720



SL-820



Bag length



80-320mm(L)



80-420mm(L)



100-500mm(L)



100-550mm(L)



Bag width



50-200mm(W)



50-250mm(W)



100-350mm(W)



180-400mm(W)



Max width of roll film



420mm



520mm



720mm



820mm



packing material



                           OPP/CPP,OPP/PE,PET/PE







Packing speed



5-60bags/min



5-50bags/min



5-40bags/min



5-30bags/min



Measuring range



150-1500ml



150-2000ml



500-3500ml



6000ml(Max)



Power voltage



220V 50/60hz 2.2kw



220V 50/60hz 2.5kw



220V 50/60hz 3kw



220V 50/60hz 5kw



Machine weight



500kg



550kg



600kg



900kg



Machine dimension



(L)1388×(W)1116×


(H)1536mm



(L)1440×(W)1216×


(H)1796mm



(L)1500×(W)1116×


(H)1536mm



(L)1780×(W)1350×


(H)1950mm

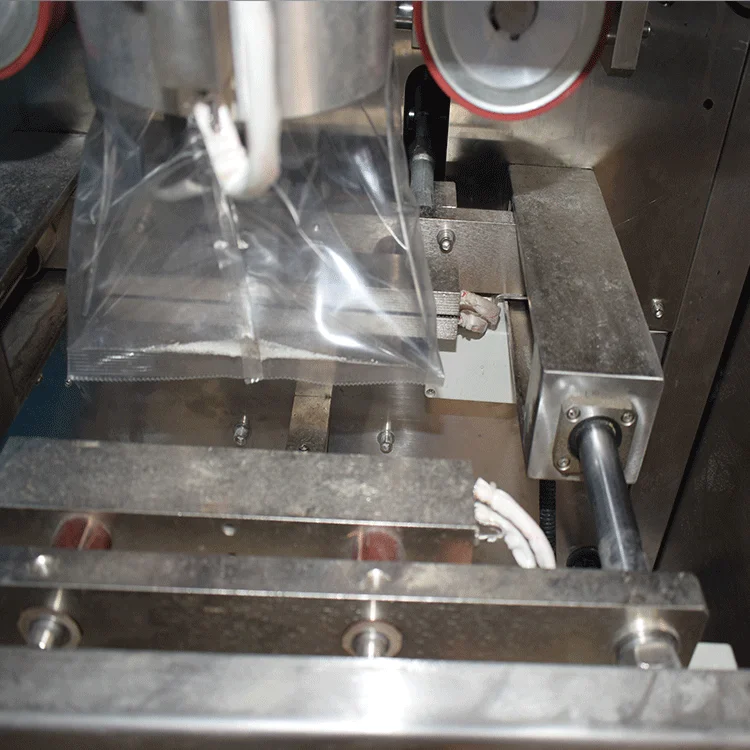

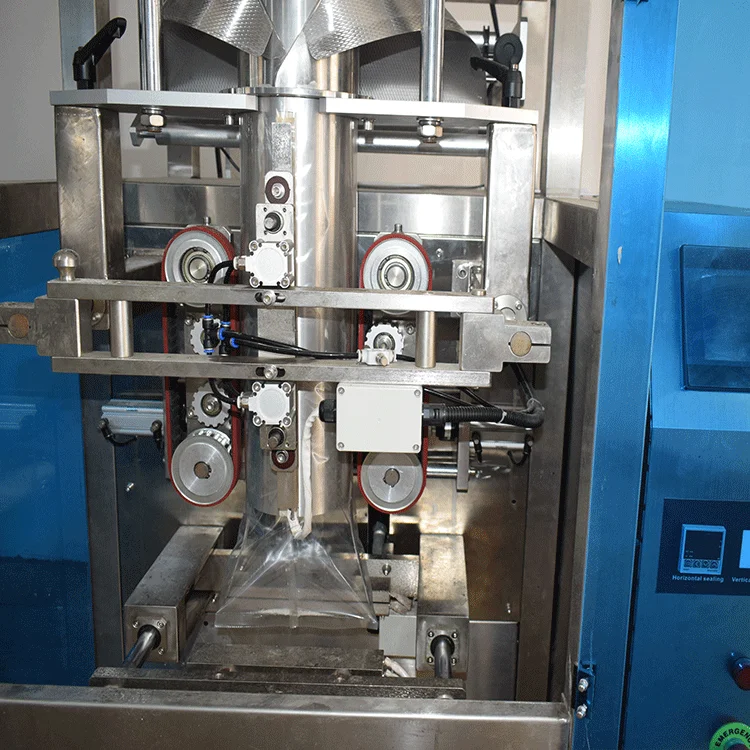

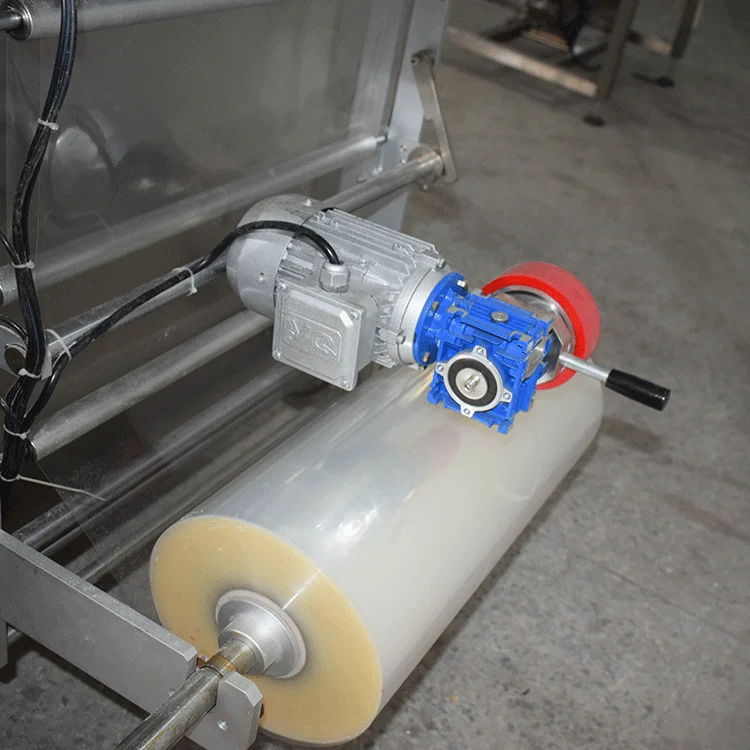

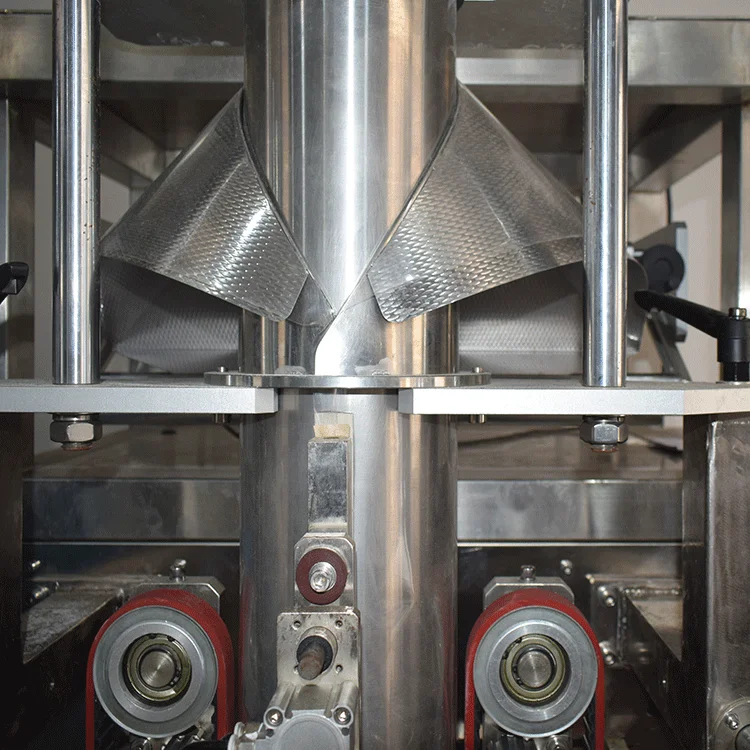

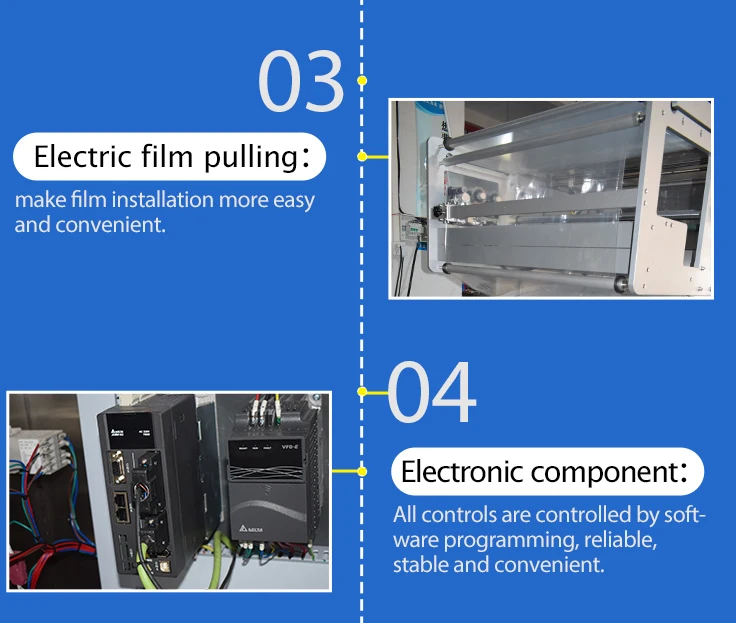

Detailed Images

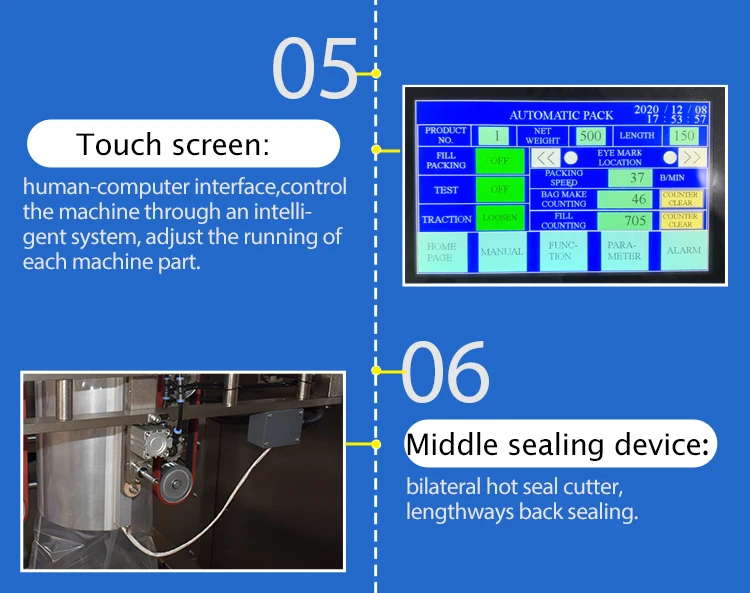

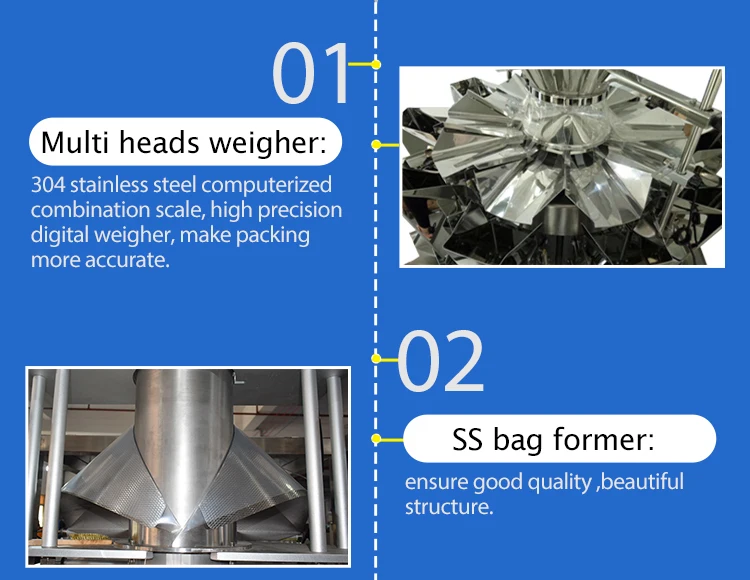

_08_10_13
