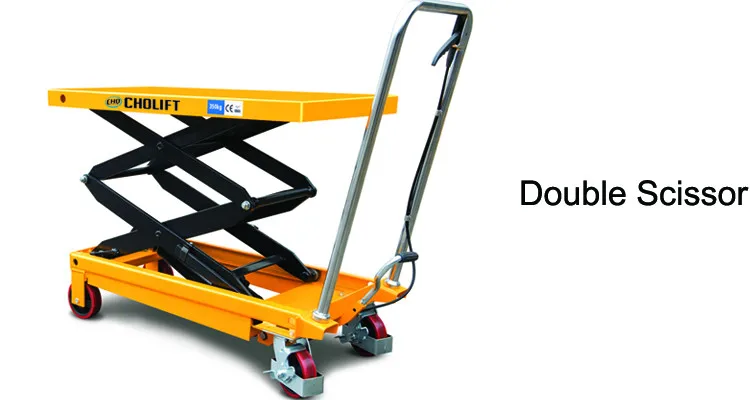

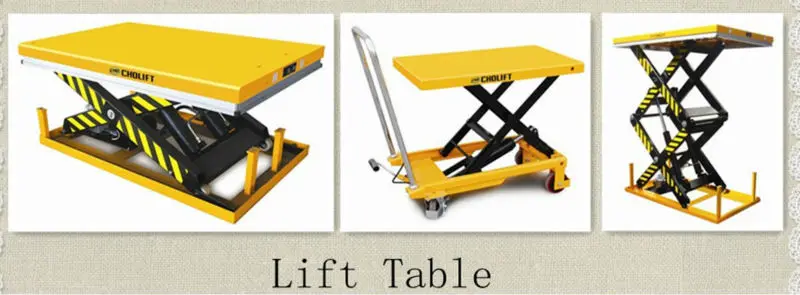

150/300/500/1000/1500kg hydraulic scissor lift table for sale

1)Scissor lift table designed as per CE requirements.

2) With safety distance between scissors.

3) With protection bracket and brakes on rear wheel

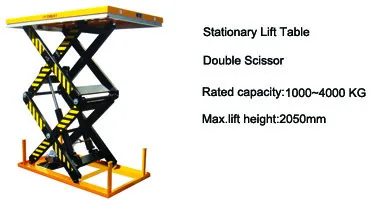

4) With overload protection

5) Max.lift height: up to 2050mm

6) Capacity: from 150kg to 4000kg

7) With overload protaction

8) Option for the board

9) With High quality hydraulic ensures reliable long life

SPECIFICATIONS FOR LIFT TABLE

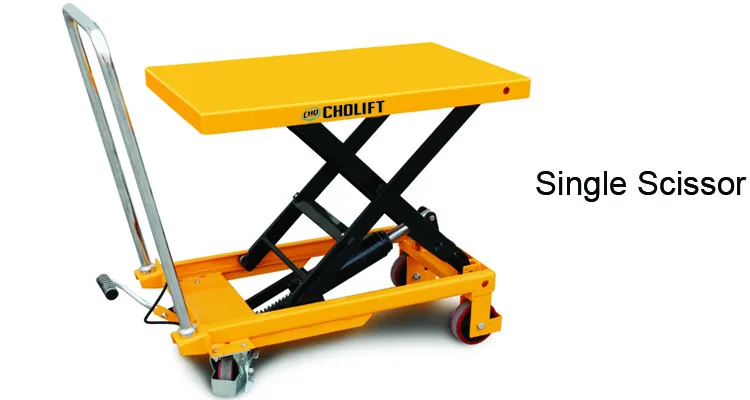

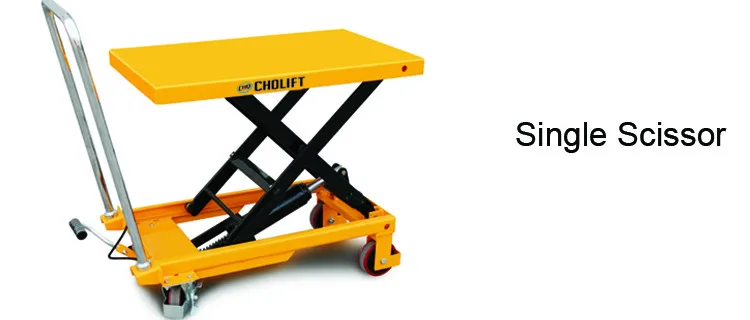

Model (single sissor)		SPA150	SPA300	SPA500
Load capacity/rated load	kg	150	300	500
Max.lift height	h12 (mm)	740	900	900
Min.height of table	h13 (mm)	225	340	340
Lifting height	h3 (mm)	515	560	560
Table size	lxb5xs(mm)	740*450*35	855*500*50	855*500*50
Foot pedal cycles to max height		≤25	≤32	≤45
Service weight	kg	44	82	87
Carton size	mm	860*485*300	985*510*350	985*510*350

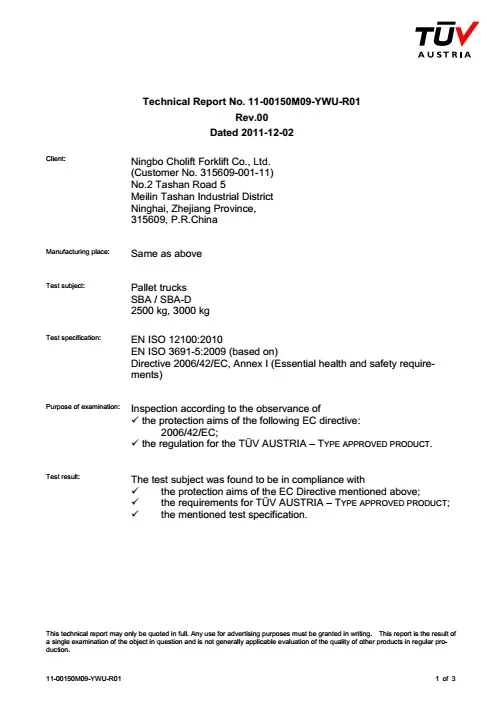

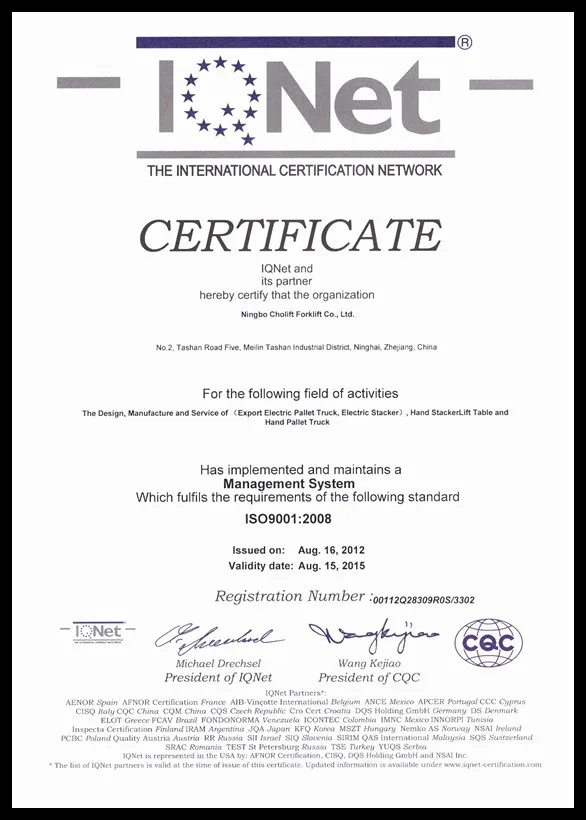

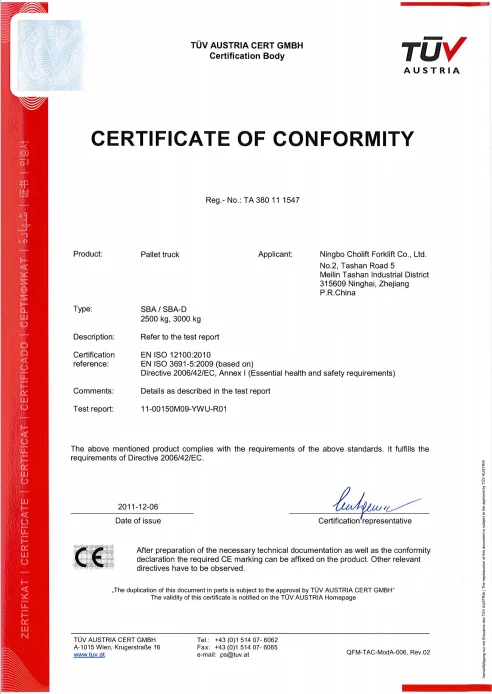

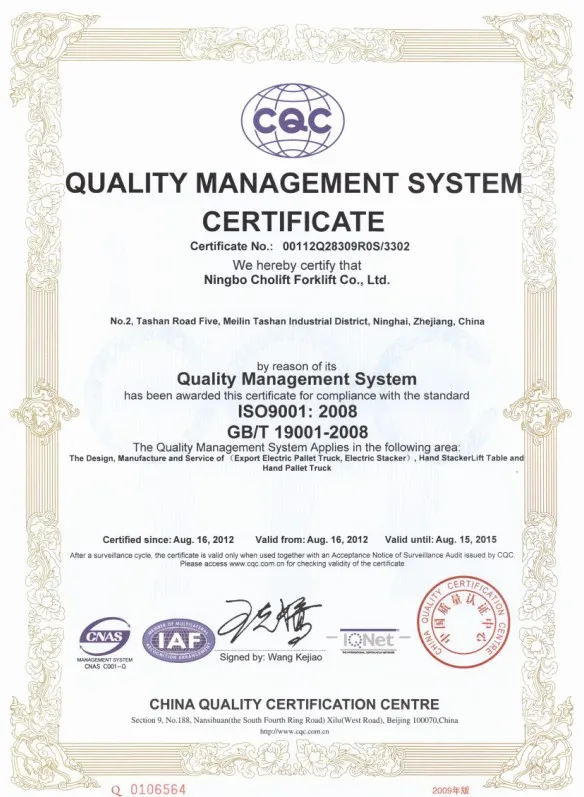

Certifications

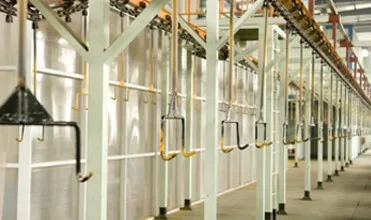

Powder Process

Tooling: We making tooling for every piece,
to ensure the good performance and appearance.

Powder Process: pretreatment, drying, coating, coating reforcement

While pretreatment includes: degreasing, cleaning, parkerising , cleaning and passivation

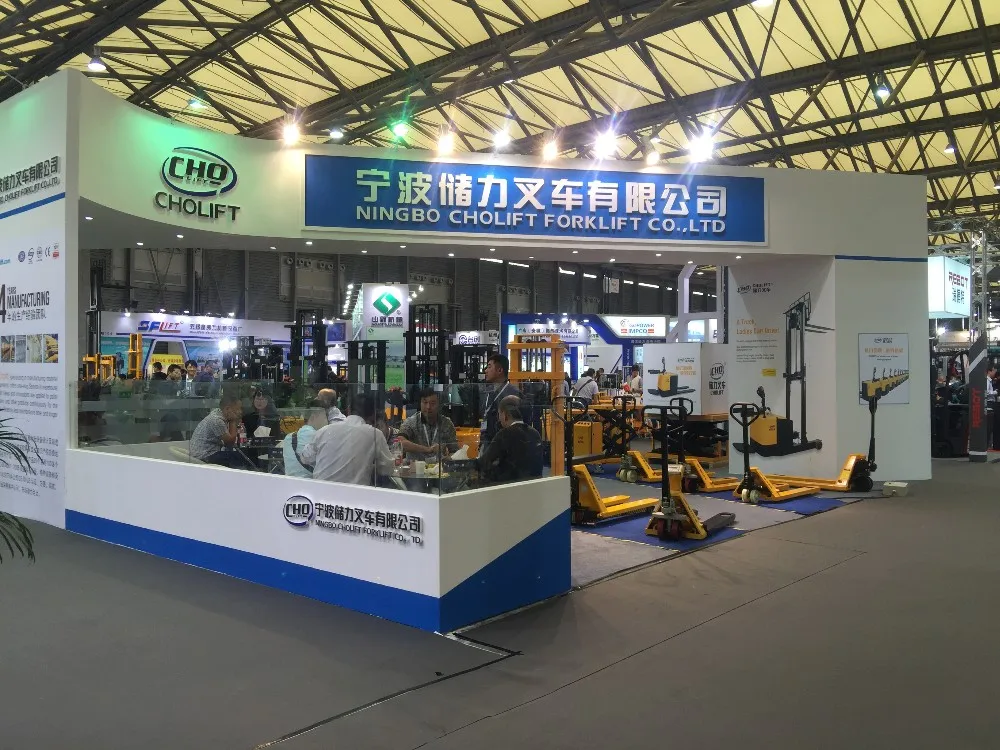

Exhibition both

We join in exhibition frequently both in China and overseas

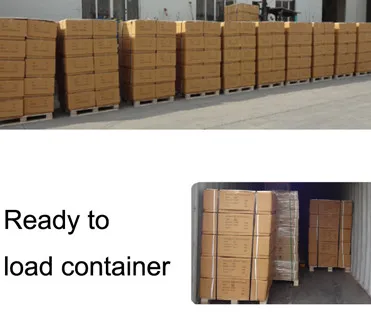

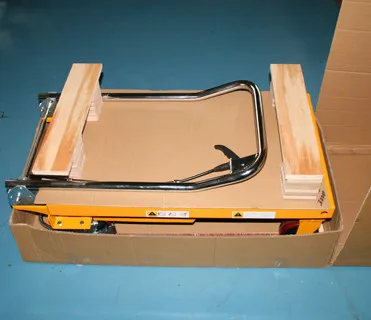

Packing & Delivery

Packaging for SPA300/500
Size	985 (L) * 510 (W) * 350 (D)
Weight	82 KG/Set
Packaging Details	The normal package with box and 6/8/10 set/pallet as the picture. We also pack it according to customers special request.

Packaging for SPA150
Size	860(L) * 485(W) * 300 (D)
Weight	44 KG/Set
Packaging Details	The normal package with box and 6/8/10 set/pallet as the picture. We also pack it according to customers special request.

Related Products

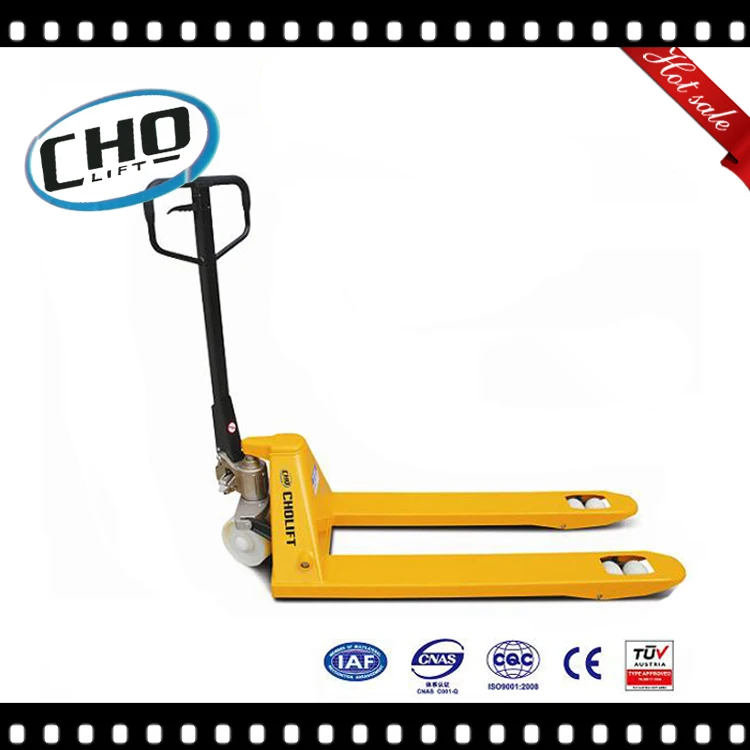

               Hand Pallet Truck
