PZEM 051 With 50A Shunt 4in1 Current Voltage Solar DC Energy Meter Volt Meter For Motorcycle
- Category: Voltage Meters >>>
- Supplier: Ningbo Peacefair Electronic Technology Co. Ltd.
Share on (60747202426):
Product Overview
Description
Product Description

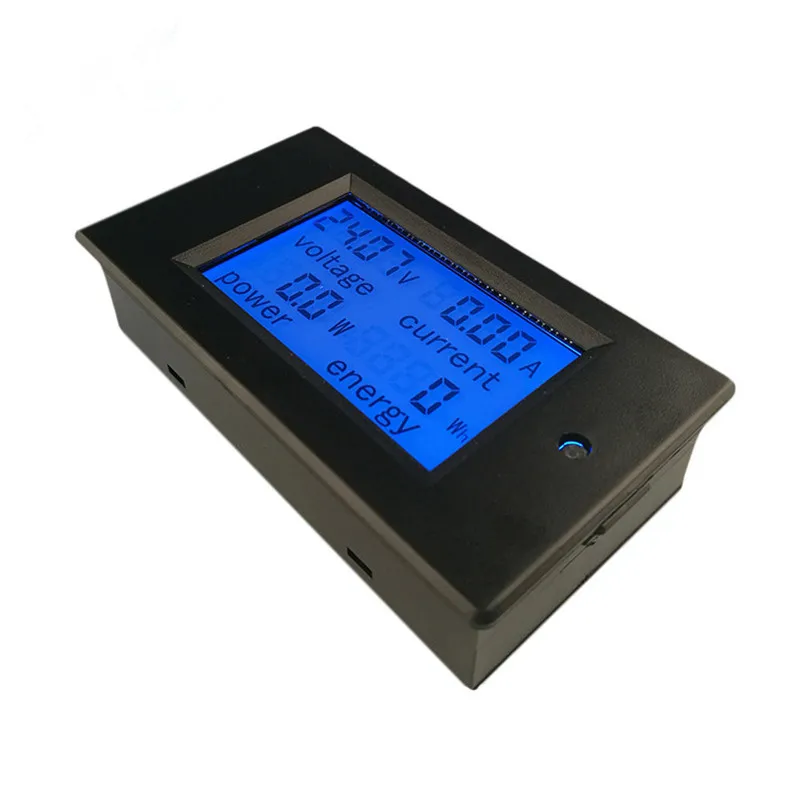

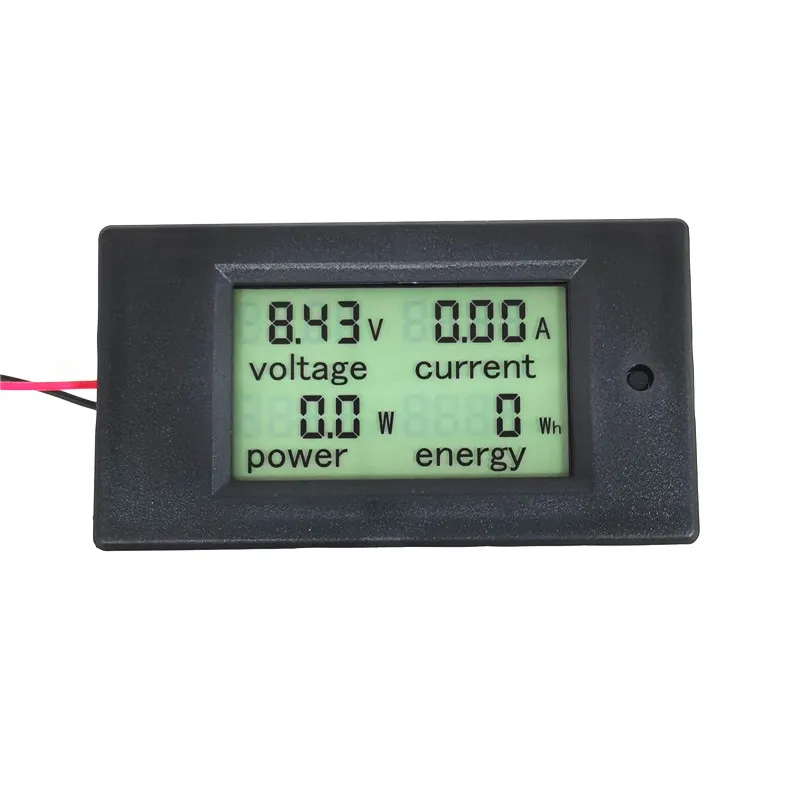

PZEM-051 With 50A Shunt 4in1 Current Voltage Solar DC Energy Meter Volt Meter For Motorcycle
Product Type | PZEM-051 |
Current Range | 0-50A（with 50A shunt） |
Voltage Range | AC 6.5-100V |
1. Measure voltage, current, active power, energy 2. Voltage alarm function 3. Reset energy 4. Store data when power off. 5. Large-screen LCD 6. Backlight function. | |
Power Range | 0~5kW |
Energy Range | 0~9999kWh |
Reset energy
Step1: Long press the key until the power display area display “CLr”, then release the key.
Step2: At this moment, the energy is flashing to prompt this is the energy reset state, if short press the key again, then the energy value is cleared and exit the reset flashing state.
Step 3: If there is no operation within 5 seconds, it means the energy value is not cleared and will exit the reset state.
Set voltage alarm threshold
Step1: Long press the key until the power display area display “SET”, then release the key.
Step2: After enter this state, the voltage area display the current high voltage alarm value, the current area display the current low voltage alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, from the high voltage alarm value to the low voltage alarm value, there are total six digits, the range of the voltage alarm threshold is 6.5～99.9V;
Step3: After finish the setting, long press the key until the screen display “PASS”, that means you set successfully and will exit the setting state automatically.
Step2: At this moment, the energy is flashing to prompt this is the energy reset state, if short press the key again, then the energy value is cleared and exit the reset flashing state.
Step 3: If there is no operation within 5 seconds, it means the energy value is not cleared and will exit the reset state.
Set voltage alarm threshold
Step1: Long press the key until the power display area display “SET”, then release the key.
Step2: After enter this state, the voltage area display the current high voltage alarm value, the current area display the current low voltage alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, from the high voltage alarm value to the low voltage alarm value, there are total six digits, the range of the voltage alarm threshold is 6.5～99.9V;
Step3: After finish the setting, long press the key until the screen display “PASS”, that means you set successfully and will exit the setting state automatically.
Choose measuring range
Step1: Long press the key until the power area display “Curr”, then release the key

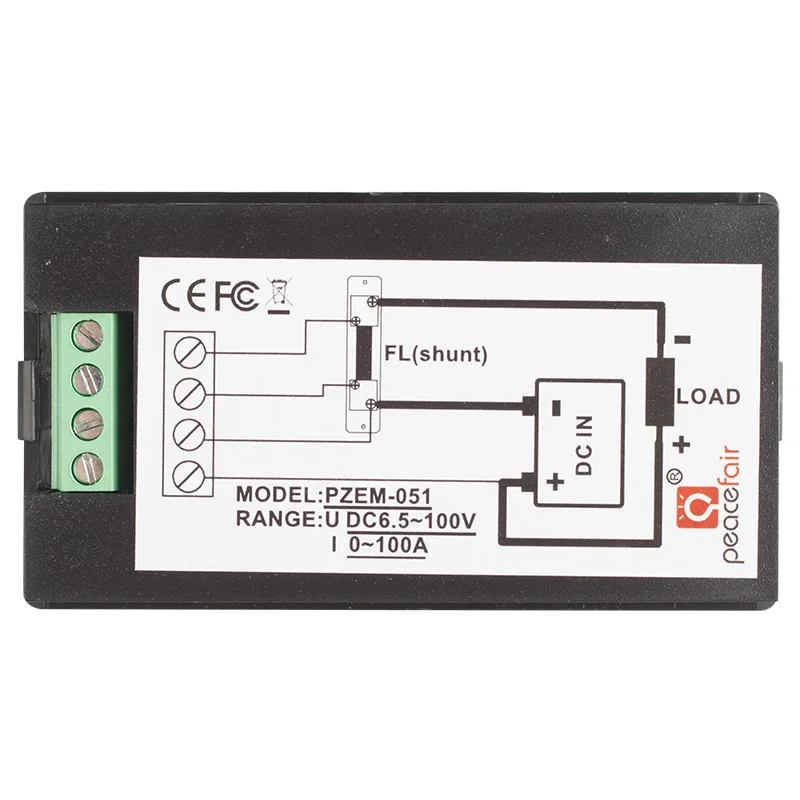

Step2: At this moment, the current area display “100A”, short press the key to switch between“100A”and “50A”, to prompt the range of the external shunt is 100A/75mV or 50A/75mV, please note that this meter can only use these two specification shunt.
Step3: Long press the key to exit the setting state or after no operation within 3 seconds it will store automatically and exit the setting state.

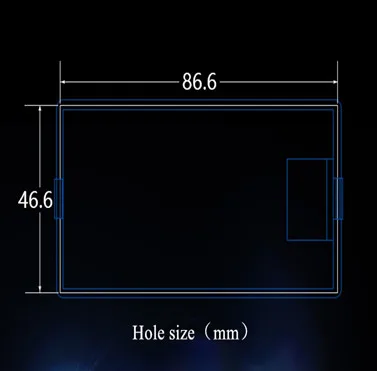

Size Information
