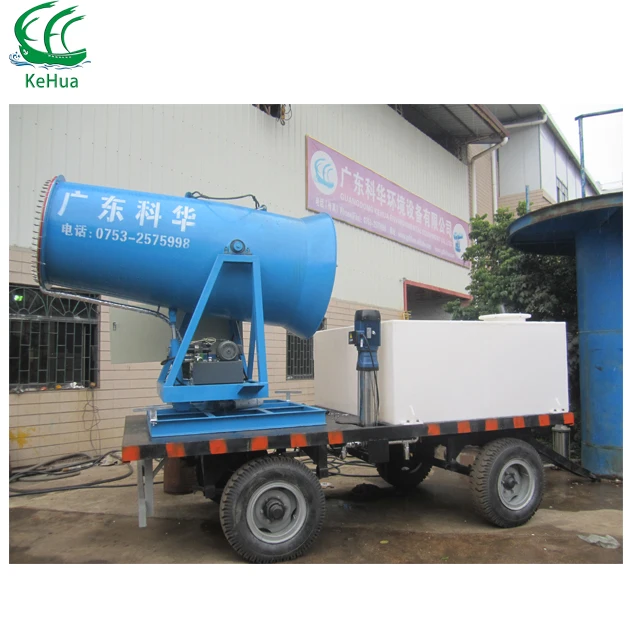

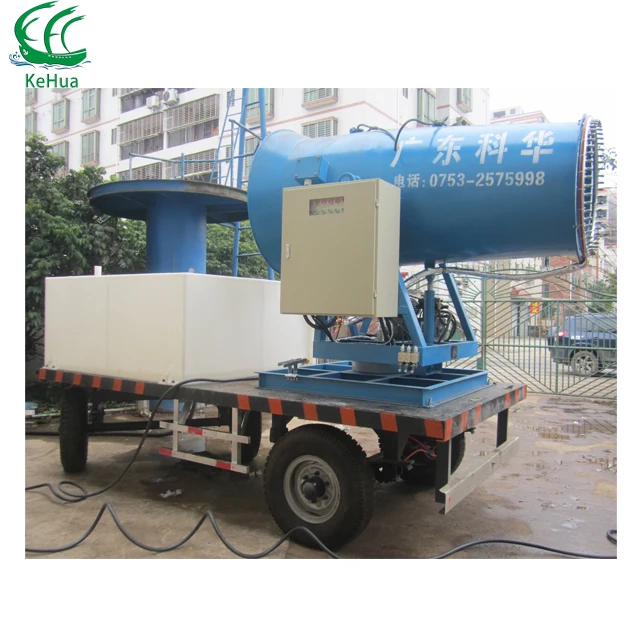

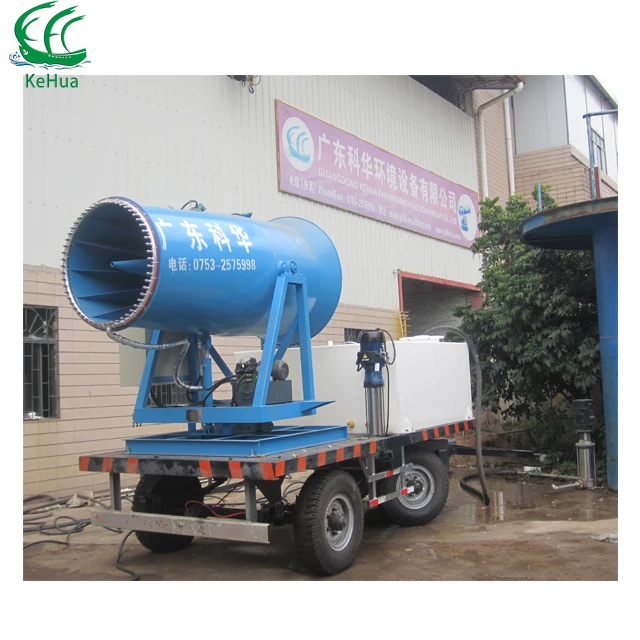

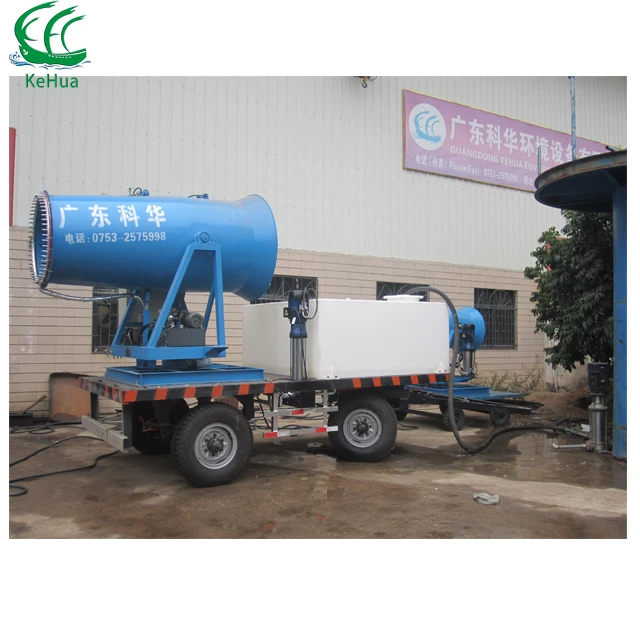

Mobile App control truck mounted fog makers for dust control systems
Product Description
Model
GDKH-20
GDKH-40
GDKH-60
GDKH-80
GDKH-100
GDKH-120
GDKH-150
GDKH-200
Volume Flow (L/min)
10-20
20-40
70-80
105-118
105-200
150-300
200-400
200-500
Water Pressure(MPa)
0.6-1.2
Water Mist Particle (um )
15-150
Max level Throw (m)
20
40
60
80
100
120
150
200
Pitching Angle
-10°-45°
Horizontal Rotation Angle
320°
Blower Power (Kw)
2.2
7.5
15/18.5
30
37
55
75
90
Pump Power(Kw)
1.1
3
3
5.5
7.5
11
11
22
Optional Assemble
1.Diesel
2.PVC water tank
3.Trailer or truck
Color
Green, Orange, Grey, Blue or customized
Advantages
1.Far range with radial distance from 20-200 meters..
2.Small water consumption and energy saving,only 1/10 water consumption of which of the conventional spray equipment.
3.Excellent dust control effect and much better than conventional spray equipment.
4. Wide coverage with 320°degree rotation radius,more advanced than conventional spray equipment.
5. Strong flexibility,can be made trailer-mounted or truck-mounted,which greatly improve efficiency and reducing equipment input quantities,more flexible and lower consumption than conventional spray equipment.
6.Flexible operation,optional manual operation or remote control operation .
7.Mist particle can be adjusted from 20um-200um according to customer’s requirement.
8.Far throw range and wide coverage.
9.Superfine mist particles,high-efficiency and highspeed misting,effective dust suppression performance
10.Wide applications,flexible&safe operation,remote control/manual control available.
11.Horizontal rotation and pitching angle controlled by hydraulic control system, change angle quickly.
13.OEM service,Design service,Buyer Label service offered.

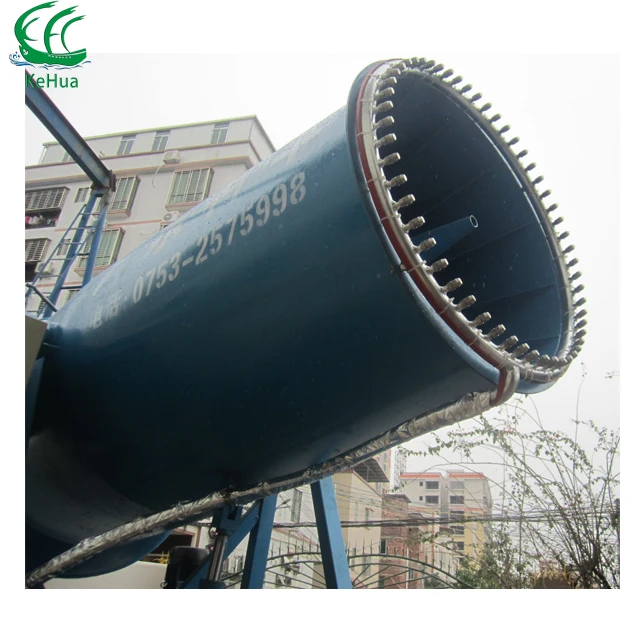

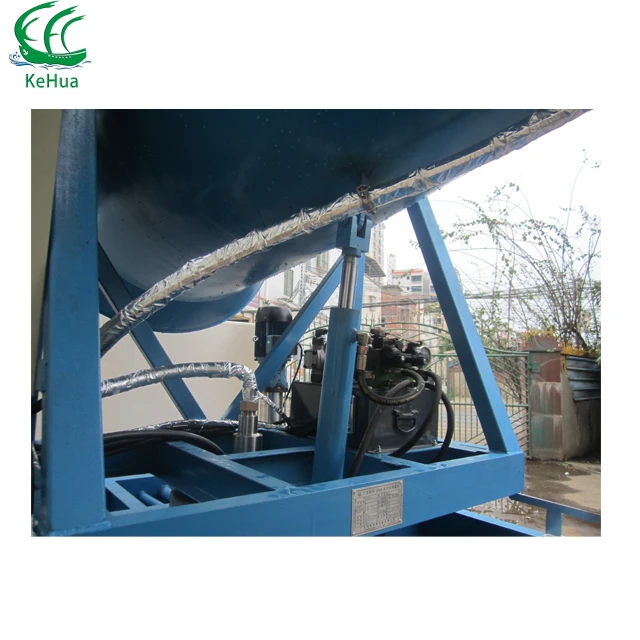

Fog Cannon Detail

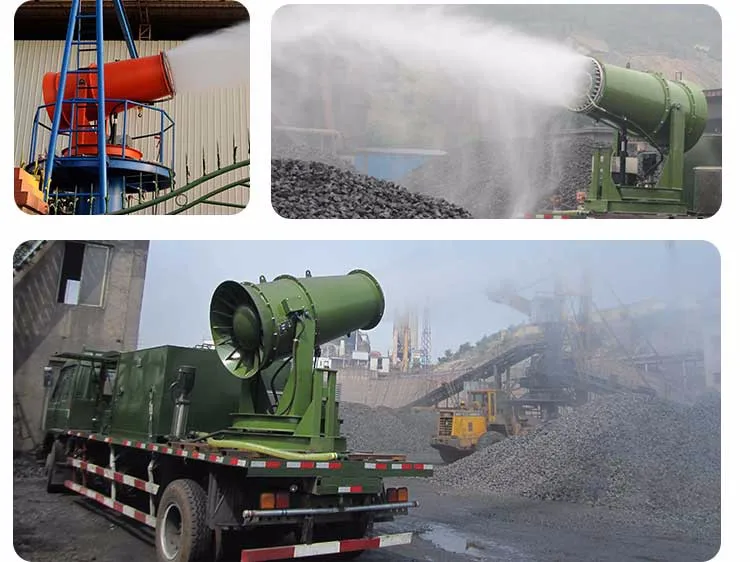

Applications

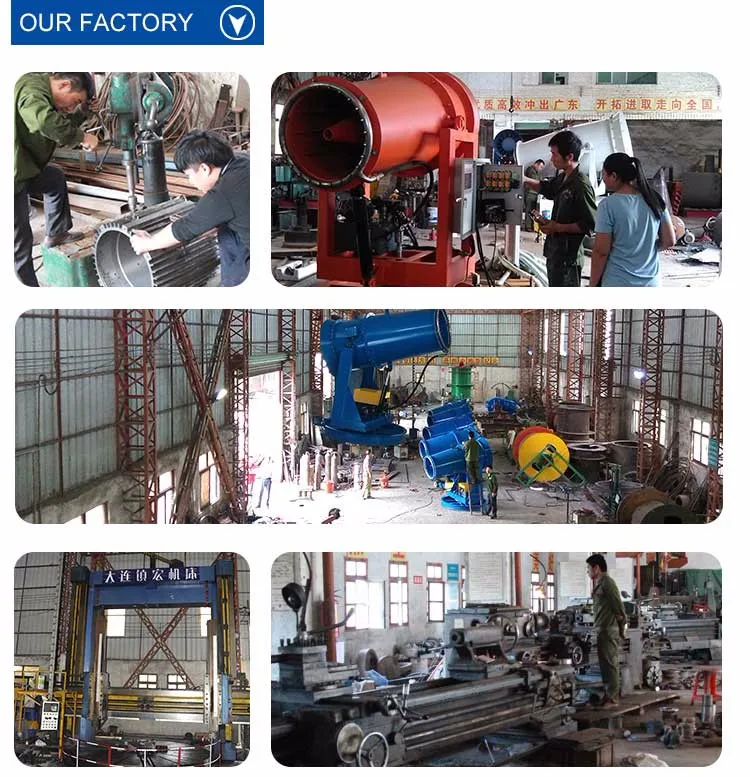

Company Information
FAQ
1.Q:Are you a factory or trading company? A: We are a factory .
2.Q:What is the material of your products? A: The material is Steel A3. We can also choose material as customers’ requirements.
3.Q: How long can you guarantee your products and their parts?
A: We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues. After one year, wo also can provide technical and other supports during the whole life of our products whenever you need.
4.Question: What's your biggest advantage? A: Obviously, it is professional and dedicated.
5.Q:How does your factory do regarding quality control? A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
