Detall electronics laboratory workbench furniture

Share on (60747484650):


Price:$750.00

Quantity:


Product Overview

Description

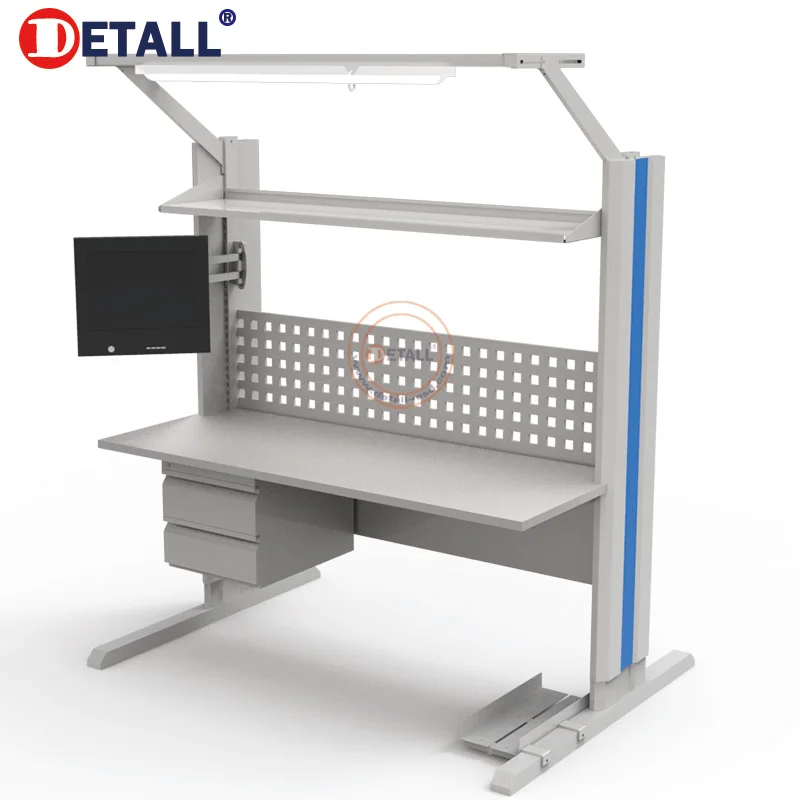

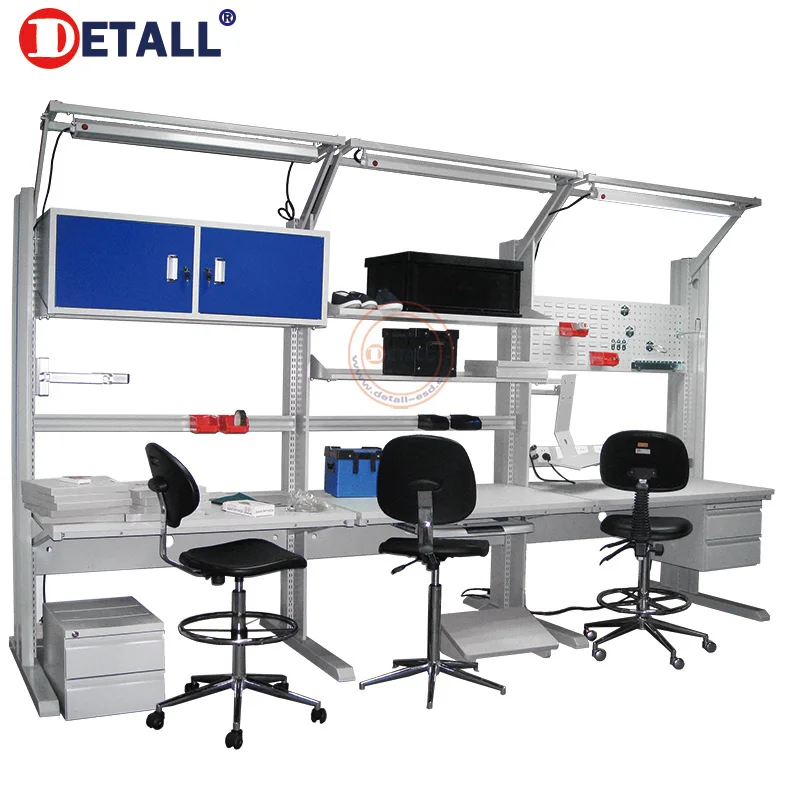

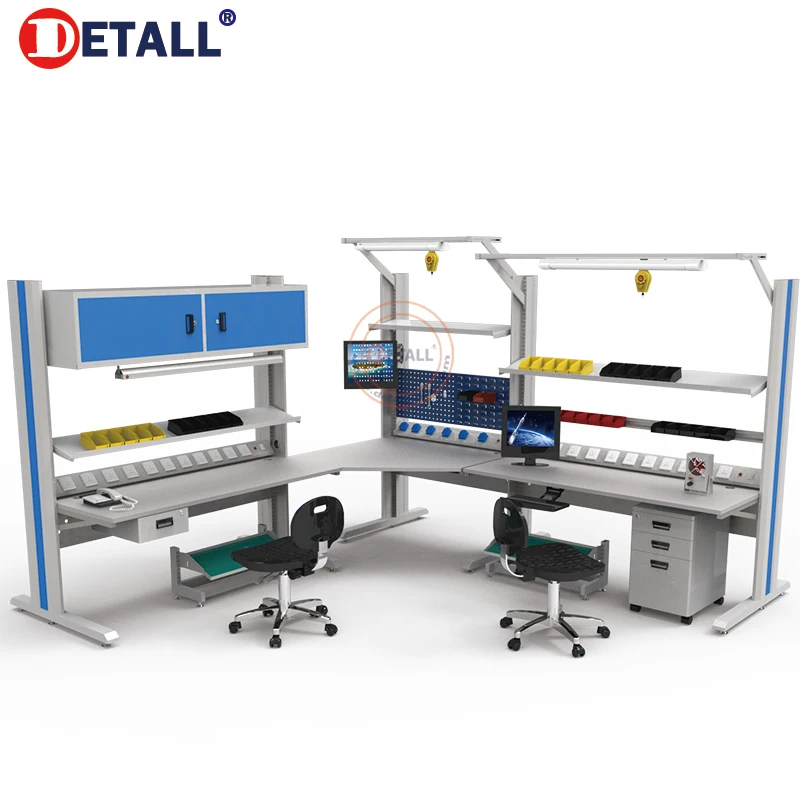

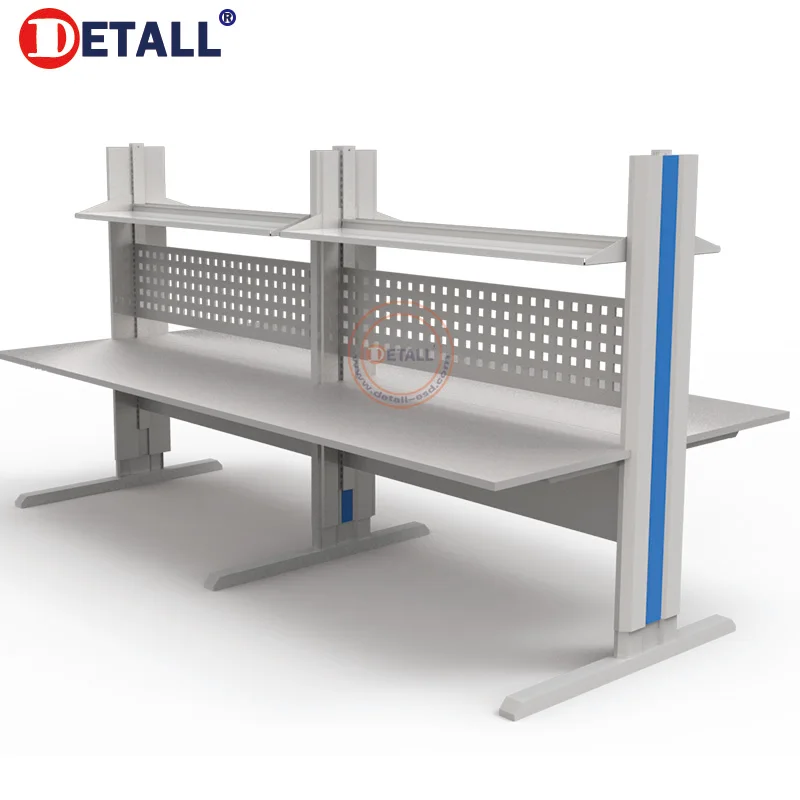

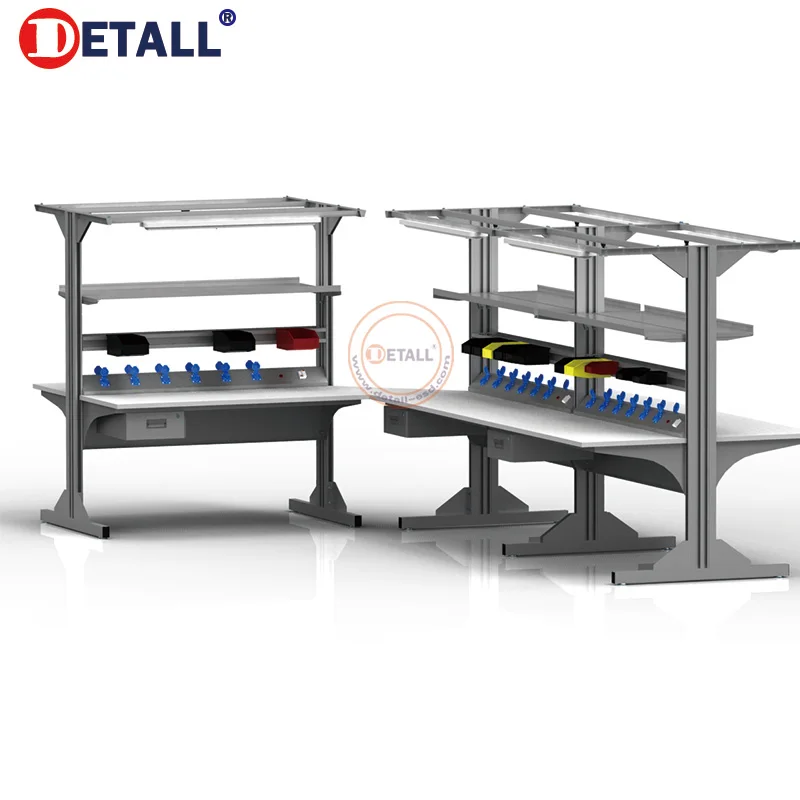

Detall electronics laboratory workbench furniture



Product Description


detall esd workbench  (2).jpg





9271Product Introduction


The towerline ESD workbench is a specific type of workbench which adopt the structure of table together with the double slotted Upright frame supporter . it is able to allow the work surface or the optional modular accessories to be mounted on either side of both the single sided and double sided station, and adjustable on workstation along column.


ESD Towerline workbench is suitable for electronics and semiconductor industries , military-industrial , aerospace sectors, contract manufacturers, research and educational organizations and telecommunication industries.








































SPECIFICATIONS FOR Detall electronics laboratory workbench furniture










Size




length




mm



1200/1530



Deepth




mm



600/750



Height




mm



785mm (table top to ground)
760-1120 (adjustable type)







Main performance parameters




ESD performance parameters




ohm

(test input 100V, )



metal surface: 105 - 1010
Laminate surface: 106 - 1010



Static weight loading




KG



300kg - light duty type
500kg - standard duty type
800kg - heavy duty type











Extensible structure




In order to increase the functions and storage space of the workbench, Detall design the workbench's system be divided into different structure, maximum the numbers and variety of functional accessories, the design maximum extends the functions of the workbench.
The workbench is divided into1. 2 or 3 column by the double slotted Upright frame supporter to add the max quantity of accessories on the columns.








































High Standard of Detall electronics laboratory workbench furniture - CE certificated



EN ISO 12100:2010


Safety of machinery - general principles for design -  risk assessment and risk reducion


EN 60204-1:2006 +A1:2009 +AC:2010


Safety of machinery - Electrical Equipment of machnies - part 1: Gerneral requirments


IEC 61340-5-1:2007


Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena
































































Electrical Properties of Detall electronics laboratory workbench furniture




Test




Relative Humidity




Electrical Results








Point to point resistance




60%-40%




106 to 1 x 107 ohms




40%-20%




107 to 1 x 108 ohms




20%-10%




108 to 1 x 1010 ohms








Point to earth resistance




60%-40%




106 to 1 x 107 ohms




40%-20%




107 to 1 x 108 ohms




20%-10%




108 to 1 x 1010 ohms






Volume Resistance




60%-30%




107 to 1 x 108 ohms




30%-10%




108 to 1 x 1010 ohms






Static Decay




50%




0.01sec




10%




0.02sec



1. Per EOS/ESD - S 4.1
2. Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds)
3. FTMS 101C, Method 4046
