Guitar Pedal Use Led Single Color 9Pin LatchingFoot Switch
- Category: Musical Instruments >>>
- Supplier: Yueqing Futai Electronics Co. Ltd. [Zhejiang China]Yueqing
Share on (60748137969):
Product Overview
Description
Futai is a 15 years experience professional guitar effect guitar foot pedal switch and encoder manufacture.

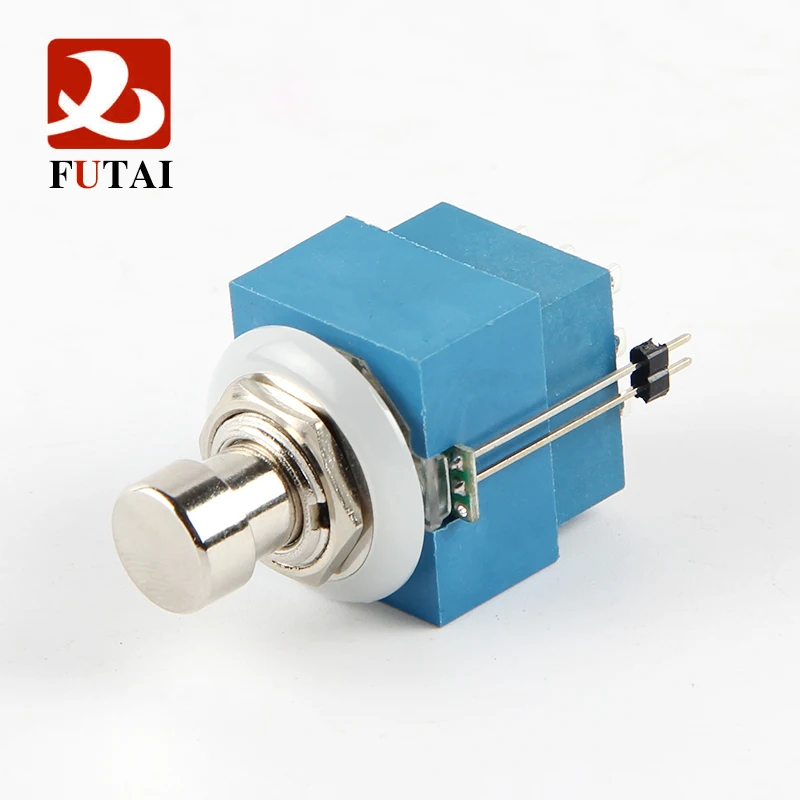

GUITAR EFFECTS PEDAL SWITCH
High temperature plastic casing, Case material:Nylon
dipping in soldering≤206℃±5°(wave-soldering),within 3S ;
solder by hand:≤300℃±5°,within 3S
High quality internal components
These switches require an 11/16" mounting hole for the plastic washer, nuts and washer included.

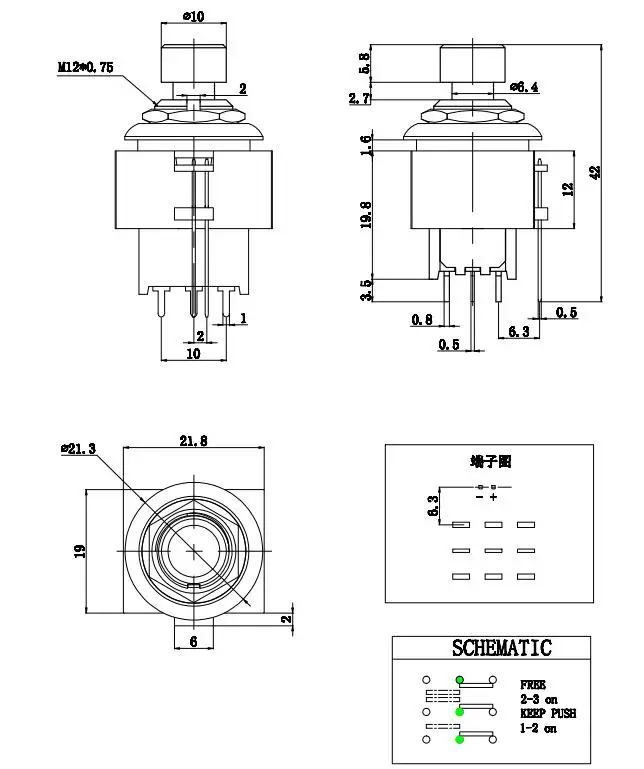

Specs and features:
accessory | 2 nuts and 2 washers |
color | Blue(black) |
terminal material | copper plated nickle |
Place of original | China(mainland) |
thread height | 7/16"(height can be customized) |
Rating | 250V AC 2A; 125V AC 4A; 30V DC 4A |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥500MΩ 500V DC |
Withstand Voltage | 1000V AC/min |
Life | ≥10000cycles |
Panel Mounting Hole | 12 mm |
Operating Force | Latching:1.1 1.6 2.0 3.0kgf |
Led Color | Single Color:Red Blue Green
|
Led Voltage | 2-3.2V |
Terminal | Solder |
FUTAI found in 2003. A 15 years experience professional guitar effect guitar foot pedal switch encoder and potentiometer manufacture. We have several new patented led guitar effect switches. Factory size is about 1500 square meters. All of our products approved by ROHS We are sure that long term business relationship due to High Quality and Good Price, and we have full confidence to meet you clients’ quality level and provide good price. Client comes first forever. Let’s mutual benefit.
EMS: need 10-15 business days to reach your side
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European
or By Ocean & By Air
Service:
WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
If the product received is not as DESCRIBED, a replacement will be issued.
Q: what is your MOQ for this item?
A: MOQ is 100, but always flexible.
Q: Can I get some samples?
A: Sure, Sample order is available.
Q: what about lead time?
A: 7-10 days after deposit received.
Q: terms of payment?
A: Trade Assurance, T/T, credit card, western union, cash, Money Gram
Q: My item was damaged in shipping?
A: Our parts are carefully packaged to prevent damage in shipping.
