JFE 9243 Assurance 9 Motors Glass Straight line used edge and polishing machine with CE from China factory
- Category: Glass Production Machinery >>>
- Supplier: Foshan Jinfeng Commercial Co. Ltd.
Share on (60748232199):
Product Overview
Description

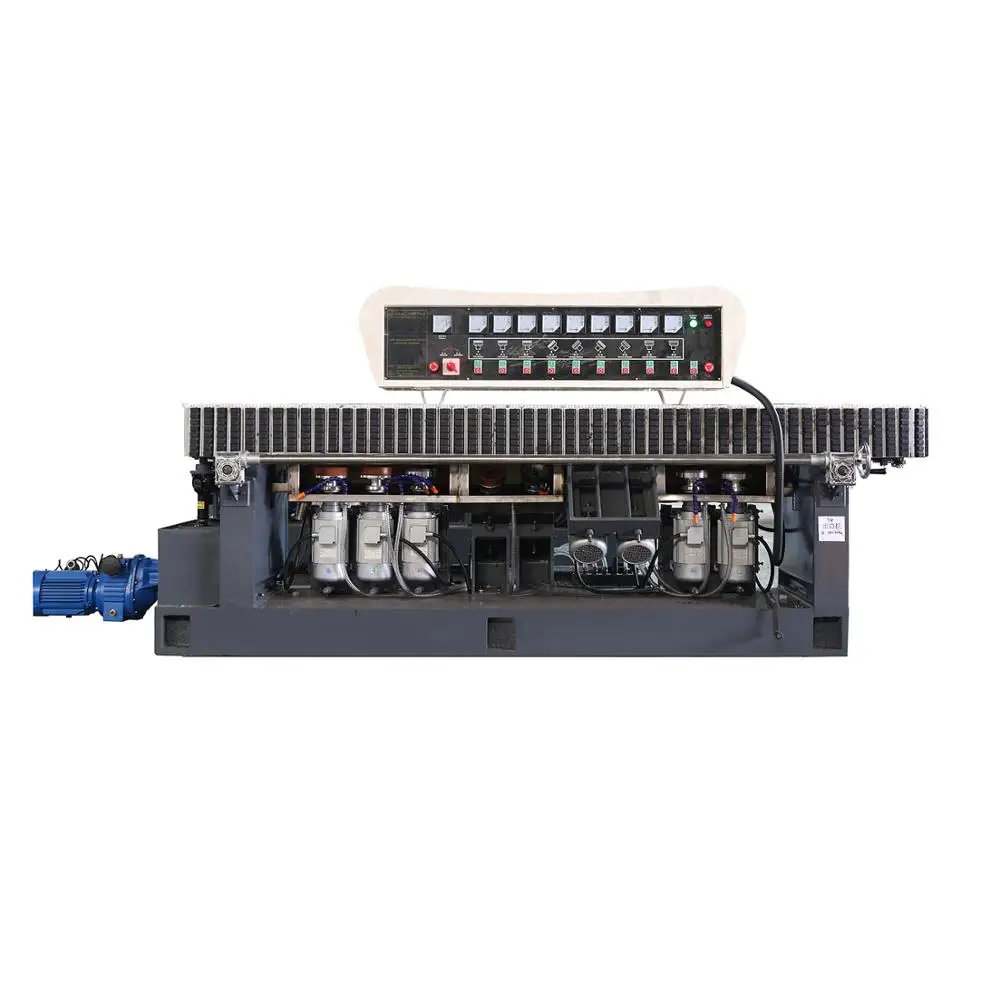

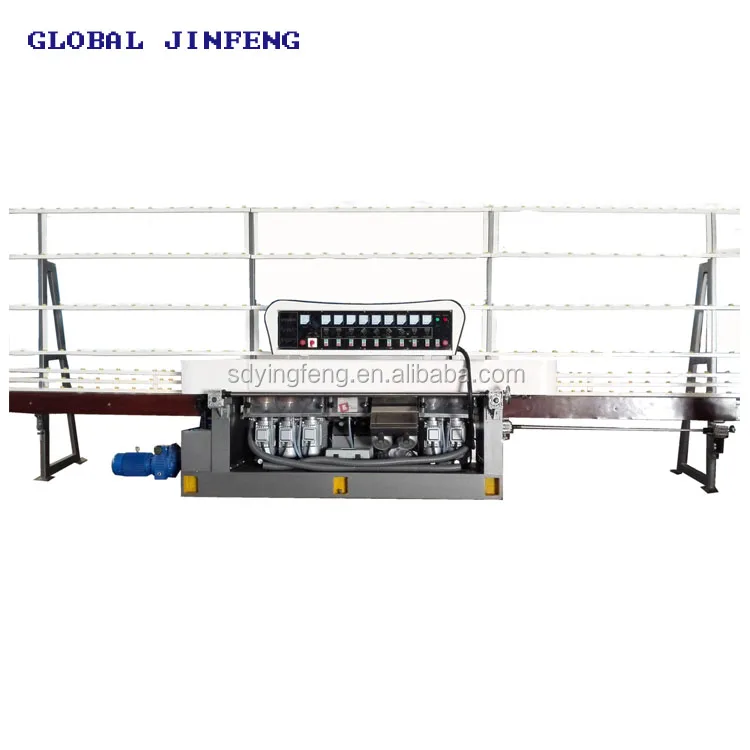

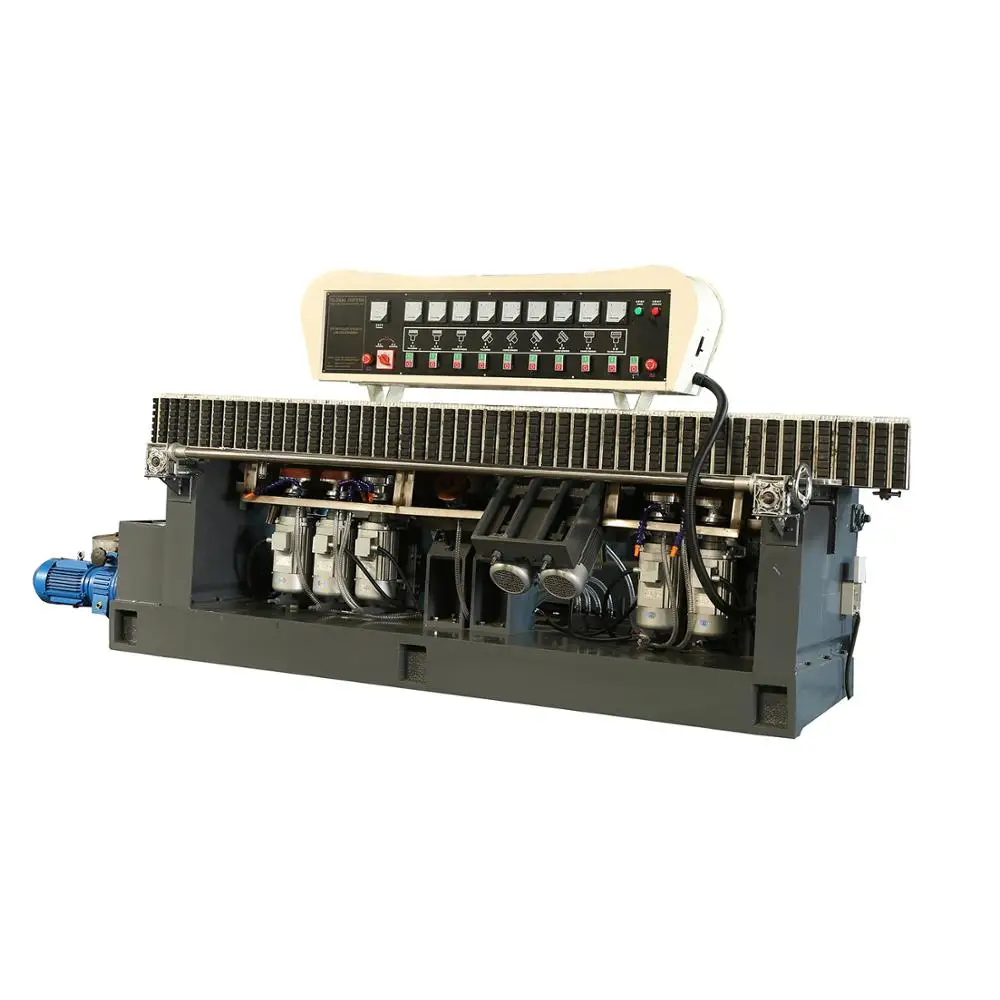

JFE - 9243 Alibaba Assurance 9Motors Glass Straight Line Used Edge And Polishing Machine With CE From ChinaFactory
The machine is suitable for edging the straight line and chamfer angle of siffer-size of flat glass. It combines coarse, fine grinding and polishing of the straight line together with coarse fine edging of the two side corners in one procession. It is characterized with mechanical stepless adjustment with wide range, steady speed changing. When edging the feeding spreads can be adjusted.
Mainly use for window,door,furniture glass working and very popular.
Noted: the device size specifications can be customized according to customer requirements.
Name | Specification |
Min. glass size | 100x100mm |
Max. glass size | 3000x3000mm |
Glass thickness | 3-25mm |
Transmissinon speed | 0.5-5m/min |
Power | 20kw |
Weight | 2700kgs |
SPECIFICATIONS | ||||||
Engine | Engine model | Kw/rpm | 2800 | |||
No. of Engine | Piece | 9 | ||||
Net Power | Kw | 2.2 | ||||
Engine brand | Jinlong | Huashun | ABB and so on | |||
Electric brand | Zhengtai | Schneider | others | |||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components ,electric parts and operation parts.
3) Coarse gringding,fine grinding and polishing can be completed in one time, ensuring the accuracy and polishing brightness achieving to the mirror effect.
4) The base,beam,swing frame,upright column and grinding head are of casting materials(annealed to prevent deformation). They have extreme resistance to abrasion and deformation, as well as the best shock absorbing properties.
5)Best glass grinding equipment for processing glass mosaic,craft glass,decoration and furniture glass, doors and windows, bathroom mirror and cosmetic mirro, it is a machine with multi-use. 6)PLC and touch screen is optionally avaliable, which can automatic control the thickness and residual thickness.
Machine Parts

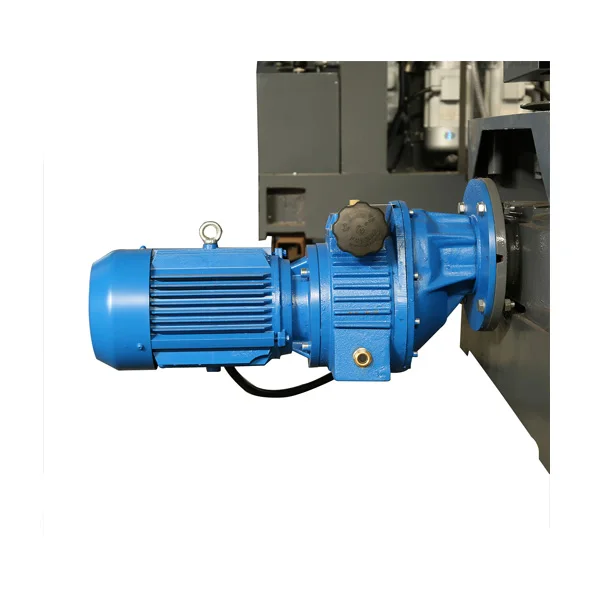

Name: Engine
Original: China
Domestic famous engines, 2800 Kw/rpm,2.2KW High economic benefits.
Main Features
Name: Electric
Original: China
Domestic famous electric.
Machine Parts
Name: Belt
Original: China
Good transmission stability
Main Features
Name: Drive chain
Original: China
Domestic famous engines chain,
Main Features
Name: Casting base
Original: China
The base is of casting materials(annealed to prevent deformation). Have extreme resistance to abrasion and deformation, as well as the best shock absorbing properties.
PLC JFE-9342 glass straight line edging machine,PLC controled.
Packaging-Plywooden case | ||
Size | 4000 (L) * 1500 (W) * 1800mm (D) | |
Weight | 2700kgs | |
Packaging Details | Welcome buy machine one pieces also welcome. If one machine better package with wood package make the goods safety. | |
Packaging-wrap film | ||
Size | Have many pieces package | |
Weight | 2700kgs | |
Packaging Details | If customer buy many machines, single machine packed with wrap film and load into a container with metal steel fixed with container . | |
Global Jinfeng Co.,Ltd is a professional glass machinery company specialized in glass machine and accessory for more than 10 years.
Our products enjoy a good reputation both at home and abroad.Glass straight line edging machine is our main product,with a good reputation both at home and abroad.
Till now we have old customers from USA,Mexico,India,Philippines,Poland,
Turkey and many other countries such as Brazil,Vietnan.
Machinery
Glass straight line edging machine
Glass beveling machine
Glass washing machine
Glass cutting machine
Glass tempering furnace
Glass working kiln Glass double-edge machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
