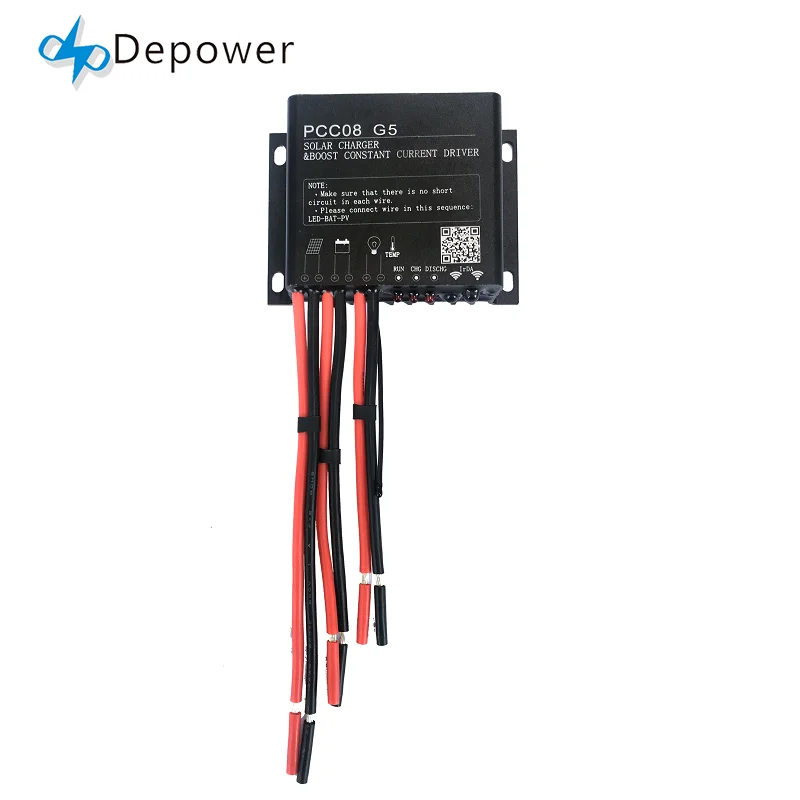

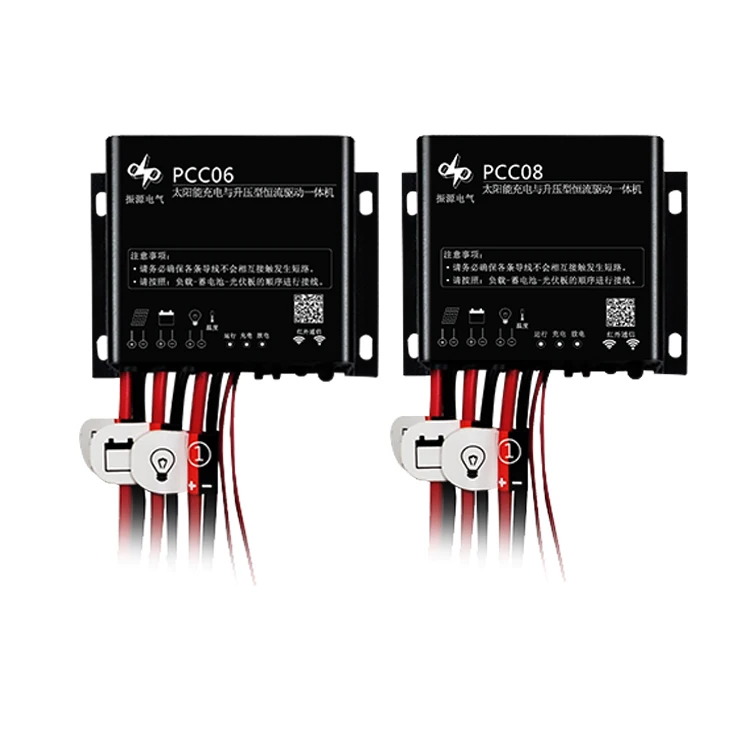

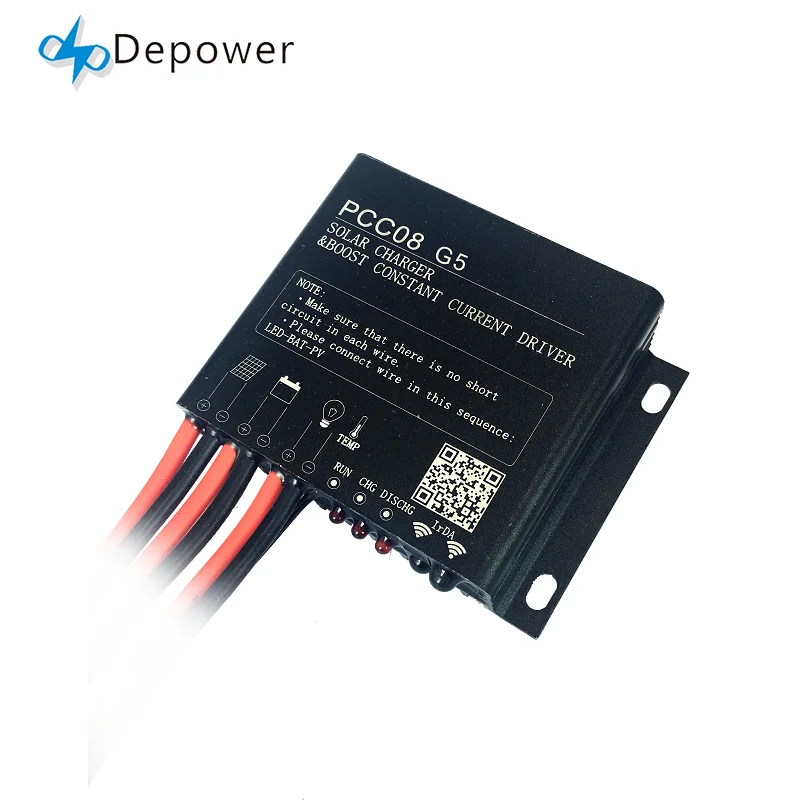

IP68 PCC08 8a 12V PWM Solar Charger Controller for Solar Street light with Lithium Battery led driver

IP68 Intelligent 8A 12V PWM Solar Charge Controller Boost Constant Current with Lithium Battery

Features :

*Professional design to promote system reliability

-Using international well-know brand semiconductor device.

- High LED driving, significantly reduce the product temperature.

- IP68 protection degree without any buttons, further improve the waterproof reliability.

*Discharge efficiency

- LED constant current drive efficiency up to 96%

-Dimming LED constant current drive efficiency from 91%-96%

*Minimal power consumption

-The current consumption ≤10mA

*Intelligent battery management

-It is PWM and CV charge, which matches with Li protect board perfectly.

- Significantly extends the battery lifetime up to 50% base on intelligent temperature

compensation charge and discharge management.

- Intelligent energy management of battery ensures that the battery charge & discharge in

shallow state which significantly extend the battery life.

*Intelligent LED drive management

- Light control function, automatic lights LED in the dark, turn off automatically at dawn

- Constant current drive

- three times control.

- Delaying infrared body sensor

- Morning lighting

- Dimming function, control to output different power in different typical time.

*Flexible parameter set

- Excellent man-machine interface, convenient operation.

- Infrared wireless communications, connecting with a handheld remote control for easy installation.

*Protect function

- Battery and the solar panel reverse connection protection.

- To prevent the battery discharge to the solar panel .

- Battery low voltage disconnect and reconnect voltage protection.

-The LED output short and open circuit protection.
