6V/12V 1500mA Automatic Car Motorcycle lead acid battery charger battery maintainer float charger compact size

Product Overview

Description

6V/12V 750mA Automatic Car Motorcycle lead acid battery charger battery maintainer float charger compact size





Upgraded version:
1. Added memory function, remember the voltage you used last time you charged.
   12V is not the default voltage, which is a good solution to the sudden power failure,
   for 6V battery charging without worries.
2. Defective Battery Recognition Function
3. 72-hour safety feature

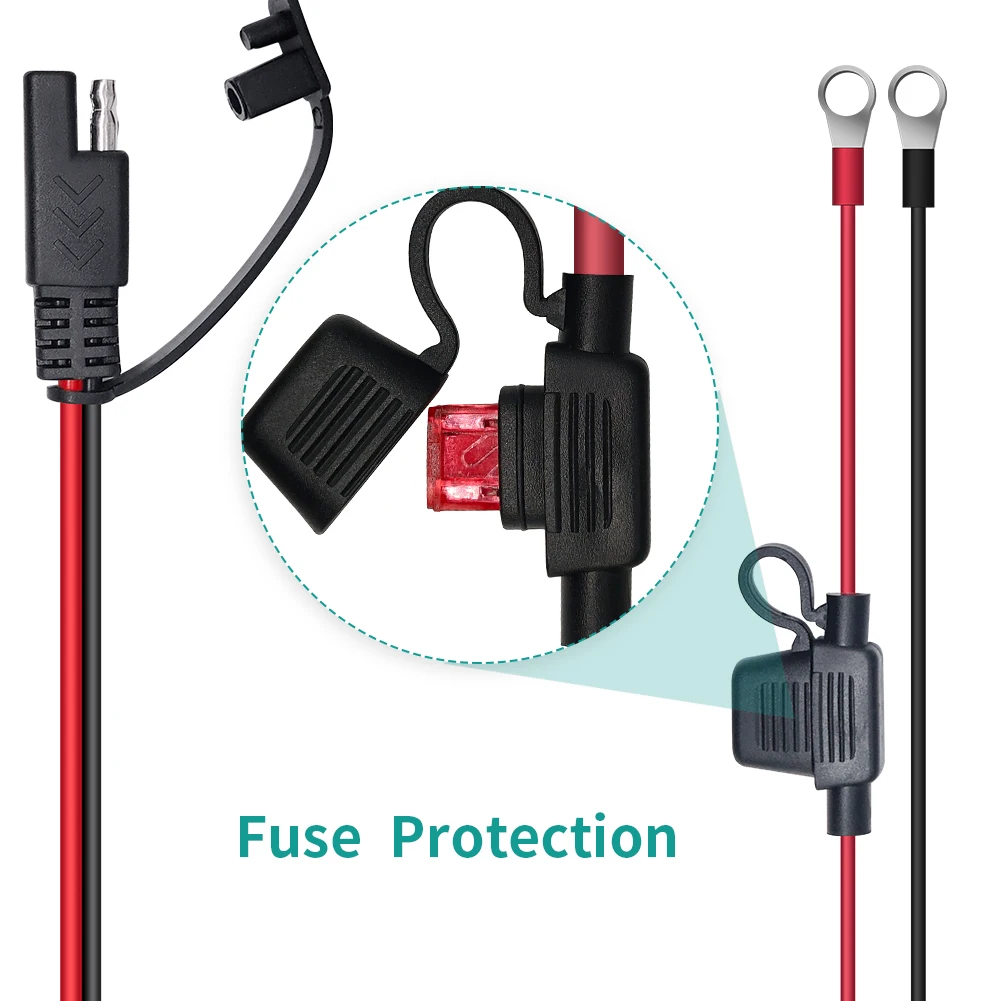

4. Add a fuse on the ring terminal cable

EPA1020 is 4 stages smart battery charger by  Microprocessor controlled with switch mode for 6V and 12V is selectable output .it is ideal for charging your CAR,MOTORCYCLE AND RIDE-ON TOY batteries,suit for type of batteries included AGM GEL VRLA SLA WET and deep-cycle.

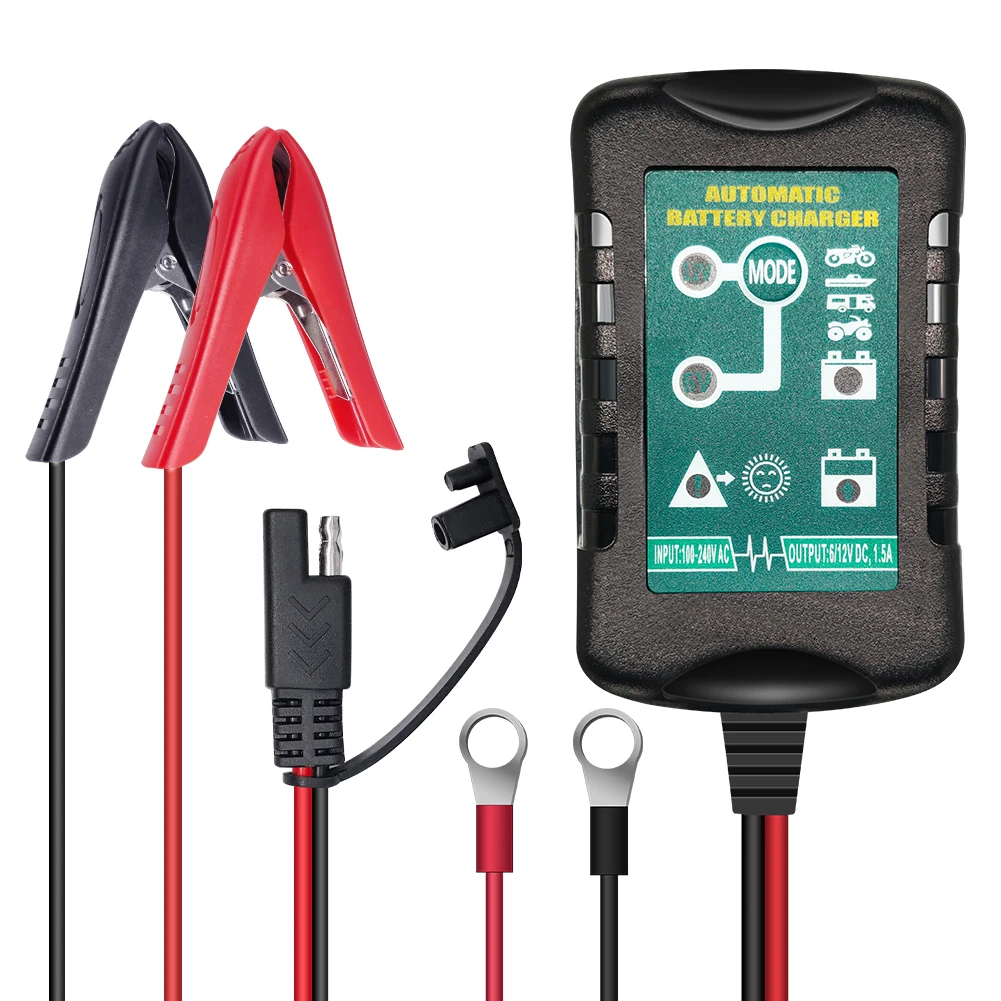

Product view



                        Fully charges and then Maintains













FEATURE:

DESIGNED  FOR MOTORCYCLE, CAR & MARINE BATTERIES



Fully automatic – faster, safer, smarter
Microprocessor controlled – automatically adjusts the amperage rate to charge and maintain
Monitors the battery and resumes continuous charging when battery becomes discharged
Multi-stage charging for added precision, safety and battery life
Automatic voltage detection
Glowing charger status interface
Charges standard, AGM and gel and deep-cycle batteries
Reverse hook-up protection

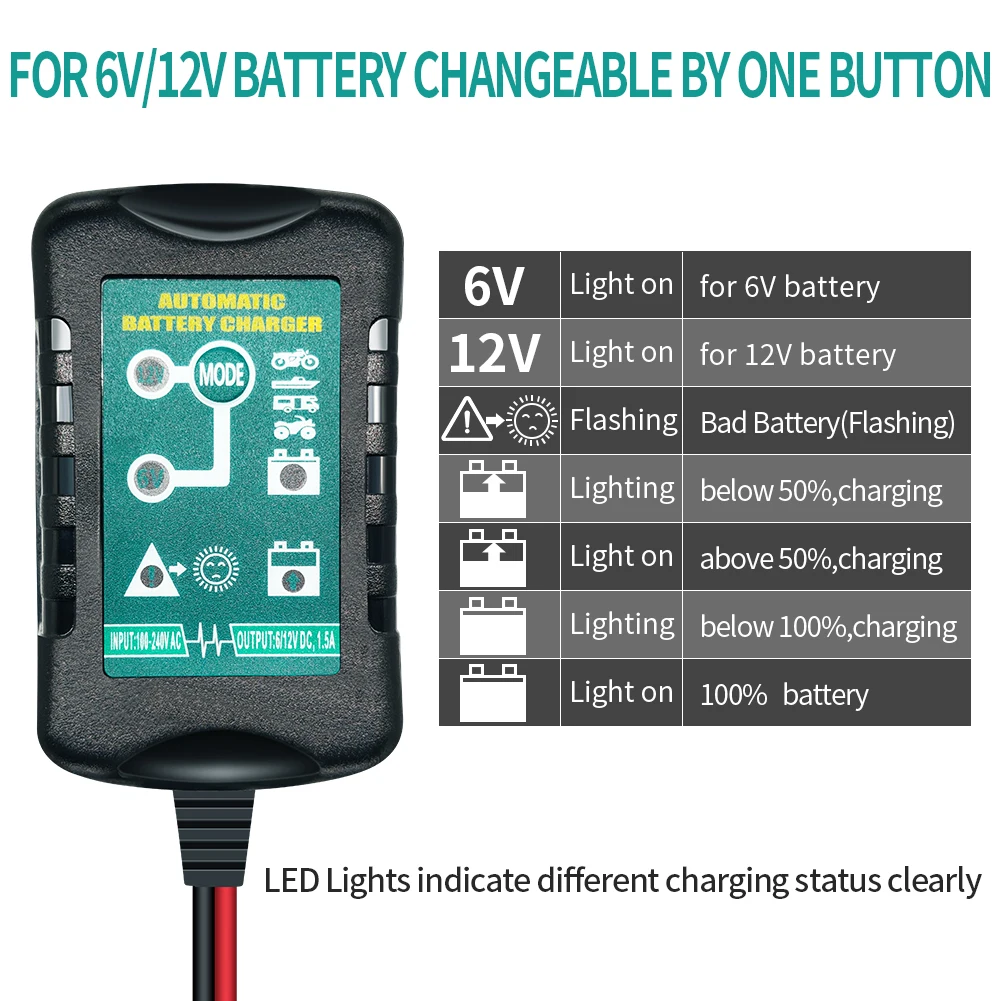

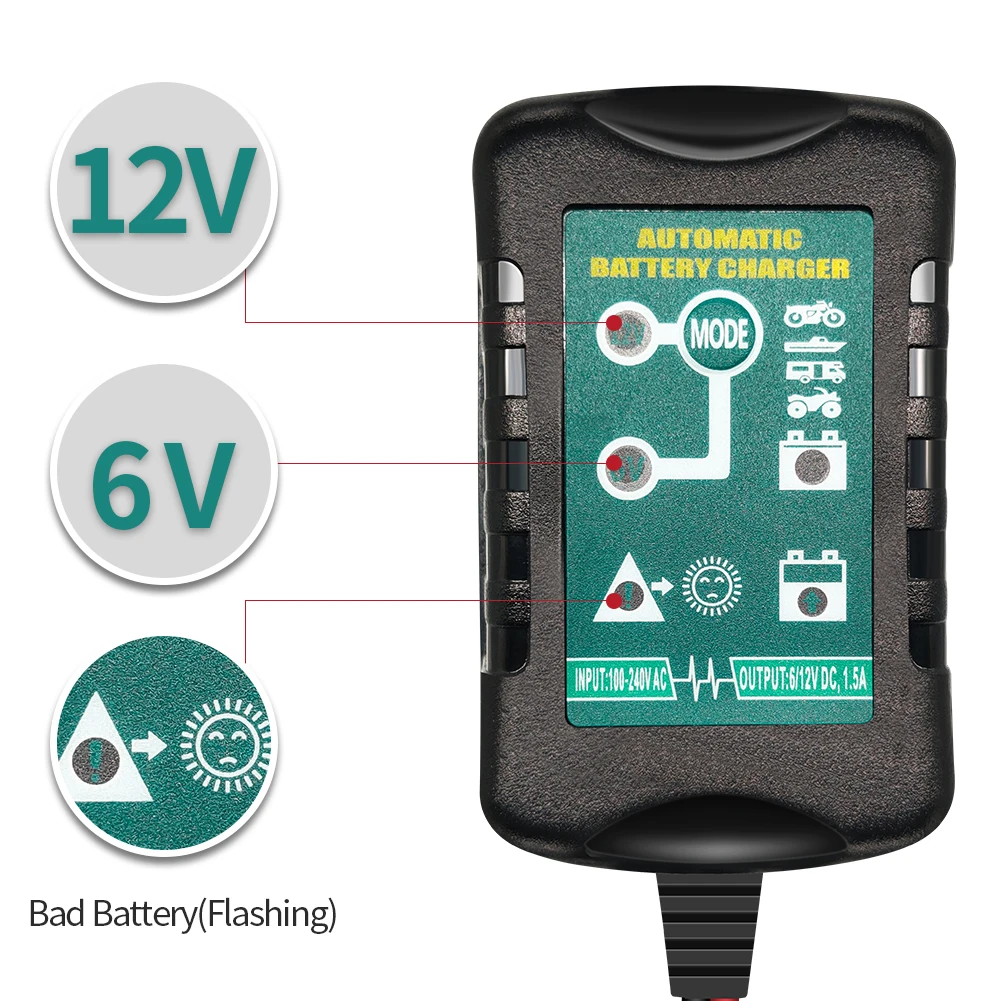

INDICATOR:

2LEDs indicate battery charging 50%,100%

ONE LED:6 Volt POWER ON

ONE LED:12 Volt POWER ON

ONE LED: FAULT



4-stage charging process



Stage 1:initialization,when the charger power on then it start self-check

and detect the battery correct connect. low output voltage without

battery Fault LED is light, please CHECK THE POLARITY IS CORRECT.



Stage 2:Bulk charge,using the charger highest rated current for the type

of battery in use until it reaches 80% capacity( LEDs 50%   ON ,100% blinking)



Stage 3:Absorption,the output voltage is limited to 7.3V(6V battery) or 14.5V(12V battery) while current declines as the battery charges to its full capacity without overheating( LEDs 50%  ON ,100% blinking)



Stage 4:Float,At this stage,the battery is fully charged and the charger maintains the battery through pulse charging( LEDs 50%  ON ,100% ON)



CE,Rohs approved











PRODUCT DETAILS :



Part Number	EPA1020-0612
Weight	0.45lb
Size	3.35*2.05*1.5 in
Category	Smart&Automatic
Flot mode	Yes
Charger Battery Compatibility	12 Volt @6 Volt SLA GEL AGM VRLA WET Battery
Charger Output Amperage	0.3-1.5
Charging Battery(Ah)	5-36
Charging Time(Hrs)	3-24
Display Format	LED Lights
Battery indicator	2LEDS for 50% 100% battery
High Frequency Charge	Yes
Housing Material	Plastic@PC
Input Voltage	100-240Vac
Maximum Charging Current	1.5A@12V   1.5A@6V
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Thermal Overload Protection	Yes
Cooling	natural





If the 6 Volt & 12 Volt 1.5Amp Automatic Battery Charger Maintainer For Car Motorcycle Marine Batteries caters to your requirement, welcome to wholesale the discount product from our factory. As one of the leading China manufacturers and suppliers of various chargers, we can assure you of its high quality, good performance and strong durability.







WARNING!

1,This charger is designed for charging AGM,GEL,Flooded(Wet),Calium

  type deep cycle,VRLA maintenance free lead acid batteries from 5 to

  40Ah,Do not use for any other purpose

2,Since batteries may emit explosive gases,always provide good

  ventilation and avoid any source of flames or sparks when charging.

3,To reduce risk of damage to electric plug and cord,pull by the

  plug rather than by the cord when disconnecting charger.

4,Use of an improper extension cord could result in a risk of fire

  and electric shock

5,Do not operate charger if you notice any signs of damage to charger or

  cords

6.Do not disassemble the charger;take it to a qualified serviceman when

  service of repair is required.in correct reassembly may result in a risk of

  electrical shock or fire.

7.To reduce risk of electric shock,unplug charger from AC outlet before

  attempting any maintenance or cleaning
