New original PLC Programmable Controller PLC connected with HMI with software for industrial automation process Plc system
- Category: PLC >>>
- Supplier: Shenyang Guangcheng Technology Co. Ltd.
Share on (60748886672):
Product Overview
Description
Notice
Dear! Before payment, please confirm your detail requirement, GCAN-PLC-400 itself doesn't include any IO points, if you want different IO modules, please contact us.
Product introduction
GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of
fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
GCAN-PLC series can be programmed in 5 programming languages according to IEC 61131-3, including: SFC (sequence function diagram), LD (ladder diagram), FBD (function block), ST (structured text), IL (instruction table), this makes the PLC program easy to
transplant. IEC 61131-3 also allows multiple programming languages to be used in the same PLC, allows program developers to choose the most appropriate programming language for each specific task, and allows different software modules in the same control
program to be written in different programming languages.
fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
GCAN-PLC series can be programmed in 5 programming languages according to IEC 61131-3, including: SFC (sequence function diagram), LD (ladder diagram), FBD (function block), ST (structured text), IL (instruction table), this makes the PLC program easy to
transplant. IEC 61131-3 also allows multiple programming languages to be used in the same PLC, allows program developers to choose the most appropriate programming language for each specific task, and allows different software modules in the same control
program to be written in different programming languages.

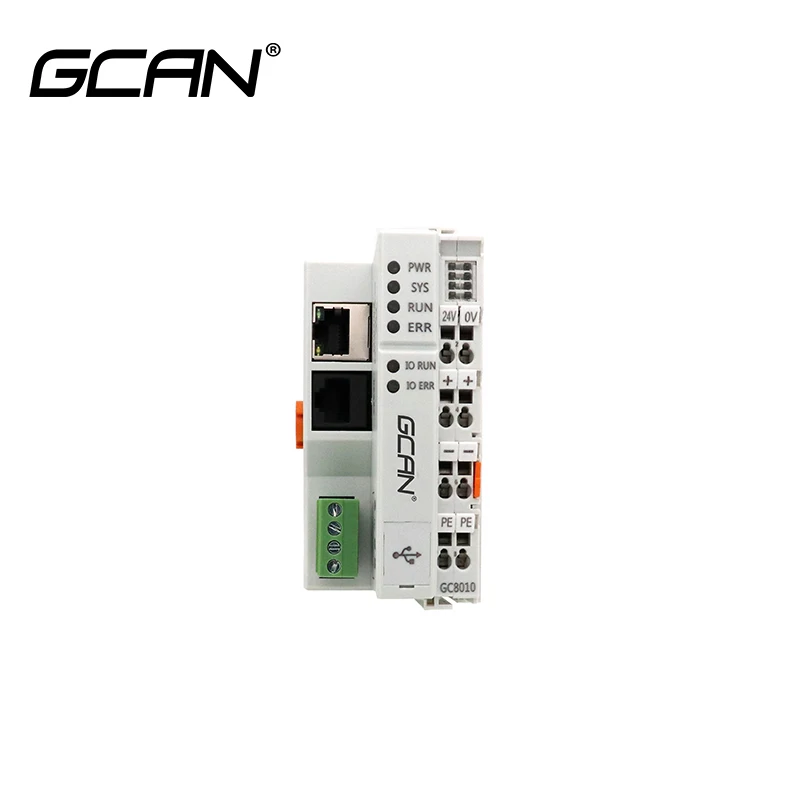

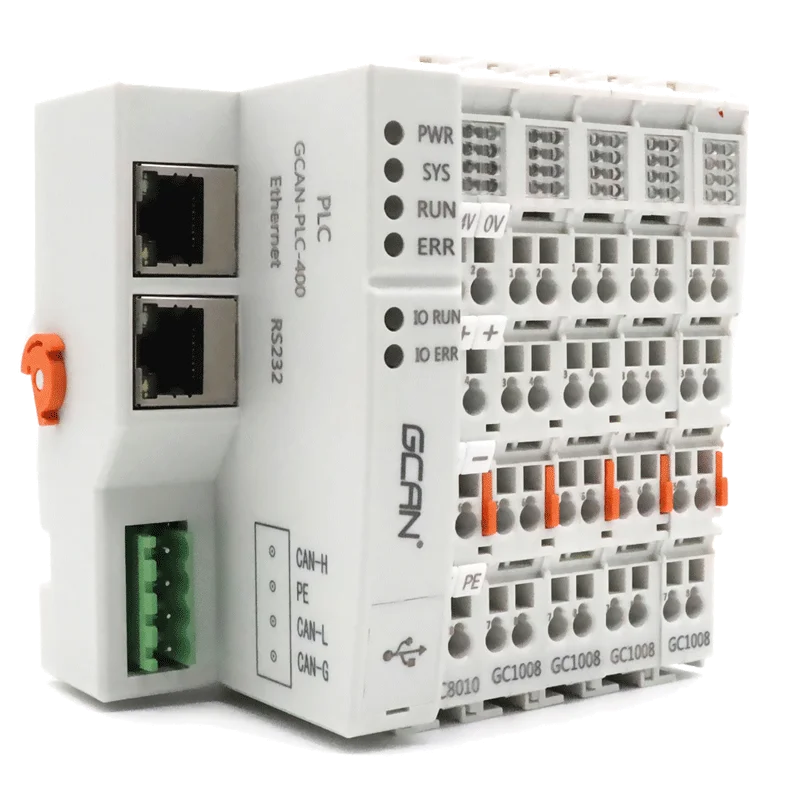

GCAN-PLC-400 module
GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
GCAN-PLC series can be programmed in 5 programming languages according to IEC 61131-3, including: SFC (sequence function diagram), LD (ladder diagram), FBD (function block), ST (structured text), IL (instruction table), this makes the PLC program easy to transplant. IEC 61131-3 also allows multiple programming languages to be used in the same PLC, allows program developers to choose the most appropriate programming language for each specific task, and allows different software modules in the same control program to be written in different programming languages.
Product parameter
①CANopen baud rate supports : 1000k, 500k, 250k, 125k, 100k, 50k 10k
②PDO mode supports : Synchronization, looping, event-driven, polling
③Terminal modules : Up to 32 bus terminal modules
④Transmit : 4 PDOs ( CANopen) and receive 4 PDOs ( CANopen)
⑤Configuration mode: Automatic configuration
⑥CAN interface : one open 4 terminal
⑦Supply power :24V DC (-15%/+20%)
⑧Input current：70mA+ ( total GC-bus current), maximum 2.5A
⑨Starting current ：About 2.5 times continuous current
⑩Power contacts：Maximum 24V DC/maximum 10A
⑪Electrical isolation ： 1500 Vrms
⑫Working temperature ：-40.00℃~ 85.00℃
⑬Working humidness ：95%RH，without condensation
⑭EMC test：EN 55024-2011-09;EN 55022-2011-12
⑮IP grade ：IP 20
⑯Weight：100g▶ CANbus Interface , According to ISO11898 standard
▶ Ethernet interface ,10/100M self-adaption
▶ serial interface, RS232/485
▶ Programming environment: OpenPCS ( According to IEC 61131-3 standard)
▶ Supply power: 24V DC (18~36V)
▶ Terminal modules : Up to 32 bus terminal modules
▶ Working temperature : -40.00℃~ 85.00℃

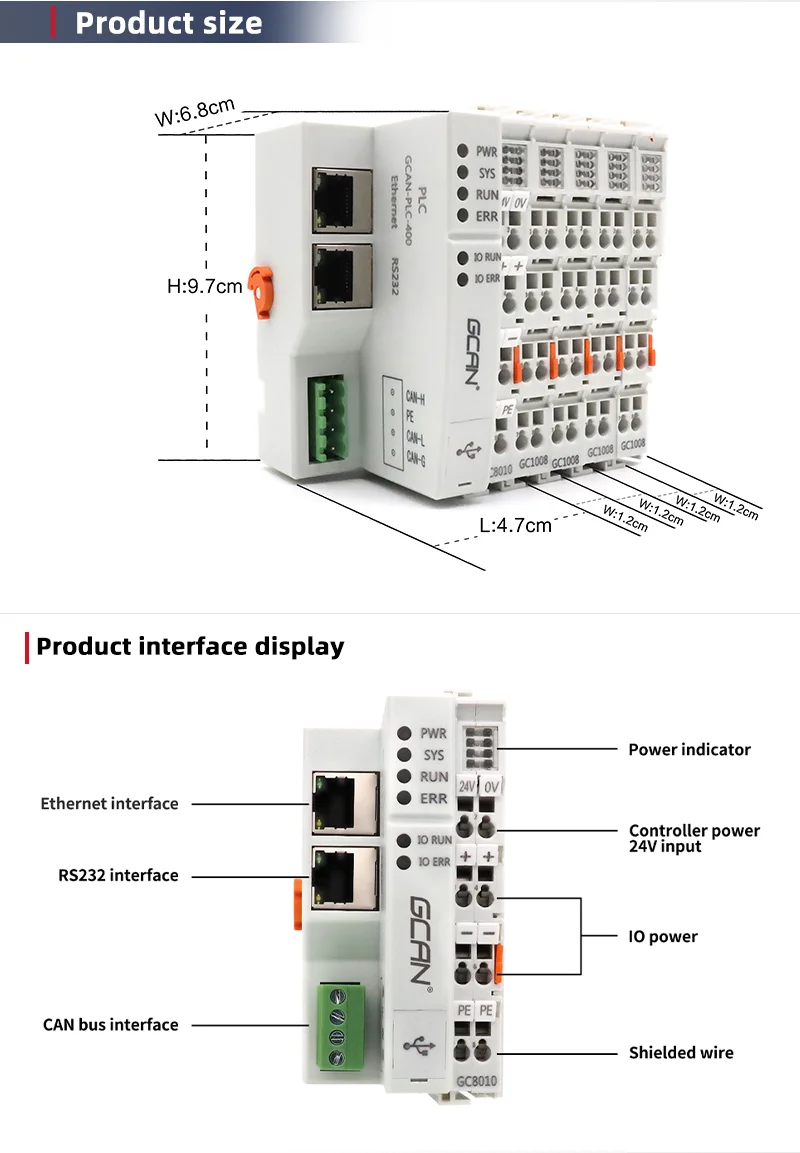

▶ SIZE：100mm*69mm*48mm
GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
GCAN-PLC series can be programmed in 5 programming languages according to IEC 61131-3, including: SFC (sequence function diagram), LD (ladder diagram), FBD (function block), ST (structured text), IL (instruction table), this makes the PLC program easy to transplant. IEC 61131-3 also allows multiple programming languages to be used in the same PLC, allows program developers to choose the most appropriate programming language for each specific task, and allows different software modules in the same control program to be written in different programming languages.
Product parameter
①CANopen baud rate supports : 1000k, 500k, 250k, 125k, 100k, 50k 10k
②PDO mode supports : Synchronization, looping, event-driven, polling
③Terminal modules : Up to 32 bus terminal modules
④Transmit : 4 PDOs ( CANopen) and receive 4 PDOs ( CANopen)
⑤Configuration mode: Automatic configuration
⑥CAN interface : one open 4 terminal
⑦Supply power :24V DC (-15%/+20%)
⑧Input current：70mA+ ( total GC-bus current), maximum 2.5A
⑨Starting current ：About 2.5 times continuous current
⑩Power contacts：Maximum 24V DC/maximum 10A
⑪Electrical isolation ： 1500 Vrms
⑫Working temperature ：-40.00℃~ 85.00℃
⑬Working humidness ：95%RH，without condensation
⑭EMC test：EN 55024-2011-09;EN 55022-2011-12
⑮IP grade ：IP 20
⑯Weight：100g▶ CANbus Interface , According to ISO11898 standard
▶ Ethernet interface ,10/100M self-adaption
▶ serial interface, RS232/485
▶ Programming environment: OpenPCS ( According to IEC 61131-3 standard)
▶ Supply power: 24V DC (18~36V)
▶ Terminal modules : Up to 32 bus terminal modules
▶ Working temperature : -40.00℃~ 85.00℃
▶ SIZE：100mm*69mm*48mm
Typical applications
◆Coal mine underground transportation control system networking
◆Intelligent hotel room control system networking
◆Control system of automobile production line
◆Fire alarm and fire control system
◆Irrigation and fertilization control system
◆Extended control of data acquisition and transmission
◆Coal mine underground transportation control system networking
◆Intelligent hotel room control system networking
◆Control system of automobile production line
◆Fire alarm and fire control system
◆Irrigation and fertilization control system
◆Extended control of data acquisition and transmission
IO module
I/O | Type | Characteristic | Signal | Channel |
Digital input | GC-1008 | PNP,filtering 3.0ms | 24V DC | 8-channel |
GC-1502 | Add/Subtract 24V DC,100kHz | Counter | 2-channel | |
Digital output | GC-2008 | PNP,Imax=0.5A | 24V DC | 8-channel |
GC-2204 | 4-Relay output | 230V AC 30V DC | 2-channel | |
GC-2302 | 24V DC,0.1A | PWM | 2-channel | |
Analog input | GC-3604 /3624 | -5~+5V / -10~+10V, 16-bit | -5~+5V -10~+10V | 4-channel |
GC-3644 /3654 | 0-20mA / 4~20mA, 16-bit | 0-20mA 4~20mA | 4-channel | |
GC-3664 /3674 | 0~5V / 0~+10V AI, 16-bit | 0~5V 0~+10V | 4-channel 2-channel | |
GC-3804 | PT100, 16-bit, 2-wire | PT100 | 4-channel | |
GC-3822 | PT100, 16-bit, 3-wire | PT100 | 2-channel | |
GC-3844 /3854 / 3864 | K / S /T | Thermocouple | 4-channel | |
Analog output | GC-4602 /4622 | -5~+5V / -10~+10V, 16-bit | -5~+5V -10~+10V | 2-channel |
GC-4642 /4652 | 0-20mA / 4~20mA, 16-bit | 0-20mA 4~20mA | 2-channel | |
GC-4662 /4672 | 0~5V / 0~+10V, 16-bit | 0~5V 0~+10V | 2-channel |
Function & Application

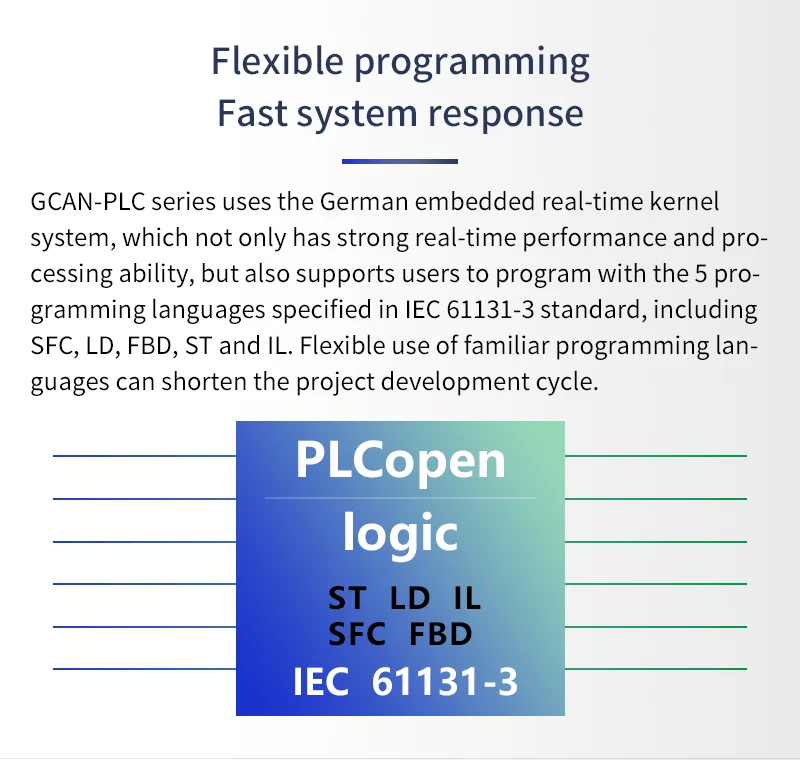

GCAN-PLC series uses the German embedded real-time kernel system, which not only has strong real-time performance and processing ability, but also supports users to program with the 5 programming languages specified in IEC 61131-3 standard, including SFC, LD, FBD, ST and IL. Flexible use of familiar programming languages can shorten the project development cycle.

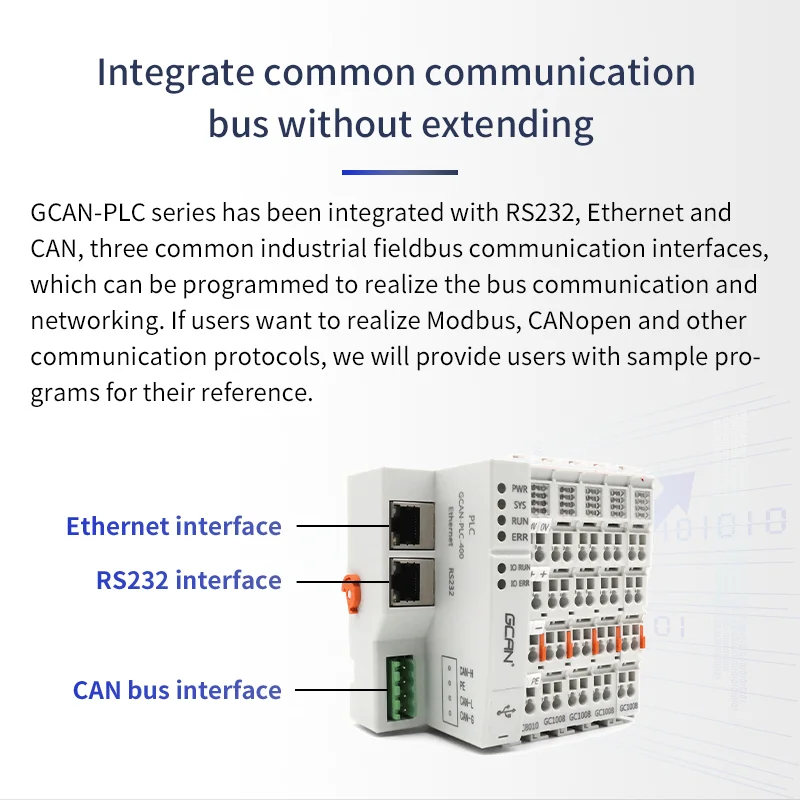

GCAN-PLC series has been integrated with RS232, Ethernet and CAN, three common industrial fieldbus communication interfaces, which can be programmed to realize the bus communication and networking. If users want to realize Modbus, CANopen and other communication protocols, we will provide users with sample programs for their reference.

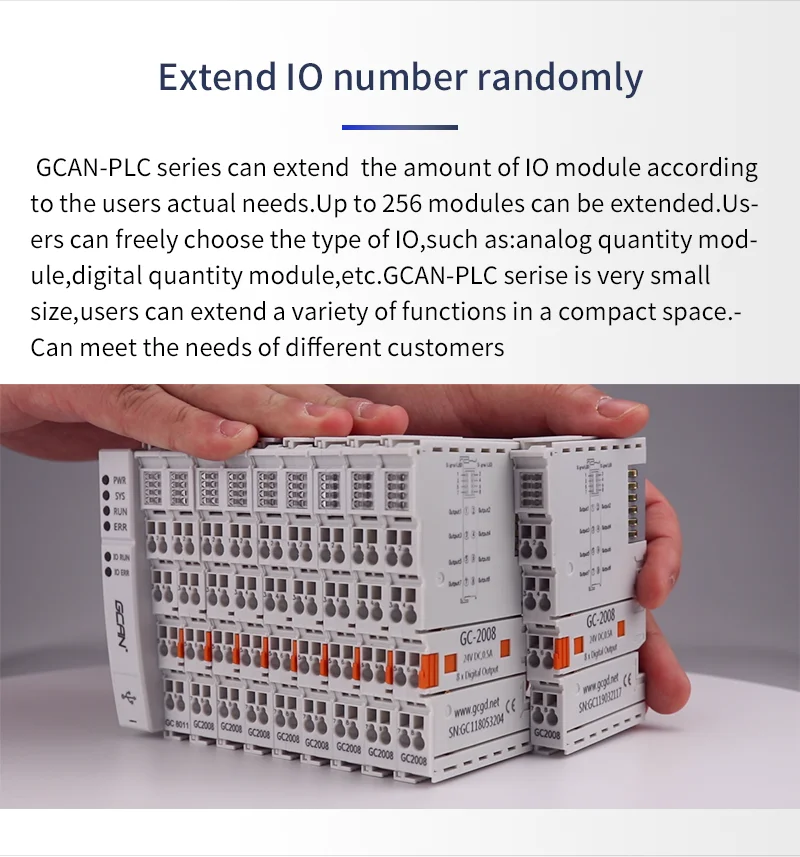

GCAN-PLC series can extend the amount of IO module according to the users actual needs.Up to 256 modules can be extended.Users can freely choose the type of IO,such as:analog quantity module,digital quantity module,etc.GCAN-PLC serise is very small size,users can extend a variety of functions in a compact space.Can meet the needs of different customers.

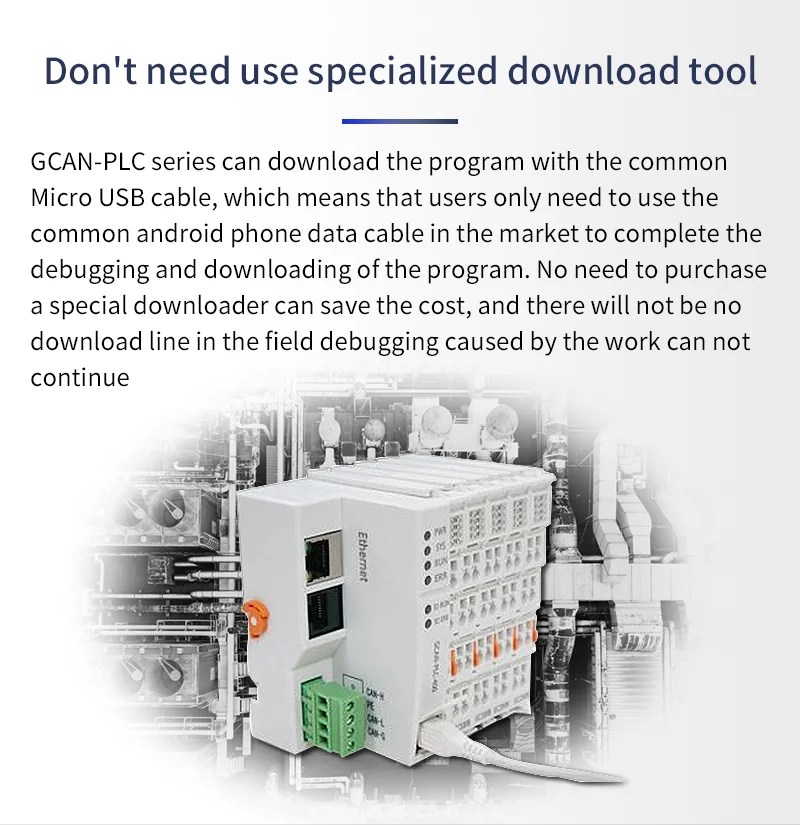

GCAN-PLC series can download the program with the common Micro USB cable, which means that users only need to use the common android phone data cable in the market to complete the debugging and downloading of the program. No need to purchase a special downloader can save the cost, and there will not be no download line in the field debugging caused by the work can not continue.
1、GCAN-PLC-400 controls the servo motor through CANopen,and then controls the bearings through the servo motor to achieve mechanical control.
2、Through the key adjustment,LED working mode,and the output result are transmitted to the screen through Modbus for users to watch.
3、The computer sends data to the PLC remotely through the network(TCP),and the PLC sends pulses to control the motor work.
3、The computer sends data to the PLC remotely through the network(TCP),and the PLC sends pulses to control the motor work.
Our advantages
3 kinds of interface
CAN, Ethernet, RS232/485
Follow ISO 11898, support CANopen/ Modbus RTU/ Modbus TCP , can be used as master or slave
IO freely expand
Planty of IO modules optional
Including digital input, digital output, analog input, analog output.
5 programming language
Support SFC (Sequential function chart),
LD (Ladder diagram), FBD (Function block),
ST (Structured text), IL (Instruction List)
Free Program software
Support OpenPCS software
Follow IEC 61131-3, The software is free with GCAN-PLC.
After-Sales Service
7 days every week after-sales technical support with our
Without specialized downloader
GCAN-PLC can use common micro usb to complete
debugging and downloading.
Packing
Ａdvantage
The products are packed in rigid corrugated cartons. In order to ensure that in the transport process will not produce product
damage due to extrusion.
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free
software and technical support if you have any question，our after-sales engineer will answer for you,please feel free to purchase.
The products are packed in rigid corrugated cartons. In order to ensure that in the transport process will not produce product
damage due to extrusion.
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free
software and technical support if you have any question，our after-sales engineer will answer for you,please feel free to purchase.
