Быстро вращающаяся дверь грузовой воздушный Душ для чистой комнаты

Product Overview

Description

Fast Rolling Door Cargo Air Shower

1.Fast rolling door cargo air shower description

  Fast rolling door cargo air shower design is based on the traditional cargo air shower room, equipped with advanced infrared sensor automatic door opening system, fast rolling door cargo air shower compared with traditional cargo air shower is door closers canceled, so truly fulfill cargo air shower automated. Person or goods enter into the infrared sensing area auto-sensing, the entering rolling door automatically open and close, person or cargo into dust blowing once completed, the exit rolling door will automatically open and close, fast rolling door automatically move up and down during the entire dust below process. Automatic rolling door cargo air shower with two doors electronic interlock so also played "gas chamber” effect, to prevent outside contamination and has not been purified air into the clean area.



2,Fast rolling door cargo air shower Parameters

Product name	A single blow	A double blow	Double double blow	Air shower
Outside Dimension	1290*1000*2050	1290*1000*2050	1290*2000*2050	1590*5000*2050
Air Shower Aera(mm)	790*860*1910	790*860*1910	790*1860*1910	790*4860*1910
Capacity:	1-2People	1-2People	2-4People	The passage
Number Of Nozzle	6PCS	12PCS	24PCS	72PCS
The wind speed	≥25m/s	≥25m/s	≥25m/s	≥20m/s
Noise	<62	<62	<62	<62
HEPA Filter	610*610*120*1pcs	610*610*120*2pcs	610*610*120*4pcs	610*610*120*8pcs
Efficiency	99.99%@0.3	99.99%@0.3	99.99%@0.3	99.99%@0.3
The power of fan	750*1pcs	750*2pcs	750*4pcs	750*8pcs
Fluorescent lamp power	20*1pcs	20*1pcs	20*2pcs	40*4pcs
Power Supply	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ

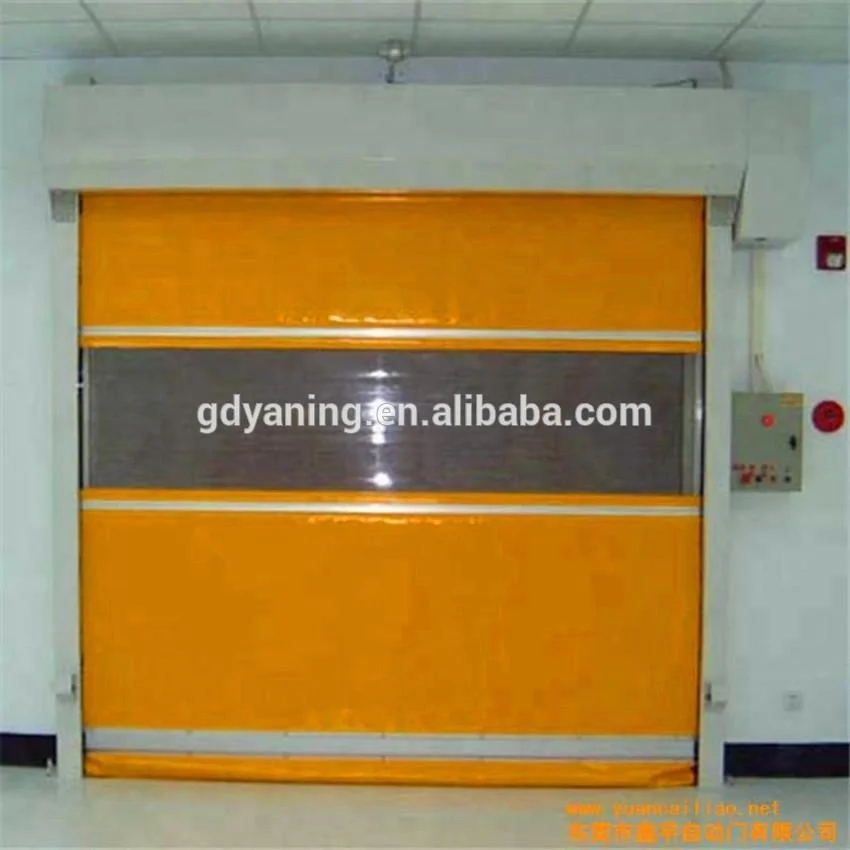

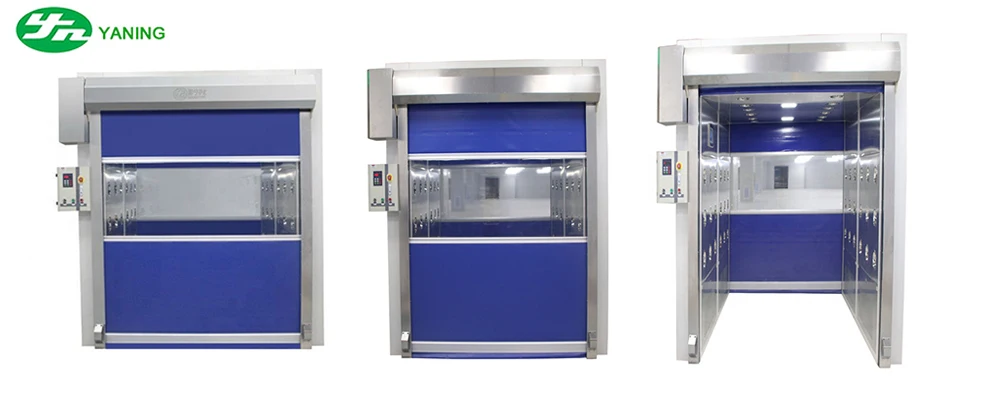

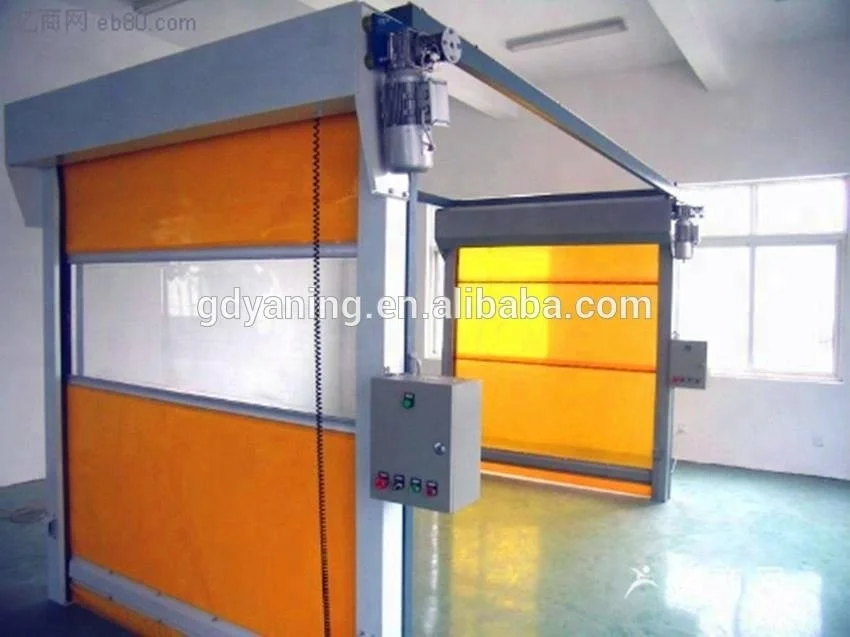

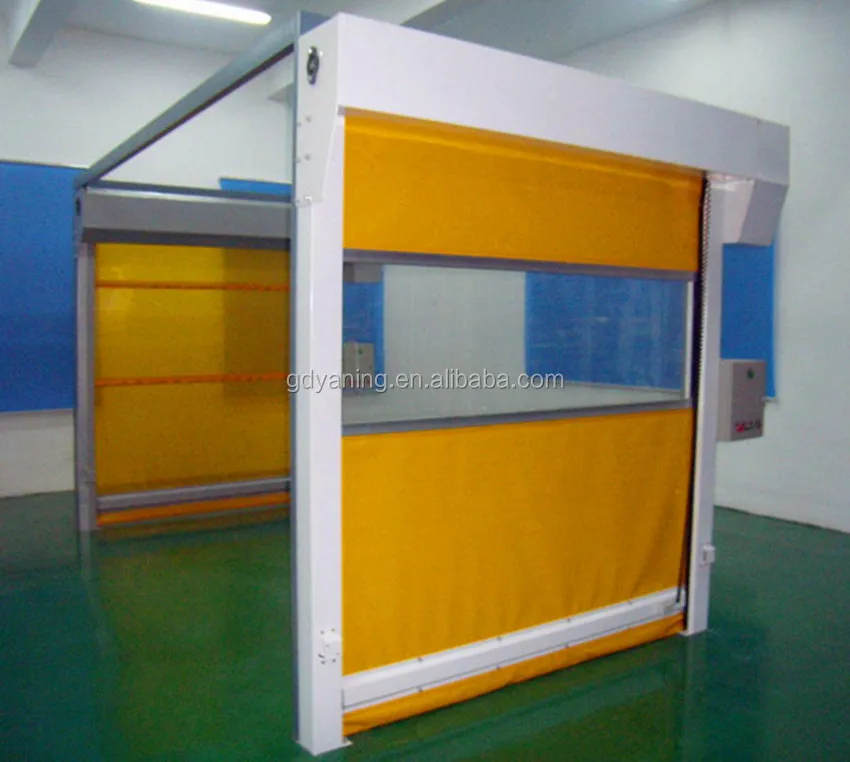

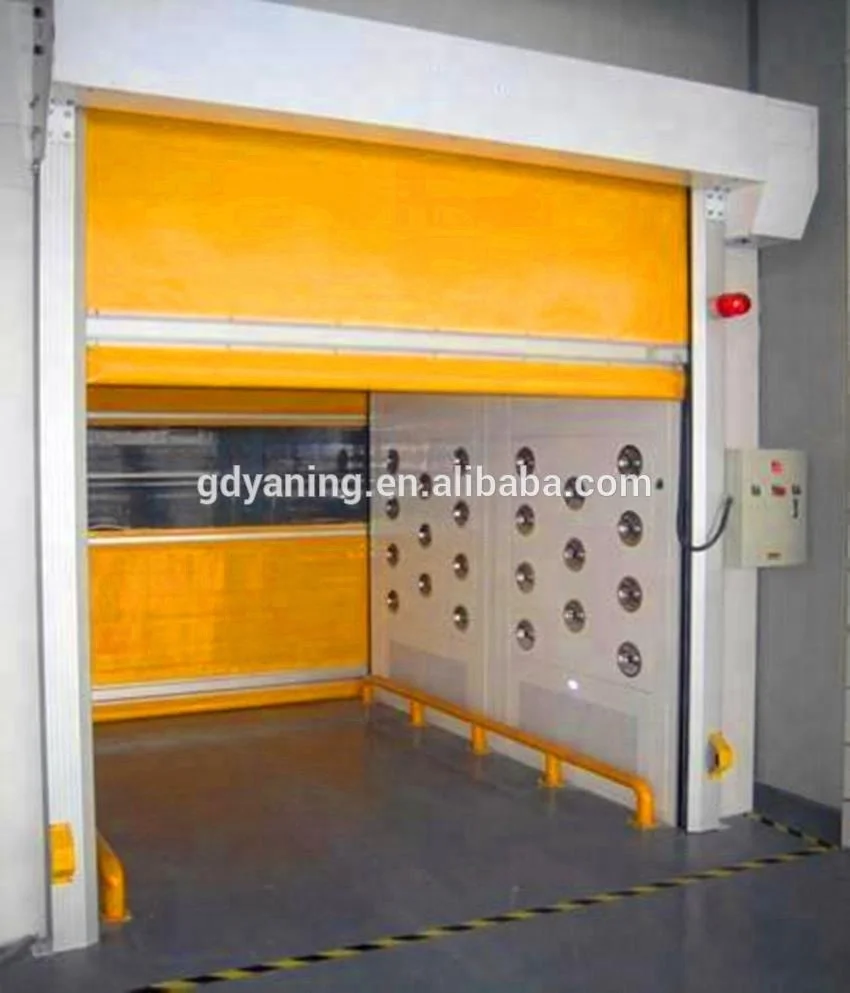

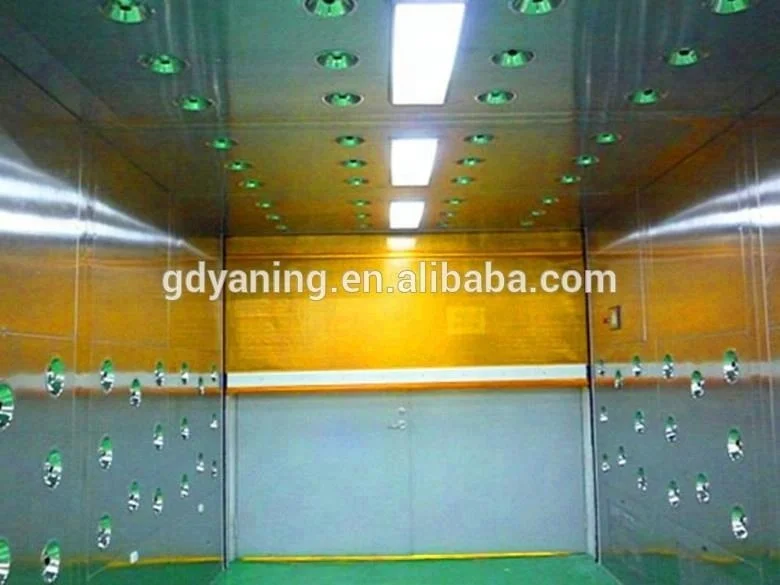

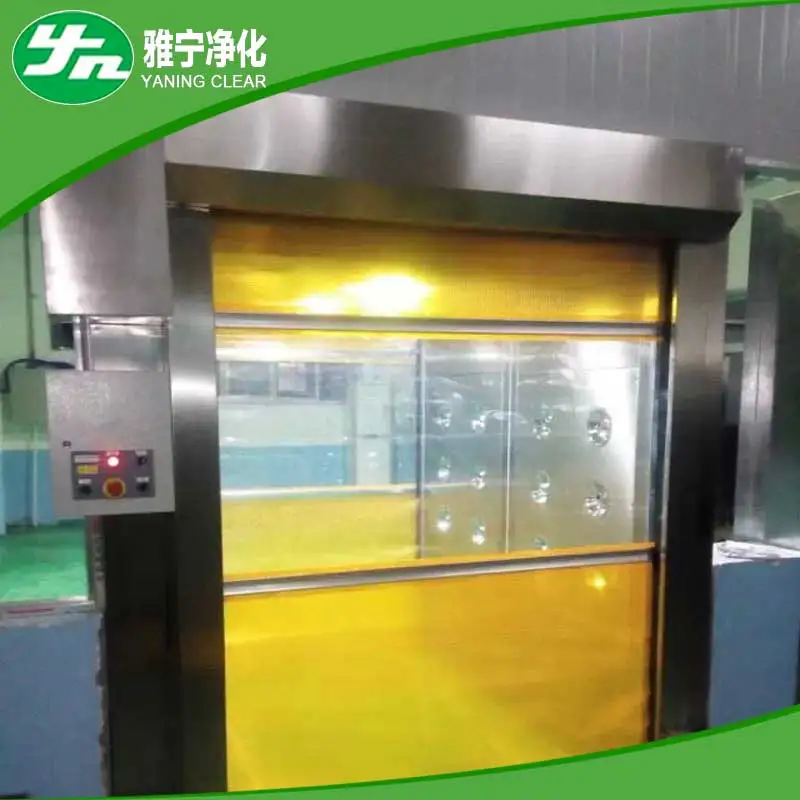

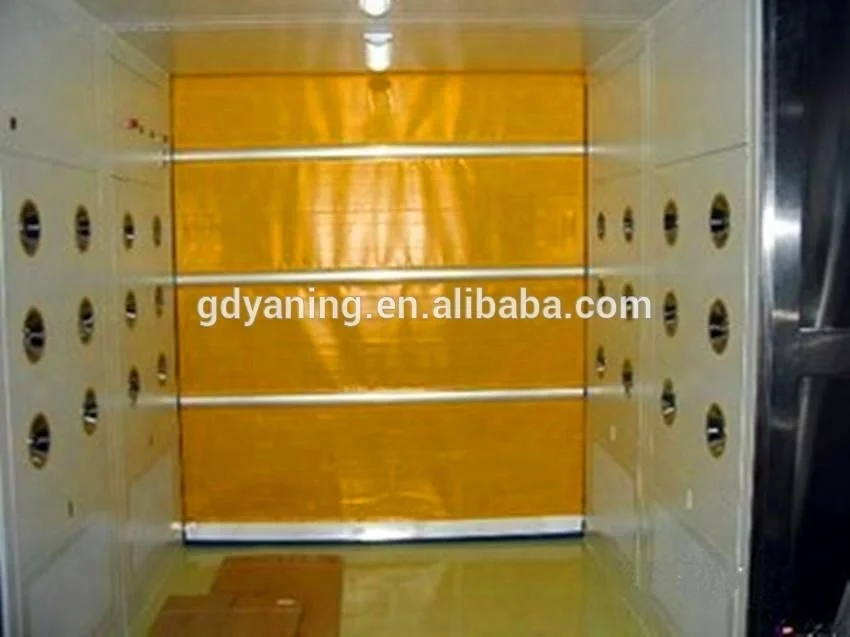

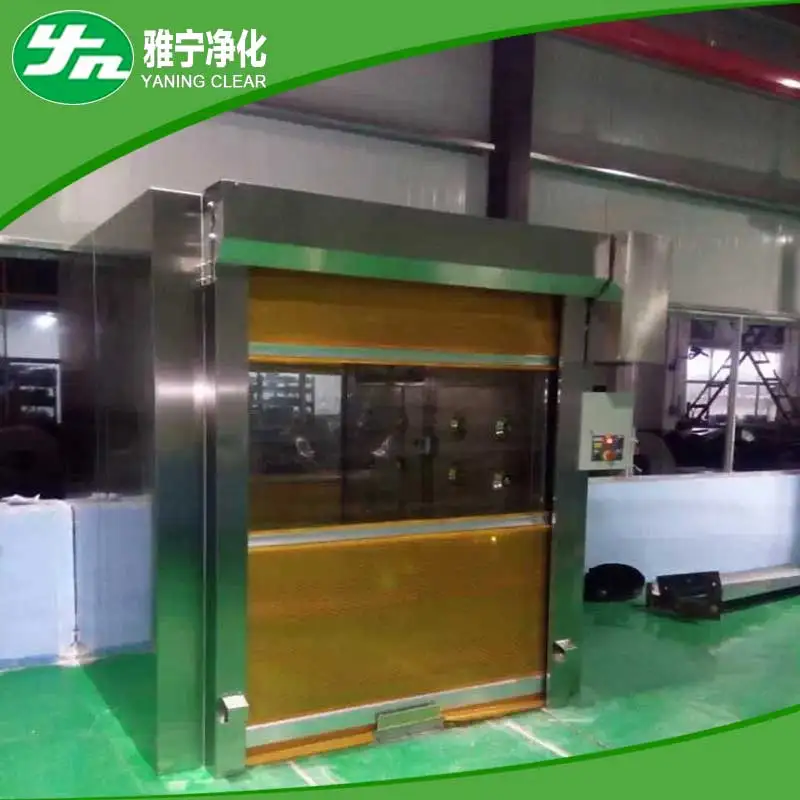

3,Fast rolling door air shower figure
