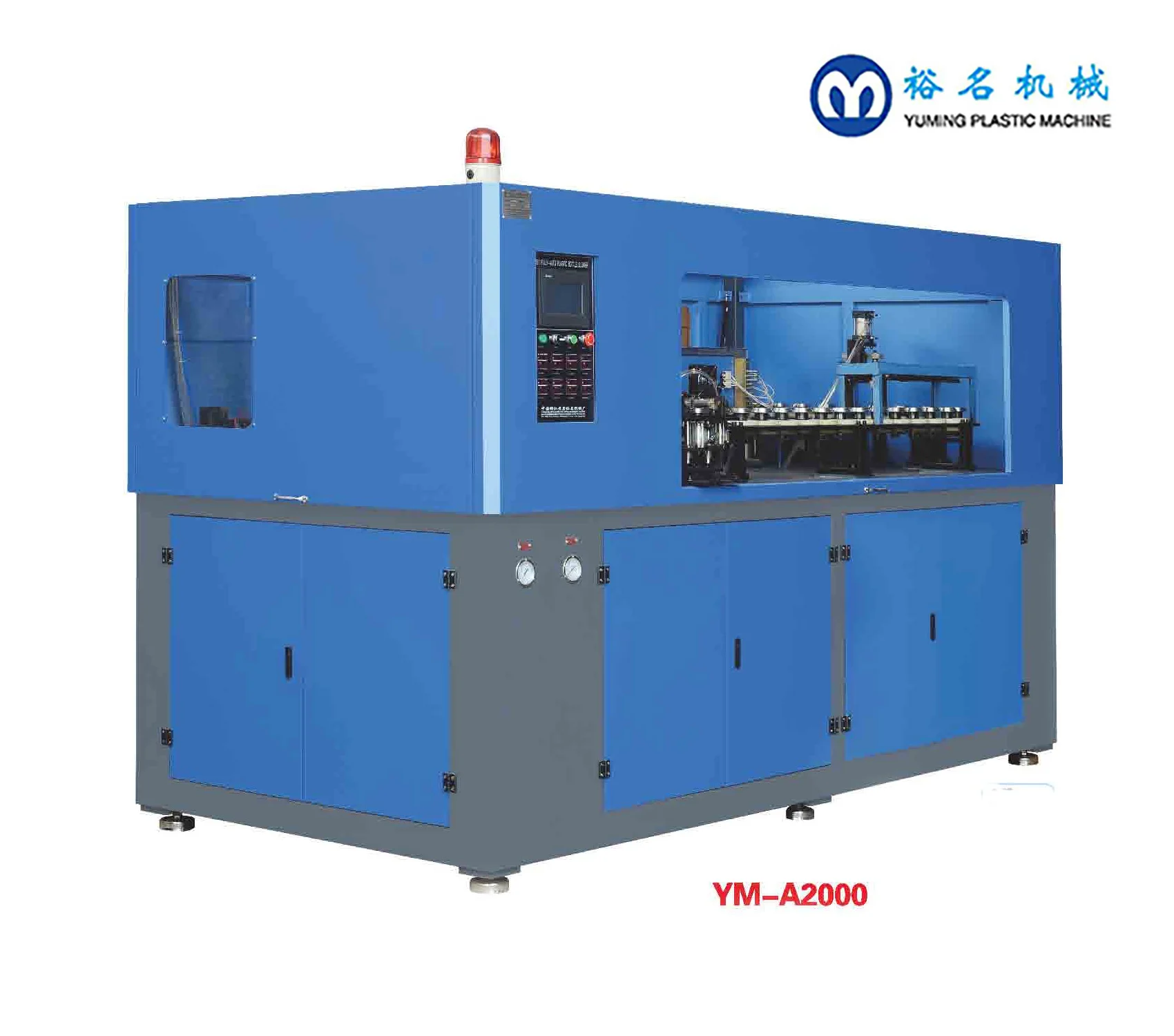

YM-A series blowing machine need manual loading,but automatic blow bottle, automatic take bottle. Worker can operate it very easy ,and don't need traning. This type blowing machine can produce below 20L PET bottle , different shape of Jar bottle,easy open jar ,carbonated bottle, mineral bottle, cosmetic bottle, oil bottle, medicine bottle and etc.
YM-A blowing machine specification :
TYPE
Item
U N I T
YM-AL600-2
YM-AL600-4
YM-A2000
YM-A2000-2
MOLDING
Clamping force
KN
200
360
200
200
Clamping stroke
mm
100
100
140
140
Stretching stroke
mm
370
370
450
450
Bottom stroke
mm
30
30
30
30
Cavity pitch
mm
86
86
115
115
Number of cavity
cavities
2
4
1
2
CONTAINER
THEORETICAL OUTPUT
bph
2200-2700
4000-5000
700-1400
1800-2400
Max container volume
L
0.6
0.6
2.0
2.0
Max outer diameter of the mouth or the bottle
mm
18-70
18-70
18-100
18-100
Max container diameter
mm
76
76
105
105
Max container height
mm
260
260
330
330
Electrical system
Lamp tube number
pcs
14
28
16
40
Max heating power
KW
26
52
30
37
Electric quantity of machine installation
KW
28
56
32
41
Actual electricity consuming
KW
9
20
9
12
Air system
Operating pressure
kg/cm2
7
7
7
7
Low-voltage consumption
Ltr/min
1200
1600
1200
1200
Blow pressure
kg/cm2
≤35
≤35
≤35
≤35
High-pressure power
Ltr/min
2000-2500
3000-3500
2000-2500
2000-2500
Machine specification
Machine size
m
2.0×1.4×1.8
3.5×1.5×1.8
2.4×1.3×2.0
2.4×1.9×2.0
Machine weight
t
2.0
3.5ton
2.2
2.6
REMARK
1.All data standard indication for 0.6L bottle 2.The actual output depends on the perform quality and bottle shape 3.Specifications are subject to change without notice.
Packaging & Shipping
Our mode of transportation is to ship,and we'll pack the machines in wooden boxes.
Our Services
Company Information
China Zhejiang Huangyan Yuming Machinery Factory is a manufacturer of plastic packaging machinery and plastic packaging mold mold professional company in recent years, real-time interest in international plastic packaging technology, the latest information, with a strong technical force, using internationally accepted CAD, CAM computer aided design system, developed with the technology content of the YM-A2000 series function bottle-blowing machine, automatic rotary blowing machine and cycle-controlled infrared heaters and other equipment and with this package of blowing molds, multi-cavity preform mold, cap mold, mold in the series have stable quality, easy operation, wide range of applications, and lower cost, beverages, confectionery, pharmaceutical, chemical, oil and other manufacturers the ideal machine widely used packaging equipment, for many years equipment sold well in China and exported to Russia, Southeast Asia, the Middle East, Africa and many other countries and regions, the company has a customer and equipment database, a set of customer feedback and perfect after-sales service system to provide timely technical support and equipment for development of information . We sincerely look forward to our cooperation with you!
