FOMTEC LED bulb Rotary Table Plastic Vertical Injection molding machine knife making machine ball pen making machine (60773485830)

Share on:


Price:$40,000.00 - $60,000.00
Price in USD:Details

Quantity:


Product Overview

Description


FEATURES





l   Two stations rotary table design, effective to increase production capacity and machine safety factor.


l  Vertical clamping and injection design, especially suitable for the insert molding production


l  User-friendly LCD display shows various functions with 66 sets of mold memory


l  Injection and clamping controlled by multiple pressures and speeds ensure easy setting  and accurate processing


l  The P.I.D temperature control is accurate for every section


l  Dual injection and carriage design provides smooth movement and precision molding


l  Professional designed screw and barrel, suitable for various plasticizing demands


l  High torque screw motor ensures superior plasticizing ability


l  Oil-less bushings used on all moving units for better cleanness and easy maintenance


l  High-rigid frame structure assures stable and smooth sliding movement





















liquid silicone rubber over molding machine famous brand CE standarertical injection mouldingachine 2018 new 2017 new


Process





led housing process.jpg










tpu injection molding machine plastic vertical injection molding machine with rotary table FT-1200R2


20 ton injection molding machine for small parts


 abs injection molding machine vertical horizontal





Rotary table injection machinery, shoes sole molding mac


SPECIFICATION




































































































































INJECTION UNITScrew Diametermmφ40φ45φ50
Maximum Injection PressureBar257320331646
Theoretical Shot Volumecm3270342422
Maximum Shot Weight(PS)g250316390
oz8.811.113.8
Injection Ratecm3/sec104131162
CLAMPING UNITClamping ForcekN1650
Top Platen Sizemm950x840
Rotary Table Diametermmφ1400
Mold Sizemm550x450(500×400)
Minimum Mold Thicknessmm250/350
Opening Strokemm300
Open Daylightmm550/650
Ejector ForcekN40
Ejector Strokemm125
OTHERSHydraulic System PressureBar140
Oil Tank VolumeL580
Electric Powerhp(kW)25(18.5)
Barrel Heating PowerkW10.7
Total WattagekW29.2
Machine Dimensions(approx.)m3.6×1.8×3.9
Machine Weight(approx.)kg7200




 15 TONS Small Sized Chinese Plastic Injection Molding Machine





blowing machine pet bottle 85TON 80ton 160ton factory








3





30 Tons Industrial Vertical Mini Plastic Injection Molding Machine Price


160 Ton High Speed Thin Wall Plastic Injection Molding Machine








OPTION : HYDRAULIC SERVO SYSTEM





2





injection blow molding machine price hot sales for LED BULB


80TON injection molding machine spare parts


 OPTION 1 : TECHMATION BRAND SERVO









fomtec injection molding machinery in china


bakelite BMC Plastic injection molding machine factory








OPTION : HYDRAULIC SERVO SYSTEM










liquid silicone rubber over molding machine famous brand CE standard





Plastic injection molding machine air filter servo motor


OPTION : HYDRAULIC SERVO SYSTEM




Plastic injection molding machine screwdriver handle factory


Two colors Plastic injection molding machine motocylce handle pliers handle








EXHIBITION:






robot arm injection molding machine full auto


rotary injection molding machine





PRODUCT COMPOSITION





FT-R2








plastic injection blow molding machine for LED light bulb pet bottle


led light bulb injection blow molding machine professional hot sales








INSPECTION CERTIFICATION






Vertical Injection Molding Machine for Toothbrush


plc control injection molding machine servo SE





EXISTING CUSTOMERS






led light bulb injection blow molding machine professional hot sales


semi auto plastic injection molding machine Factory wordshop

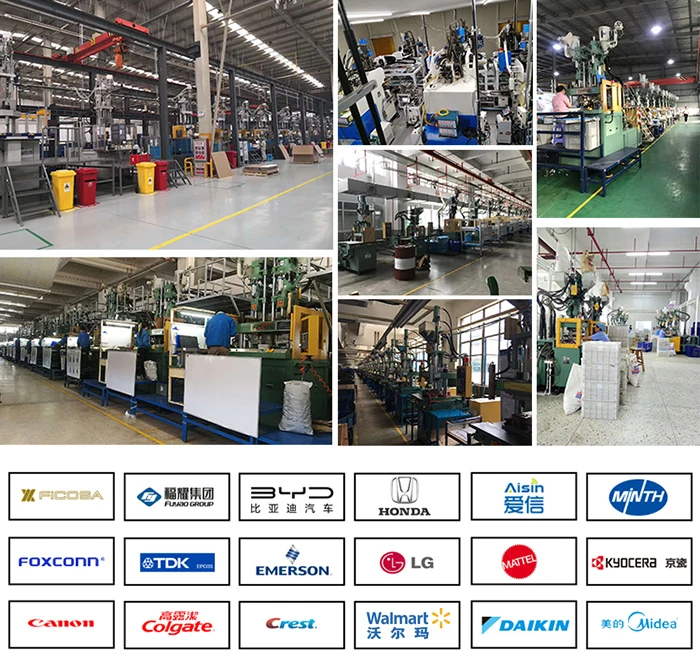

FACTORY TRAVEL
