Fully automatic cold steel strip profile c z purlin roll forming machinery roof truss shaping machine
Fully automatic cold steel strip profile c z purlin roll forming machinery roof truss shaping machine
Product Description
1
Profile Size
YX 100-300
2
Suitable Raw Material
0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3
Under Frame
400 H-beam
4
Sidewall
20mm
5
Connect Bar
25mm, zinc plated
6
Roller
Gcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7
Shaft
80mm, solid, finish turning, cylindrical grinding, with keyway
8
Forming Stations
15
9
PLC
DELTA, TAIWAN
10
Main Motor
15kw, Lichao, Shanghai, with reducer
11

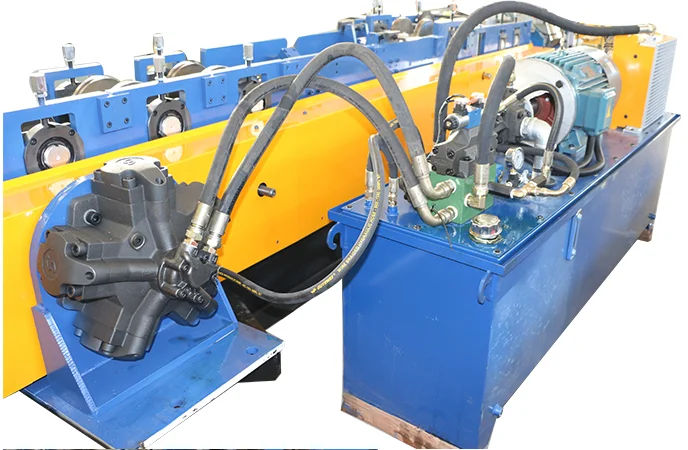

Hydraulic Pump station
5.5 kw
12
Cutting blade
Cr12Mov, quenching 58-62°, double oil cylinder
13
Oil paint
National standard grey
14
Computer screen
DELTA, TAIWAN
15
Chain
double 2inch

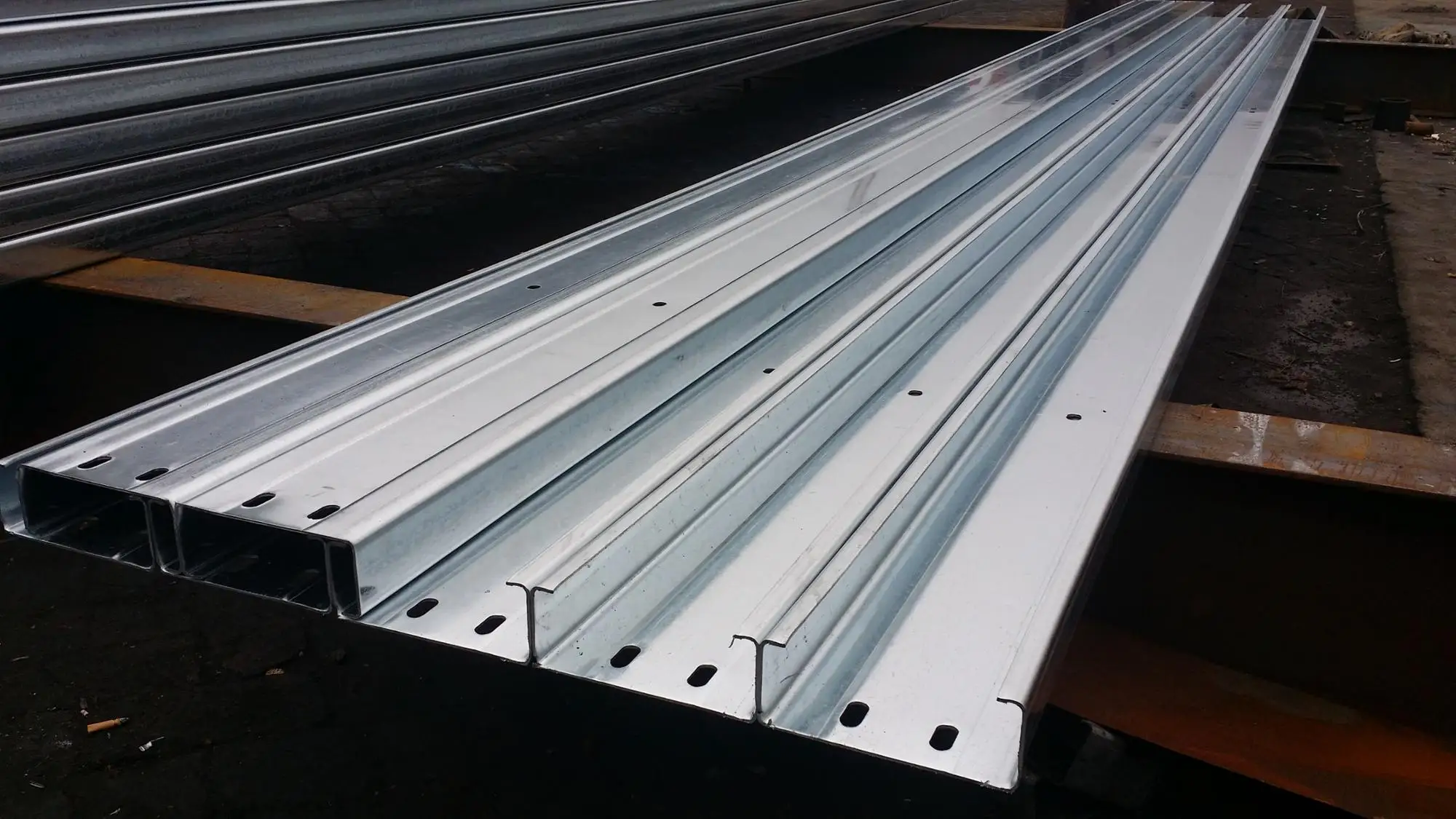

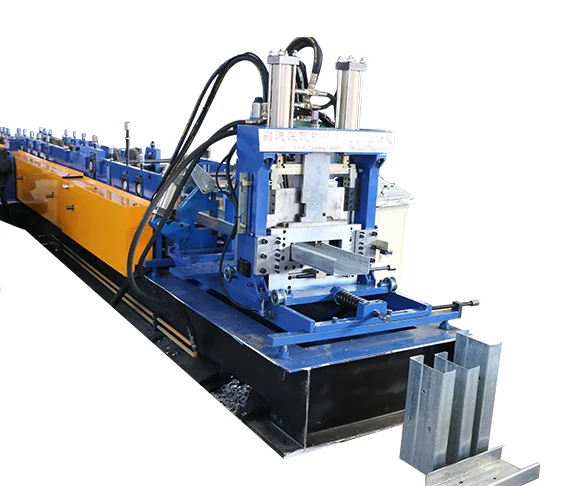

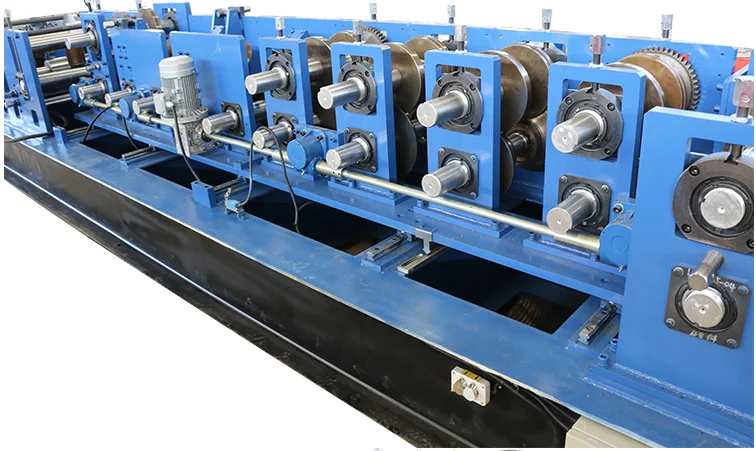

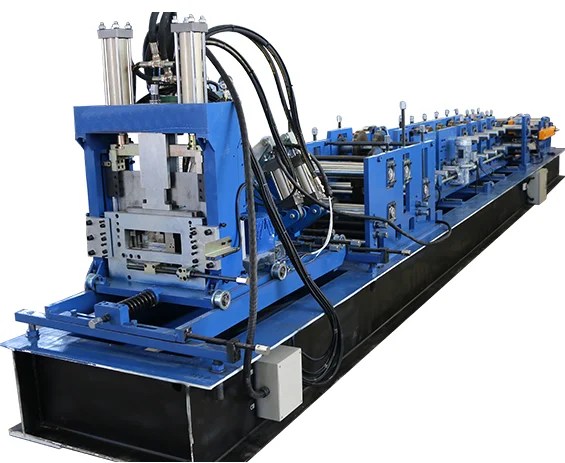

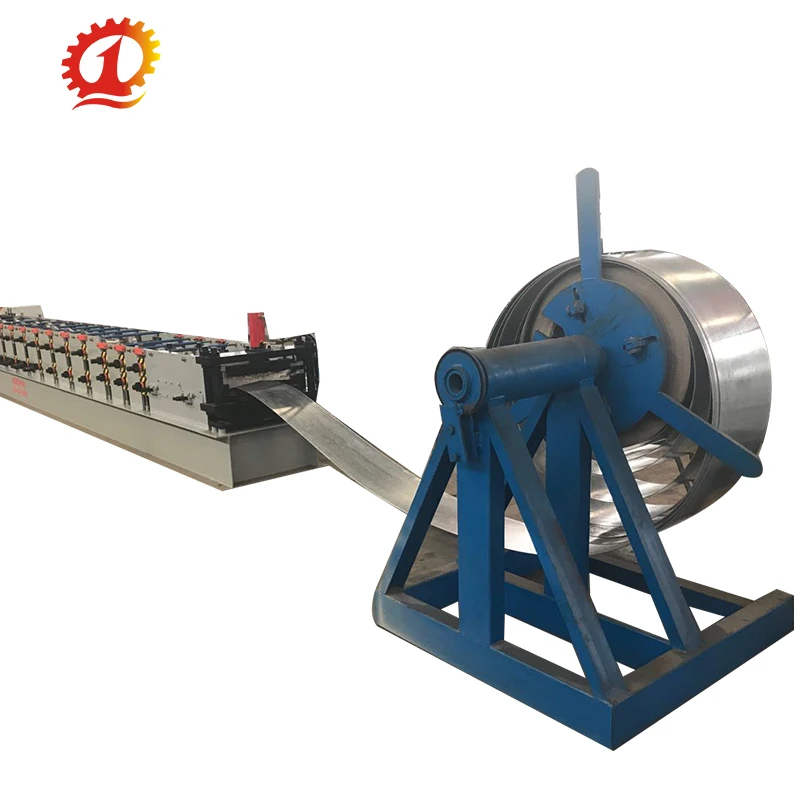

Product Show
Flow Sketch
Our Services
Packaging & Shipping
Certifications
FAQ
Q1. What's your payment terms and delivery time? A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support? A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines? A3: No, most of our machines are built according to customers specifications, using top brand components. Q4. What will you do if the machine is broken? A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport? A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company? A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
