Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
Semi automatic soda water bottle making machine price
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou,Huangyan,Yuanda,Machinery,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description
bottles

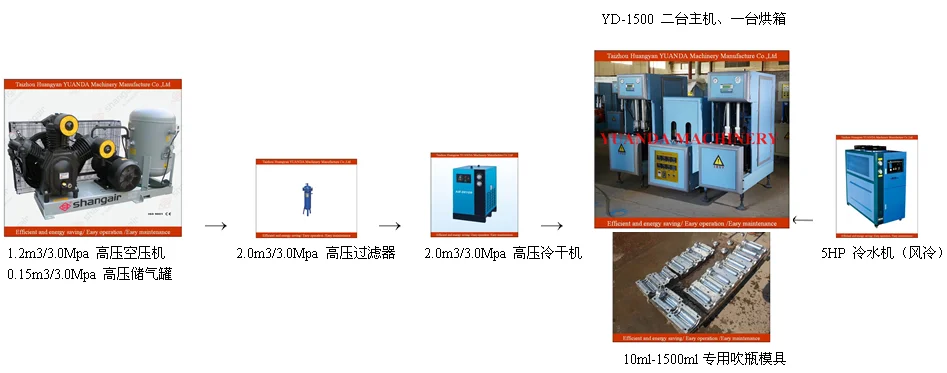

Flow
SEMI-AUTOMATIC PET BOTTLE BLOWING MACHINE
General Information | YD-1500 | YD-1500 |
Clamping Force | 10T | |
Clamping Stoke | 160mm | |
Max.Stretching Stroke | 360mm | |
Number of Cavities | 1 Cavity | 2 Cavity 2Pcs |
Theoretical Output | 0.1-1.5L:600-800 BPH | 0.1-1.5L:1000-1600 BPH |
Max.Mould Thickness | 220mm | |
Mould plate size | 470x350mm | |
Voltage Standard | 380v/3PH/50Hz or special order | |
Total Power(Full Loaded) | 3-10KW | 5-15KW |
Min air compressor | 1.0m3/min 3.0Mpa | 1.2m3/min 3.0Mpa |
Net dimension & Weight(LxWxH) | ||
Blow Molding Machine | 145x60x170cm | 145x60x170cm 2Pcs |
Pre-heater | 180x70x140cm | |
Net Weight | 1.1T | 1.6T |
Container | ||
Container Volume | 1.5L | |
Neck Diameter Range | 8-60mm | |
Container Diameter | 115mm | |
Container Height | 360mm | |
Features
- Produce bottle from 0.1L to 1.5L (2cavity), 3L (1cavity)
- Output capacity up to 1000bph for 0.5L with 2cavity bottle blow mold
- Advanced PLC control system with a use-friendly panel and time control precision of PLC up to 0.01second
- Equipped with special designed air storage unit
- Adopt to far infrared preform heater, average and enough heating
- Heating lamps are adjustable in directions to suit various preforms
- Independent temperature control for different heating lamp to get ideal preform heating results
