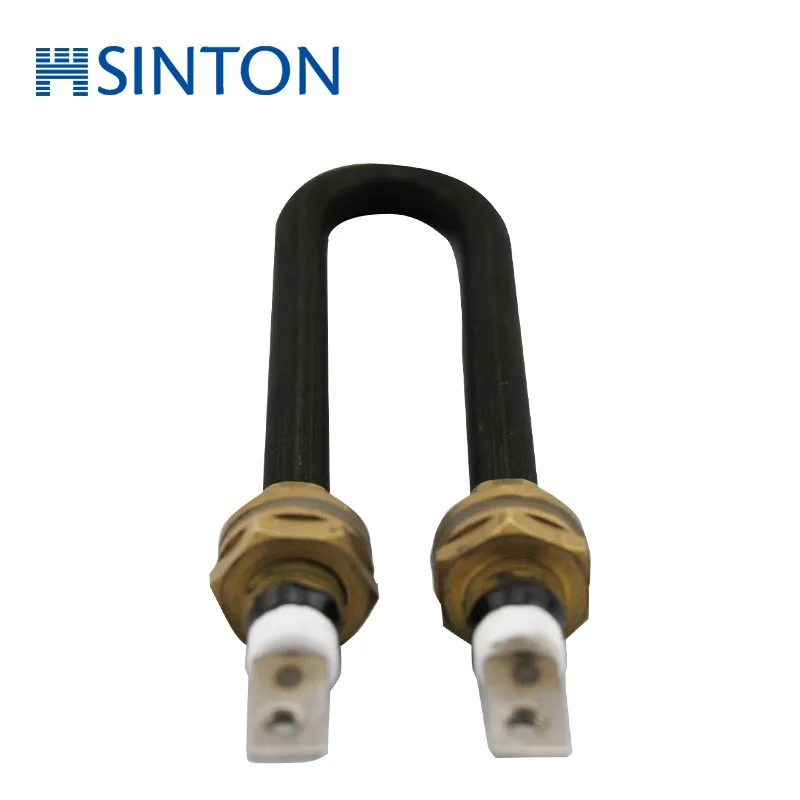

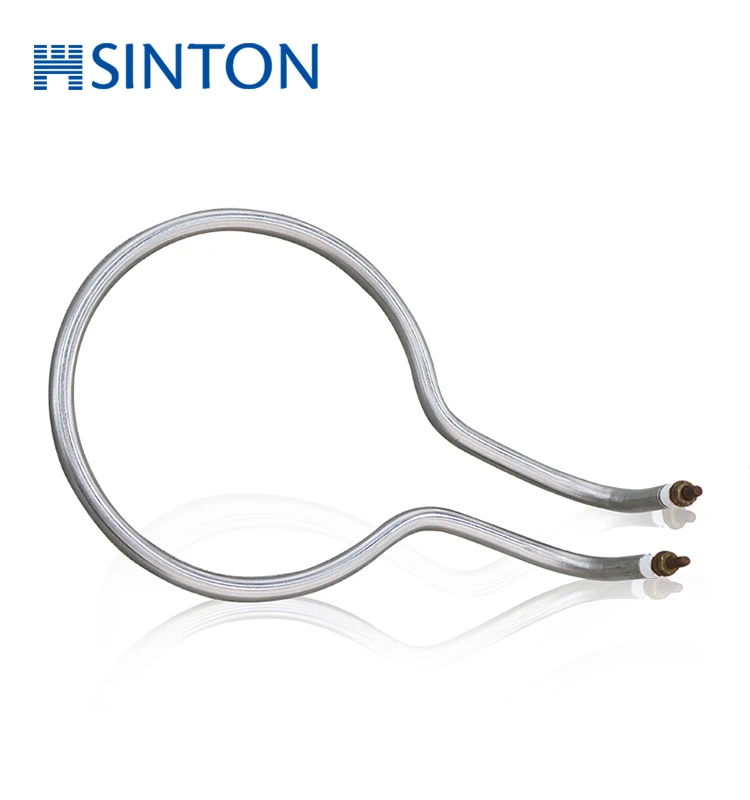

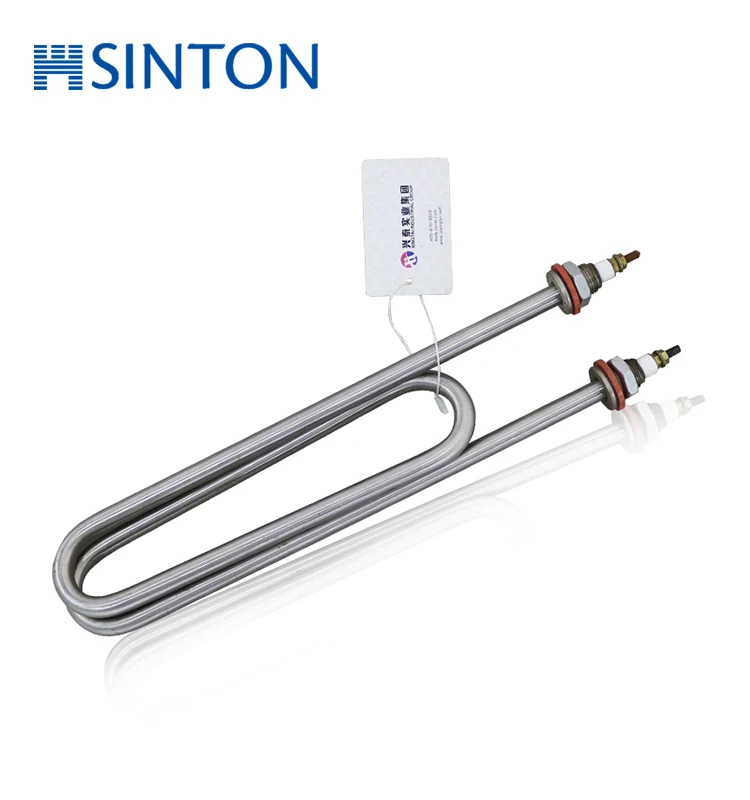

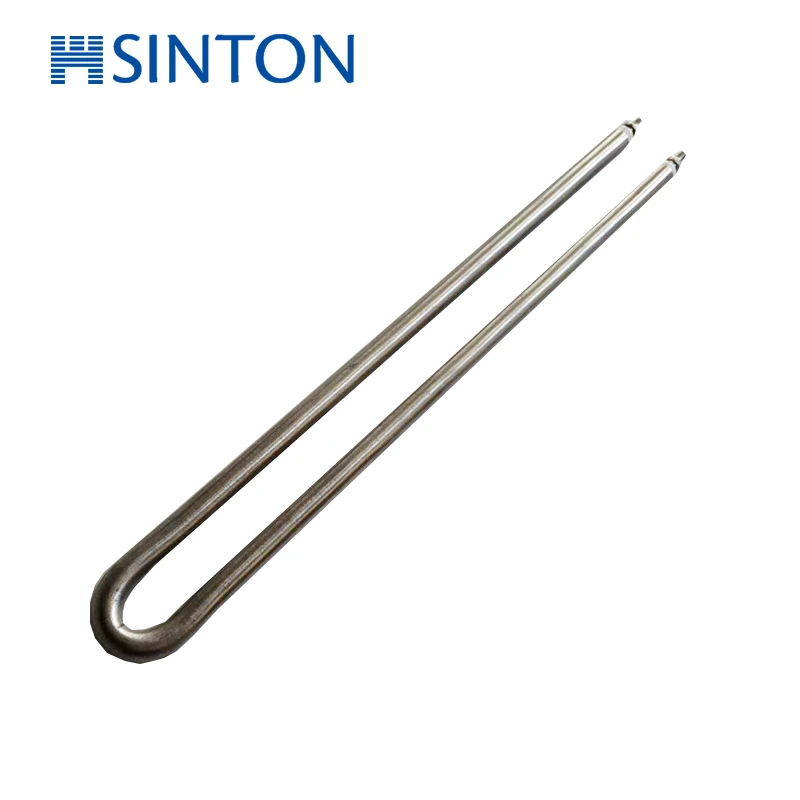

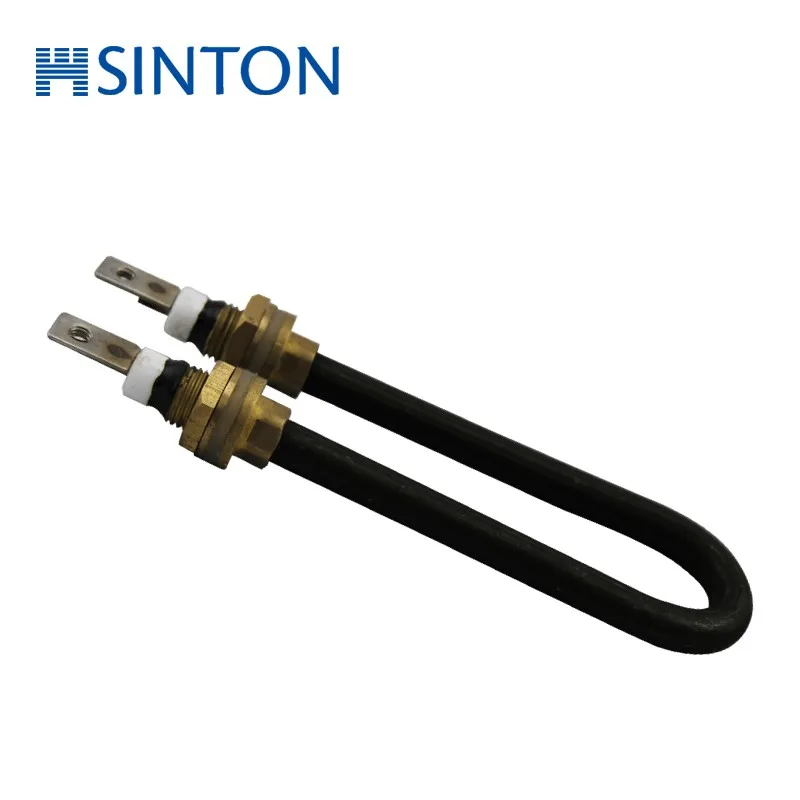

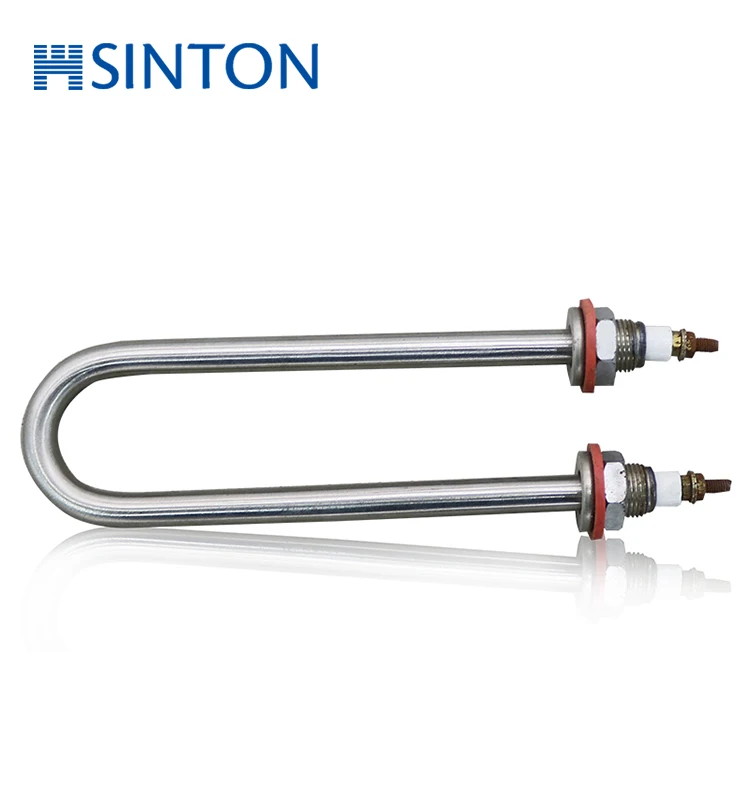

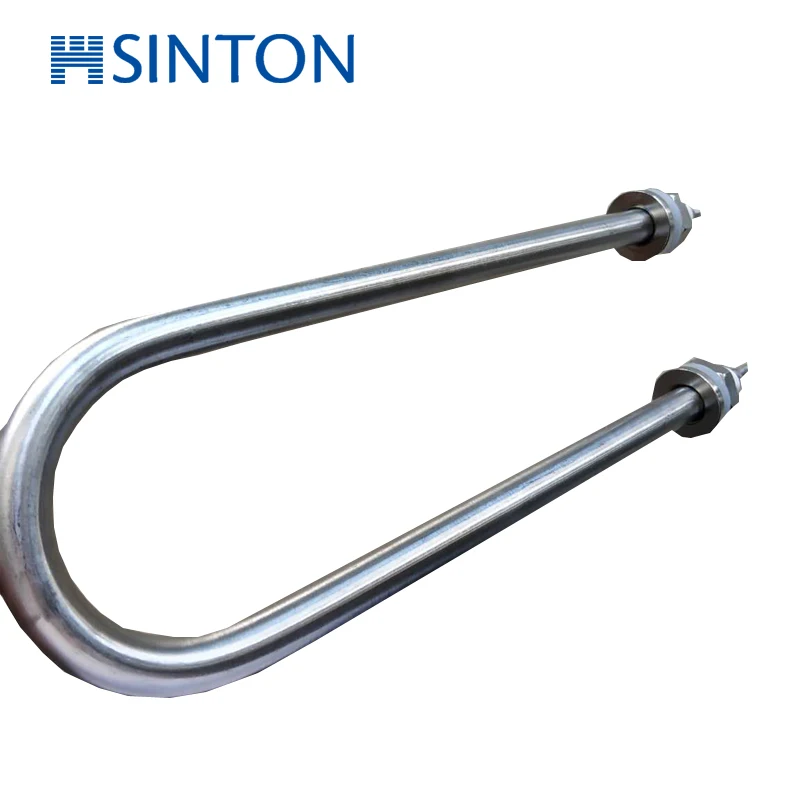

U образный нагревательный элемент из нержавеющей стали

Stainless Steel U type heating element

      Electric Tubular Heaters are custom designed in a various shapes to meet client's requirements for direct immersion in liquids such as water, oils, solvents and process solutions, as well as air and gases. Tubular heaters are produced using incoloy, stainless steel,aluminum,bundy and copper sheath materials and also there is huge variety of selection of termination styles available.

Technology data

1.HI-POT TEST: 1500V/S min cold condition.
2.Insulation resistance:20M Ω min
3.Leakage current to be 0.75ma max While energized at rated voltage
4.Power tolerance:+5%,-10%
5.Voltage:12V-440V
6.Diameter range:1mm to 40mm
7.Heating resistance wire:0Cr25Al5,Cr20Ni80 or as custom'es requirement
8.Air tubular heater wattage : ≥ 2w-4w/cm2
    Water tubular heater wattage: ≥ 6w-10w/cm2
    Dies and fin tubular heater: ≥ 8W-12w/cm2

Advantage

• Energy efficient
• Broad variety of sizes for different applications
• Compact
• Moisture and contaminant resistant
• Easy to install
• Easy to maintain
• Designed and built for safety

Applications

• Caustic Cyanide used in gold processing
• Hot water storage
• Sterilizing equipment
• Heating oils
• Plastic processing&packaging machinery
• Ovens&dryers
• Dies&Tools
• Vending machines
• Kitchen equipments
• Medical equipments
AND SO ON

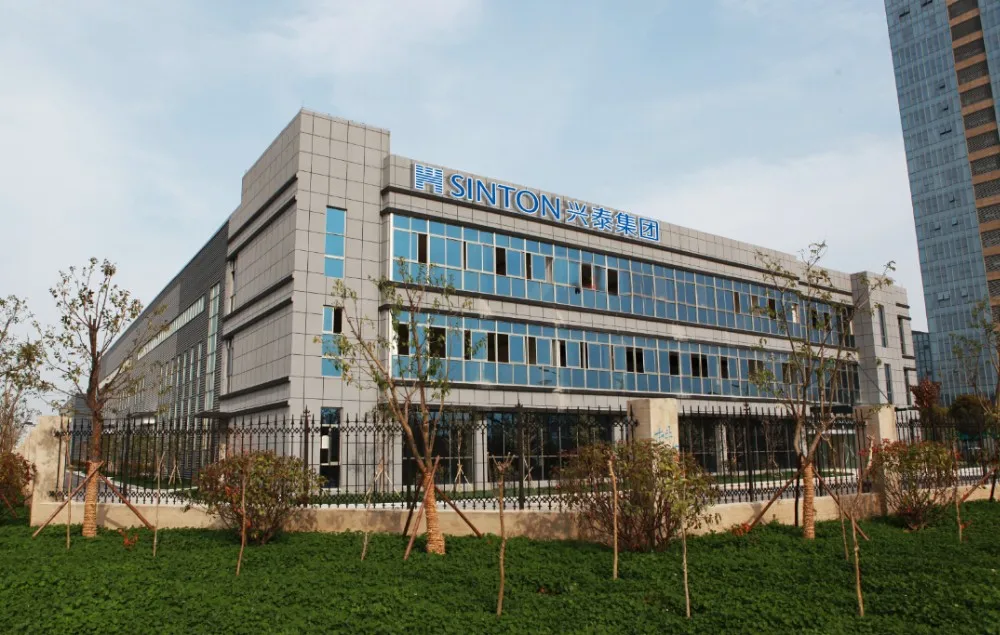

Yancheng Xingtai is one of the earliest production of electric components manufacturers, by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements and equipment, advanced electric technology into actual industrial equipment, for customers to create maximum value. The scientific management method, a great quality and perfect sales service, make the at home and abroad enjoy a good reputation. Since the inception of the company, product sales increasing by more than 50% annually, and domestic products are exported to Europe, America, Southeast Asia, the Middle East, Africa and other international markets.
