NanXiang SS304 SS316 stainless steel laboratory packing Metal Dixon Ring
- Category: Other Metals & Metal Products >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (60749806209):
Product Overview
Description
Video Presentation
Product Description

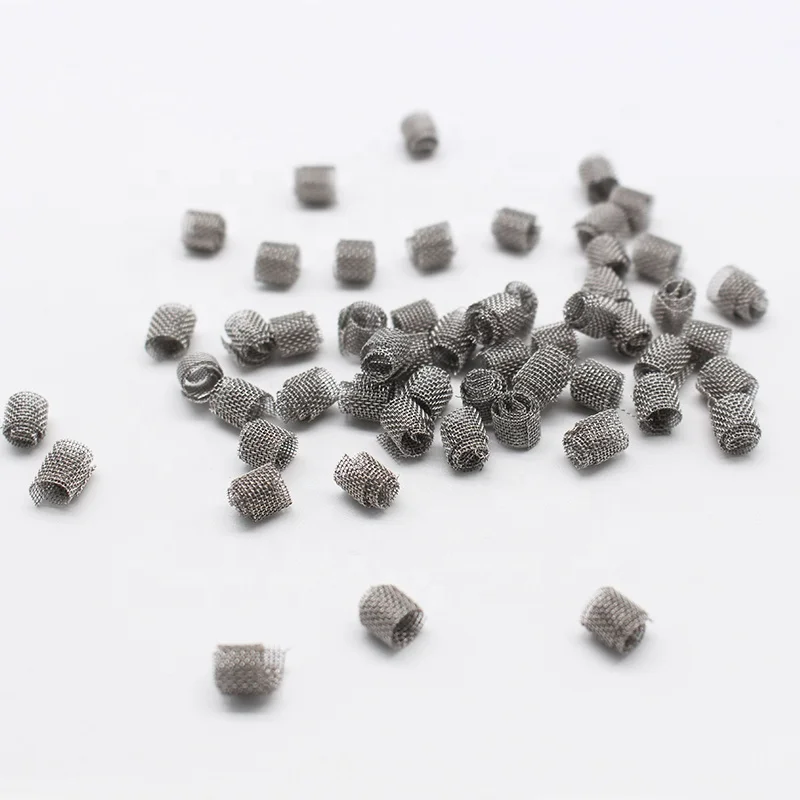

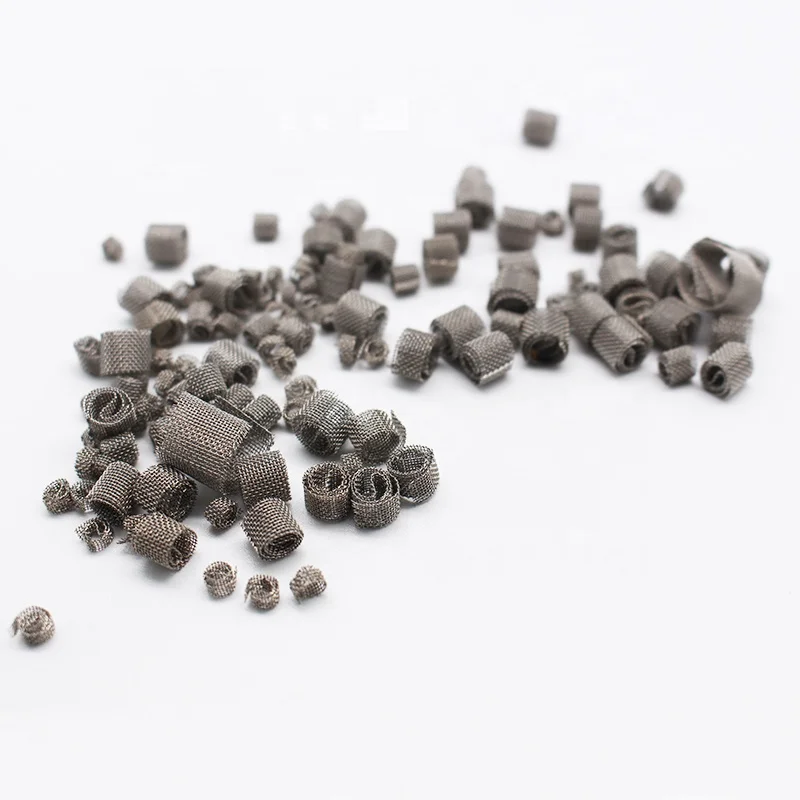

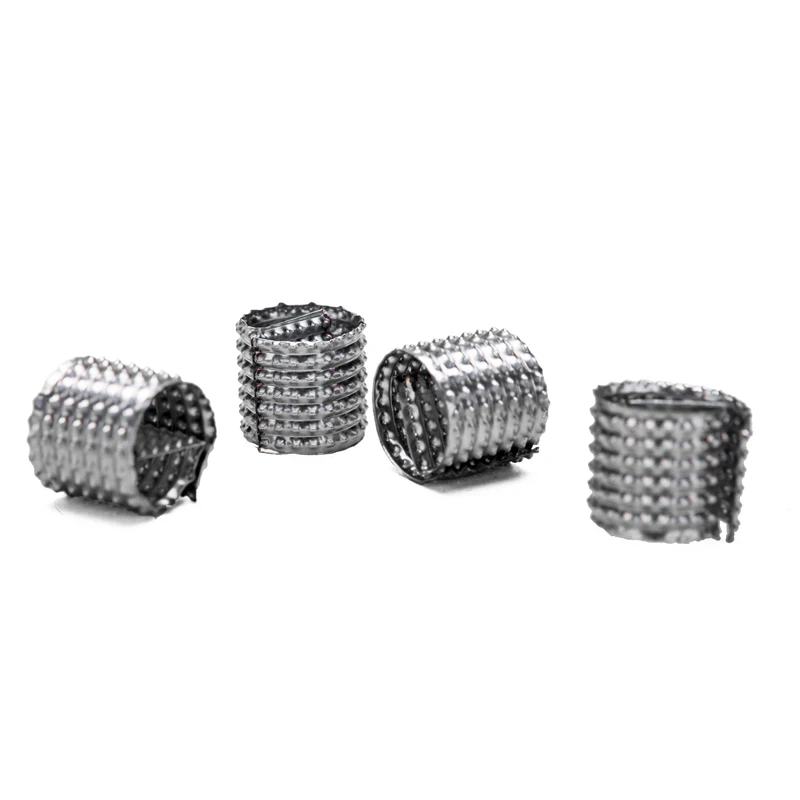

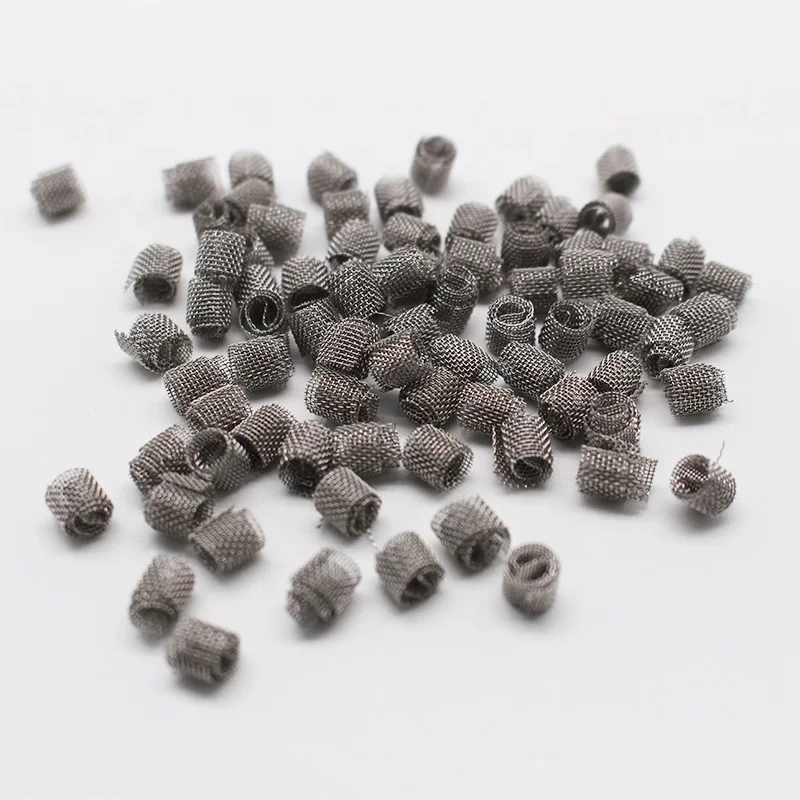

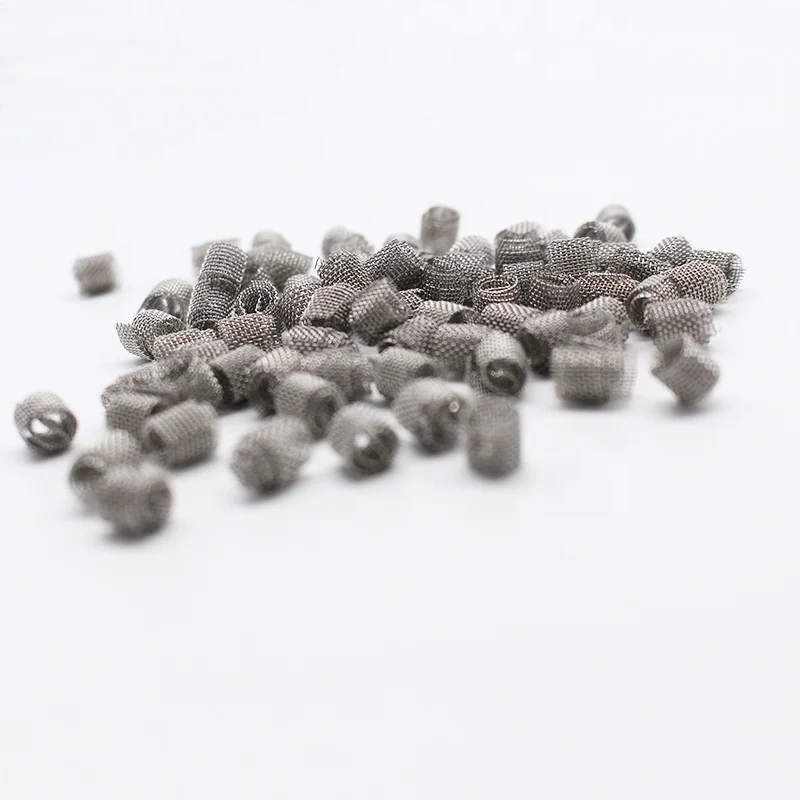

The ring was created by British scientist Dr. Dixon in 1947, so its pronunciation is Dixson ring. Dixon ring also call Theta ring.
Theta ring packing is a small particle high efficiency packing, made of wire mesh, packing diameter and height are same. θ ring
filler is mainly used in laboratory, small batch, high purity product separation process and isotope development. The pressure
drop of θ ring packing is related to gas velocity, liquid spray quantity, weight of material system, surface tension, viscosity,
characteristic factors of packing, and also has a bearing on the pre-liquid flooding treatment of packing.
Theta ring packing is a small particle high efficiency packing, made of wire mesh, packing diameter and height are same. θ ring
filler is mainly used in laboratory, small batch, high purity product separation process and isotope development. The pressure
drop of θ ring packing is related to gas velocity, liquid spray quantity, weight of material system, surface tension, viscosity,
characteristic factors of packing, and also has a bearing on the pre-liquid flooding treatment of packing.
Dixon ring is used mainly for laboratory and low-volume, high-purity product separation process.
θ ring packing’s pressure drop is related to gas velocity, liquid spray volume, and material weight,
surface tension, viscosity and characteristics of fill factors and pre-fill liquid. Θ ring hysteresis loop filler material than
similar entities fill large,
θ ring surface wetting situation completely than ordinary ceramic ring, film-forming rate, and thus more efficient.
θ ring packing with the theoretical plate number of the increase in gas velocity increased,
with the filler surface wettability and reduce the rate of decline
θ ring packing’s pressure drop is related to gas velocity, liquid spray volume, and material weight,
surface tension, viscosity and characteristics of fill factors and pre-fill liquid. Θ ring hysteresis loop filler material than
similar entities fill large,
θ ring surface wetting situation completely than ordinary ceramic ring, film-forming rate, and thus more efficient.
θ ring packing with the theoretical plate number of the increase in gas velocity increased,
with the filler surface wettability and reduce the rate of decline
Product Paramenters

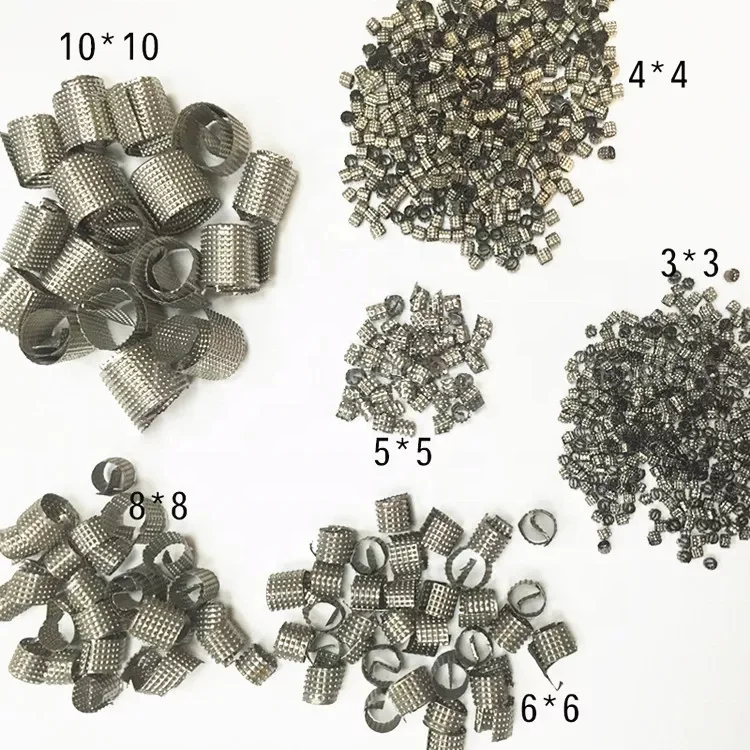

Size D*H mm | Mesh Type n/m3 | Tower Dia mm | Theoretical plate pcs/m | Bulk density Kg/m3 | Surface area m2/m3 |
φ2×2 | 100 | φ20-35 | 50-60 | 670 | 3500 |
φ3×3 | 100 | φ20-50 | 40-50 | 520 | 2275 |
φ4×4 | 100 | φ20-70 | 30-40 | 380 | 1525 |
φ5×5 | 100 | φ20-100 | 20-30 | 295 | 1180 |
φ6×6 | 80 | φ20-150 | 17-20 | 280 | 1127 |
φ7×7 | 80 | φ20-200 | 14-17 | 265 | 1095 |
φ8×8 | 80 | φ20-250 | 11~14 | 235 | 987 |
φ9×9 | 80 | φ20-300 | 8~11 | 200 | 976 |
