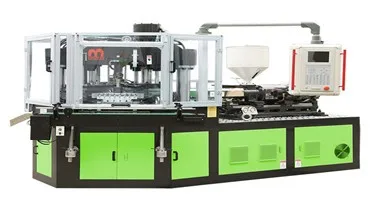

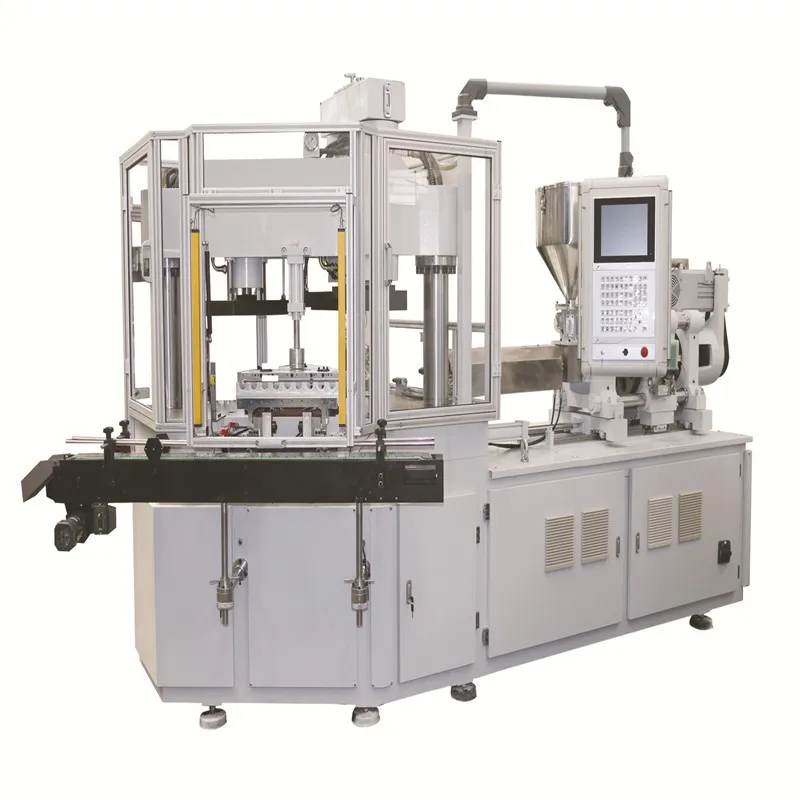

plastic bottles injection blow molding machine from China supplier

The machine employs an advanced injection blow molding principle, in multiple cavities, dramatically increasing productivity. Motion sequences consist of three steps: material injection,blow molding and product ejection.
the first stage involves the material being fed through a screw and injected into the cavities.
the second stage is 120 degree rotation and blow molding to the desired shape
the third stage is final indexing of 120 degree to the ejection station, where the products are quickly ejected from the core rod.

Parameters
Item		unit	Date
Injection system	Injection system	mm
	Max. Theoretical injection capacity	G	375
	Heating capacity	KW	10
	No. of heating area	Qty	3
Clamping & blowing system	Clamping force of injection	kn	650
	Clamping force of blowing	kn	89
	Opening stroke of mold platen	mm	140
	Max. Platen size (L×W)	mm	740*390
	Min. Mold thickness (H)	mm	280
	Heating capacity of mould	kw	5.0

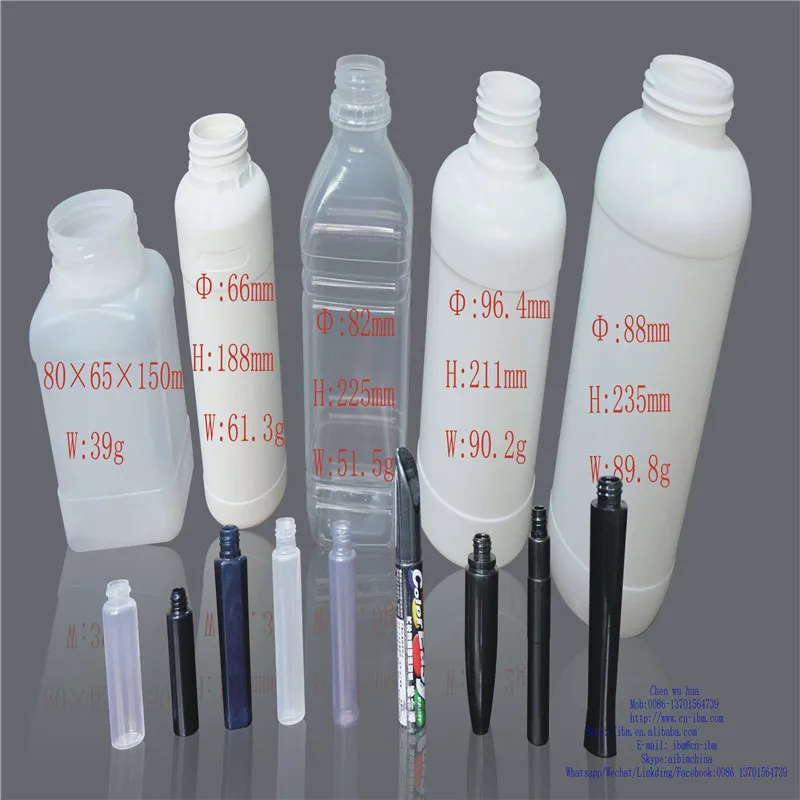

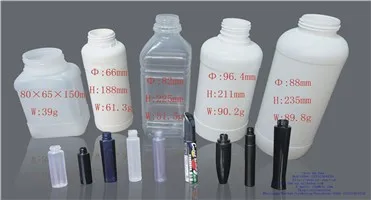

Product dimension range	Suitable bottle range	ml	5-1000ML
	Max. bottle height	mm	<=220
	Max. Dia. of bottle	mm	<=100
	Dry cycle	s	14-16
Hydraulic driving system	Motor power	KW	(17/22)/30
	Hydraulic pressure	Mpa	14
Pneumatic system	Min. Air pressure	Mpa	1.0
	Discharge rate of compressed air	M3/mm	0.8
Cooling system	Water flowage	M3/h	4
	Total rated power with mold heating	KW	45
Machine information	Dimension	M	4.0*1.5*2.35
	Machine weight	TON	7.5

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications

Detailed Images

Machine Parts

Name: dryer

Brand: FESTO

Original: Germany

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

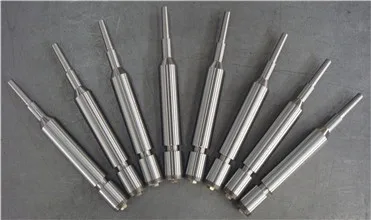

Name:Core rod
Brand: AiBiM
Original: CHINA .

Machine Parts

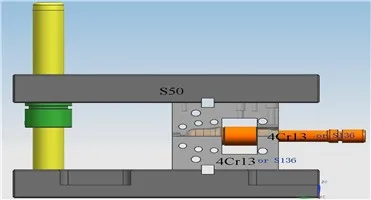

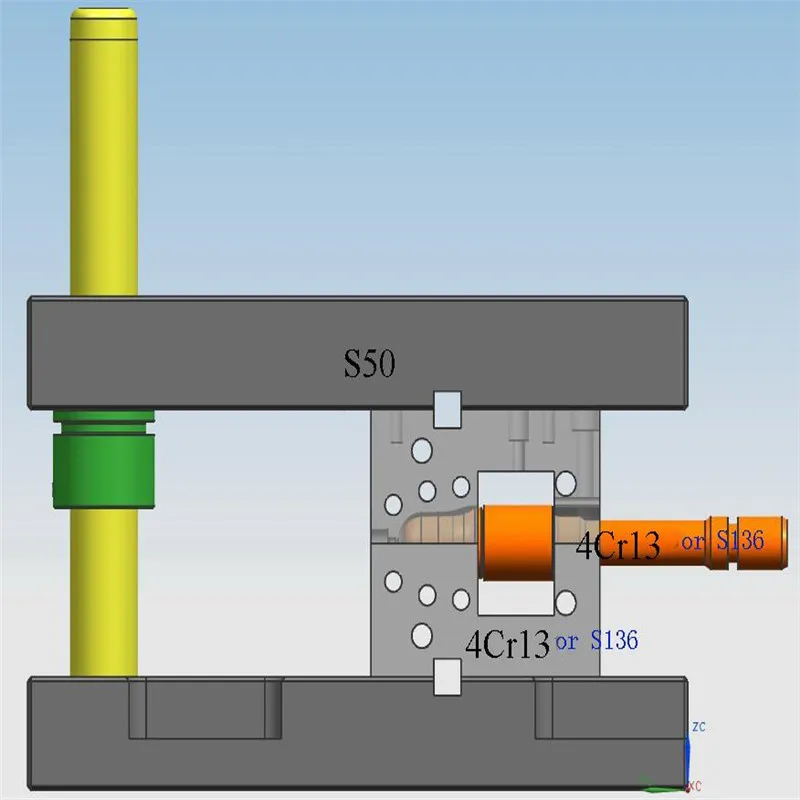

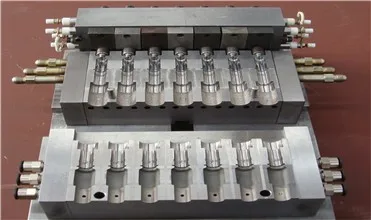

Name: Mold
Brand: AiBiM
Original: CHINA

Main Features

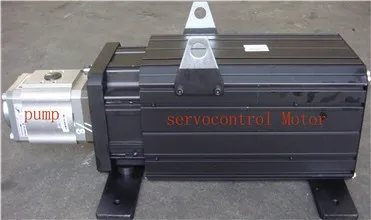

Name: Oil pump and servo motor
Brand: YUKEN

Original: Japan

Our Service

Packing & Delivery

Related Products

plastic caps making injection blow moulding machine for PET material

91.8% Response Rate

low molding machine

91.8% Response Rate

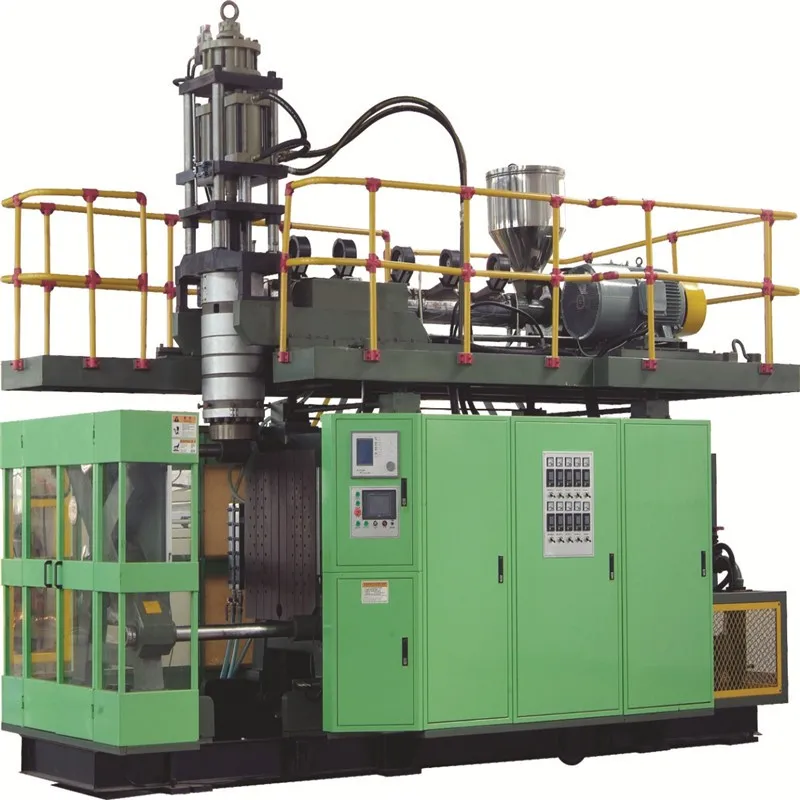

PET extrusion blow molding machine mould
