Automatic tight cone yarn winding machine
- Category: Spinning Machines >>>
- Supplier: Zhuji Feihu Textile Machinery Co. Ltd.
Share on (60753130541):
Product Overview
Description

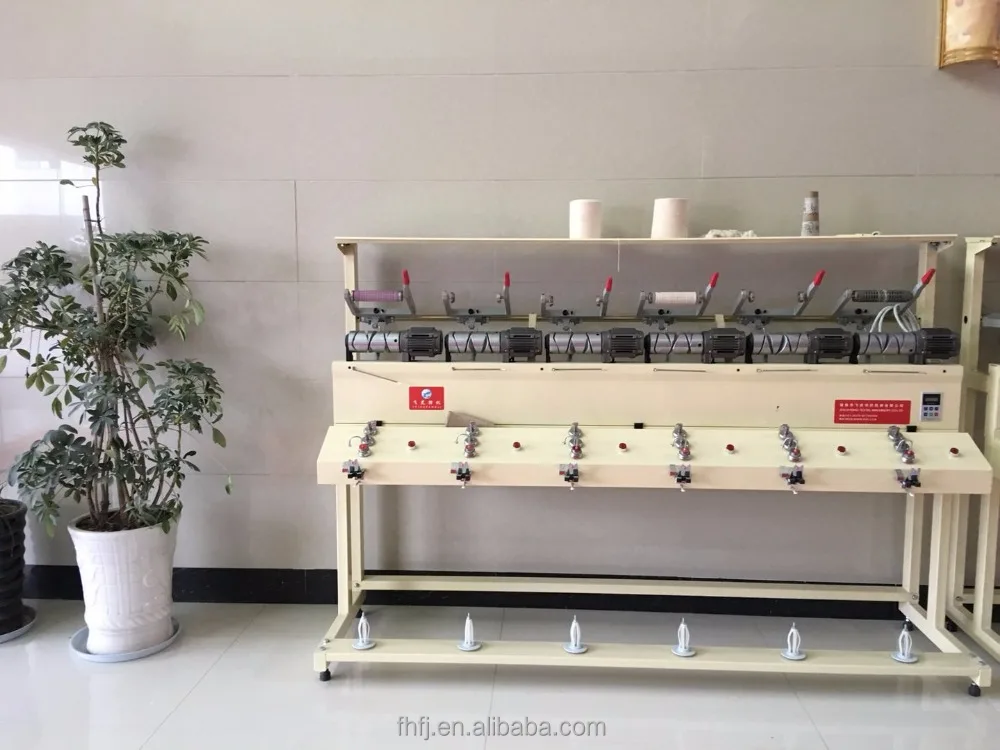

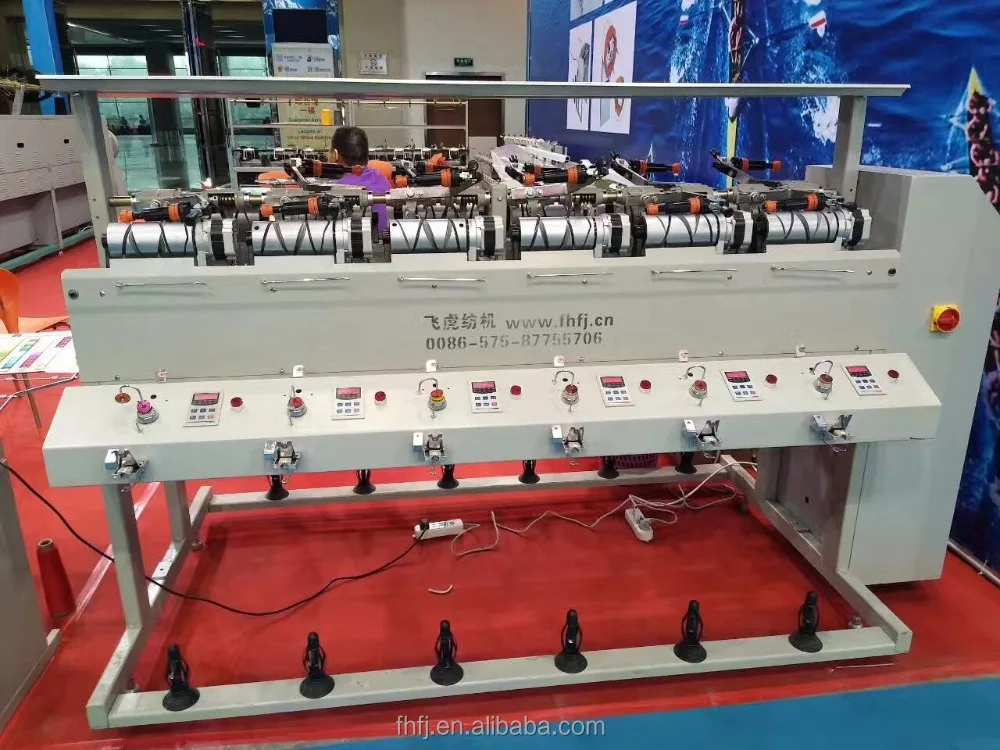

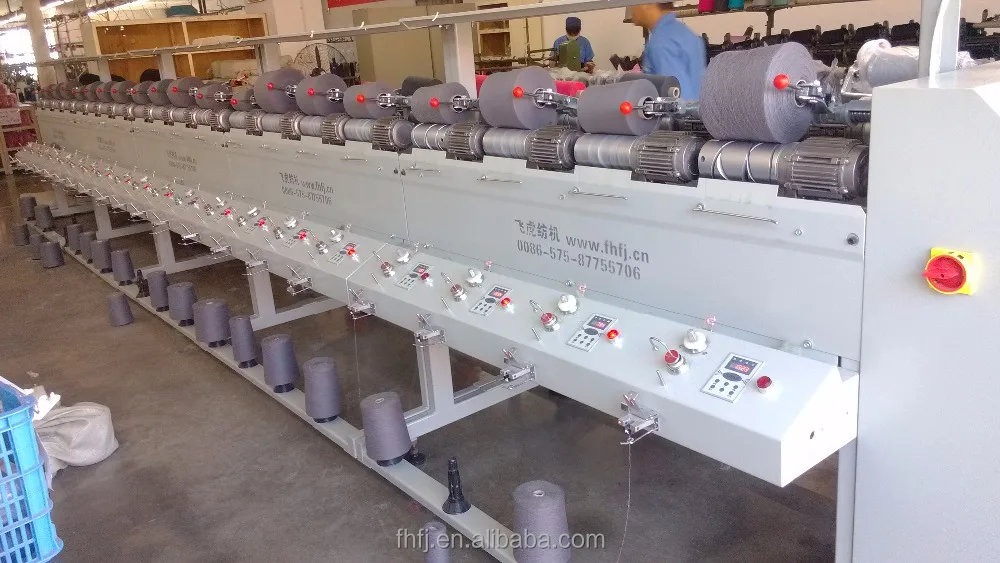

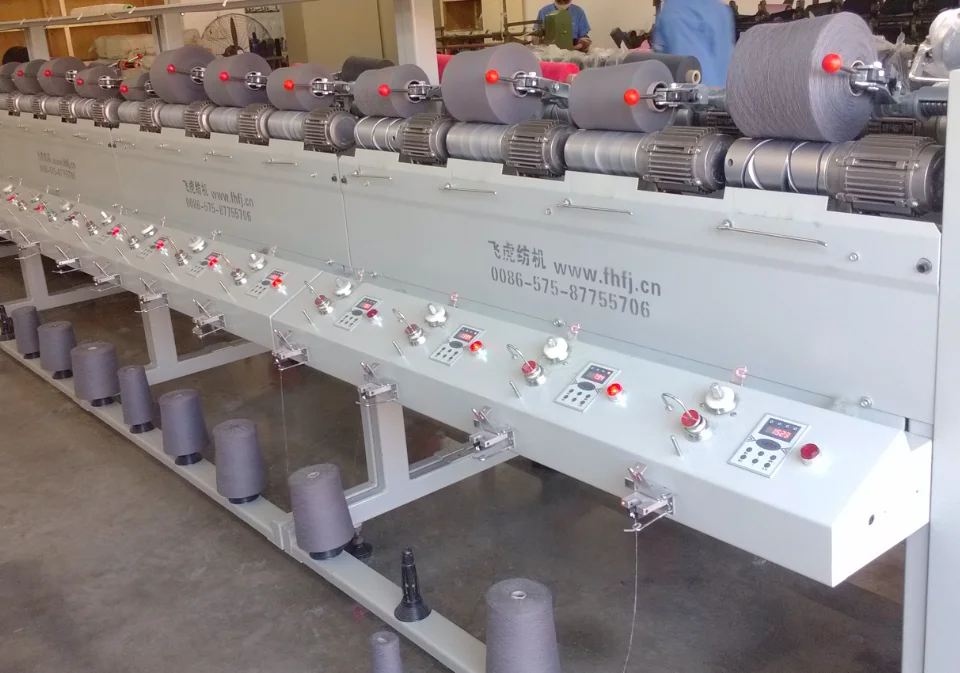

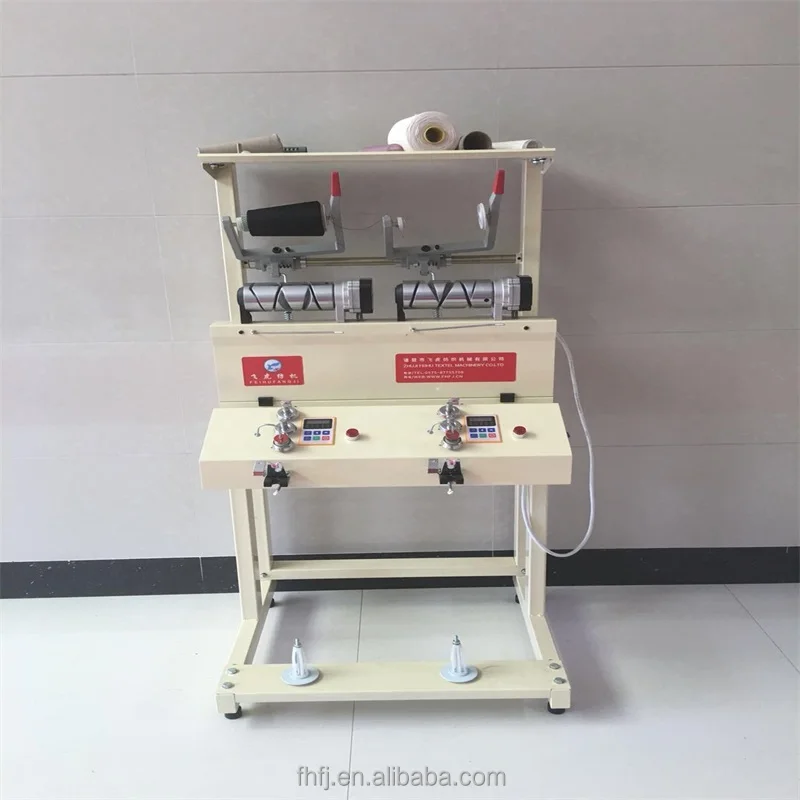

FHCT-J Drum winding machine after dyeing
FH Series Grooved Drum High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Winding machine for yarn ,Ribbon ,Fish silk,elastic,mettalic silk,etc.it's individual-spindle,automatic stop when yarn break,control of length,etc.
Product name | Cone To Cone Yarn Winding Machine
|
Number of spindles | Max.9group for 1set, total 108 spindles. (Normal 7 group 84 spindles)(Optional) |
Groove drum | 0/D 82mm, spindle distance 2.5, symmetry0" |
Layout | Double sides |
Power Supply | 3phase5 wires,380V 50HZ (Optional) |
Spindle power | 90w/spindle+5W(wax)+cleaning |
Winding speed | 600-700m/min(Speed adjustable) |
Parameter design | Individual or touch screen interface control (Fixed - length, slow - start, adjustable speed, broken yarn auto stop) |
Driving | Individual |
Dimensions | L 2230 x W 1100 x H 1600 mm ( 12 spindles) |
Weight |
350kg/group
|
