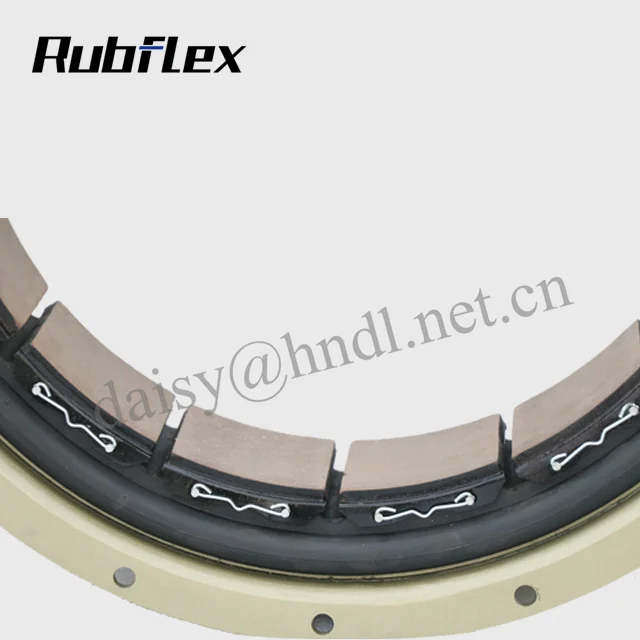

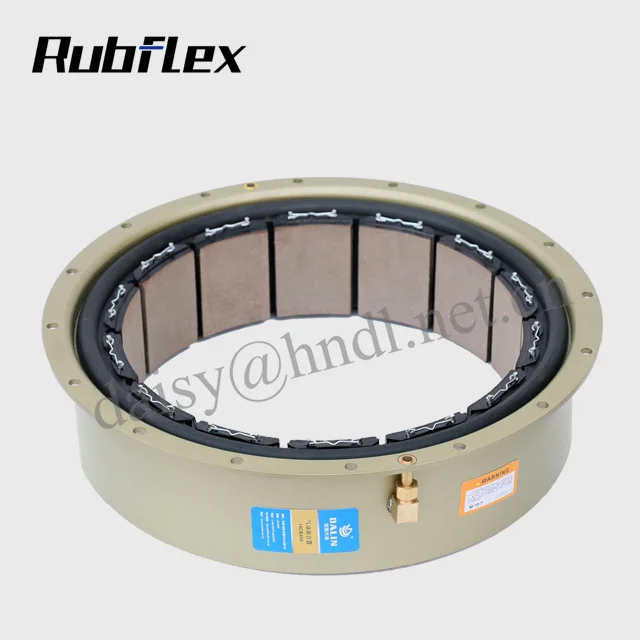

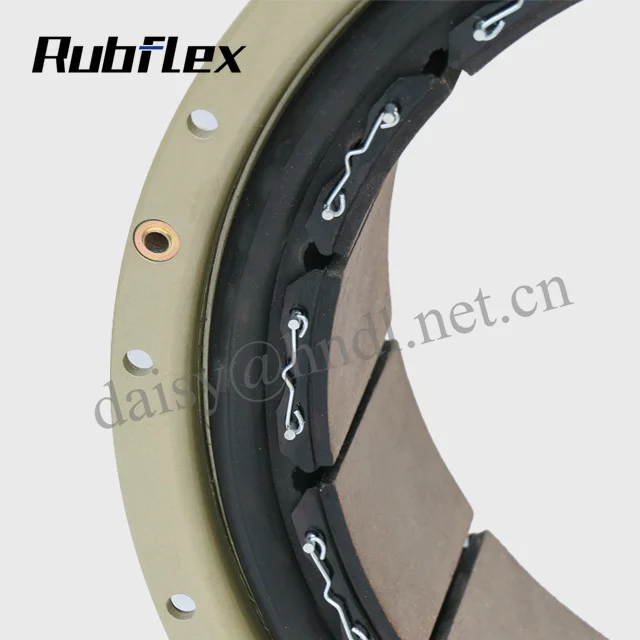

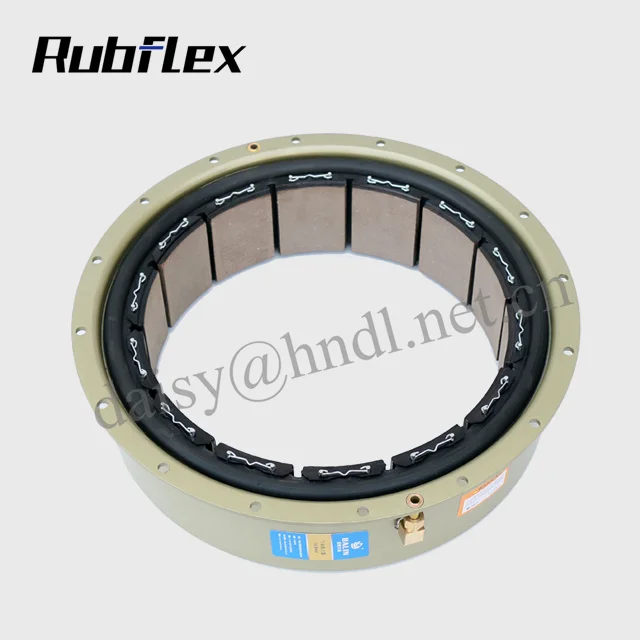

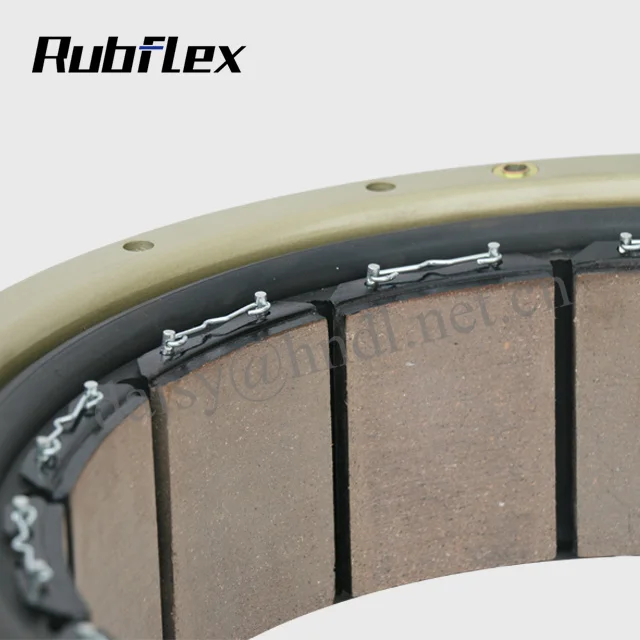

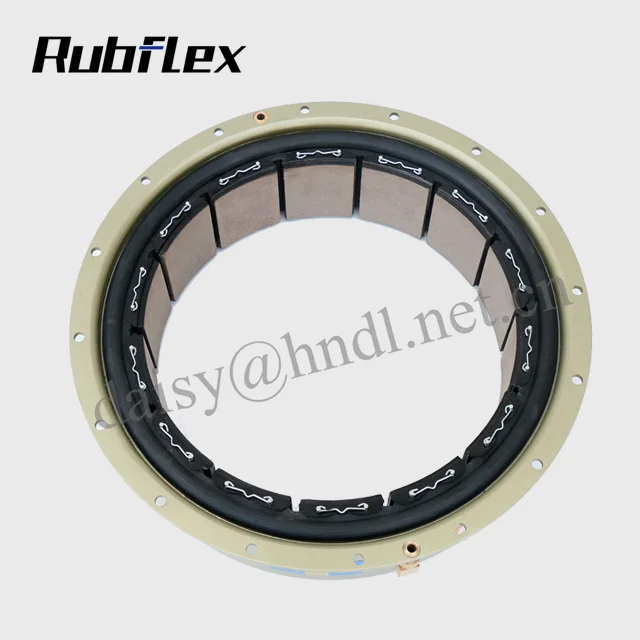

RUBFLEX CB Type Industrial Clutch&Brake 14CB400 104118 142604 Dry cleaning machine\molding machine
- Category: Industrial Brake >>>
- Supplier: Henan Dalin Rubber And Telecommunications Apparuts Co. Ltd.
Share on (60755363347):
Product Overview
Description
Product Description

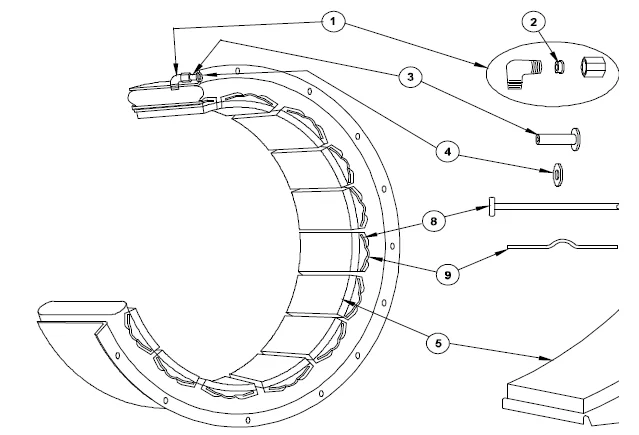

Introduction of CB element assembly
CB element assembly is designed and manufactured to provide dependable clutch or brake service in a multitude of industrial applications. It is suited to high speed, cyclic operations, as well as for coupling and general power transmission. All torque load is carried through the neoprene and cord actuating tube which absorbs damaging shock loads. The CB element assembly requires no lubrication or adjustment.CB element assemblies are
available for drum diameters from four inches through 45 inches.The element size designation indicates the nominal outside drum diameter in inches, the clutch model, and the width of the friction material. Where diametral space is limited, or the torque required is greater than a single element can transmit, CB elements size 12CB350 and larger can be supplied as dual units.
Size Information
Size | Rated speed |nr/min | Rated torque N.m | Working pressure Mpa | Friction wheel diameter mm | Friction wheel width mm |
4CB200 | 2000 | 113 | 0.7+/- 0.1 | 99 | 51 |
6CB200 | 1800 | 231 | 150 | 51 | |
8CB250 | 485 | 201 | 64 | ||
10CB300 | 921 | 251 | 76 | ||
12CB350 | 1500 | 302 | 89 | ||
14CB400 | 2230 | 353 | 102 | ||
14CB400 DoubleFlange | 2230 | 353 | 102 | ||
16CB500 | 1550 | 3980 | 403 | 127 | |
18CB500 | 1400 | 4970 | 127505 | 127 | |
20CB500 | 1300 | 6060 | 505 | 127 | |
20CB500 DoubleRow | 1300 | 12100 | 505 | 305 | |
22CB500 | 1250 | 7040 | 555 | 127 | |
24CB500 | 1200 | 8480 | 606 | 127 | |
24CB500 DoubleRow | 1200 | 17000 | 606 | 305 | |
28CB525 | 1000 | 12000 | 706 | 133 | |
32CB525 | 900 | 15500 | 808 | 133 | |
45CB525 | 670 | 29400 | 1137 | 133 |
Size Information
Application and Features
Application
Oilfield machinery
Printing machinery
Rubber-processing machinery
Metal-forming machinery
Printing machinery
Rubber-processing machinery
Metal-forming machinery
Mold press machinery
Boat/Marine
Features
Single moving element
Automatic adjustment
No lubrication
Elastic coupling
Convenient disassembly
Centrifugal assisted detachment
Automatic adjustment
No lubrication
Elastic coupling
Convenient disassembly
Centrifugal assisted detachment
Company Profile
Founded in 1975, Henan Dalin specialize in designing and manufacturing for pneumatic clutch and its accessories,our main products including:Disc clutch,VC clutch,CB clutch and petroleum drilling clutch assemble.
Certifications
Exhibition Photos
Packing & Delivery
FAQ
Q1. Are you factory or trading company?
A: We are factory.
Q2. What is your MOQ?
A: 1 PCS for most standard products.
Q3. What is the delivery time?
A: We have most standard products in stock, they can be sent in 3-5 days after we receive the payment. For large quantity or nonstandard products, we need to check according to the production status.
Q4. How to make the payment?
A: We accept T/T, Paypal, Western Union or credit card.
Q5. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q6. What is the warranty?
A: Our warranty is one year. If you find any defect products, just send photos or videos to us. We will re-make it or re-fund them to you once we confirm it is our responsibilities.
