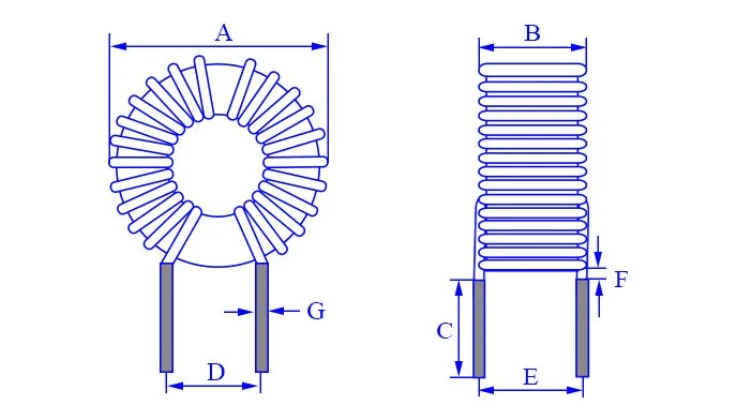

DIMENSIONS(mm)
A
B
C
D
E
F
G
TII10×6×5-102P(f)
13.0MAX
7.0MAX
10±1.0
6.0REF
6.0REF
1.5MAX
0.45±0.1

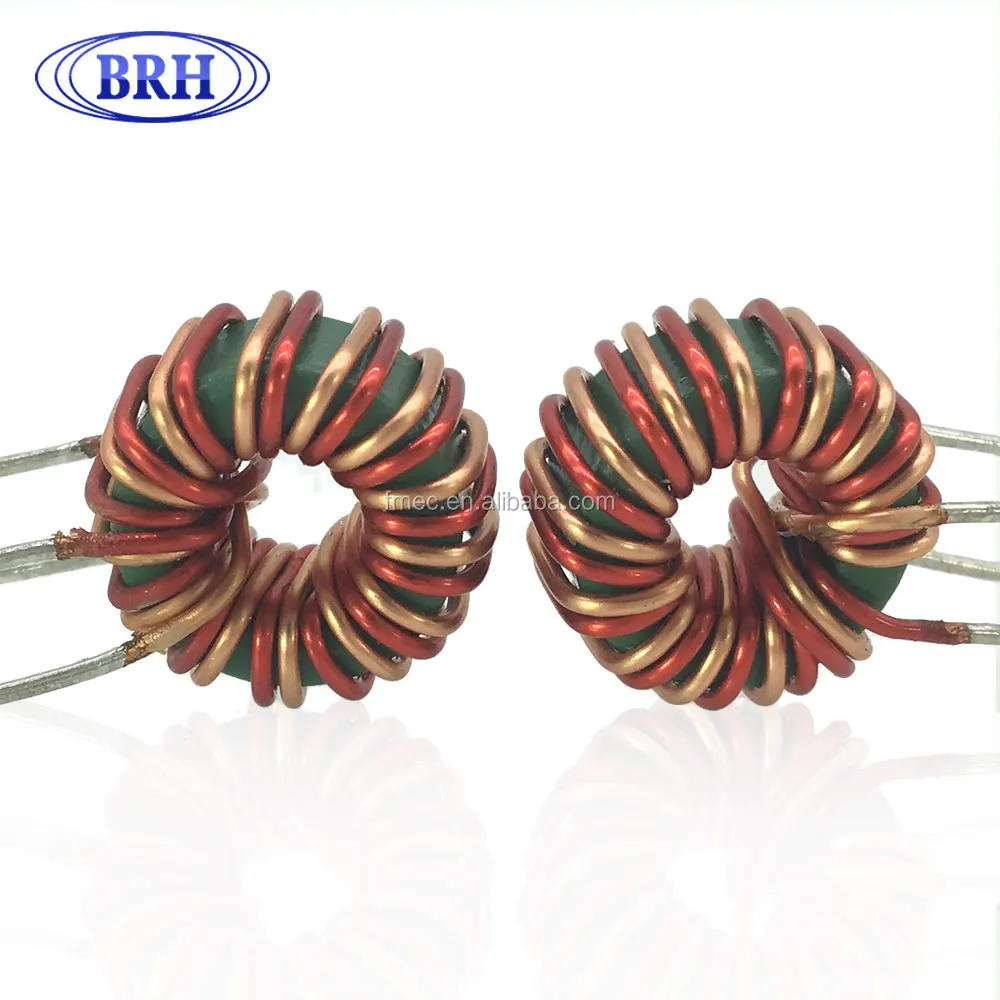

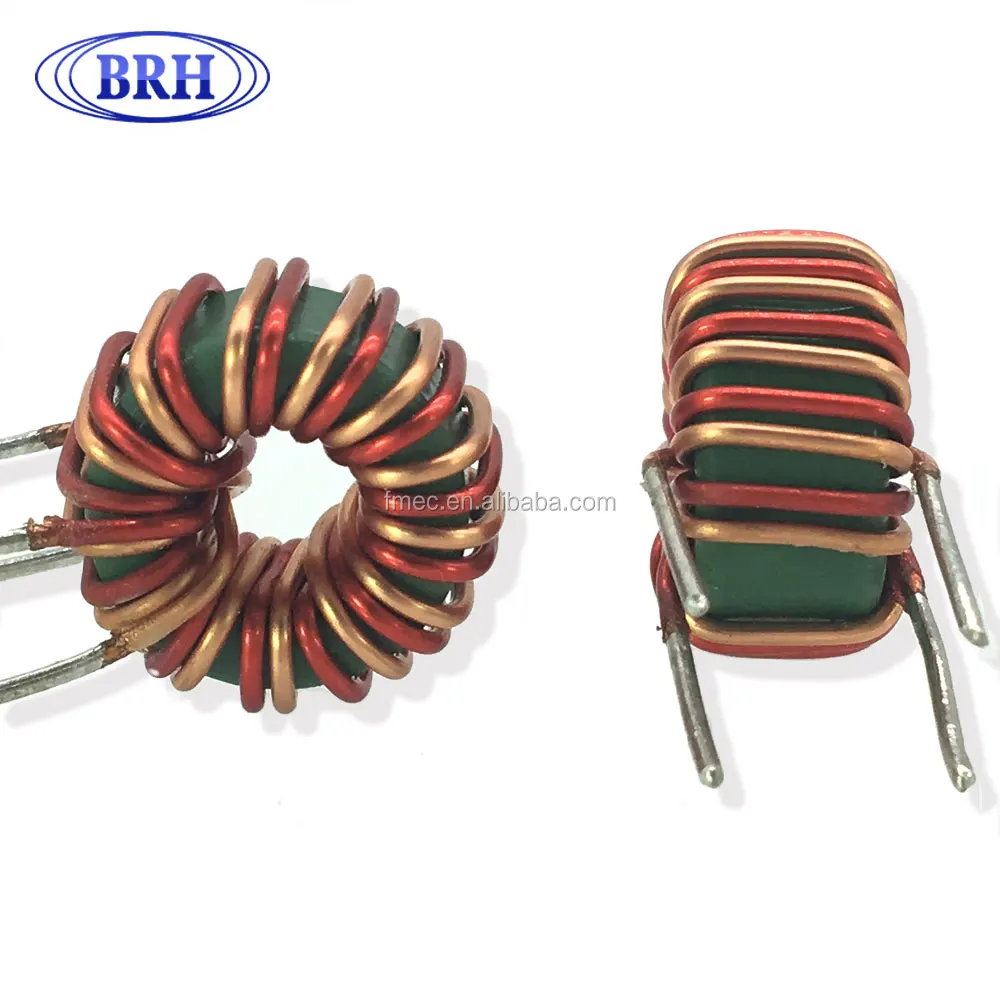

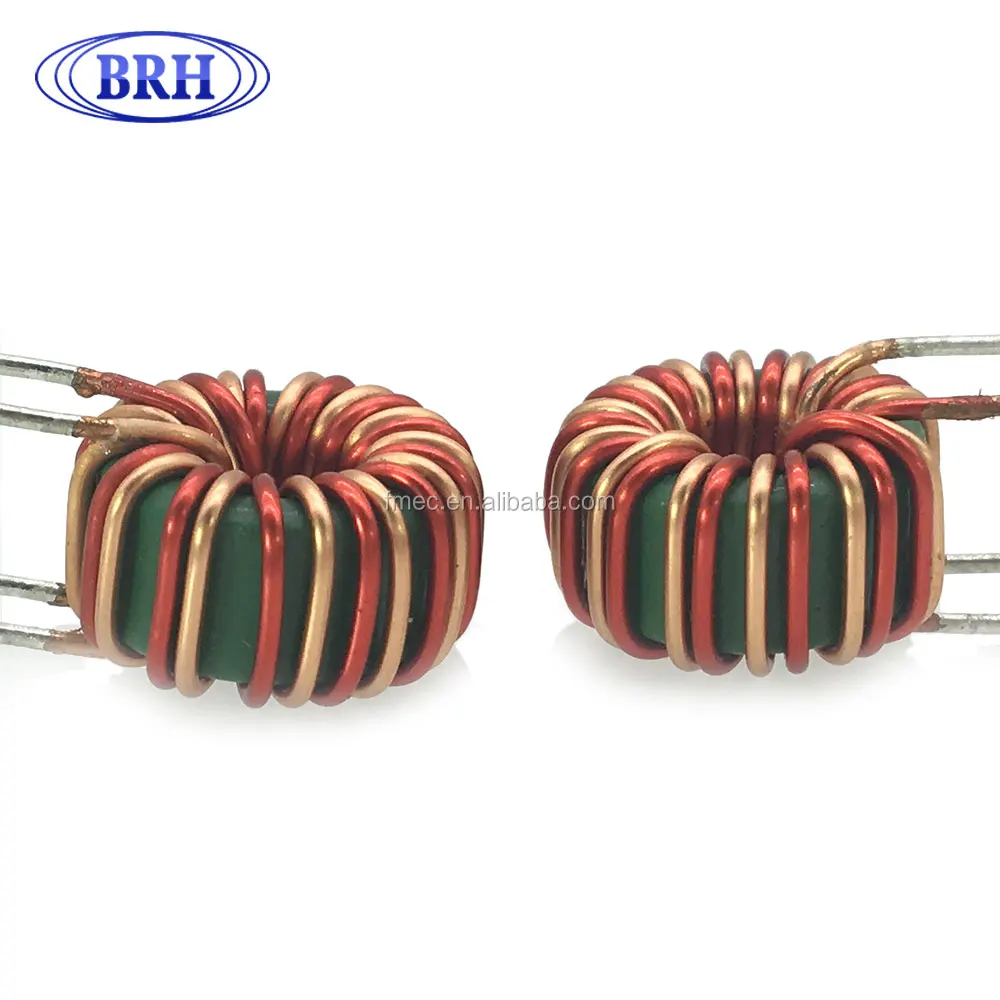

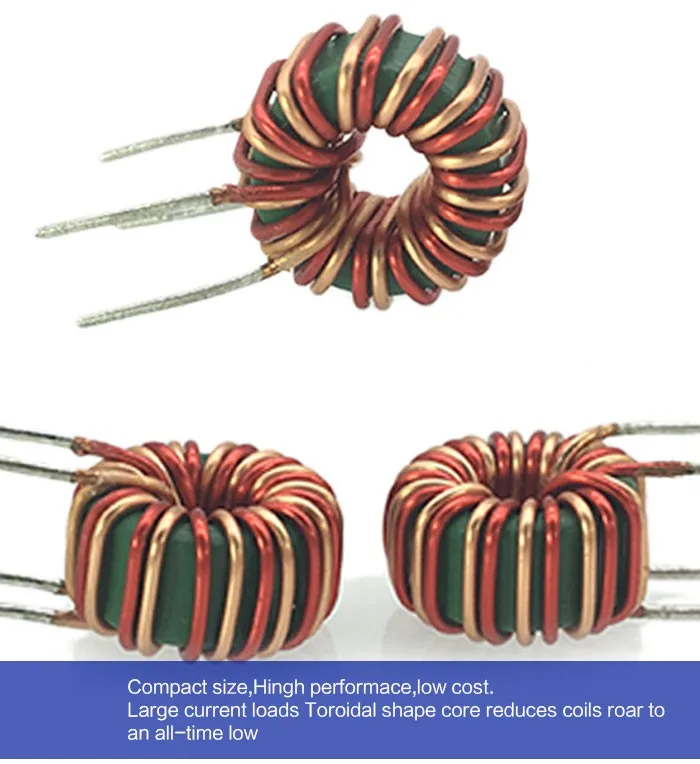

MATERIAL
CORE
WIER

Sn
Ni-Zi T 10*6*4.5
2UEWFΦ0.5*2P*16TS REF
Parameter
ELECTRICAL CHARACTERISTIC
ITEM
SPEC
TEST EQUIPMENT
TEST CONDITION
L（1-2）4-3）
1.0mH min
TH2828
1KHz/0.25V
DCR（1-2）（4-3）
35 (mΩ）max
502BC

TEST DATA FOR PRE PRODUCTION SAMPLES
ITEM
L(μH)（1-2）
L(μH)（4-3）
DCR(mΩ)（1-2）
DCR(mΩ)（4-3）
SPEC
1.0mHmin
1.0mH min
35 max
35 max
1
1.21
1.23
17.8
18.0
2
1.17
1.24
17.1
16.8
3
1.18
1.27
16.8
17.2
4
1.16
1.19
17.3
17.8
5
1.24
1.21
17.5
17.3
6
1.23
1.21
16.9
17.6
7
1.24
1.18
17.0
16.9
8
1.27
1.16
17.7
18.0
9
1.19
1.24
17.3
17.7
10
1.21
1.23
17.6
17.4




X-bar
1.21
1.216
17.3
17.47
R
10.6
6.2
1.0
1.2
RELIABILITY TEST
STORAGE TEMPERATURE:
-40℃～85℃
OPERATING TEMPERATURE RANGE :
-40℃～+85℃(CONTAIN HEATING COIL)
EXTERNAL APPEARANCE:
NO EXTERNAL DEFECTS CAN BE FOUND IN THE VISUAL INSPECTION.
TERMINAL STRENGTH:
FIXED INDUCTORS,ONE END OF THE ELECTRODE WITH 0.45KG PULLING FORCE,GUIDED THE NEEDLE DOES NOT FALL OFF.
INSULATING RESISTANCE:
THE INSULATION RESISTANCE SHOULD BE OVER 1000MΩ WHEN D.C.100V IS APPLIED TO THE WINDING –CORE. MEANWHILE NO STRUCTURE AND ELECTRIC DEFECTS SHOULD BE FOUND FOR 1 MINUTE.
HUMIDITY TEST:
INDUCTANCE DEVIATION IS WITHIN ±10.0% AND NO STRUCTURE AND ELECTRIC DEFECTS CAN BE FOUND AFTER 96±2hours TEST UNDER THE CONDITIONOF RELATIVE HUMIDITY OF 90～95% AND TEMPERATURE OF 40±5℃. AND 1 HOUR STORAGE UNDER ROOM AMBIENT CONDITIONS AFTER THE DEVICE IS WIPED WITH DRY CLOTH.
VIBRATION TEST:
INDUCTANCE DEVIATION IS WITHIN ±10.0％ AFTER 1 HOUR SWEEPING VIBRATION IN EACH THREE DIRECTIONS. NAMELY, FREQUENCY IS10～55Hz ANDTHE AMPLITUDE OF 1MINUTE CYCLE IS 1.5mm .
