Innovative product notching machine /corner notching machine / angle notching machine

Product Overview

Description

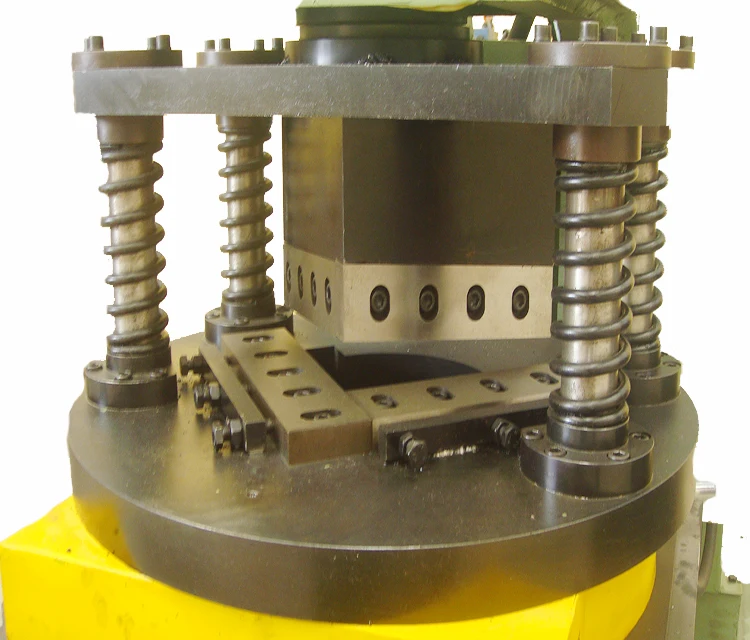

Innovative product notching machine /corner notching machine / angle notching machine

JGQ series Hydraulic Angle Steel Notching Machine

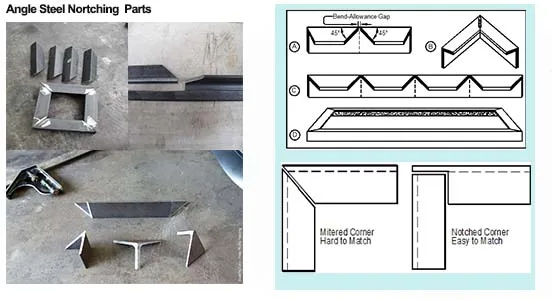

The hydraulic angle notching machine is mainly used for cutting the corner of the angle steel.



Feature:The machine is open C-type structure, the cutting mould is right angle double blades,rotary multi-azimuth type, can cut the different perspectives angle steel by only need to adjust the rotation mould rack, and don’t need to move the angle steel. So the corner cutting work only take small place and little error

Specification

Model	JGQ160	JGQ200
Shear Force(KN)	1600	2000
Max.work piece thickness(mm)	12	16
Motor  Power(KN)	15	15
Max. Pressing Force(KN)	25	25
Cutting Angle Range(L×W×T)(mm)	140×40×3~L140×140×12	L140×40×3~L200×200×16
Rotation Angle(°)	360	360
