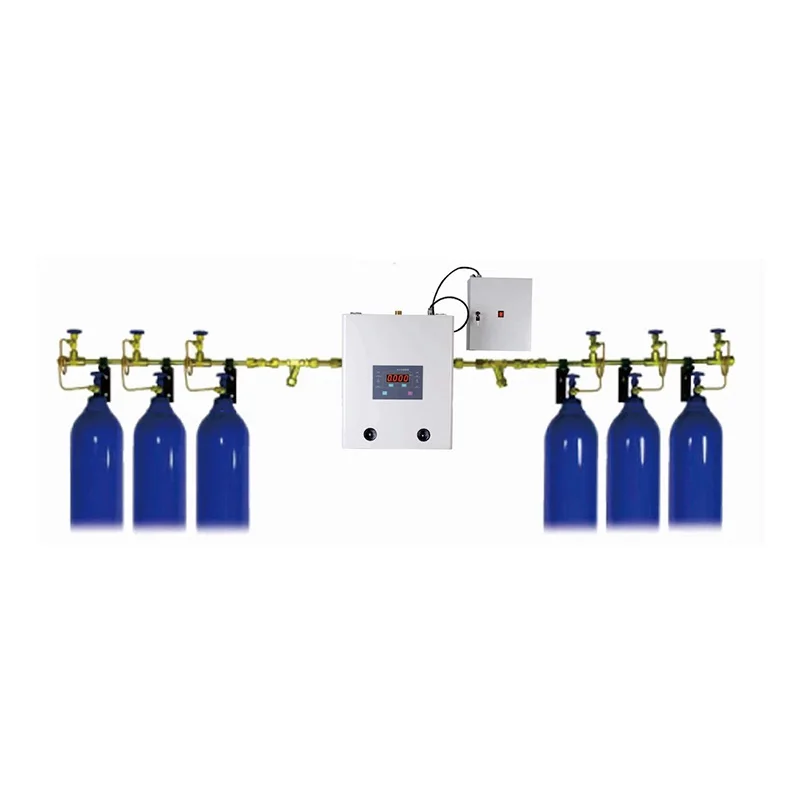

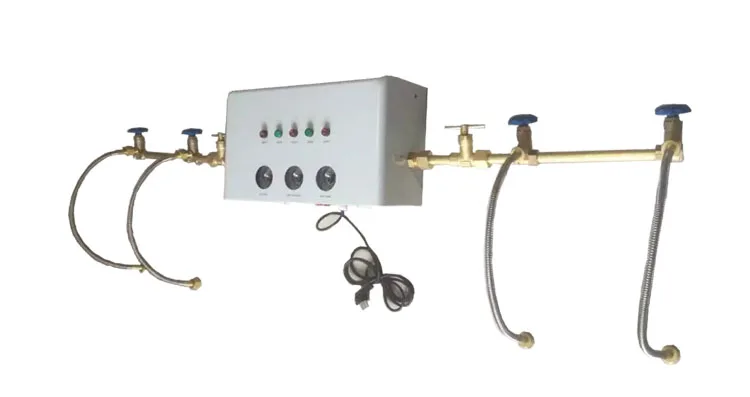

Automatic Manifold Systems for Medical Gas Station

Product Overview

Description

High Accuracy Pressure Switch Control Medical Digital Automatic Manifold Systems

Medical Automatic Manifold Systems:

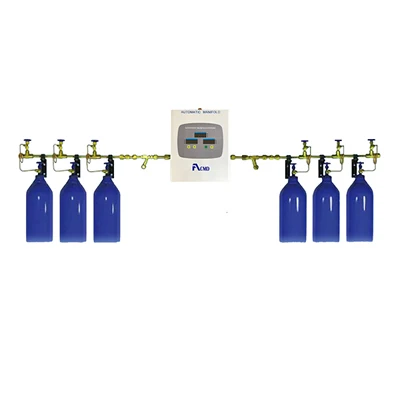

A-100D Series AutoMatic Turn-Over Digital Displayer Gas Manifold System ,Designed For AutoMatic Turn Over Between Two Lines Gas Sources WithoutAny Adjustable By Manual Operation. The System Can Continue Providing Gas Source If No Electricity Power Supply. Fulfill with NFPA99, HTM02-01 and GB50751-2012 Standard.

Specification for Medical Automatic Manifold System:

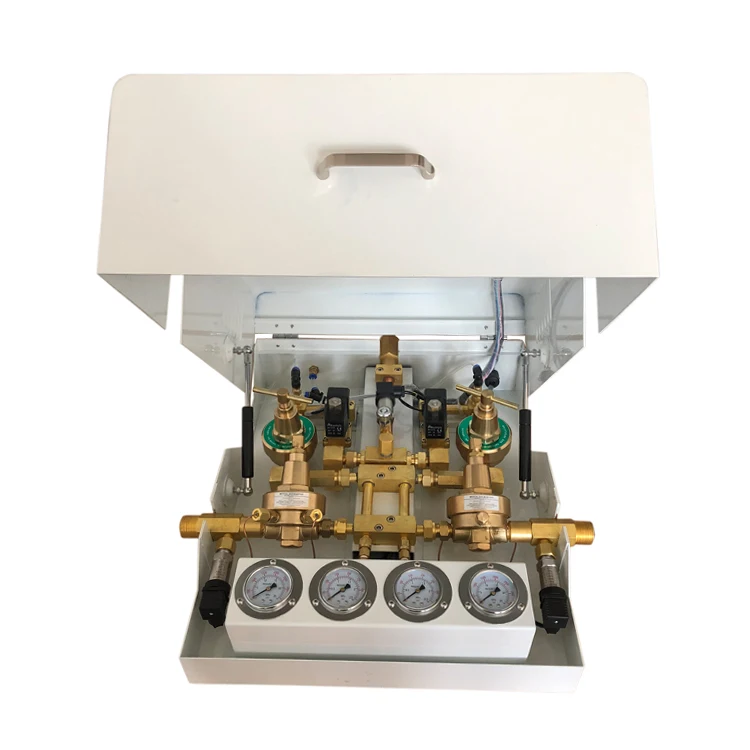

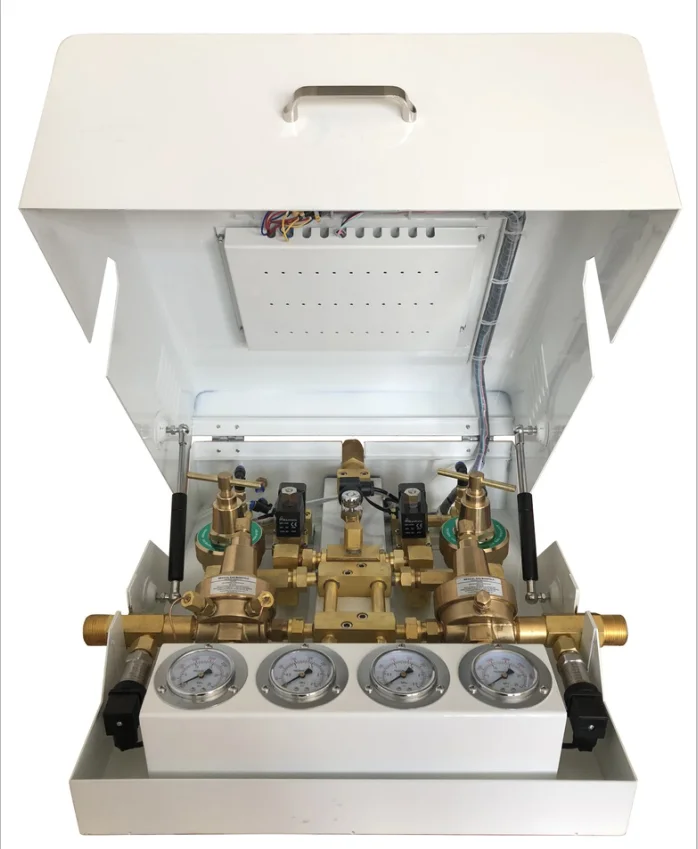

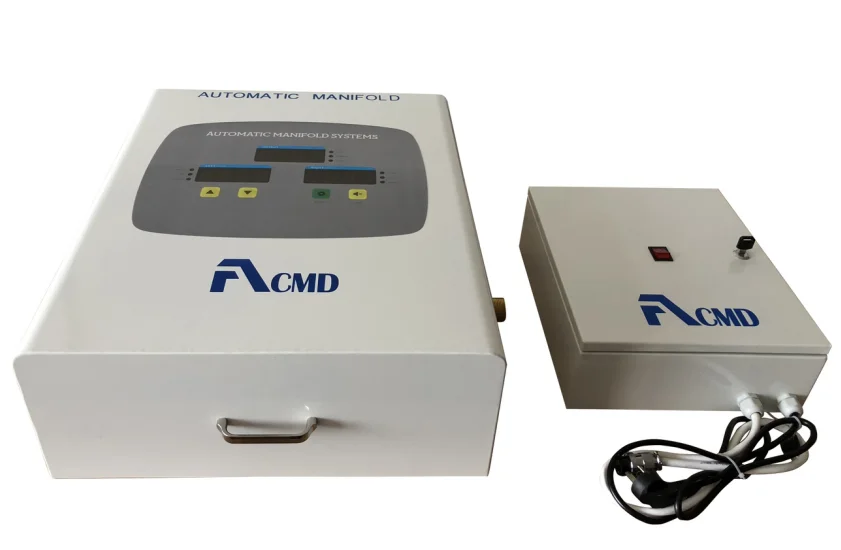

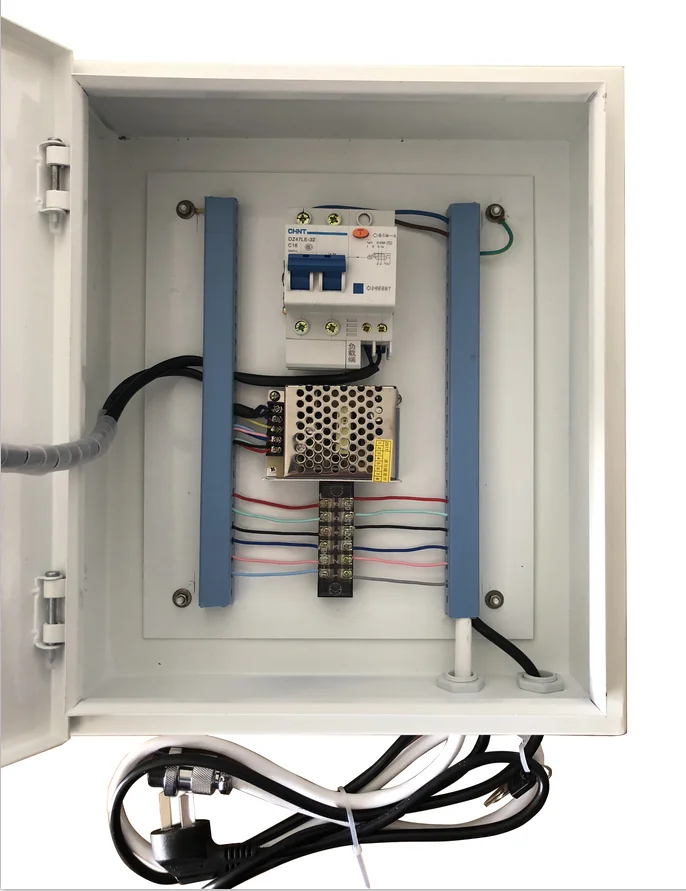

Full enclosed metal Automatic Turn-Over control box, to avoid electromagnetic interference;

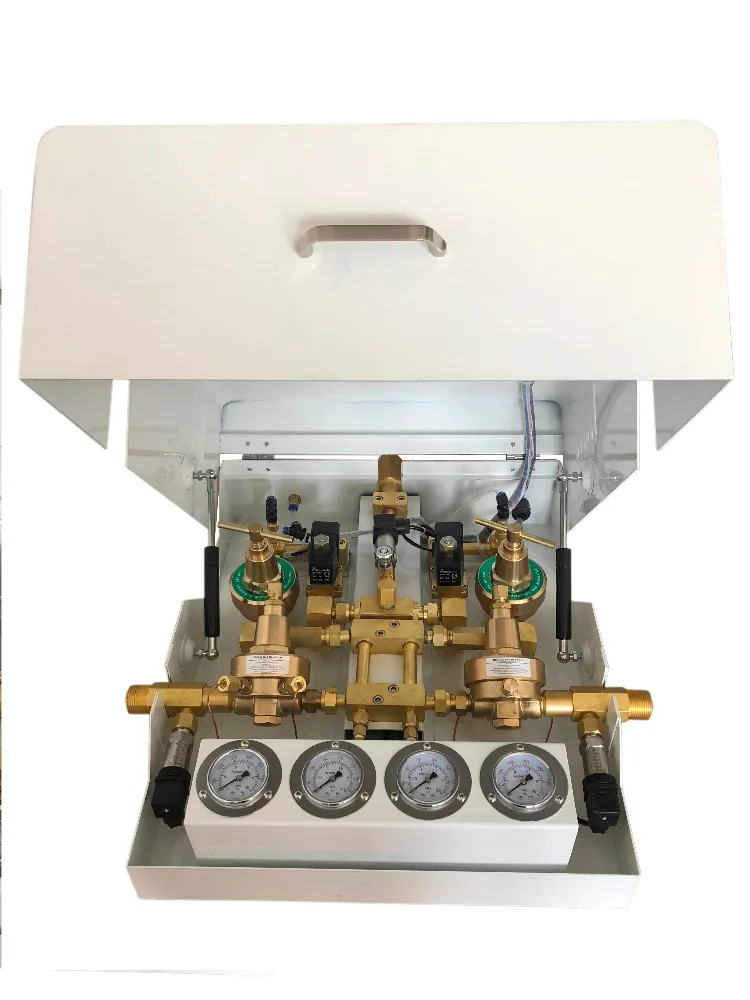

Stainless Steel Diaphragm type Oxygen Regulator, to ensure a steady flow rate;

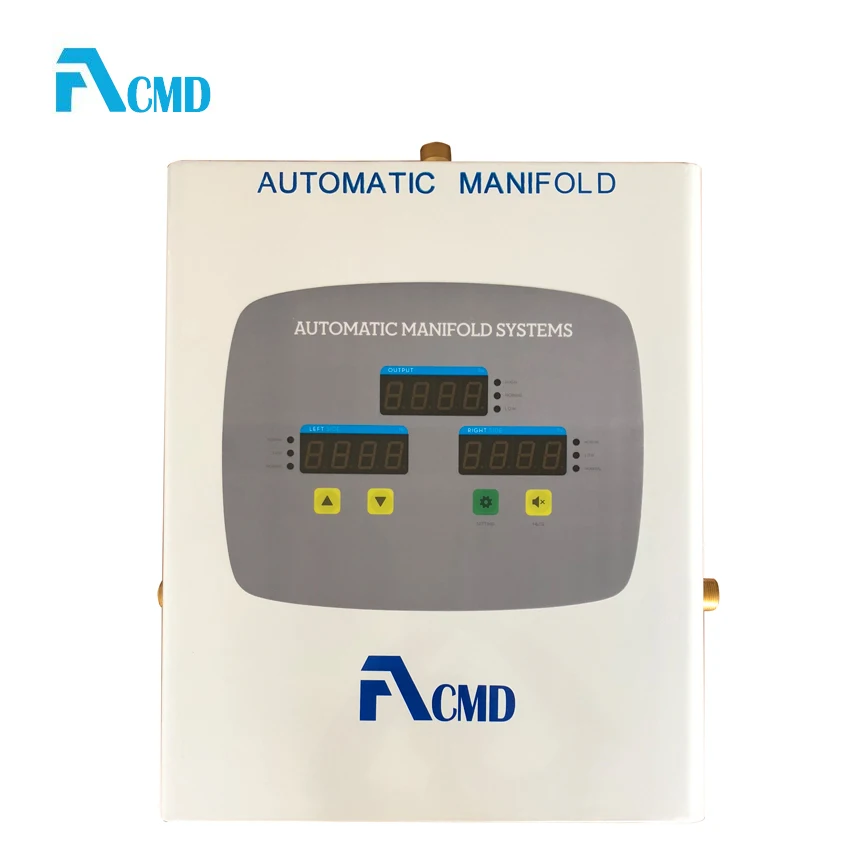

Digital Displayer for system service status;

With Sound / Light alarm system; Network Remote Alarm function optional;

Open design for cylinder connecting pipes, for future expansion;

Compact structure and reasonable layout;

Simple installation and maintenance;

100% passed pressure testing before delivery; omatic Manifold Systems

Technical data about Automatic Manifold Systems





Applicable gas	oxygen, etc.
The Left Input,the Right Input  pressure	0.4~15Mpa
Outlet pressure	0.4~1.0Mpa(adjustable)
Nominal flow	> 100M3/h.
Pipe internal thread	M33 * 2 (Can made according to requirements)
Switching pressure	0.6~1Mpa (adjustable)
Switch time	3S
Operating voltage	AC24V.
Working current	250mA.
Relief valve opens pressure	1.25Mpa

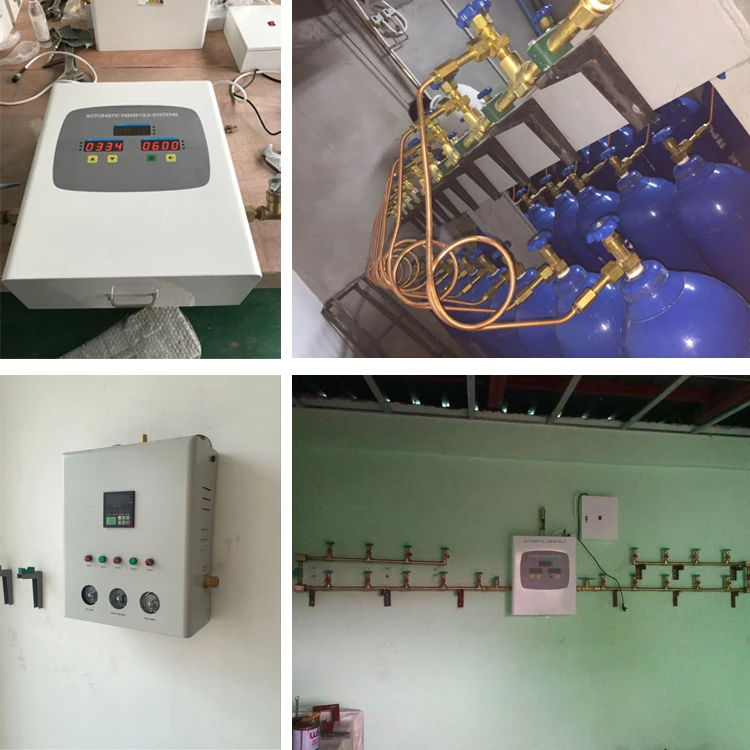

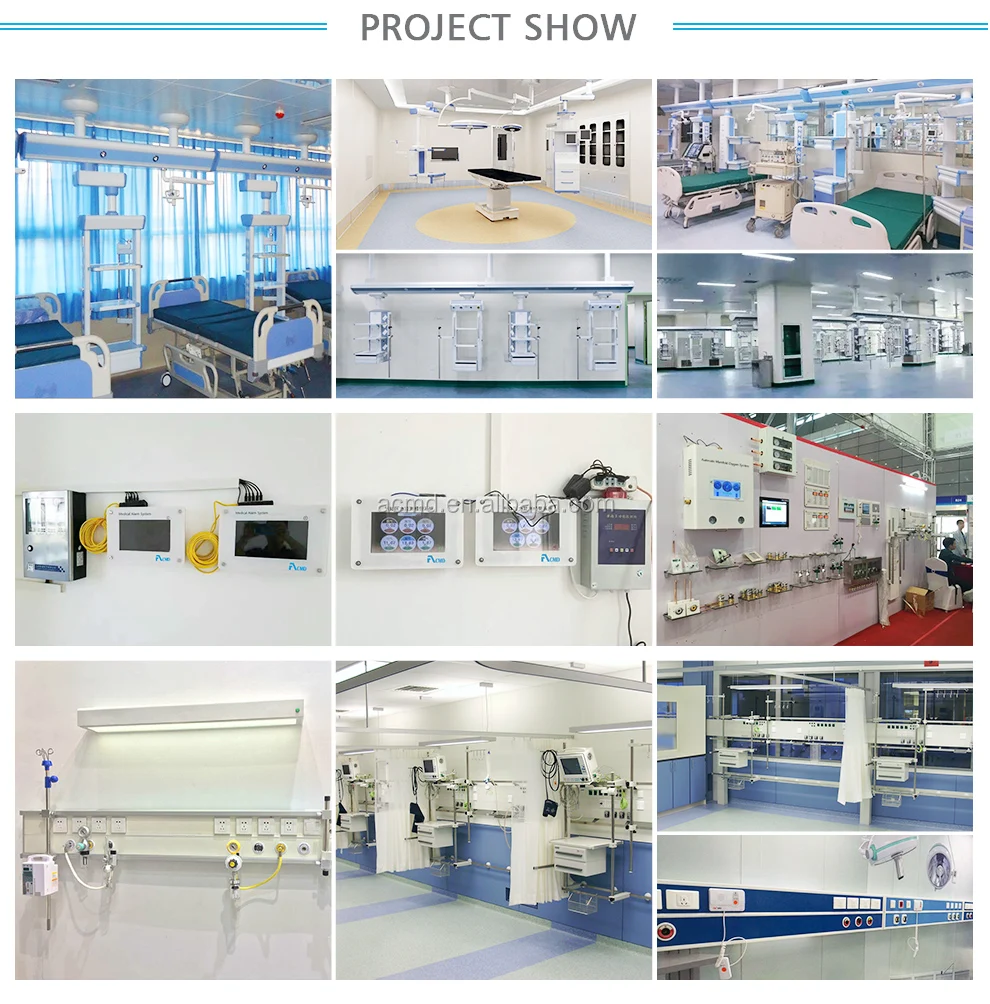

Project Show of ACMD Products:

Now ACMD Medical has business partners all over the world: Colombia, Ecuador, Chile, Mexico, Peru, Bolivia, Uruguay, Brazil, Ukraine,Poland, Bulgaria, Lebanon, Gerogia, Spain, Romania, Thailand, South Korea, Philippines, Indonesia,Cambodia... ACMD Technology continues to follow its tradition of high quality to make contributions to medical healthy brighter future.

Company Introduction:



Suzhou ACMD Medical Technology Ltd., Company is one of the leading manufacturer and Project Engineer in China for Hospital, Our company mainly focused on Design Hospital gas pipeline system and Secondardary medical equipments for domestic market and forgien projects.



Why Choose ACMD Medical Company? The Advantages We Have For Hospital Gas Pipeline System:



1, Attend Domestic and Foreign Medical Exibition Every Year, Acknowlodge the newest industry development.

2, Have Good Relationship with Designing Institute Worker, Providing Satisfied Hospital Engineering Design.

3, 5 Steps Quality Controlling System to Ensure High Quality Products.

4. 5 Years Warranty for ACMD Direct Sold Products.

5. Fast Manufacturing Period, 3-5 Days after Receiving Payment including OEM.

6. Fast Delivery Method, We have 5 Years Shipping Farwarder Make Sure in-time Delivery.
