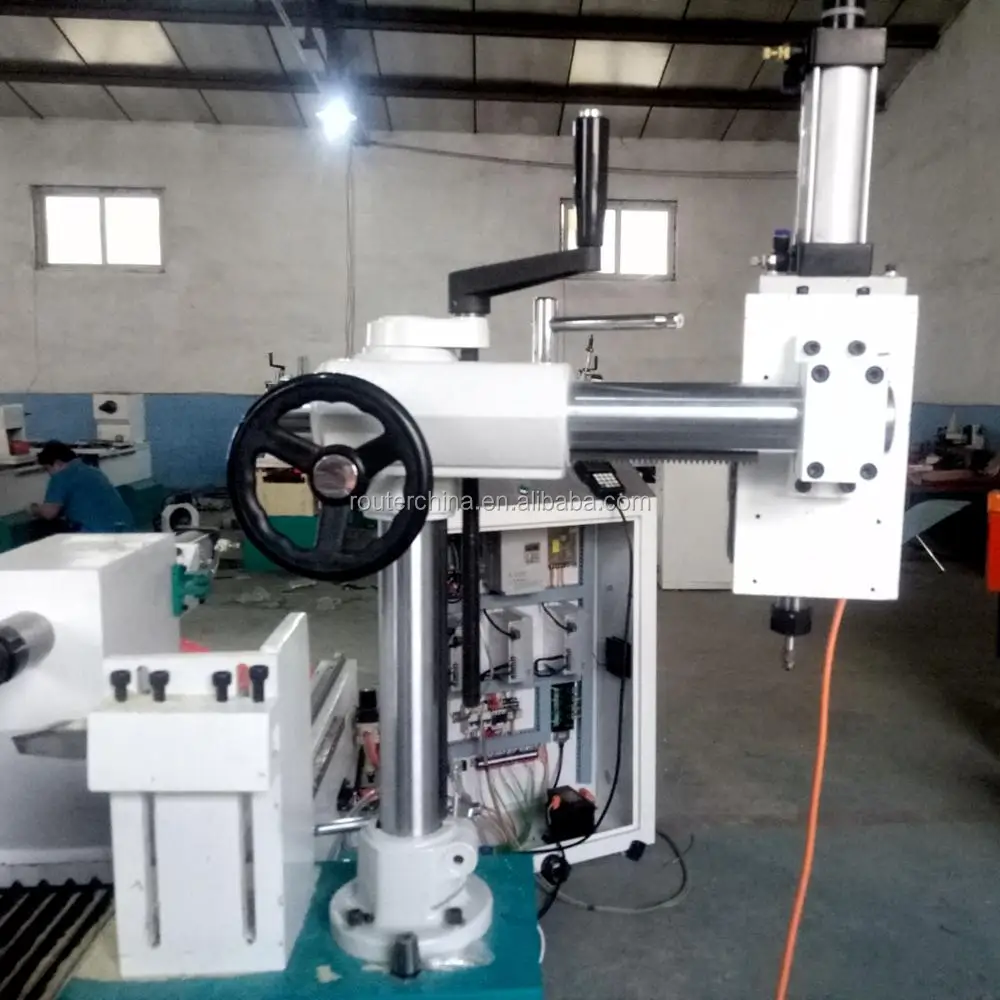

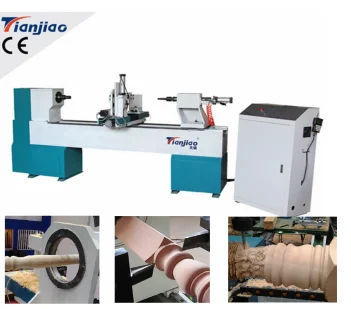

Low Cost Home use Hotsale Wooden Saw Dowel CNC Wood Lathe Machine

Product Overview

Description

Low Cost Home use Hotsale Wooden Saw Dowel CNC Wood Lathe Machine

Low Cost Homemade Hotsale Wooden Saw Dowel CNC Wood Lathe Machine

1 machine =24 workers



1.Detailed Features:

 1. Whole machine is welded with seamless steel structure, which is high temperature annealing

and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

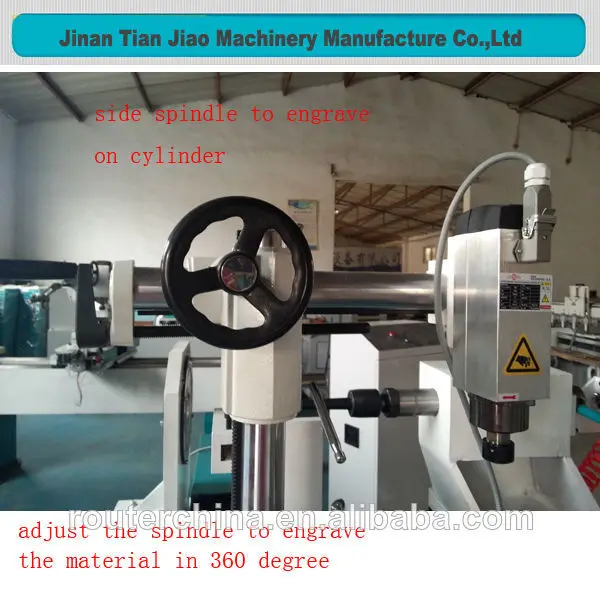

2. Professional used for wood turning and wooden cylinder engraving, for   table legs, stair

 railing (banisters), etc.   wood cnc turning lathe



3.Adopting advanced DSP system with USB connection, operated with the handle, convenient

operation. Our engraver can completely work off-line and do not take any computer resources.



4. Adopt Germany ball screw and taiwan PMI helical square rail with high transmitting precision

and longevity. Bid module helical/diagonal rack.



5.Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.



6.Rotating speed is adjusted by inverter, and the speed data is shown on  controlling cabinet panel.



7. One time tool setting to finish the whole work piece.



2.Technical Parameters:



Model	TJ1530/TJ2030/TJ2530
Max turning length	100-300mm or option
Max turning diameter	300mm/300mm/160mm
Number of axis	2 axises 1 blade/1 axis 1 blade/1 axis 2 blade or option
Maximum feed rate	200cm/min
Minimum setting unit	0.01cm
Spindle motor power	4kw
Air pressure	0.6-0.8Mpa
Power supply	AC380v/50hZ or 220v/50hz or option
Overall dimensions	300*110*170cm
Weight	1600kgs
Control	DSP
Driver	Stepper motor



3.Suitable Materials and Industrial Applications



Automatic CNC Wood lathe is used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc.



Full Automatic Feeding CNC Wood Turning Lathe Machine is suitable for mass production with same turning designs, the CNC wood lathe machine can automatic loading raw timber, automatic centering, automtic turning according to the program, save time and labor to improve the working efficiency.

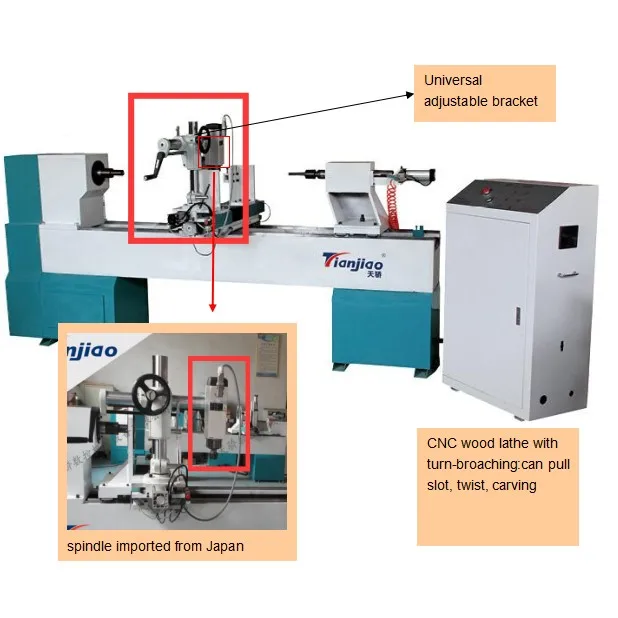

4.Main Parts:





Optional Parts:



1. More rotary axis



2. Spindle



3. Different power requirement



4. Upgrade controller



5. Servo motor



6. Bigger working diameter and length, etc.

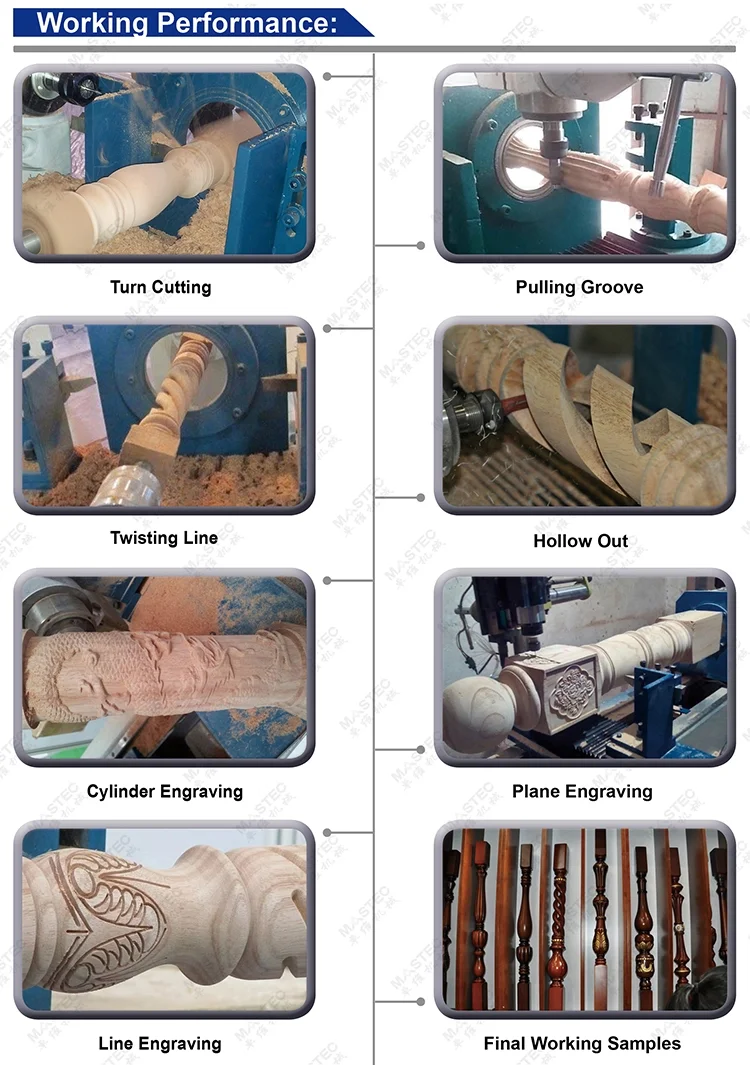

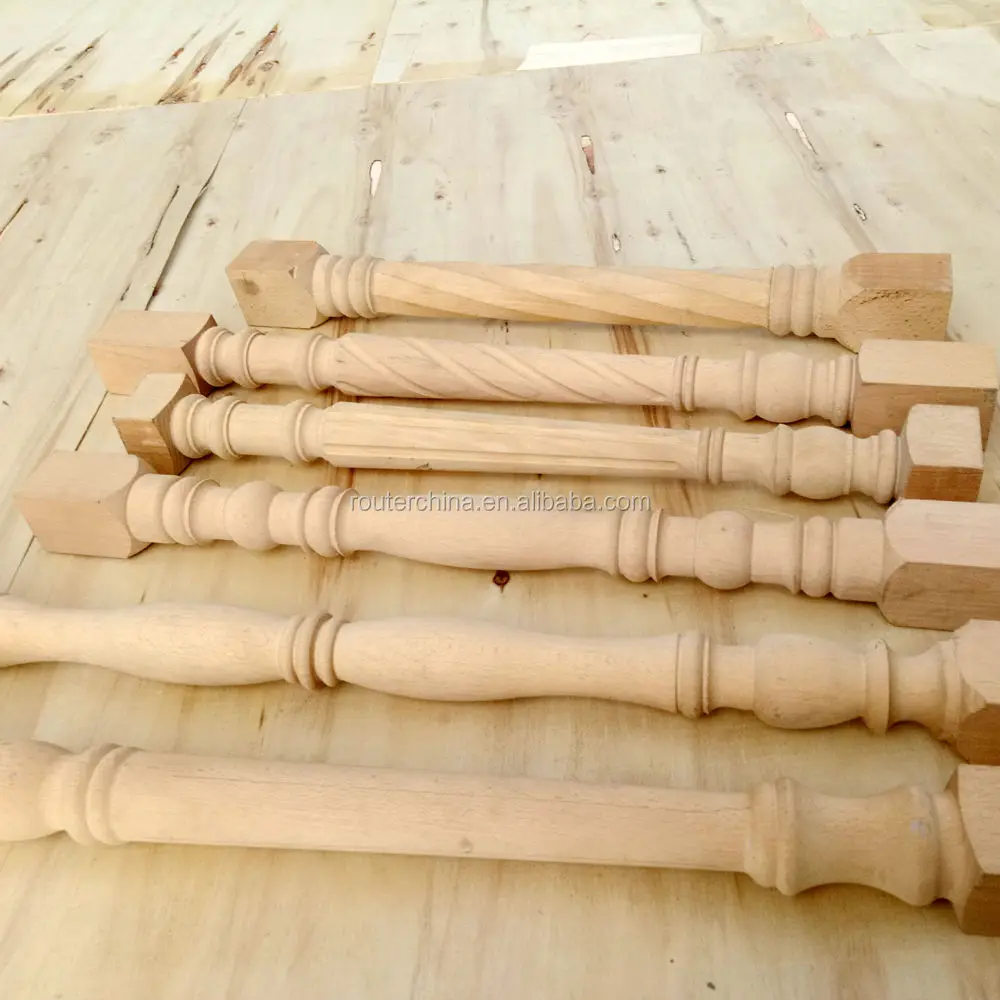

5.Sample Processing Show



6.Packing Show:



Whole machine will be totally wrapped with cling plastic to avoid rusting during shipping,then fastened on the stronger iron steel tube pallet with wooden box for sea shipment.



Inside Packing

· Use professional Stretch Film to cover the whole lathe.

· Stretch film package with foam protection in each corner.

Outside Packing

· Sandard export wooden cases and pylwood cases.

· Save space as much as possible for container loading.

Transport

· We support shipping, air, land and express.



7.Fair and Customers:



8. After sale Service:



Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong

with the machine, you will get spare part for free. Out of 12 months, you willget spare parts at cost price.

You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email or Skype around the clock.
2. Friendly English version manual and operation video CD disk.
3. Engineer available to service machinery overseas.

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machineimmediately after received machine.

Besides, you will be able to get free training advice towards our machine in our factory. You willalso get free suggestion and consultation, technical support and service by email/fax/tel etc

9.FAQ:

 >> How to choose and get the price of the suitable woodworking lathe machine?

The suitable machine will be recommended and quoted if you can answer just 2 questions:

1) What’s kind of work do you want the machine to do?

The final working sample picture would be very helpful for our understanding and save words for you.

2) The original material name, 3D size and the max engraving depth?

>> What’s kind of job the machine can do?

Combining CNC and other mechanical technology, Multi-Functional CNC woodworking lathe could do such job, like Turning Cut, Milling, Twisting line, Pulling groove, Hollowing out and Engraving.

Remark: Above job or function is mentioned only for CE and CEP series.



>> What’s kind of benefit could I get by using this machine?

It can improve the working efficiency and save production cost for you. The processing speed is faster than cnc router machine, but the price is lower than the latter. Furthermore, the tool is not easy to be broken in comparison with cnc router machine. Maintenance cost is lower and it occupies smaller space too.



>> Is the machine suitable for our local power supply?

Don’t worry, our machine can be designed according to your local power supply condition.



>> This is the first time I use this kind of machine, is it easy to operate?

English manual or guide video could clearly show you how to use machine properly.

For more confused question, on-line technical support service is available by phone or by instant messaging.

Technical support engineer is available for being dispatched overseas.



>> If machine have any problem after I ordered it, how could I do?

Free replacement of the damaged parts under ‘normal usage’ for a period of one year from the date of original shipment. spare parts and repair service is offered in lifetime.

24 hours technical support by e-mail, calling, IM (instant messenger like Skype, WhatsApp, Viber or door-to-door service.

Technical support engineer is available for being dispatched overseas.



>> MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price sent to you.



>> The delivery time ?

In normal condition, the standard machine could be available for delivery within 15 working days since the confirming date of pre-payment. Negotiable for both sides if any emergency arises.



>>How many sets of machine could 20’ and 40’ container hold?

For MWL315 and MWL415, 4 sets in 20’ container and 8 sets in 40’ container.

For MWL425, 2 sets in 20’ container and 8 sets in 40’ container.

For other size, please consult with us.



>> How to pay?

In normal condition, T/T payment is recommended because it’s the easiest way and save trouble and time for both sides. We are credit verified supplier and do long-term business, so do not worry about the security.



>> Can I distribute your machine in my country?

Welcome and thank you to be our distributor if your country hasn’t had sole agent of our machine. We could sign an agreement and issue authorization certificate for you. Technical consultancy service, training and other technical support service is free. Furthermore, the profit returning (above specific sales quantity) incentive system will be helpful for your business.

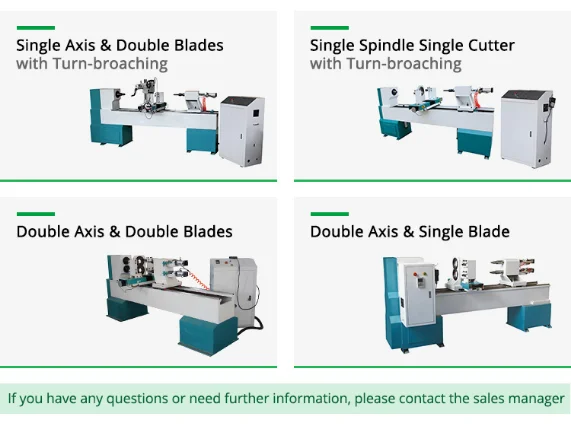

10. Other Products
