53 1/2/3/4/5 Spool Porcelain Insulator

Price:RUB 9.19 - RUB 382.56

Quantity:

53-1/2/3/4/5 Spool Porcelain Insulator

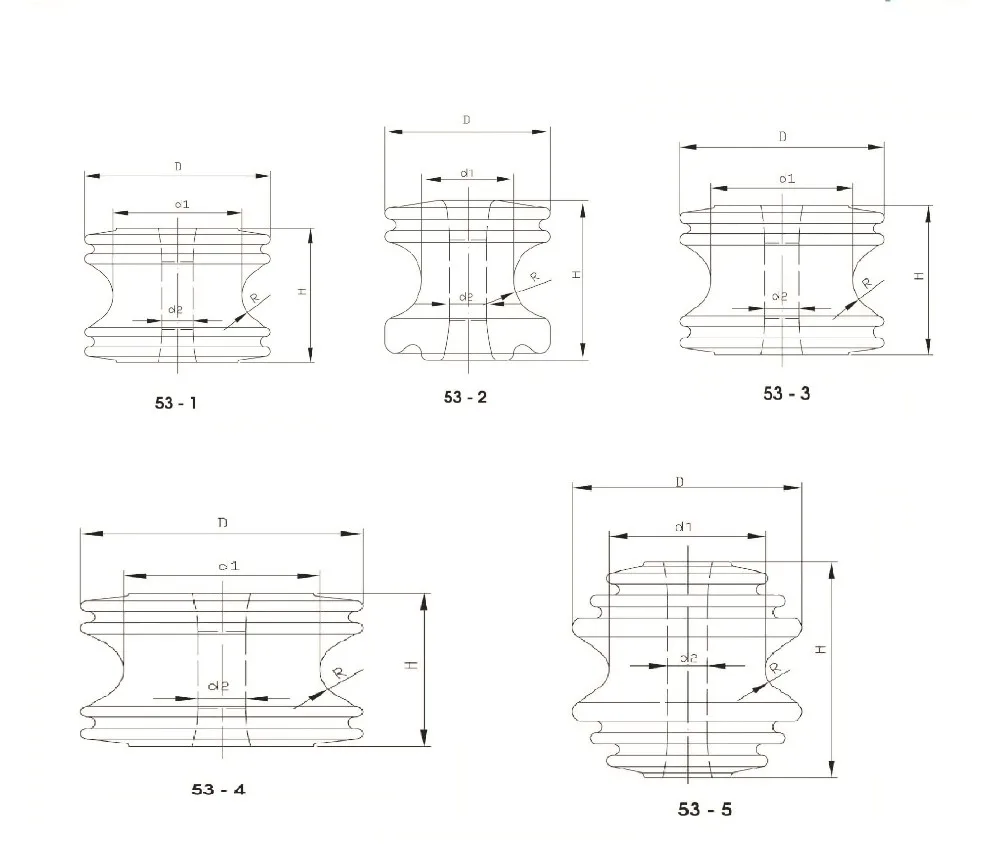

ANSI Class		53-1	53-2	53-3	53-4	53-5
Main dimension,mm	D	54	76	81	76	105
	H	57	79	76	105	102
	d1	44	44	44	73	73
	d2	17.5	17.5	17.5	17.5	17.5
	R	11	17.5	11	16	11
Mechanical Failing Load,kN		9	13	18	20	27
Low Frequency Dry Flashover Voltage,kv		20	25	25	25	35
Low Frequency Wet Flashover Voltage,kv	Vertical,Kv	8	12	12	12	18
Low Frequency Wet Flashover Voltage,kv	Horizontal,kV	10	15	15	15	25
Approx.weight,kg		0.2	0.5	0.6	1	1.2

- -
