Product Overview

Description



Dandong Hongde Candle Industrial CO. LTD



This is Dandong Hongde Candle Industrial CO., LTD. We are a factory that can supply candles. Candle making machine and Candle accessories. We located in Dandong city, Liaoning Province, China. Near Dalian port.



We are especially in various kinds of candle machine, such as automatic tealight production line, semi-automatic filling line, automatic wick cutting machine, automatic wick dipping machine, spraying house, automatic temperature controlling and color mixing boiler, milling drum, instant melting box, lighting test box, burning test box, multi-function candle machine, pillar candle machine, reeling&pressing machine for tealights and manual pouring machine. The company can also custimize candle equipments according to customers' needs.

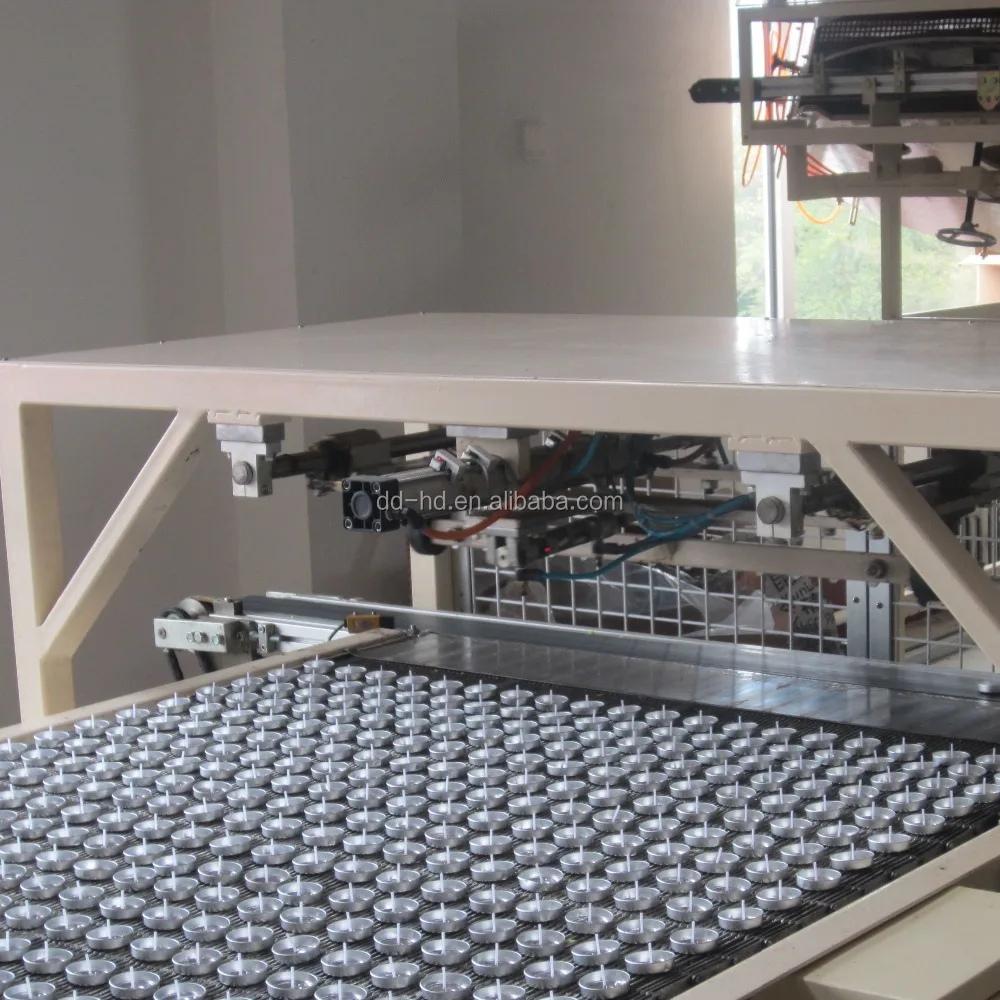

Auto  tealight candle filling line

This product is made up of conveyor,2 filling head,2 wax tank,2 heating box,control box.There are three lines of nozzles at the bottom of filling head which can be used to fill tealight cup,glass cup and big jar.The height of filling head can be adjusted along shelf which will be suitable for different height and volume container.

Liquid wax is pumped into filling head by a heat resistant pump which is in the wax tank.Liquid wax will move between filling head and wax tank circularly.When the containers on the conveyor move under the filling head,a sensor will detect them and begin to fill.The liquid wax volume can be adjusted and set by a timer on control box.While we can add cooling system according to customer's require in order to short cooling time.

Heating oil can be added into the interlayer of filling head and wax tank.There is heating pipe in the interlayer.By setting temperature controller on control box in order to adjust heating oil temperature,so keep liquid wax temperature in filling head and wax tank.

The speed of conveyor moving is cottolled by VFD,so you can control conveyor speed according to filling line.

Technical data

Model Type: HD-080

Output: 6000pcs/hour(glass cup candle)

             13000pcs/hour(tealight candle)

Power Supply:3phase 380V

Motor Power:47.5KW

Gross Weight:3500KG

Dimension of Main Machine:36000*1530*1850mm

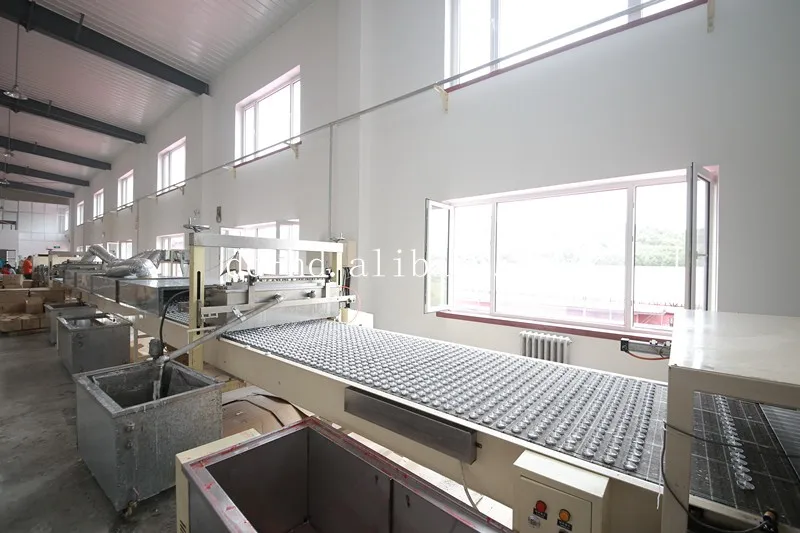

Picture of factory

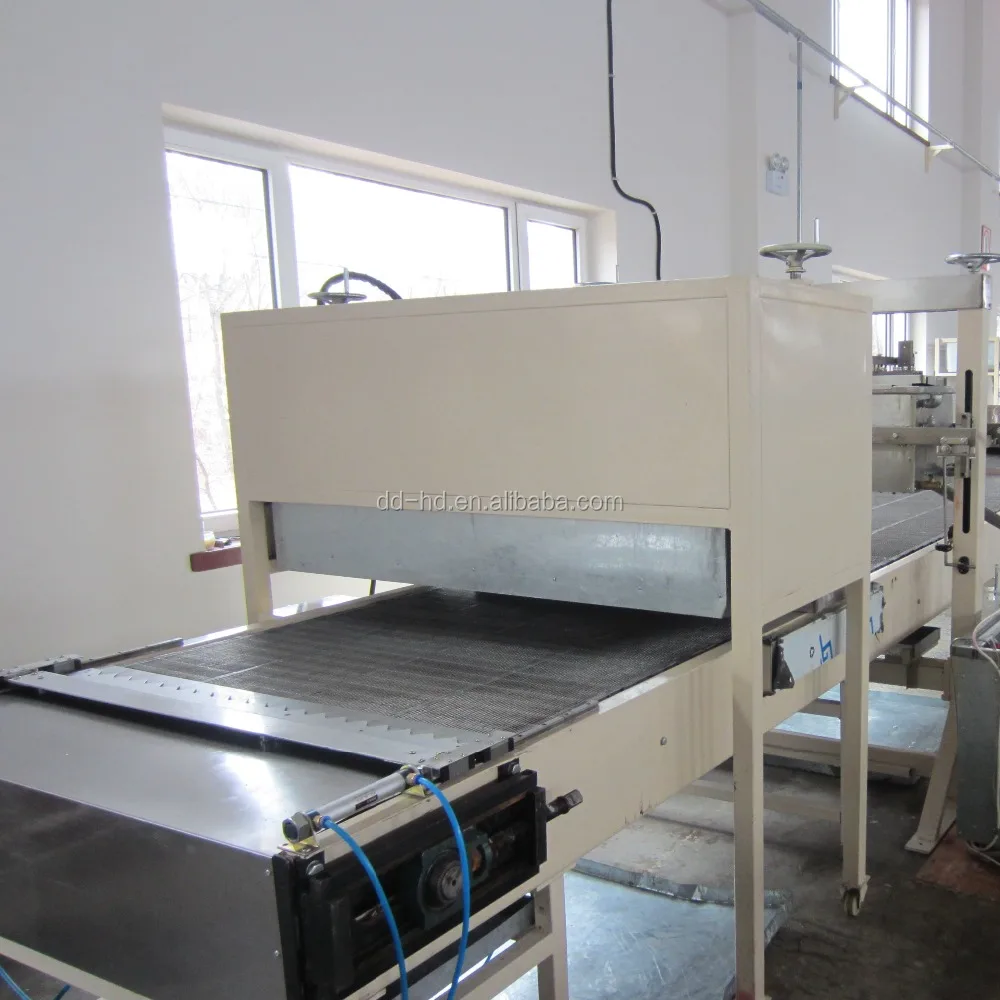

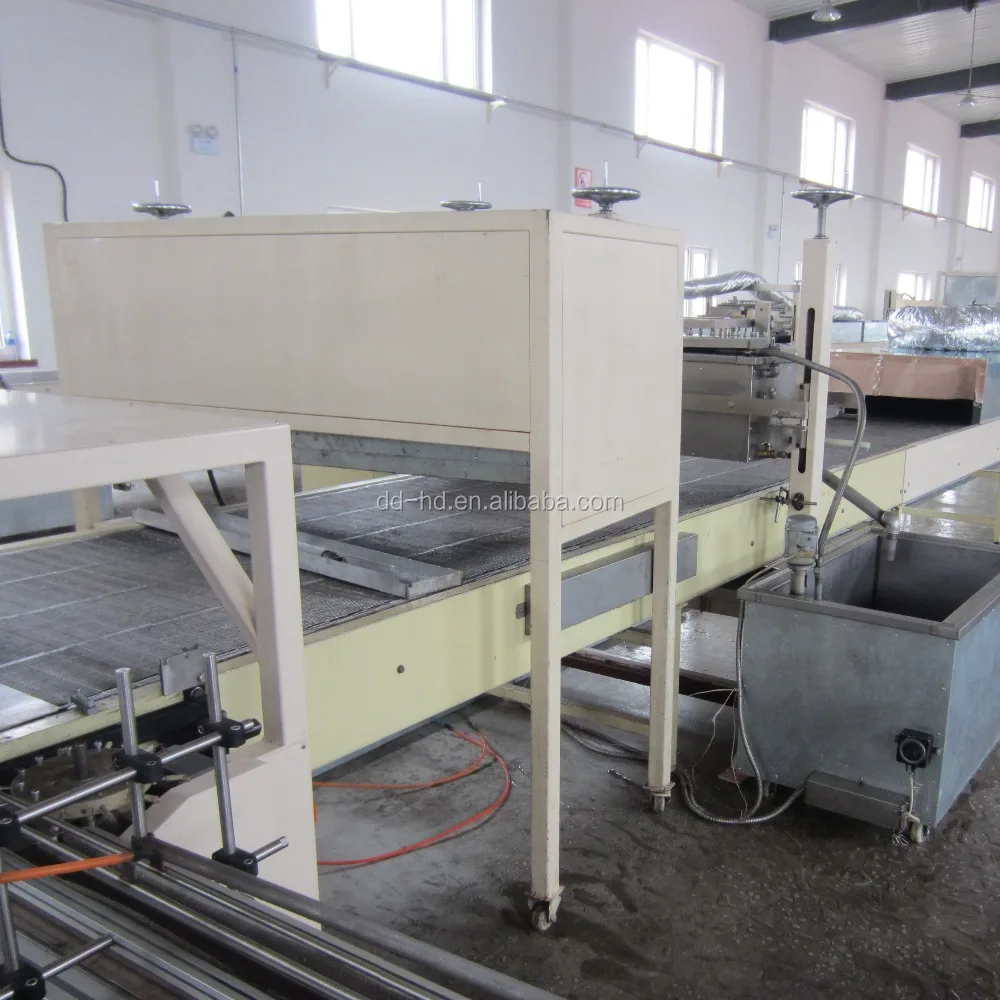

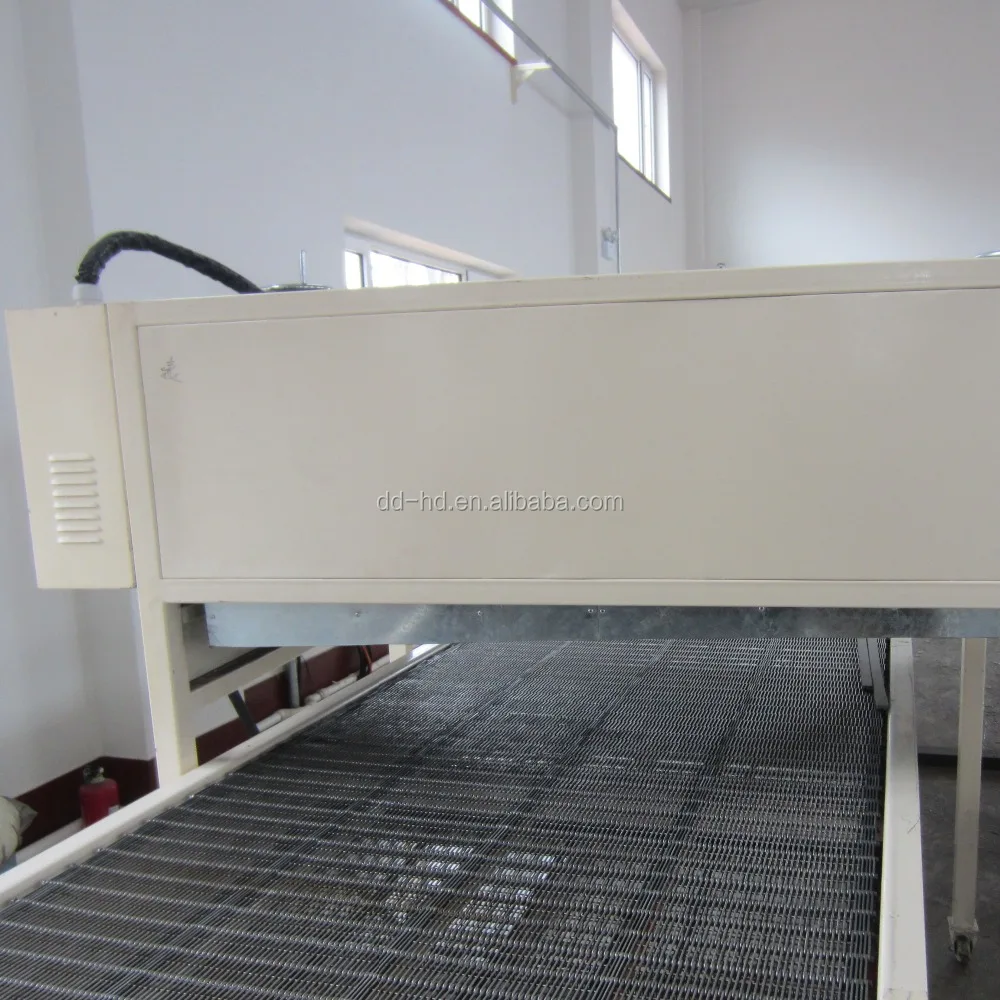

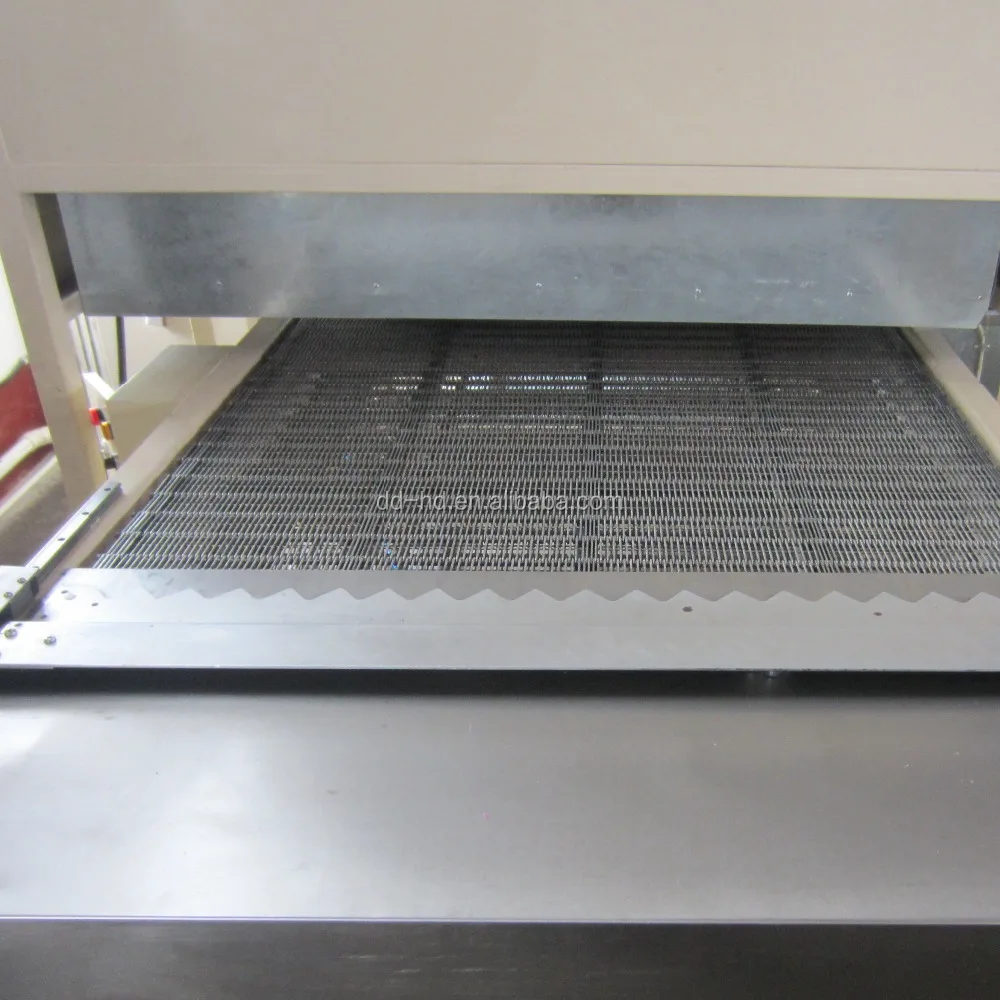

The pictures of the products for reference

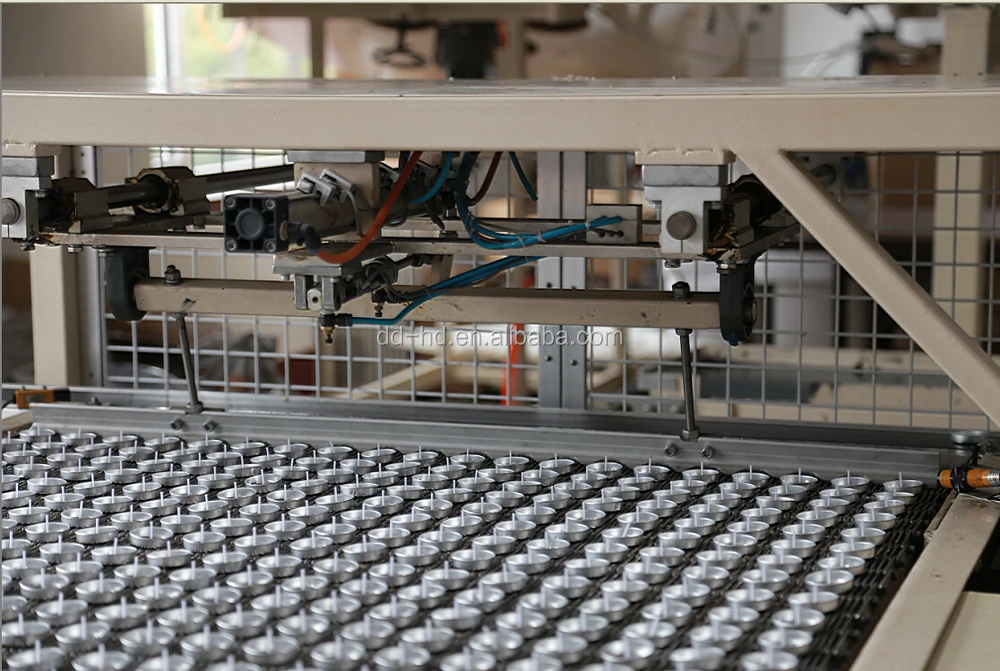

We also do other candle machine, pls see the below picture for your reference.

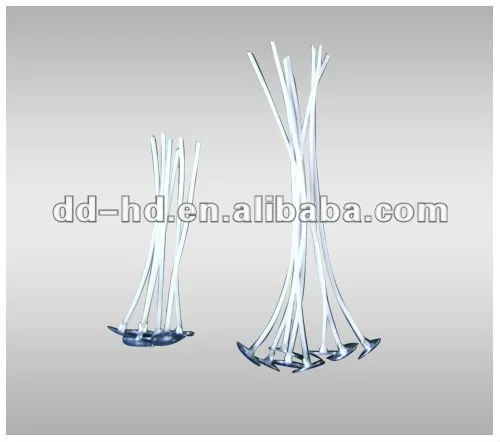

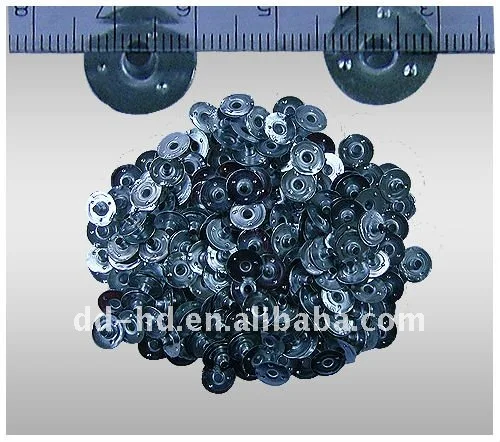

And we also do candle sustainer and tealight cup.







 We will attend Canton Fair twice a year.











ISO9001 and CE certificates
