China High Efficiency 2 ton Horizontal Industrial Electric Hot Water Heater Boiler Supplier
Product advantages
1.No noise, no pollution, clean and sanitary, is true real green products.

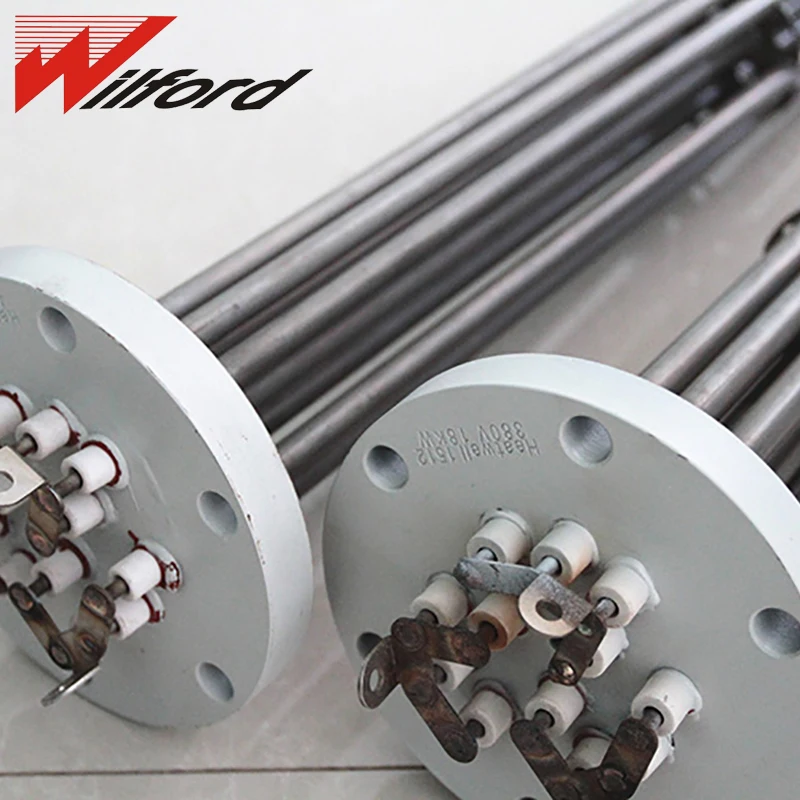

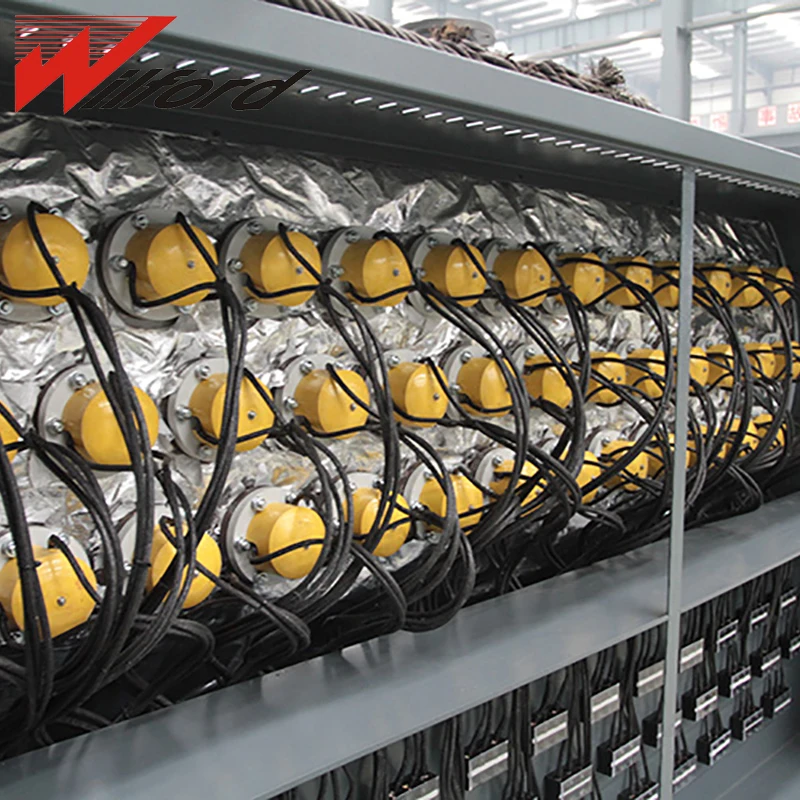

2.Using high-quality stainless steel or alloy steel materials electric heating tubes to ensure long-term boiler safety operation .

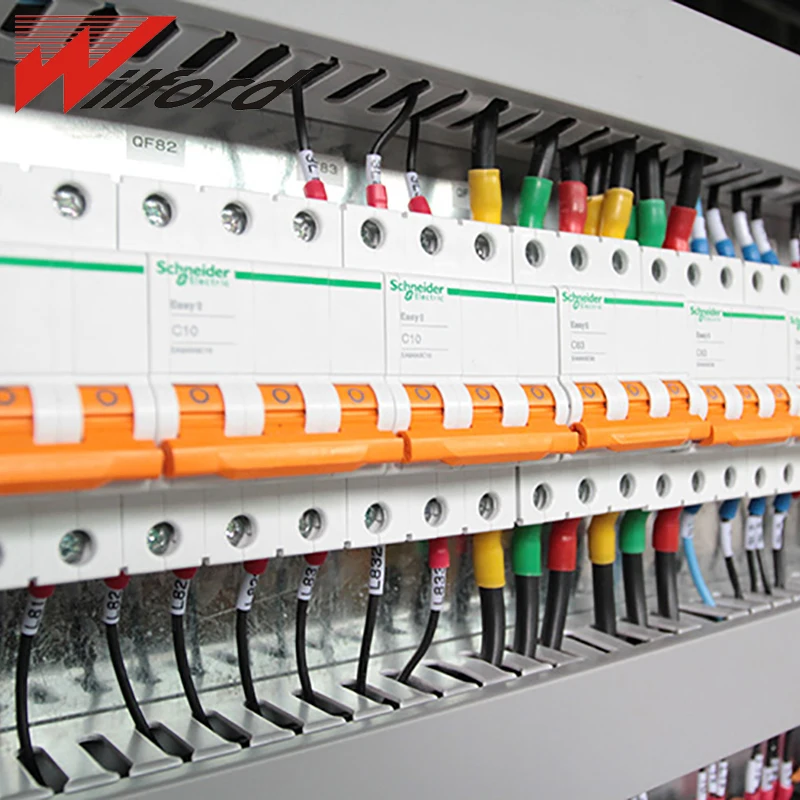

3.Professional standard control cabinet-advanced technology - standardized production - high-level protection.
4.Using electricity as heating source ,no smoke output loss ,heating efficiency could up to 98%.

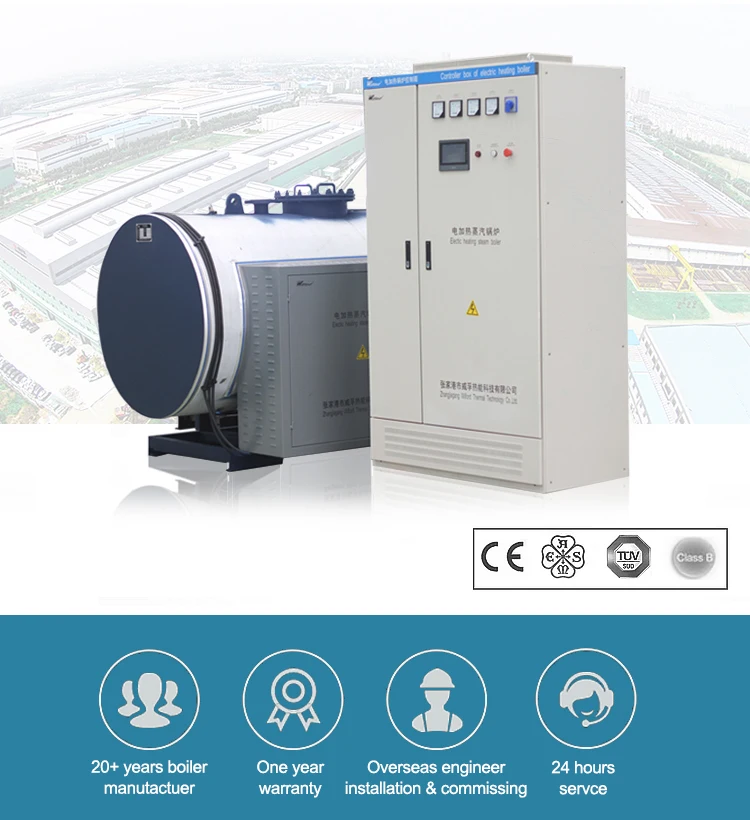

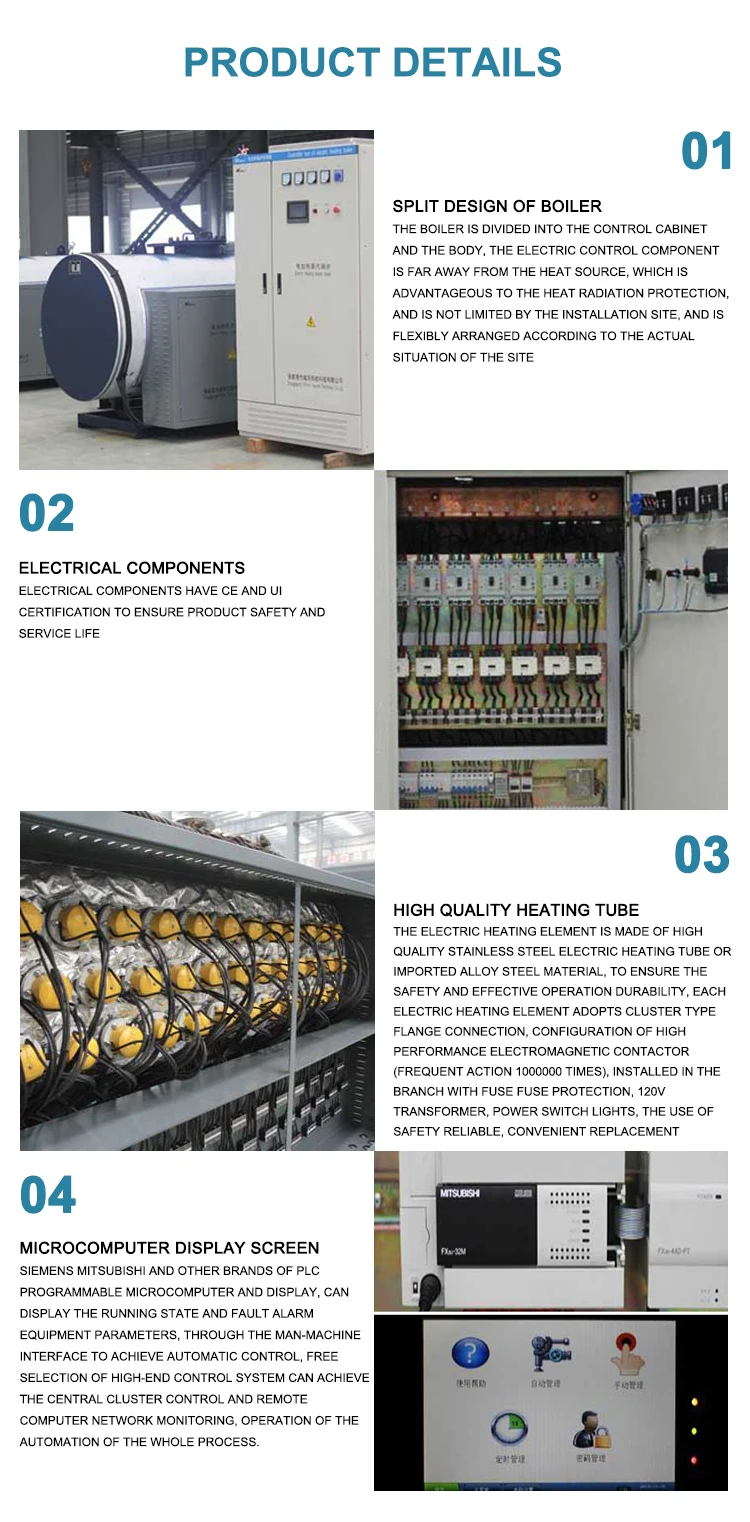

5.Thermal power lower than 300,000 cal-boiler and electrical control all in one design .Thermal power more than 300,000 cal -Boiler and control cabinet is separate .Different design and structure ,easily for installation and maintenance.
6.Clear mark for wiring connecting ,great convenient for local installation.

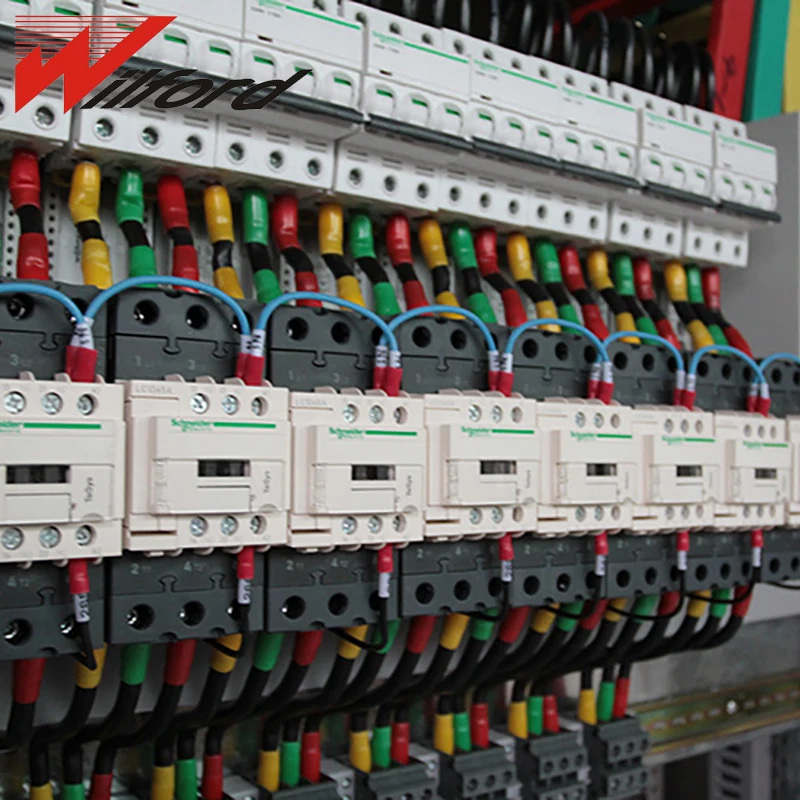

7.High-performance electromagnetic controller (frequent moves more than one million), build-in branch fuse protection, 120V fuse transformer, power switch directions.

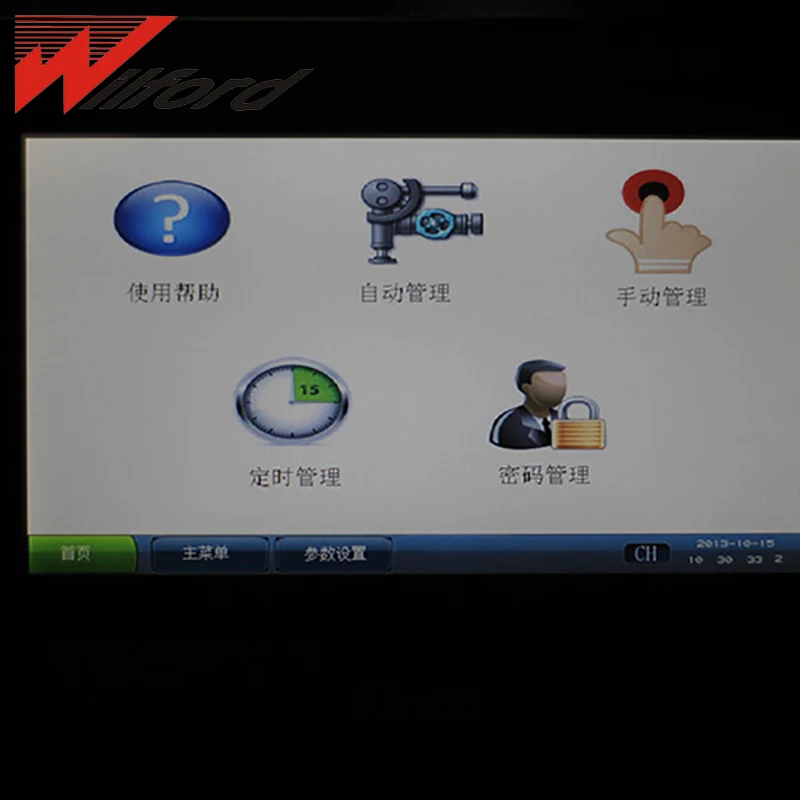

8.Fully automatic operation process control, step-by-step heating element control, recycling start or stop, automatic water supply, automatic alarm for water shortages/over-temperature as well as leakage protection.
9.We could help design heat preservation equipment .Making good use of electric power cost between on-peak and off-peak, heating system economy of running is enhanced.
Technical Parameters
| Type | CWDR0.9-85/60 | CWDR1.0-85/60 | CWDR1.05-85/60 | CWDR1.2-85/60 | CWDR1.4-85/60 | CWDR1.5-85/60 | CWDR1.6-85/60 | CWDR1.8-85/60 | CWDR2-85/60 | ||
| Project | Unit | ||||||||||
| Rated heating capacity | MW | 0.9 | 1 | 1.05 | 1.2 | 1.4 | 1.5 | 1.6 | 1.8 | 2 | |
| Total heating capacity | 104kcal | 75.0 | 83.3 | 87.5 | 100.0 | 116.7 | 125.0 | 133.3 | 150.0 | 166.7 | |
| Rated working pressure | MPa | Ordinary pressure | |||||||||
| Input Power | KW | 900 | 1000 | 1050 | 1200 | 1400 | 1500 | 1600 | 1800 | 2000 | |
| Input current | A | 1350 | 1500 | 1575 | 1800 | 2100 | 2250 | 2400 | 2700 | 3000 | |
| Rated Voltage | V | 3PN380 50Hz | |||||||||
| a Water outlet diameter | DN | 100 | 100 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | |
| b Water inlet diameter | DN | 100 | 100 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | |
| c Water return diameter | DN | 100 | 100 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | |
| d Blowoff Valve diameter | DN | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | |
| e Expansion tube diameter | DN | 100 | 100 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Overall size | Length | L mm | 2100 | 2100 | 2100 | 2100 | 2400 | 2400 | 2400 | 2800 | 2800 |
| Width | W mm | 1250 | 1250 | 1250 | 1250 | 1350 | 1350 | 1350 | 1650 | 1650 | |
| Height | H mm | 1900 | 1900 | 1900 | 1900 | 2100 | 2100 | 2100 | 2300 | 2300 | |
| Electrical control cabinet size | A | 1200 | 1500 | 2000 | 2000 | 2200 | 2200 | 1200(2pcs) | 1500(2pcs) | 2000(2pcs) | |
| B | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | ||
| C | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | ||
| Weight | T | 1.6/2.3 | 1.8/2.4 | 1.9/2.4 | 2.0/2.5 | 2.2/2.9 | 2.3/3.0 | 2.4/3.2 | 2.6/3.6 | 2.8/3.8 | |
