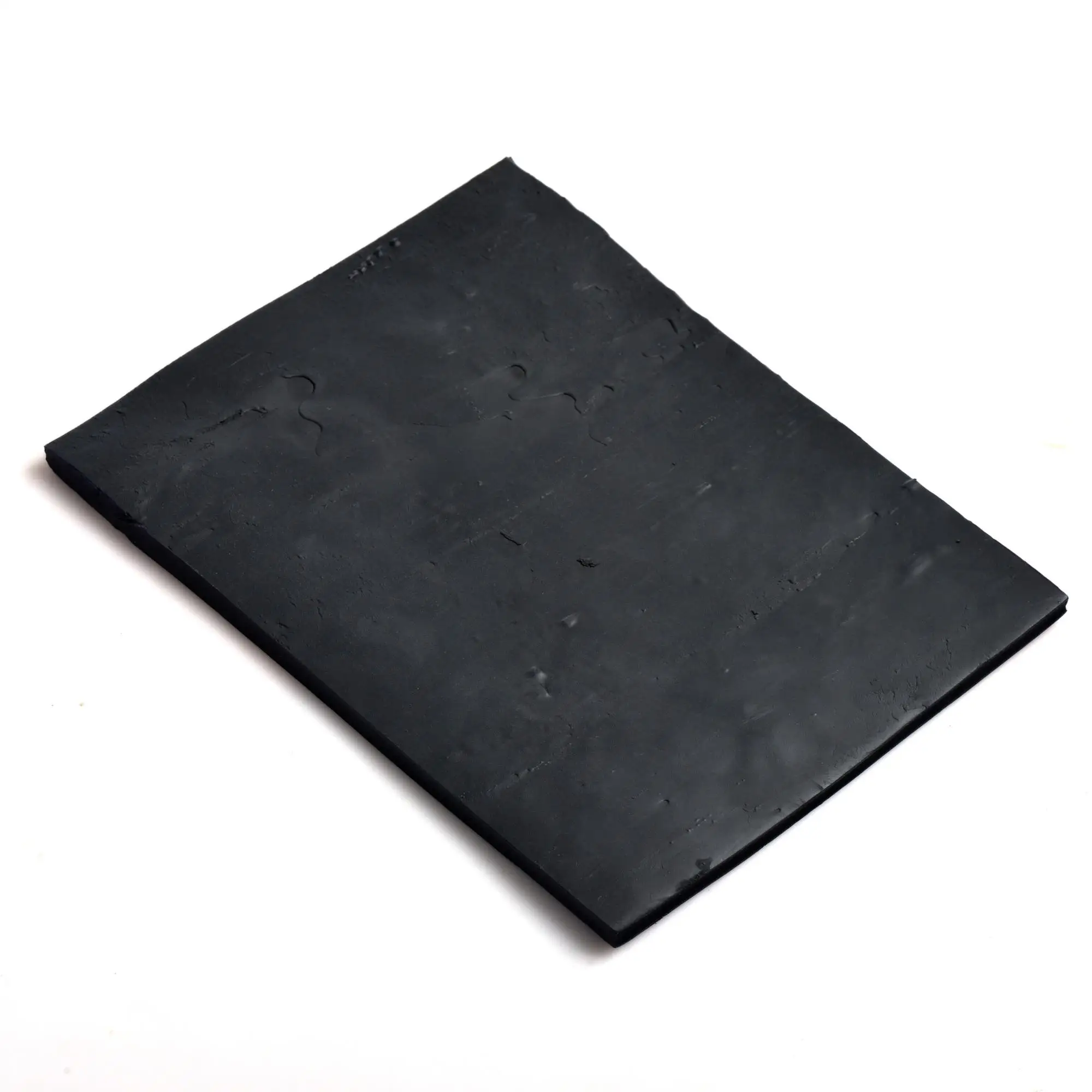

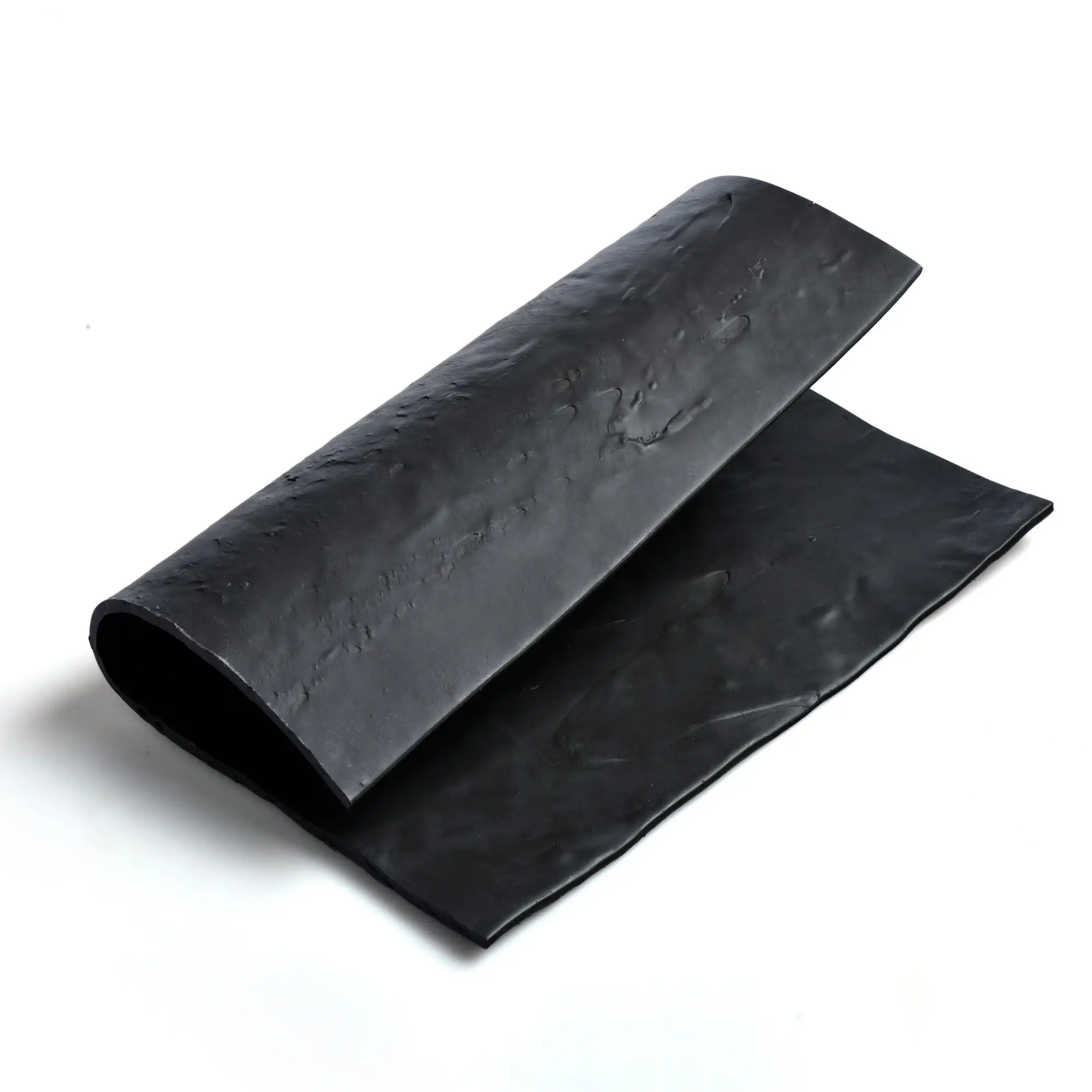

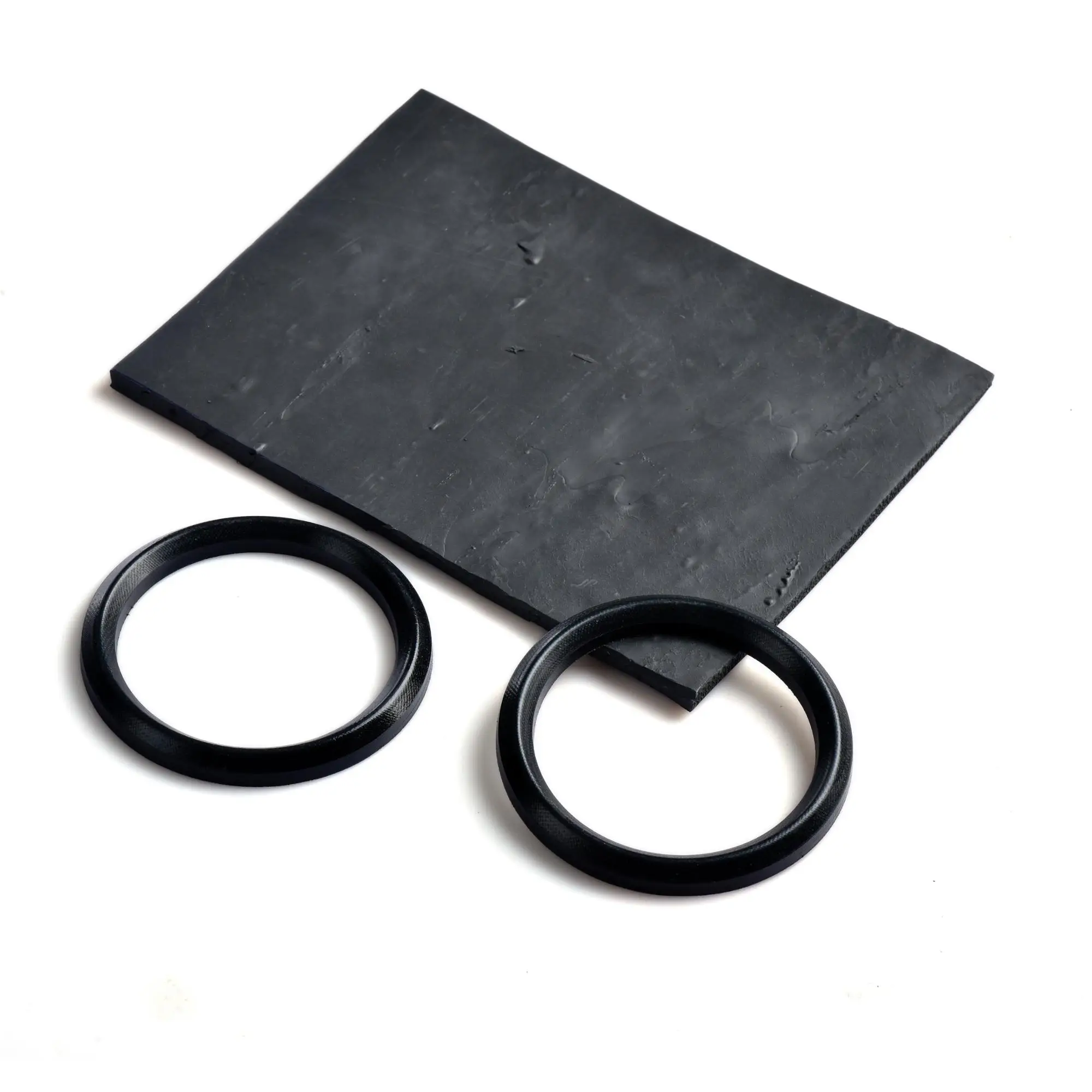

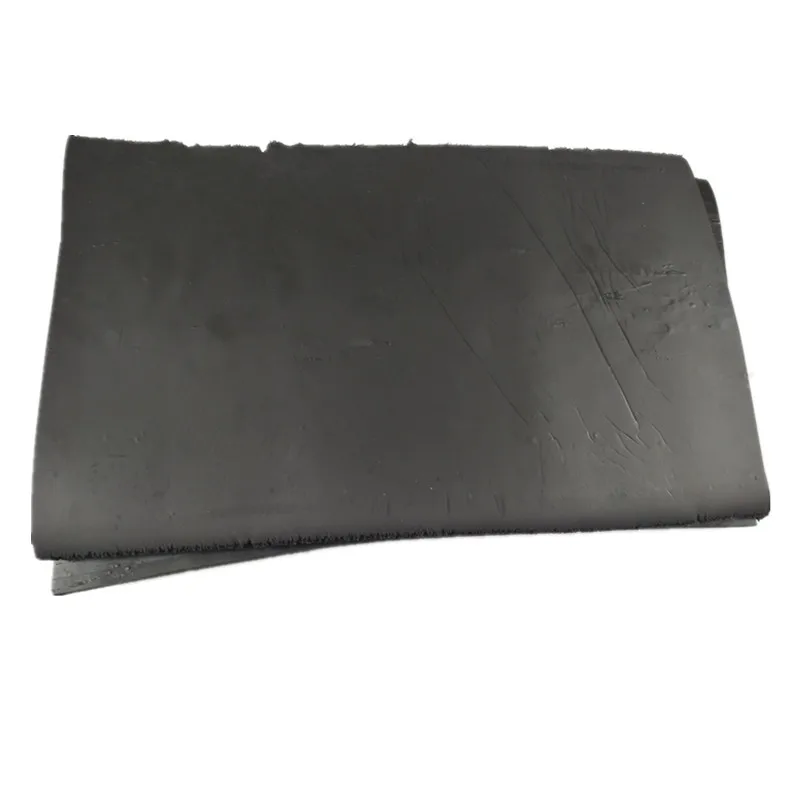

For Metal Bonding Fluoroelastomer Oil Seal TC TA Type FKM FPM Uncured Compound Copolymer and Terpolymer

For Metal Bonding Fluoroelastomer Oil Seal TC TA Type FKM FPM Uncured Compound Copolymer and Terpolymer



Description: Fluoroelastomer compound hardness range is 60-95 Shore A, higher hardness makes higher pressure resistance.



Feature: High temperature resistance, oil resistance, chemical resistance, acid and alkali resistance, oxidizing agent resistance,

steam resistance, aging resistance, inflaming retarding property.



Application: Machanical sealing, fluid sealing.



Material type: BPAF cured diapolymer fluoro rubber



Material form: ready to use compound.



Color: Brown, black, green, red, white or any



Feature: high hardness, excellent metal bonding property.



Processing method: Compression Molding.



Working temperature: -20-250 degree.



Typical Property:

Shift time:		180 Day		Material:		FKM Compound
Lot:		19090902		Colour:		Brown
Grade:		FA-Z2901		Quantity:		1000KG
Press Cure:		170℃@10min		Post Cure:		230℃@ 24h
Room Temperature:		23℃		Humidity:		55%
Test Item			Specification	Test Result	Test Method
Typical Rheological Properties
Curing Condition: 177℃@600s
TS2:			0:43	Min. Sec	ASTM D1646
TC10:			0:49	Min. Sec	ASTM D1646
TC90:			2:48	Min. Sec	ASTM D1646
ML:			3.23	N•m	ASTM D1646
MH:			44.53	N•m	ASTM D1646
Typical Physical Properties
Hardness			91	Shore A	ASTM D2240
Tensile Stregth			14.2	Mpa	ASTM D412
Elongation at break			149	%	ASTM D412
Remark:	This is to certify that the above designated materials has been tested and did comply with our QC sepecification.







1.Where is your factory and how can we visit it?

Our factory is located in Jiangsu province and welcome all customers visit us from your airpot to Shanghai airport and take 2 hours train to our factory.



2.What is the features of FKM material?

FKM is famous for heat resistance, chemical resistance, oil resistance d etc.



3.What types FKM compound are you supply?

We can supply A, B, F, GBL, GF, GLT, ETP, TBR types of FKM Compound.



4.What hardness is populer?

Based on the application and end product size and different processing method customer chose 60-90 Shore A FKM compound.



5.What is the processing method of your FKM Compounds?

Molding, extrusion, transfer, Calendering, bonding , injection materials are avaiable.



6.Can you OEM for us?

Yes no problem for us.



7.How can we get customized material?

According to required typical properties and using-environment we can R & D for you.



8.What is the shift time for the FKM compound?

Better use it within half years after produced.



9.What is the MOQ ?

20KG for one grade.



10.What color are you making?

Black, Brown, Green, Blue, Red, Grey or customized color.



11.Can we get the sample?

Yes, 0.2-0.5 free sample is fine for us and need you pay the express charge or collect the sample.



12.What is your delivery time?

2-7 working days after payment, customized product delivery time is based on the R & D progressing



13.How about the supply capacity?

If all raw materials have stock, 2T/day is not a problem for us.
