Rhinoceros Hot sale 9ton X9 Wheel crawler excavator with imported Japan Engine
- Category: Excavators >>>
- Supplier: Shandong Rhinoceros Engineering Machinery Co. Ltd.
Share on (60759164698):
Product Overview
Description

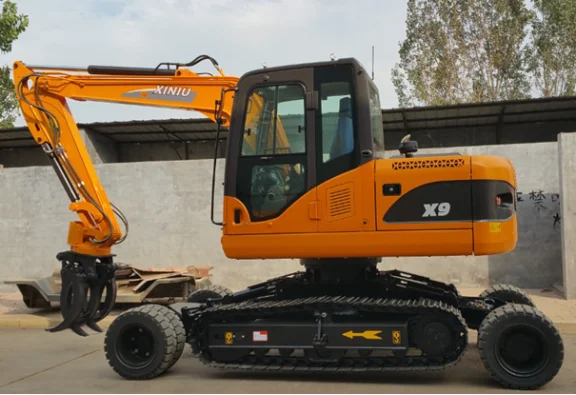

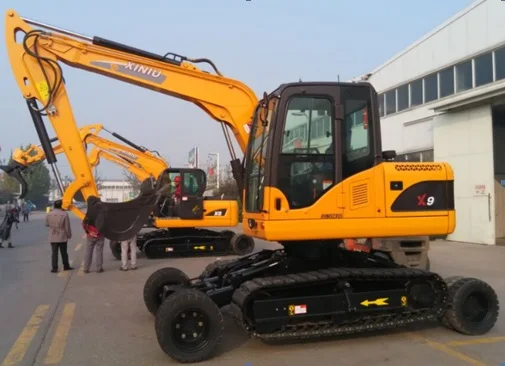

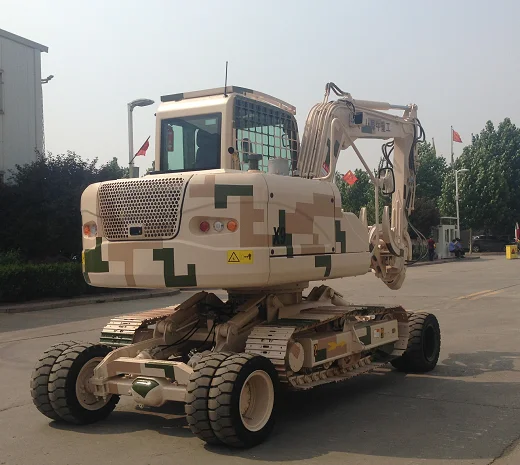

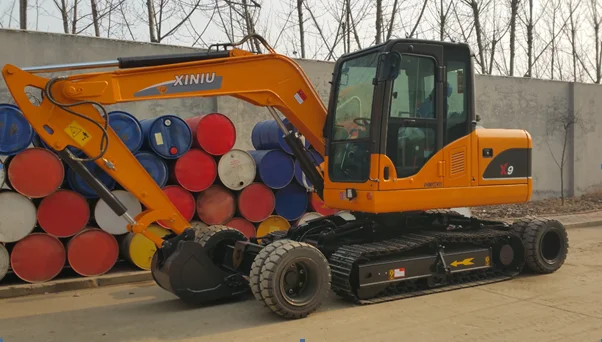

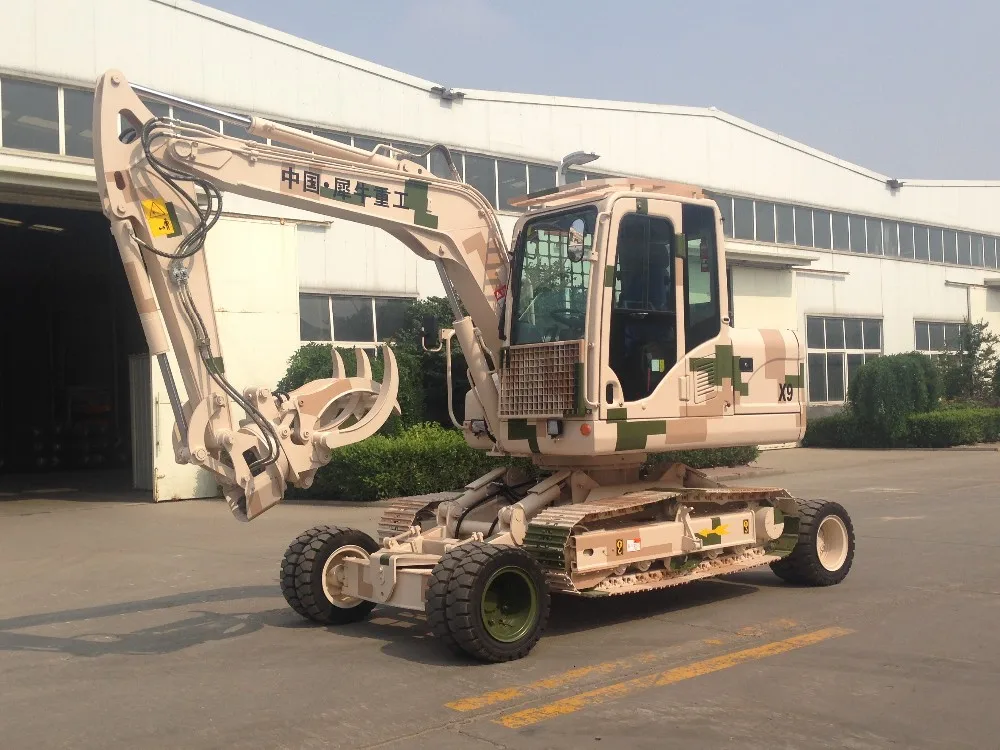

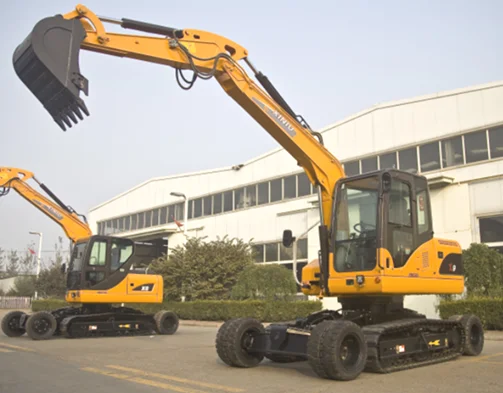

X9 Wheel-crawler excavator
1. Imported Yanmar engine, powerful and reliable performance. Meet to the china Ⅲ emission standards, saving fuel 30% than last generation.
2. Import Germany Rexroth system, stable performance. Equipped with reinforced walking device and famous tires.
3. X9 Wheel-crawler excavator is with national invention patent which is totally researched and developed by our company, the first design in the world. Convenient moving, fast travelling speed, quick transferring from wheels to track walking. The wheel travel device can be quickly disassembled when required.
Working video link: https://www.youtube.com/watch?v=vlZCeIxMkLA
Total weight | 8770kg | ||
Bucket capacity | 0.3m3 | ||
Engine
| Model | Yanmar4TNV94L-BNBKC | |
Displacement | 3.054L | ||
Engine power/rpm | 33.7 kw/2100 rpm | ||
Max. torque | 193.2-210.6 N.m/126±100rpm | ||
Speed
| Wheel travelling speed | 25 km/h | |
Track travelling speed | 2.3km/h | ||
Swing speed | 9rpm | ||
Max. grade ability | 30° | ||
Hydraulic system | Hydraulic system | Rexroth | |
Pump | variable capacity pump | ||
Pressure | 25 Mpa | ||
Displacement | 132 L/min | ||
Capacity of hydraulic tank | 175 L | ||
Capacity of fuel tank | 150 L | ||
Engine oil capacity | 12 L | ||
Total weight | 8770KGS |
Overall dimension | 6570x2120x2980 |
Counter weight turning radius | 1836 |
Engine hood height | 2104 |
Counter weight ground clearance | 1120 |
Upper structure width | 2000 |
Cabin height (wheels up) | 2982 |
Tire width | 2120 |
Ground clearance | 270 |
Wheels up wheel gauge | 3400 |
Distance of swing center to rear wheel (wheels up) | 1682 |
Wheels down wheel gauge | 3560 |
Distance of swing center to rear wheel (wheels down) | 1767 |
Rear wheel ground clearance(wheel up) | 300 |
Tracks ground clearance(wheel down) | 330 |
Total height (wheels down) | 3190 |
Track wheel track | 2050 |
Track width | 400 |
Track outer width | 2160 |
Working device | Boom 3.6m+Arm 2m |
Max. digging radius | 6880 |
Max. digging radius (on ground) | 6735 |
Max. digging depth | 3772 |
Max. digging depth | 7130 |
Max. dumping height | 5220 |
Min. turning radius | 2617 |
Max. vertical digging depth | 3425 |
Bucket digging force (KN) | 56 |
Bucket arm digging force (KN) | 36 |
Shandong Rhinoceros Engineering Machinery CO., LTD
ADD: Liaocheng, Shandong Province, China.
Mobile: 0086-18562832688
Tel: 0086-635-8362550 Fax: 0086-635-5846000
Skype/ WhatsApp / Wechat : 0086-18562832688
Website: www.sdxiniu.com
Video link: //i.youku.com/u/UMTM4MTA2MjIw/videos
Backhoe loader, Wheel excavator, Crawler excavator, Concrete pump,
