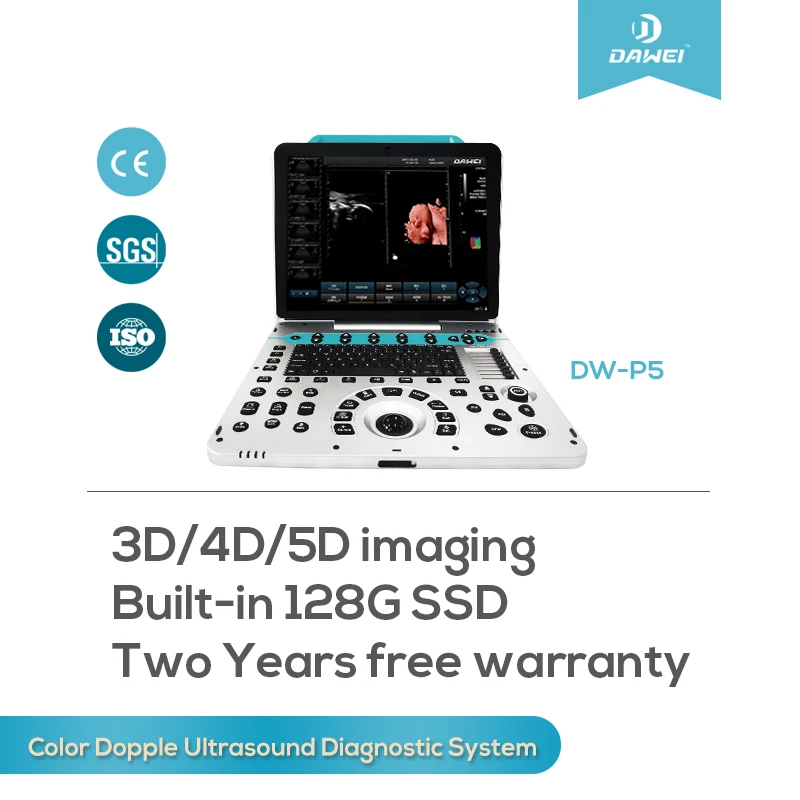

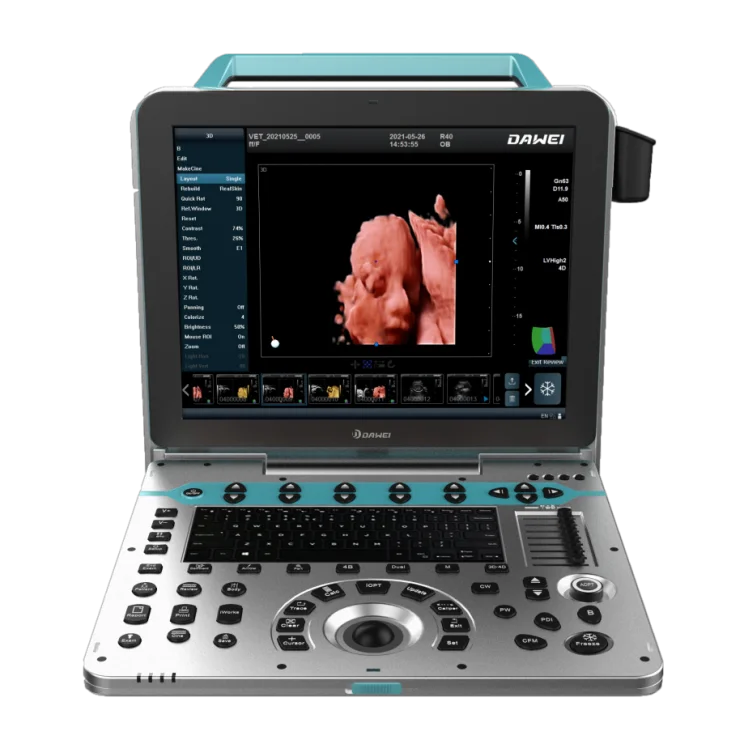

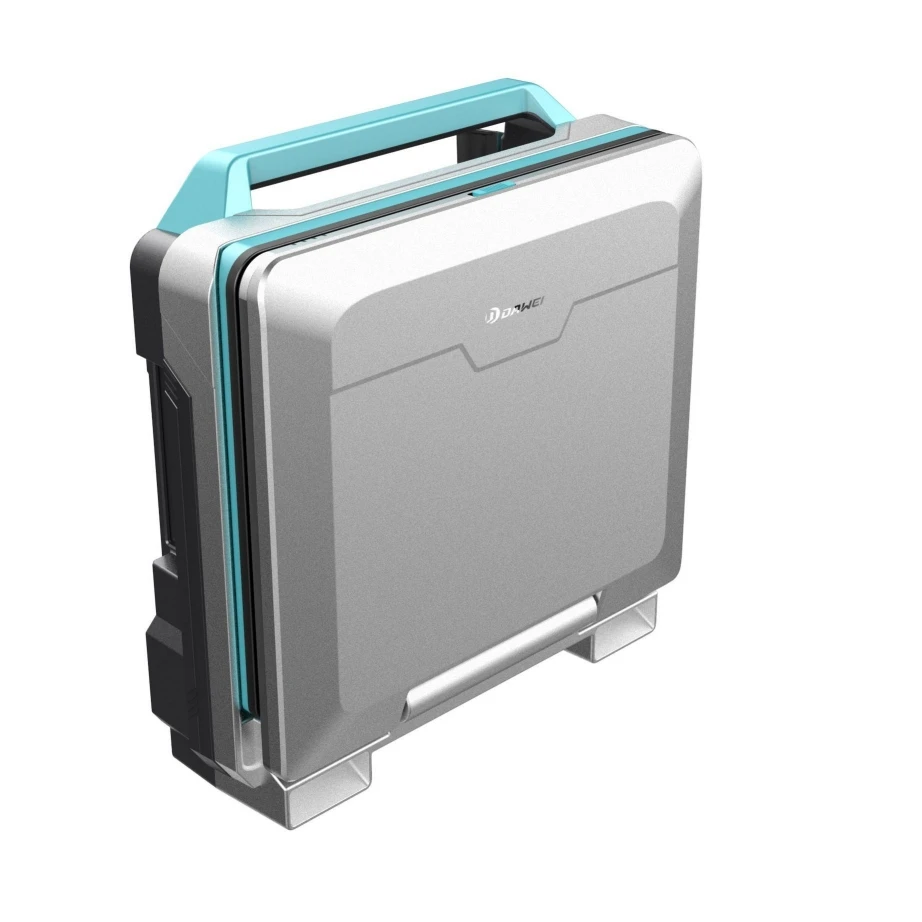

Dawei Brand DW P50 4D/5D portable color doppler ultrasound machine system with High Quality

DW-P50 Portable doppler ultrasound system and 4D/5D real skin color doppler

Main Specification:

1)Full-Digital 2D gray scale imaging

2)Full-Digital Tissue Harmonic Imaging (THI)

3)Color Doppler blood flow imaging

4)Directional color energy Doppler imaging

5)Pulse Wave Doppler imaging (PW)

6)Continuous Wave Doppler imaging (CW)

7)Space compound imaging

8)Trapezoidal imaging

9)2D, color, Doppler mode automatic optimization adjustment technology

10)Real-time triple synchronizing

11)Adaptive speckle suppression technology

12)Real-time 3D imaging

13)Intelligent picture - in - picture imaging mode (PIP)

14)Monitor: 15 inch high resolution medical LCD monitor, adjustable angle

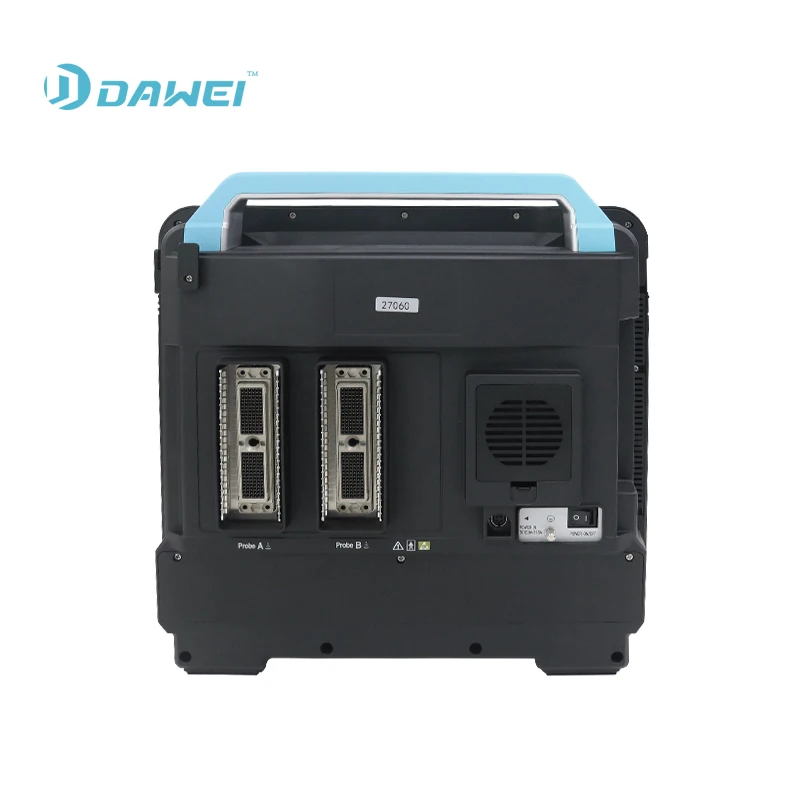

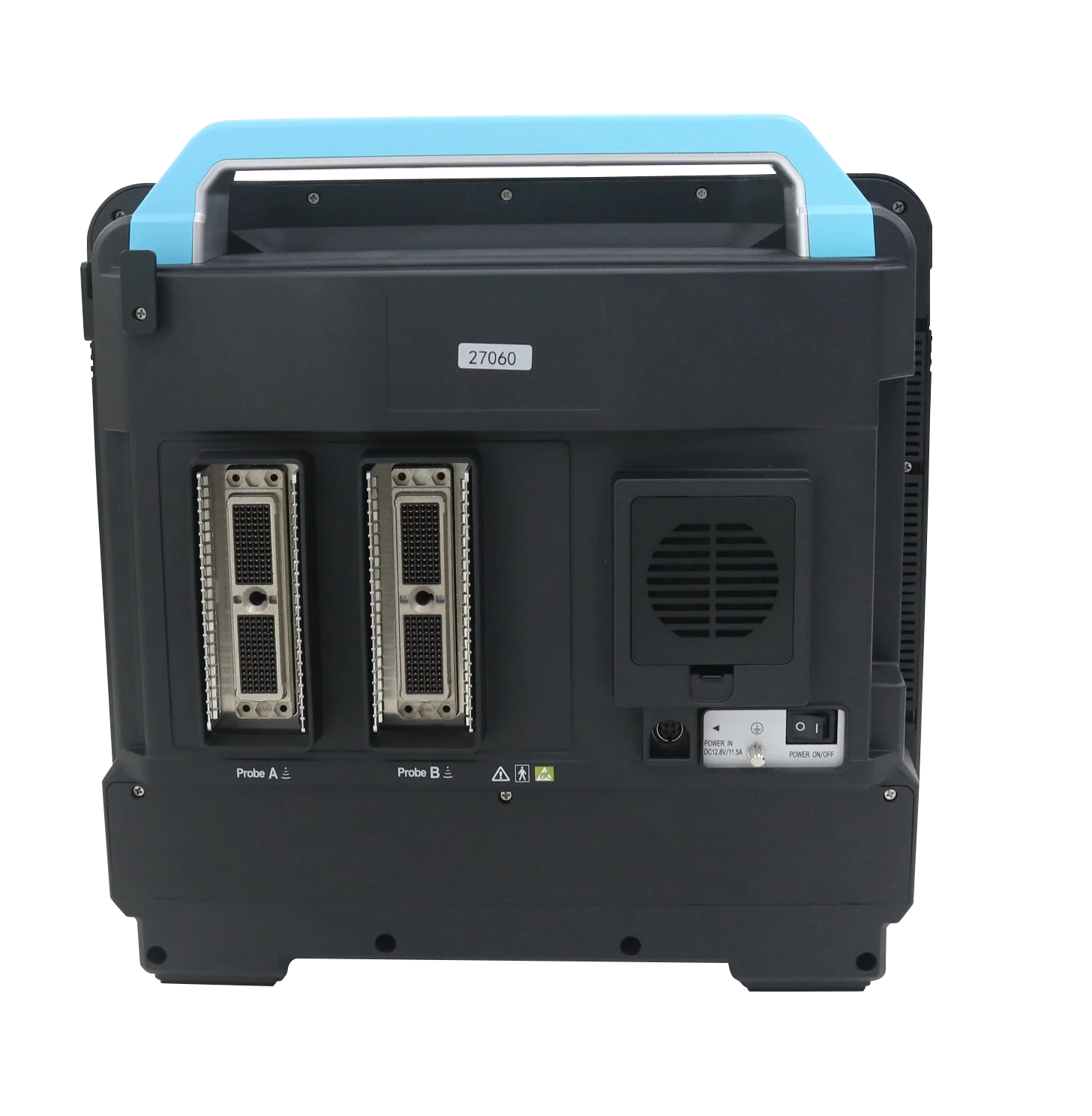

15)Probe connectors: ≥2  active

1 Multiple probe configuration:

1.1 Convex probe frequency: 2.0-5.0MHZ(multi-frequency, Harmonic frequency≥5 ), probe scanning angle 20°~85°, visible and adjustable.

1.2 Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic frequency ≥4 ), probe scanning with trapezoidal imaging technology and 2D beam deflection technology

1.3 Trans-vaginal probe frequency: 5.0-9.0MHZ(multi-frequency, harmonic frequency ≥2 ), probe scanning angle 20°~160°, visible and adjustable.

1.4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.

1.5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.

2  2D imaging mode

2.1 Gray scale: 256

2.2 Gray Map: ≥16  level, visible and adjustable

2.3 Dynamic range: 20-280db(visible and adjustable)

2.4 Resolution: Horizontal≤1mm; Vertical≤0.5mm

2.5  Under B mode, focus number: 1-6, focus position continuously adjustable

2.6  STC gain control ≥8  segments

2.7 THI: harmonic frequency ≥2  segments

2.8 Line density: ≥256, visible and adjustable

2.9 Preset: ≥40 kinds, users can customize the inspection conditions for the optimized images of different organs

3  Color blood flow imaging mode:

3.1 Color gain: adjustable

3.2 Color frequency: ≥3 kinds, visible and adjustable

3.3 Sampling frame: size and position adjustable

3.4 Color blood flow steer: ≥3  angles adjustable

3.5 Color map: 1—9 level

3.6 Color persist: 0—6 level

3.7 B/C  split display: available

Applications: abdominal, urology, OB&GYN,  paediatrics / neonatal, superficial / small organ, musculoskeletal, cardiology etc.

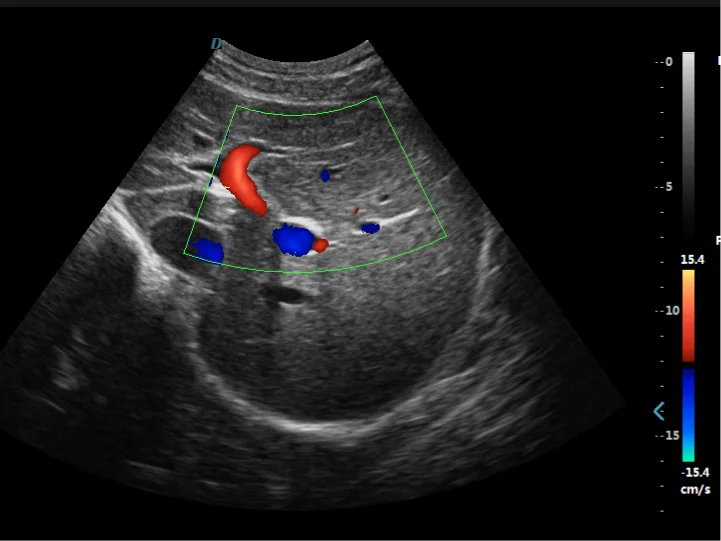

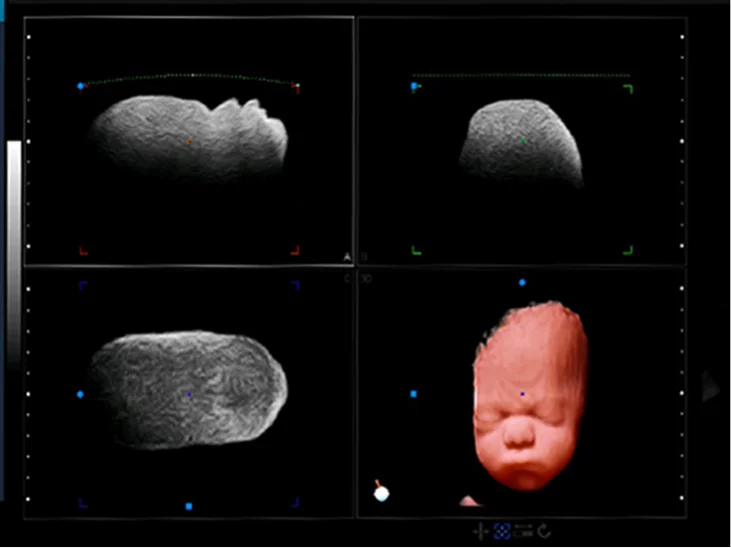

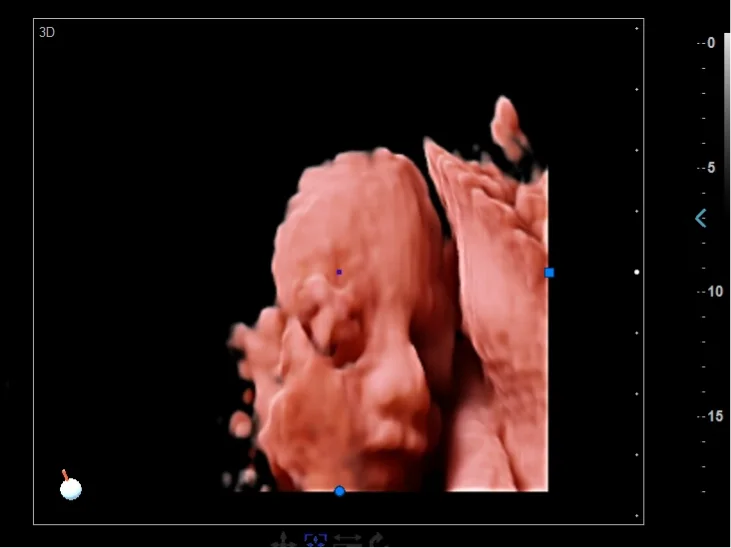

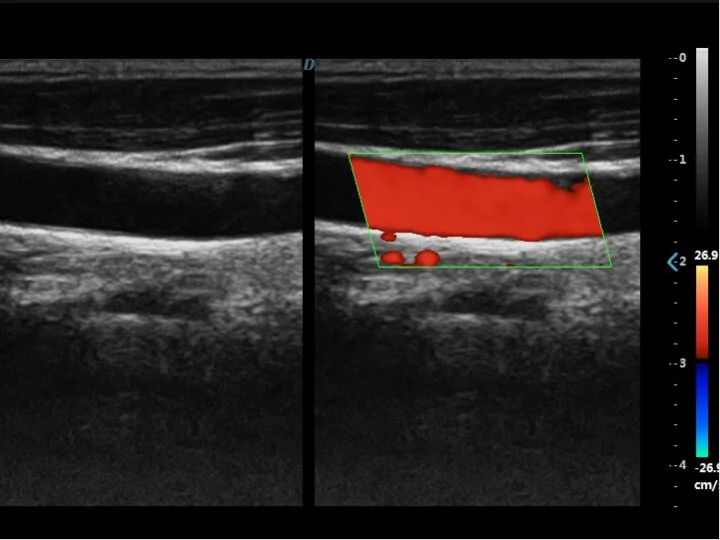

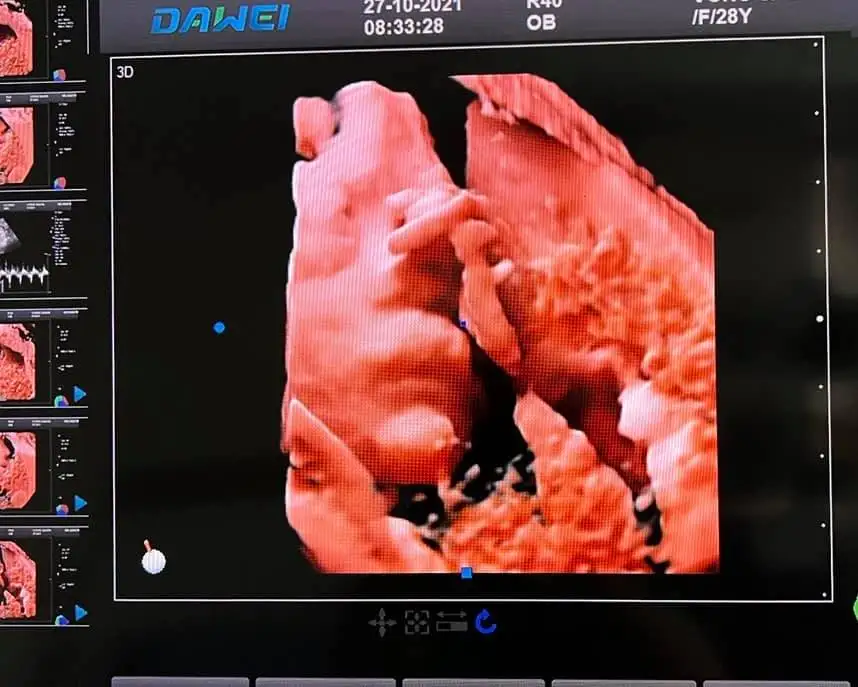

 Clinical Images

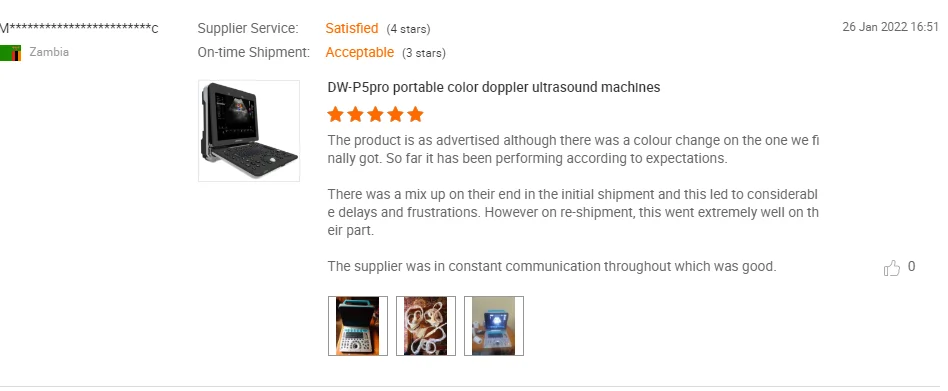

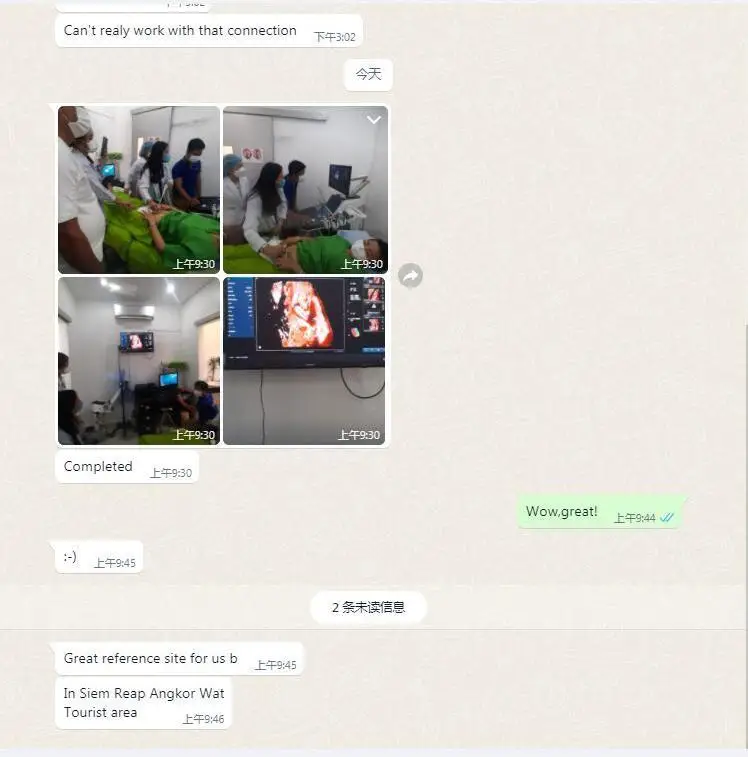

Customers' Feedback

Xuzhou DaWei Electronic Equipment Co., Ltd. is a professional ultrasound diagnostic system manufacturer which focus on R&D, Produce and sales together. DaWei company founded in 2006 and build the manufacture basement in Xuzhou DaWei Ultrasound industry park, and also have two R&D centre in Shanghai and Shenzhen city. After more than 10 years that DaWei has been developed to a domestic high-tech leading and full range of professional  ultrasound equipment manufacturer. Now our customers have spread to 30 province in China and also exported to 100 countries and regions over ten years developing.

"Professional create more Splendid", DaWei has passed ISO13485 quality system, CE certification, and also own various of invention patents and software copyright, the products covered full digital black and white ultrasonic scanner ,full digital Color Doppler ultrasound system and veterinary ultrasound scanner.
