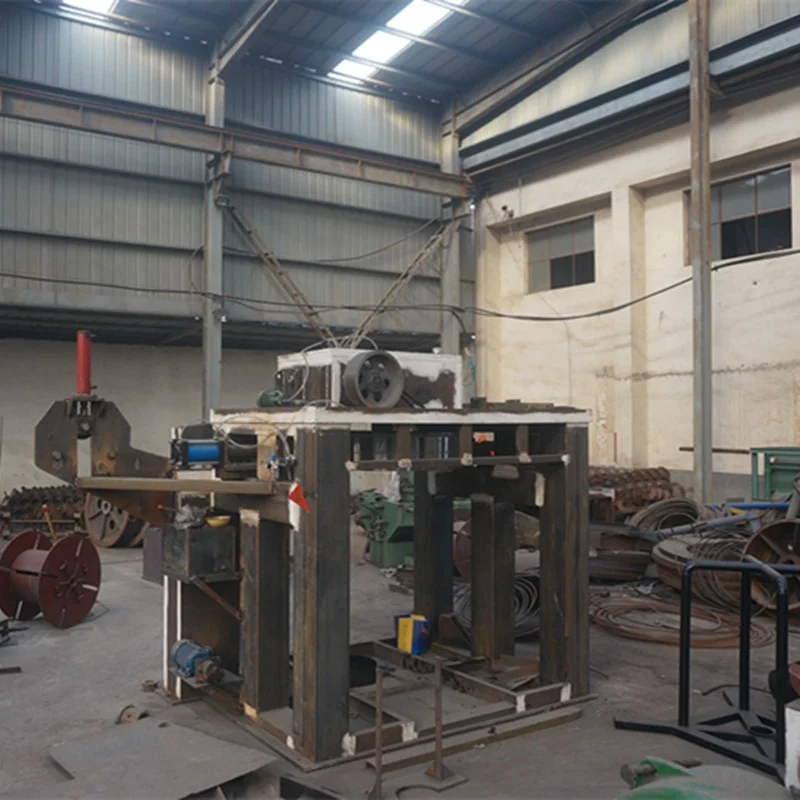

First Class Quality Steel Wire Rod LDD1000 Inverted Vertical Wire Drawing Machine Made in China 0086 15617575581

Product Overview

Description

First Class Quality Steel Wire Rod LDD1000 Inverted Vertical Wire Drawing Machine Made in China

Skype evazhao06 Whats app 0086 15617575581



1.Brief Introduction of Steel Wire Rod LDD1000 Inverted Vertical Wire Drawing Machine

Steel wire rod LDD1000 inverted vertical wire drawing machine for wire rod with big diameter under 35mm. The machine is used for paying off the wire rod with a big diameter to make thinner.



It is applicable for continuous production process of coil with heavy charging box.

The product is developed for the non-slip drawing of medium & low carbon steel wire, special shaped steel wire and nonferrous metals with thick & medium diameters. It is specially suitable for the drawing of medium & low carbon steel wire in standard parts and supermarket shelf industry. The maximum inlet diameter can reach 35mm and diameter of capstan is 550-1300mm.



2.Features of Steel Wire Rod LDD1000 Inverted Vertical Wire Drawing Machine

a.It is applicable for continuous production process of coil with heavy charging box.

b.Easy operation and reliable control enables safe production and convenient maintenance.

c.Application of 3- phase AC variable- frequency speed adjustment realizes smooth step less speed regulation and saves more than 30% electric power.

d.High precision and great quality final products.

e.There are no scratch on materials surface.

f.The gear of reducer is produced by hot treatment and grinding, so it has favorable quiet tone effect, and low noise.





3.The Machine Types and Specification of Steel Wire Rod LDD1000 Inverted Vertical Wire Drawing Machine

Machine type	Max inlet diameter	Power	Reducer type	Weight
LDD-800	16MM	45KW	1000	6T
LDD-1000	20MM	55KW	1250	7T
LDD-1200	30MM	75KW	1250	8.5T
LDD-1400	35MM	95KW	1500	9T





4.Common Equipment Composition of Steel Wire Rod LDD1000 Inverted Vertical Wire Drawing Machine

(1)Inverted vertical drop gravity type wire drawing machine  1 set

(2)Doffing trolley 1 set, speed reducer, wheel gear

(3)Doffing shelf 2 sets

(4)Frequency control system one set, motor

(5)Air actuated control system one set

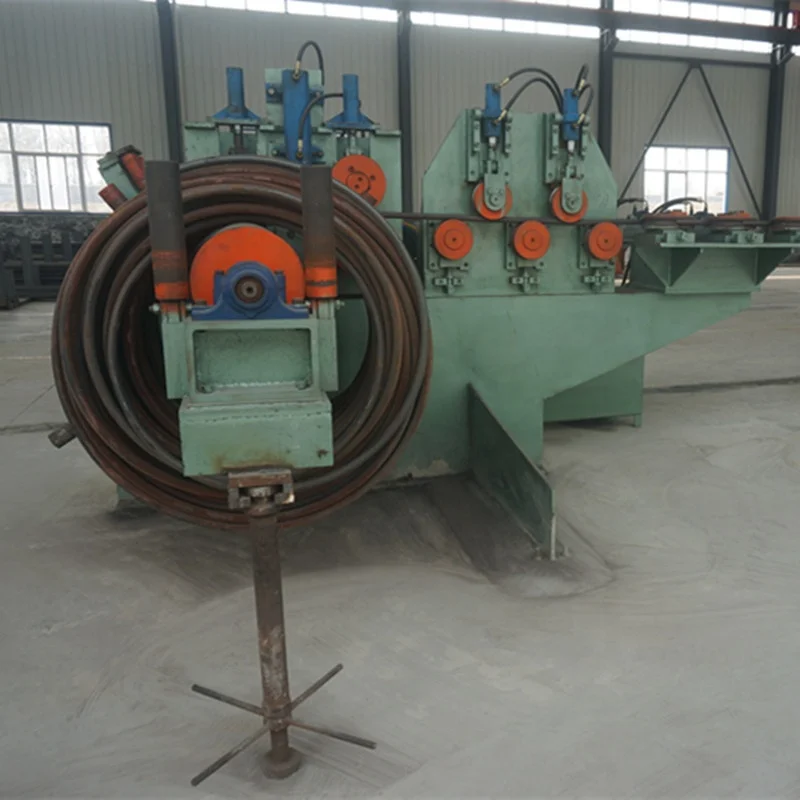

If raw materials are too thick and more than 18mm, we also have automatic hydraulic decoiler to help wire drawing easier and pre-straightening as the following picture:

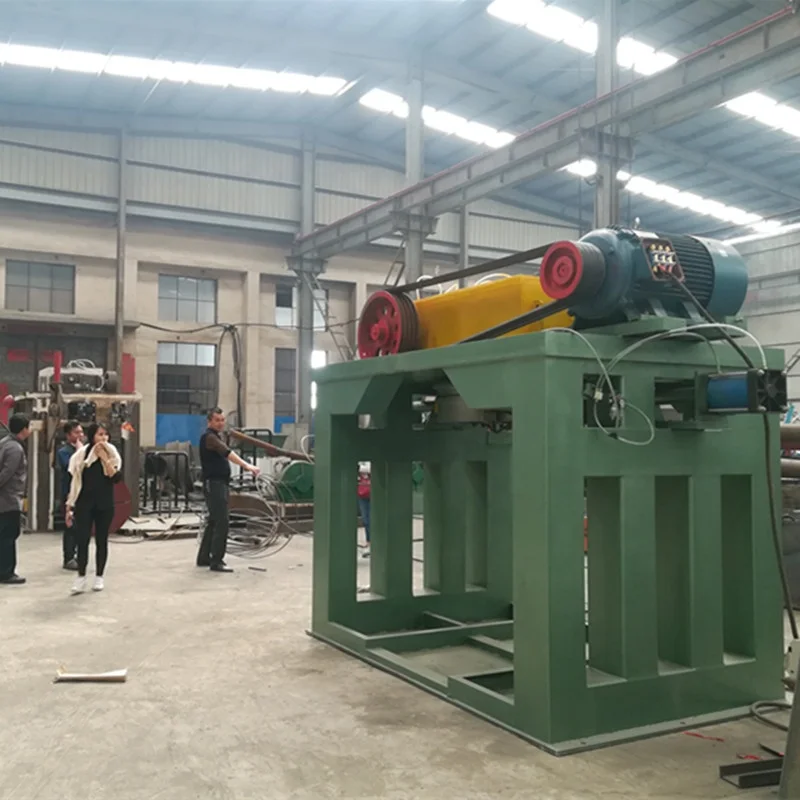

5.Customer Visiting Pictures for Steel Wire Rod LDD1000 Inverted Vertical Wire Drawing Machine



6.About our factory

Our factory located in Gongyi, Zhengzhou, Henan Province in China.

Our main markets is Bulgaria, Canada, Argentina, Brazil, Malaysia, India, Vietnam, Kenya, South Africa and ect all over the world.

Our goods get good comments from our clients. Our principle is to offer best price of goods with best quality.

We are specialized in supplying the following products:

1)Hot/cold rolling machine;

2)Screw blade making machine;

3)Steel wire rod LDD1000 inverted vertical wire drawing machine;

4)High straightening and cutting machine.
