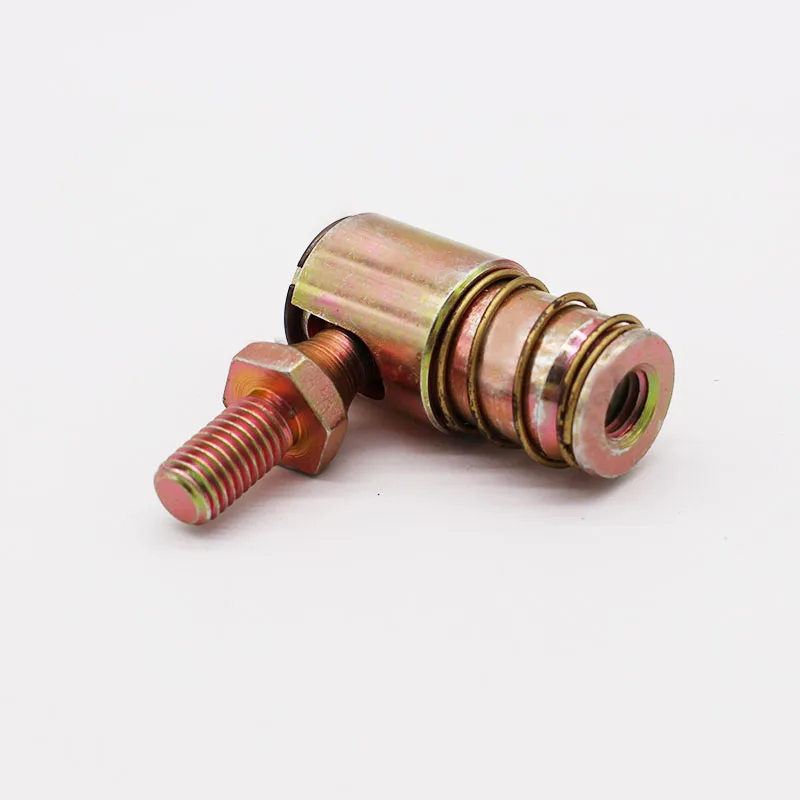

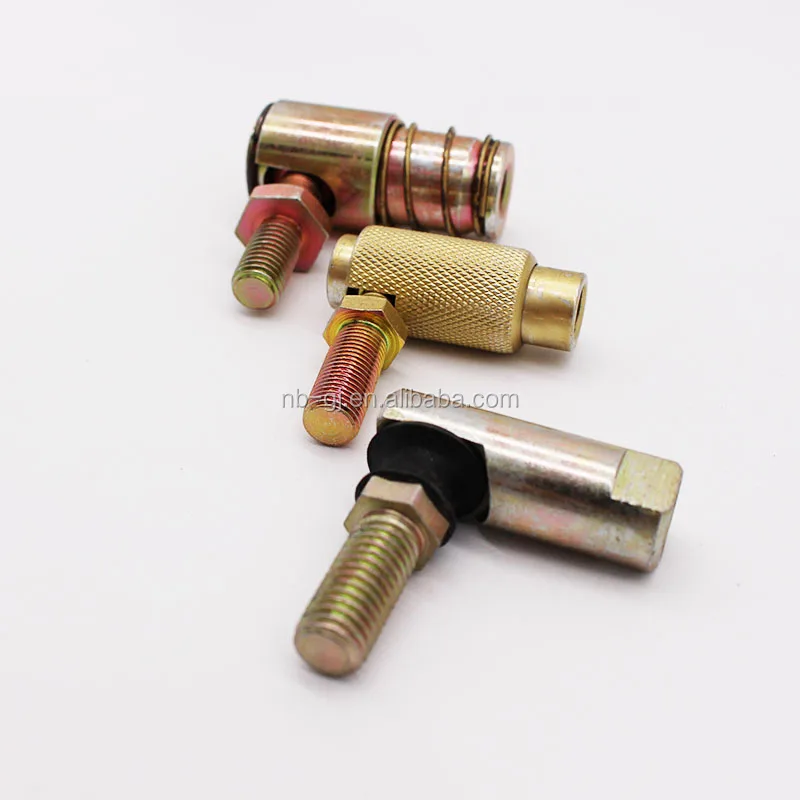

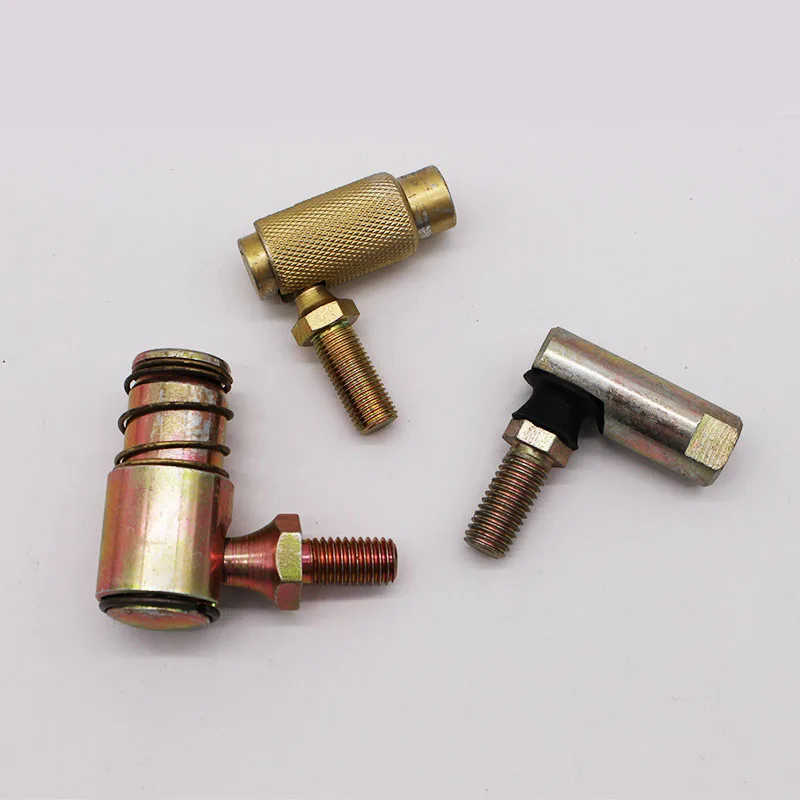

Auto spare parts QI series QI250 end fitting ball joints
- Category: Rod End Bearings >>>
- Supplier: Ningbo Yinzhou Crown Strength Machinery Accessories Factory
Share on (60760623328):
Product Overview
Description
Product detail

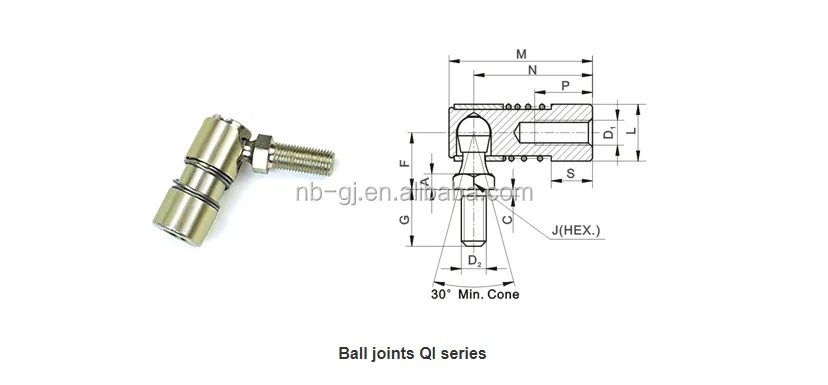

| Item | Dimension(mm) | Axial force(Min) | Radial force(Min) | |||||||||||
| D1 | D2 | A | C | F | G | J | L | M | N | P | S | |||
| QI 187 | 10-32-2B | 10-32-2A | .125 | .063 | .4375 | .4375 | .3125 | .4375 | 1.094 | .9063 | .4375 | .250 | 430 | 500 |
| QI 250 | 1/4-28-2B | 1/4-28-2A | .125 | .063 | .4690 | .5620 | .3750 | .5260 | 1.250 | .9690 | .610 | .350 | 560 | 500 |
| QI 312 | 5/16-24-2B | 5/16-24-2A | .156 | .094 | .5310 | .6870 | .4370 | .6250 | 1.453 | 1.1250 | .630 | .438 | 1000 | 1500 |
| QI 375 | 3/8-24-2B | 3/8-24-2A | .187 | .094 | .6870 | .8750 | .5000 | .7500 | 1.750 | 1.3750 | .812 | .470 | 1580 | 2400 |
| QI 500 | 1/2-20-2B | 1/2-20-2A | .250 | .094 | .8750 | 1.125 | .6250 | 1.000 | 2.530 | 2.0300 | 1.000 | .570 | 2400 | 2700 |
- Material:1) Housing&Ball stud: Carbon Steel 1045 Sleeve: Carbon Steel1045 Sping: Stainless Steel
2)Altemative:Stainless Steel
- Surface protection: Elctroplated galvanized,passivated in zinc/yellow or zinc/clear
- Filled with lubricant and circle swing agilely without any blocked
- Unless otherwise specified, alldimensions are in inches

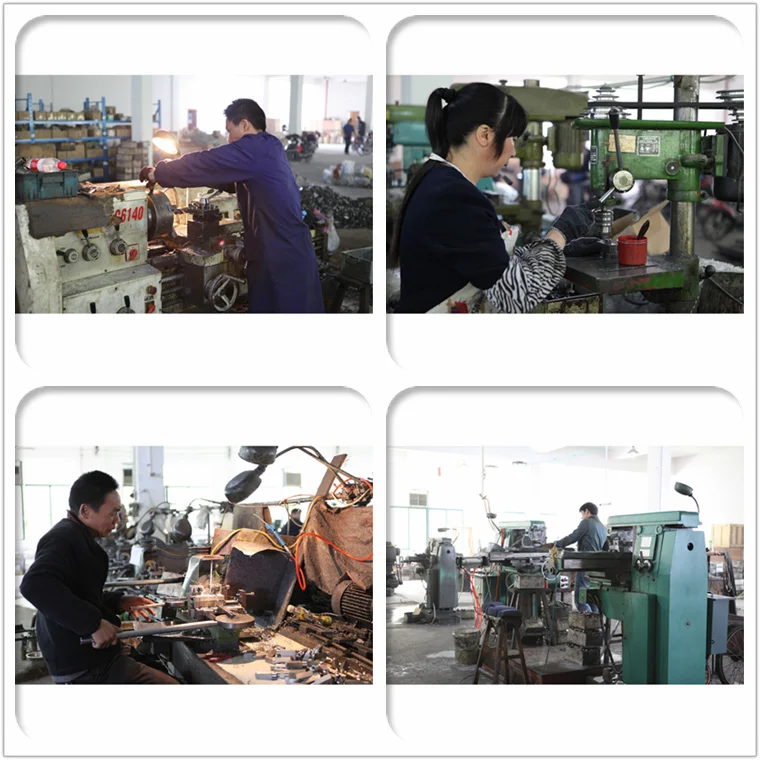

Production environment
Office environment

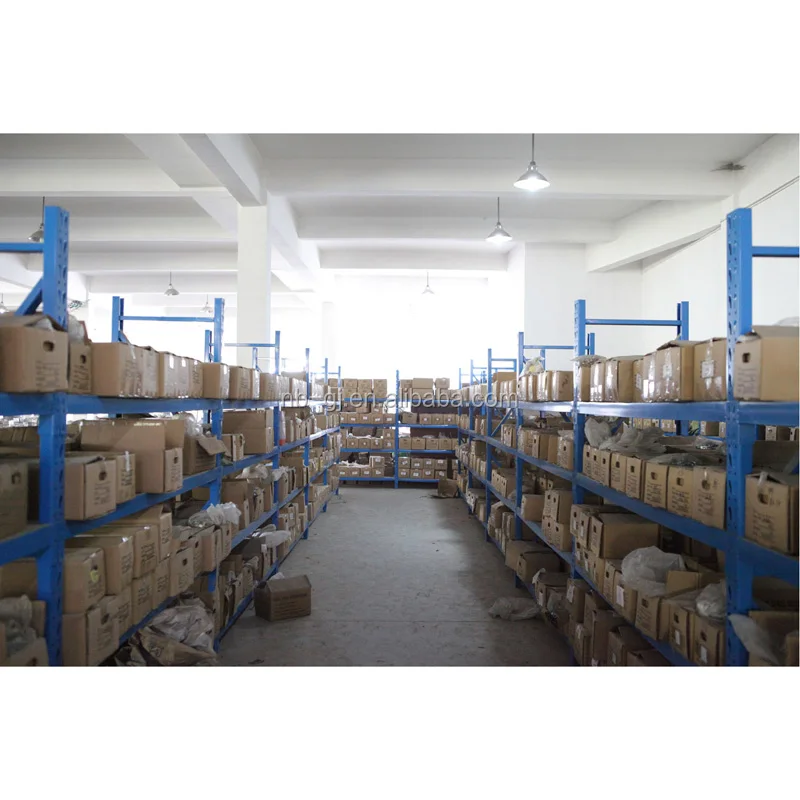

Warehouse
