OCM fireproof mgo perlite plate for fireplace is a newly developed type of incombustible inorganic board on the basis of the traditional magnesium oxide board.It is manufactured from 100% mineral components and recycled water .It is also called fireproof board or Mgo sulfate board.
Item
Thickness
Size
Backside
Color
External wall
10-12mm
1220*2400/2700/3000mm
Textile/sanded
white
grey
green
yellow
blue
black
Flooring board
15-16-18-20-22mm
600*1200/2400/2700/3000mm
Textile/sanded
Ceiling board
3-4.5-6mm
600/1200mm*600mm/1200mm
Textile/sanded
Interior board
6-8-9-10mm
1220*2440/2700/3000mm
Textile/sanded
Edges type
fireproof mgo perlite plate for fireplace customized size and types are available.

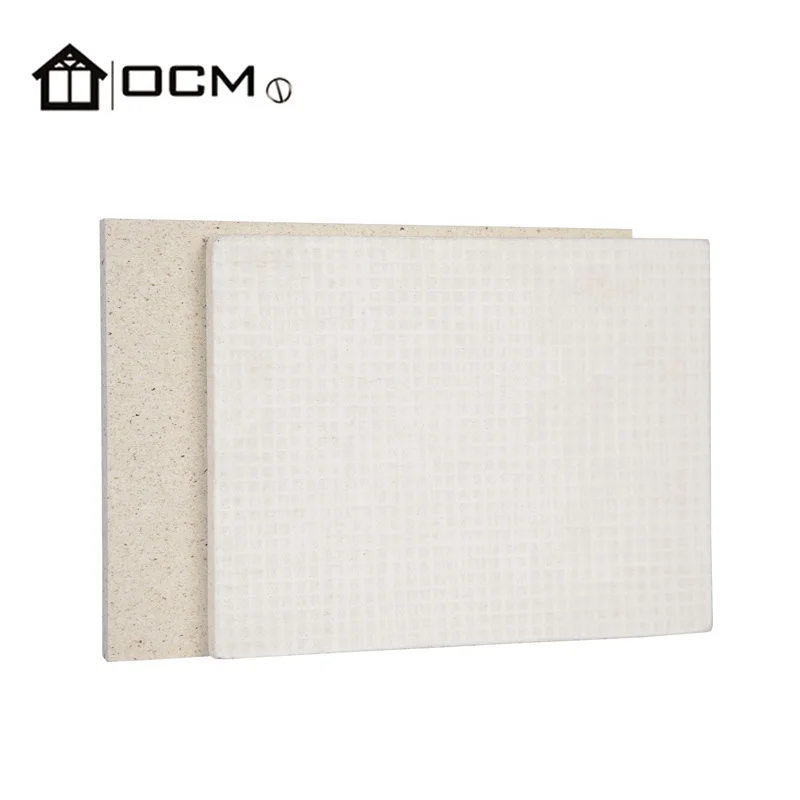

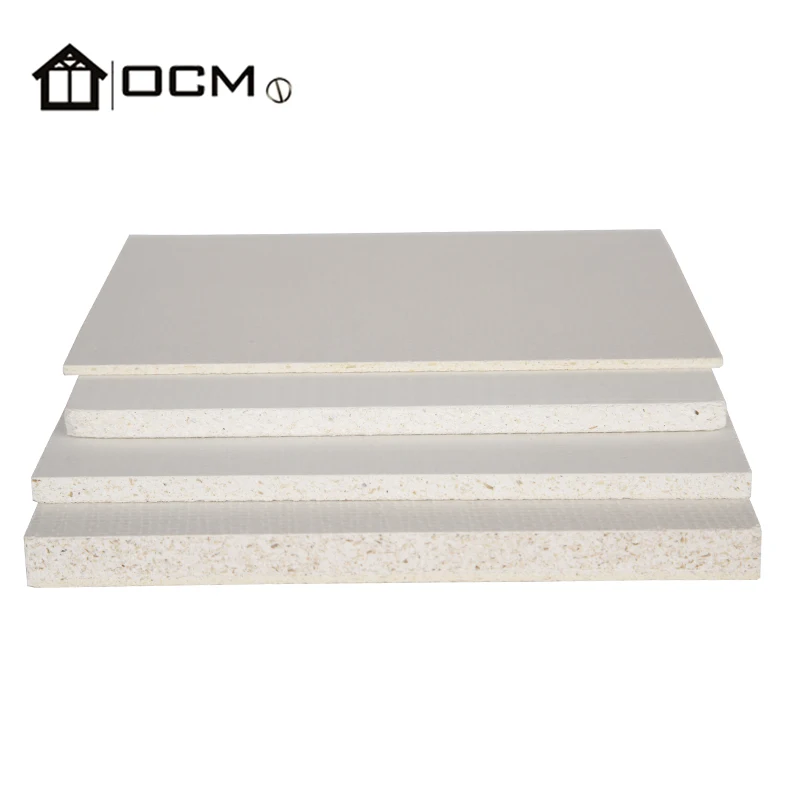

fireproof mgo perlite plate for fireplace Product Show
Application
Certifications
1.Bending strength
Test item
Test Method
Test Result
Bending strength
AS/NZS 2908.2:2000 Section 8.1.2.1
Direction
Modulus of rupture
Machine direction
13.8MPa
Across machine direction
12.6MPa
Average
13.2MPa
Remark
Specimen Dimensions:250mm*250mm*10mm,10pcs
2.Water permeability
Test item
Test Method
Test Result
Water permeability
AS/NZS 2908.2:2000 Section 8.2.2
Specimen
Test Result
1
No formation of drops of water on underside of the sheet
2
No formation of drops of water on underside of the sheet
3
No formation of drops of water on underside of the sheet
Remark
Specimen Dimensions:600mm*600mm*10mm,3pc
3. Mositure movement
Test item
Test Method
Test Result
Mositure movement
ASTM C1185-08(R2016)Section8
Specimen
Linear change(%)
Machine direction
0.18
Across machine direction
0.12
Average
0.15
Remark
Specimen Dimensions:76mm*05mm*10mm,1pcs per direction
4.Falling Ball Impact
Test item
Test Method
Test Result/Observation
Falling Ball Impact
ASTM D1037-12 Section 21
Bottom surface crack at 900mmheight. Top surface crack at 950mm height
Remark
Impactor :steel ball
Impactor mass: 535 g
Impactor diameter: 51 mm
OCM®products all certificated according to ASTM and AU/NZS standards. More information please contact us.
Production Procrss
Product Exhibition
Engineering Case
Company Information
FAQ
1.What is your delivery time?
15-20days after down payment.
2.What is your payment?
TT30% as down payment and balance after B/L.Or irrevocable LC.
3.Can you do customized product?
Yes.We can cut any sizes as required.
4.What is your company production capacity?
We can produce 8000sqm per day.
5.What is your Minimum Order Quantity,Can we order mixing different sizes?
