  1-4axis motor controller stepper motor and servo motor controller

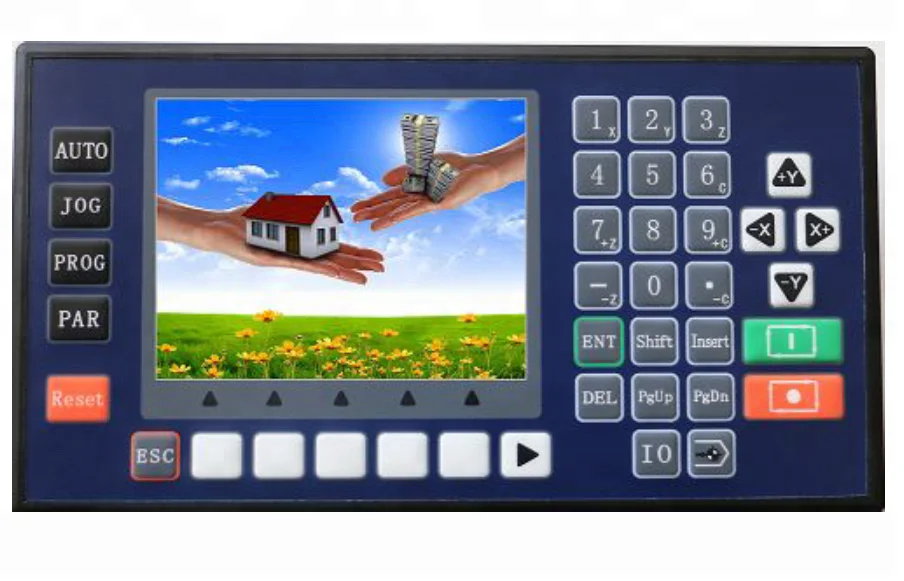

The CM40L series is a new product based on the new CM35L series upgrade software and hardware.Product, 3.5 "color screen display, support 485 communication, Chinese and English switching, encoder input,

The system has high reliability, high accuracy, low noise and simple operation.

Wait for a characteristic.

Mai function:

Automatic: actual operation, empty operation, single step operation, termination program.

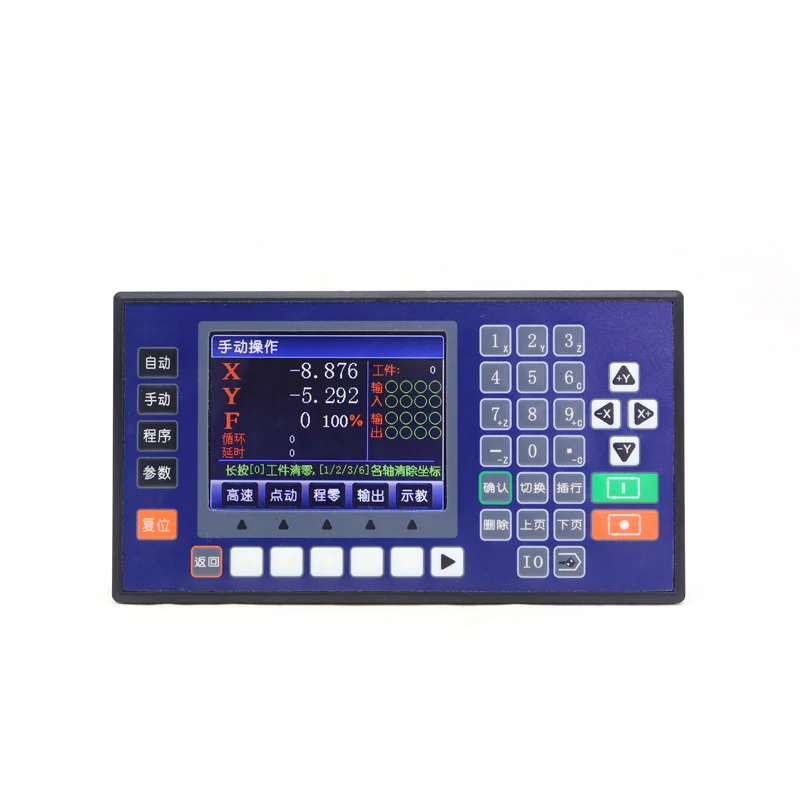

Manual: high speed, point action, program zero, manual output.

Program: edit, new, save.

Parameters: control, speed, factory value, user, password.

IO: system, manual, real input, input and output.

External manual: the external big button controls the motor forward and backward, and starts, pauses, alarms,Stop etc.

Instruction: 23 instructions, including 6 instructions for PLC.

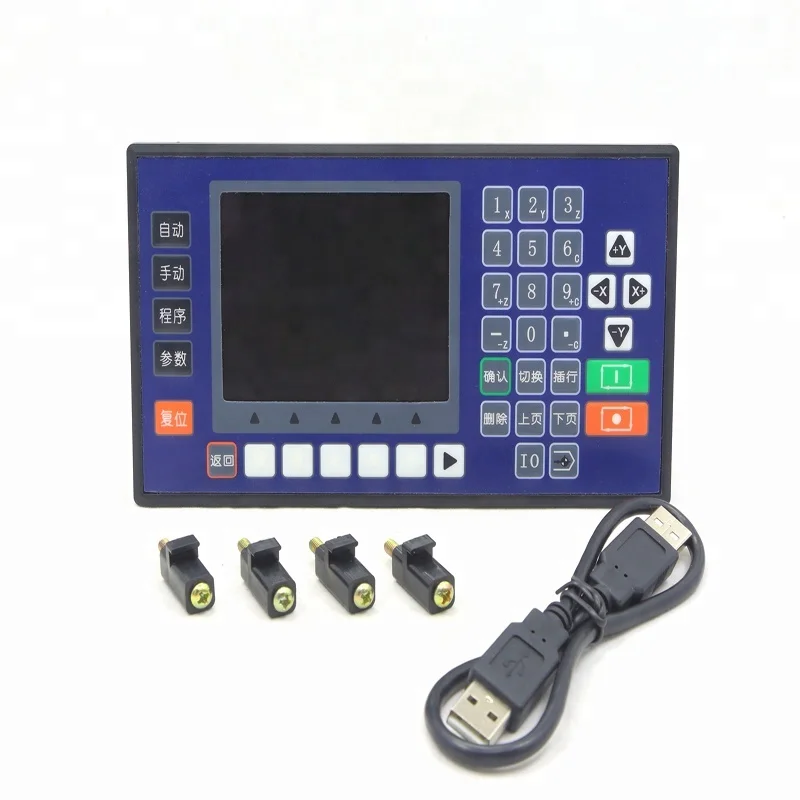

USB: the system can be powered by USB cable, easy to start up the screen and program.

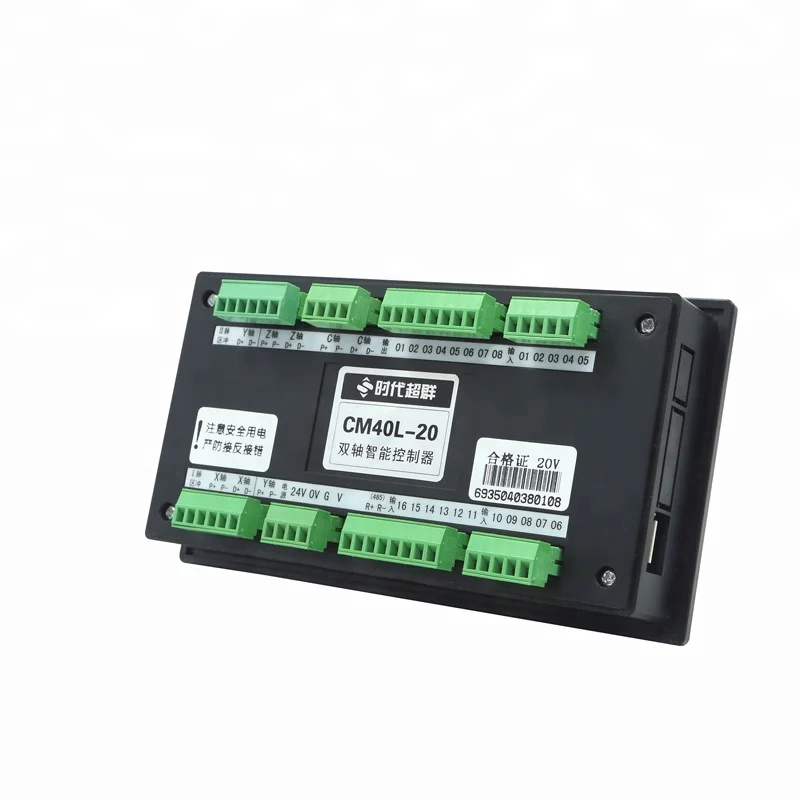

Isolation IO port: with the input and output of the system isolation, the export capacity is the most.

 Technical Index:

Minimum data unit: 0.001mm.

Maximum data size: plus or minus 99999.999mm.

Speed limit: 9000mm/min (when the pulse equivalent is 0.001mm)

Maximum machining speed limit: 9000mm/min (when the pulse equivalent is 0.001mm)

Maximum pulse output frequency: 150KHz.

Control axis number: 1-4 axis (X, Y, Z, C)

Linkage axis: X,Y,Z, and C axis can be used as linear interpolation, X,Y can be used as arc interpolation.

Electronic gear: 1 -- 99999, denominator: 1 -- 99999.

Main functions of the system: automatic, manual, program, parameter, IO, etc.

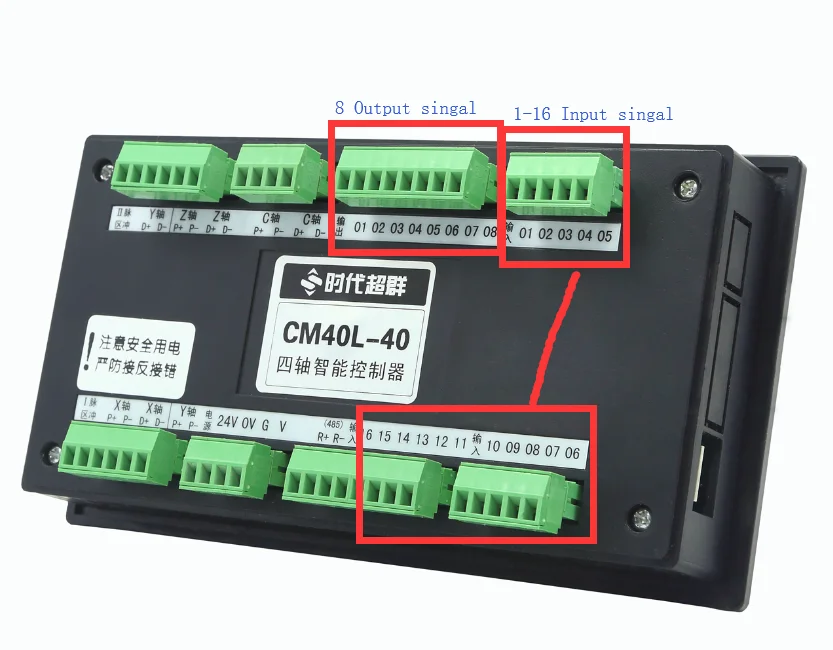

Wiring:

operation instruction available after order
