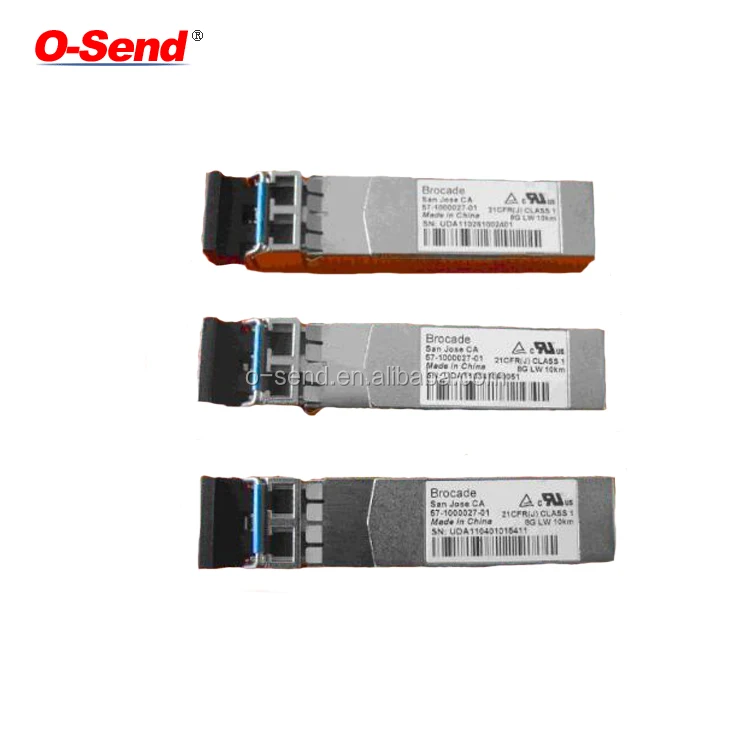

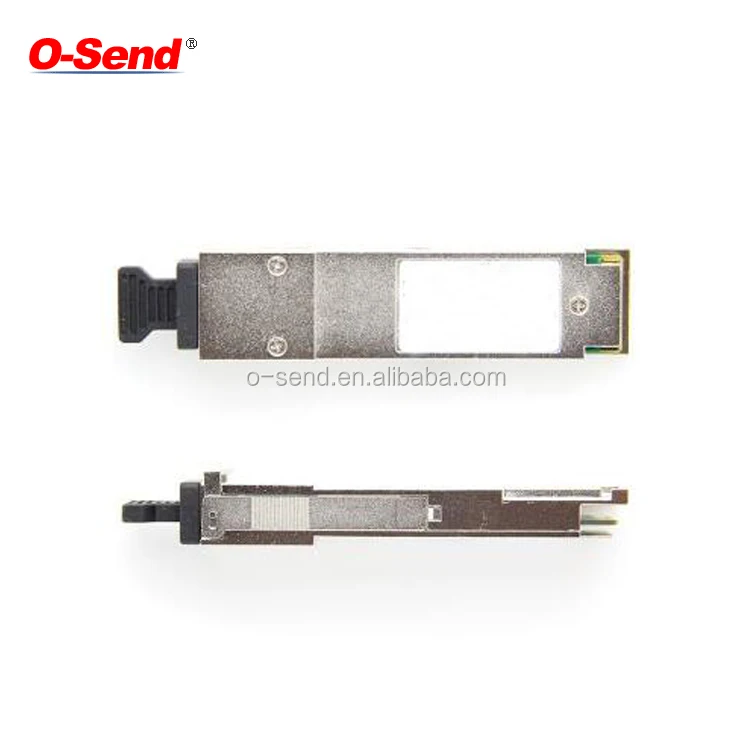

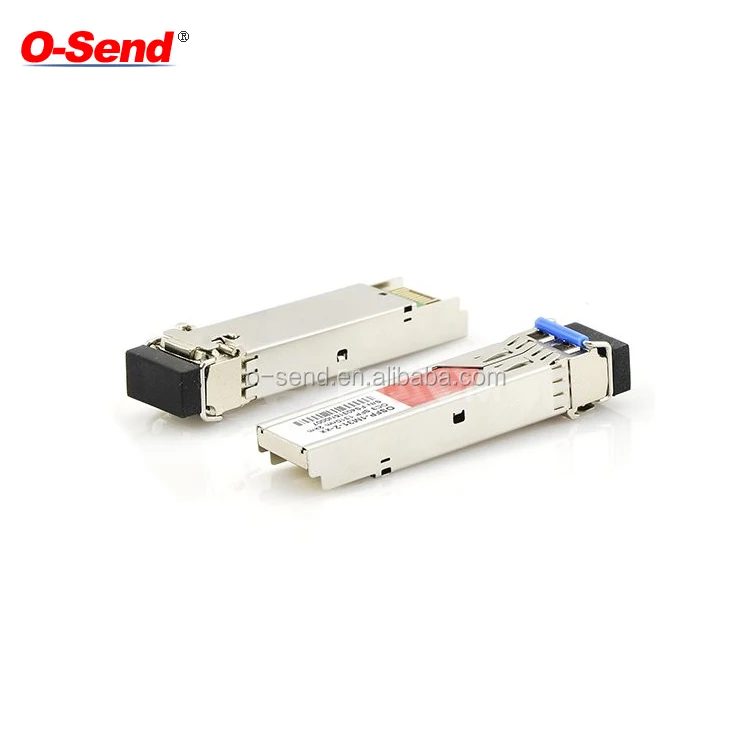

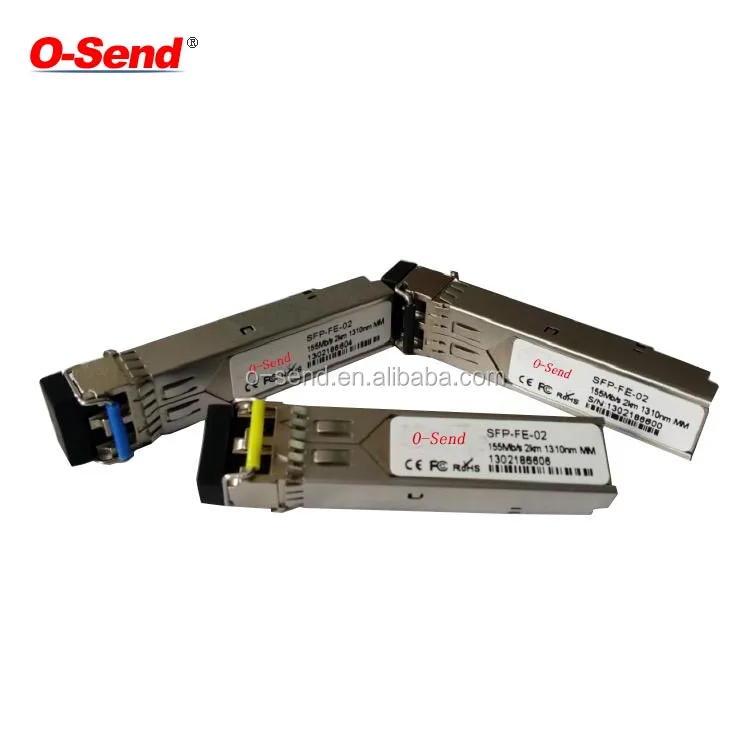

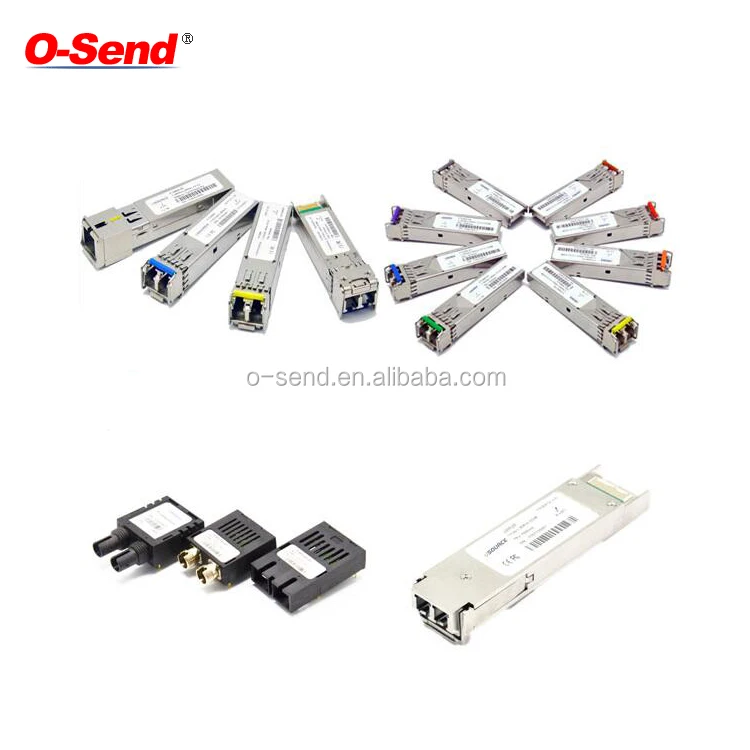

O Send 40 км/80 км/100 км 1550 нм otdr sfp интегрированный
- Category: Diodes >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (60761454132):
Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
| parameter | Symbol | Min | Typ | Max | Units | Notes |
| Transmitter Optical Specifications | ||||||
| Transmitter Laser Type | CWDM EML | |||||
| Wavelemgth | λ | 1470 | - | 1610 | nm | |
| Average Output Power | Pout | -1 | - | +4 | dBm | |
| Average Output Power(Laser off) | Poff | - | - | —30 | dBm | |
| Spectral Line RMS Width@-20dB | Δλ | - | - | 1 | 1nm | |
| Side Mode Suppression Mode | SMSR | 30 | - | - | dB | |
| Extinction ratio | ER | 9 | - | - | dB | |
| Transmittor Output Eye | Conmpliant with IEE802.3ae | |||||
| Receiver Optical Specifieations | ||||||
| Receiver Type | APD/TIA | |||||
| Wavelength | λ | 1260 | - | 1600 | nm | |
| Receiver Sensitivity | P | - | - | -24 | dBm | |
| Optical Power Overload | P | -7 | - | - | dBm | |
| Receiver Refieclance | RFL | - | - | -27 | dB | |
| Rx-LOS of Signal Assert | Ps | -38 | - | - | dBm | |
| Rx-LOS of Signal De-assert | P | - | - | -26 | dBm | |
| Rx-LOS of Signal Hystersis | P | 0.5 | - | 6 | dB | |
Related Products
Certifications

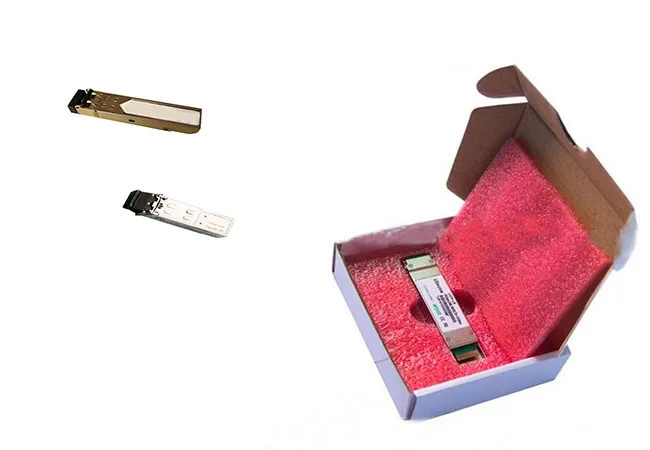

Packaging & Shipping
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
Different amount of time will be required for differentCompany Information
Founded in May 2004, and specializes in active component and passive component for telecommunication, data communication, FTTH(G/EPON,PON+EOC,RFoG)and CATV (CMTS) industries. Product lines include Laser Diode Module(Coaxial/Butterfly/DIP), Photo Diode Module, CWDM module, Optical Transceivers (Bi-di, ,SFP,SFP+), TO-Can assembly and passive component.
O-send Opto-Electronics(Chongqing)Co., Ltd, locates in ChaYuan, Chongqing, south west of China, covering an area of about 2500 square meters and with more than 120 staff.
