Product Overview

Description

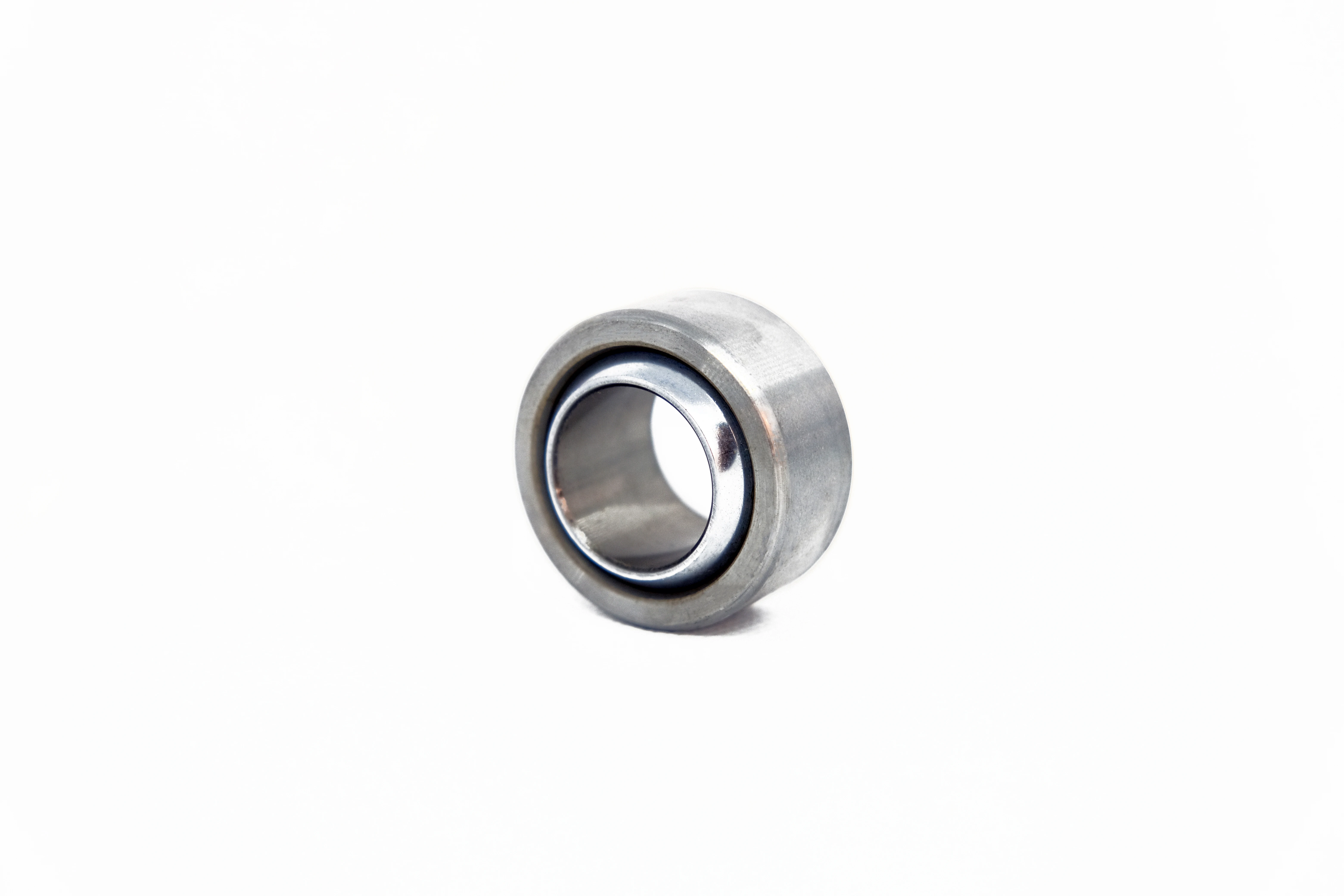

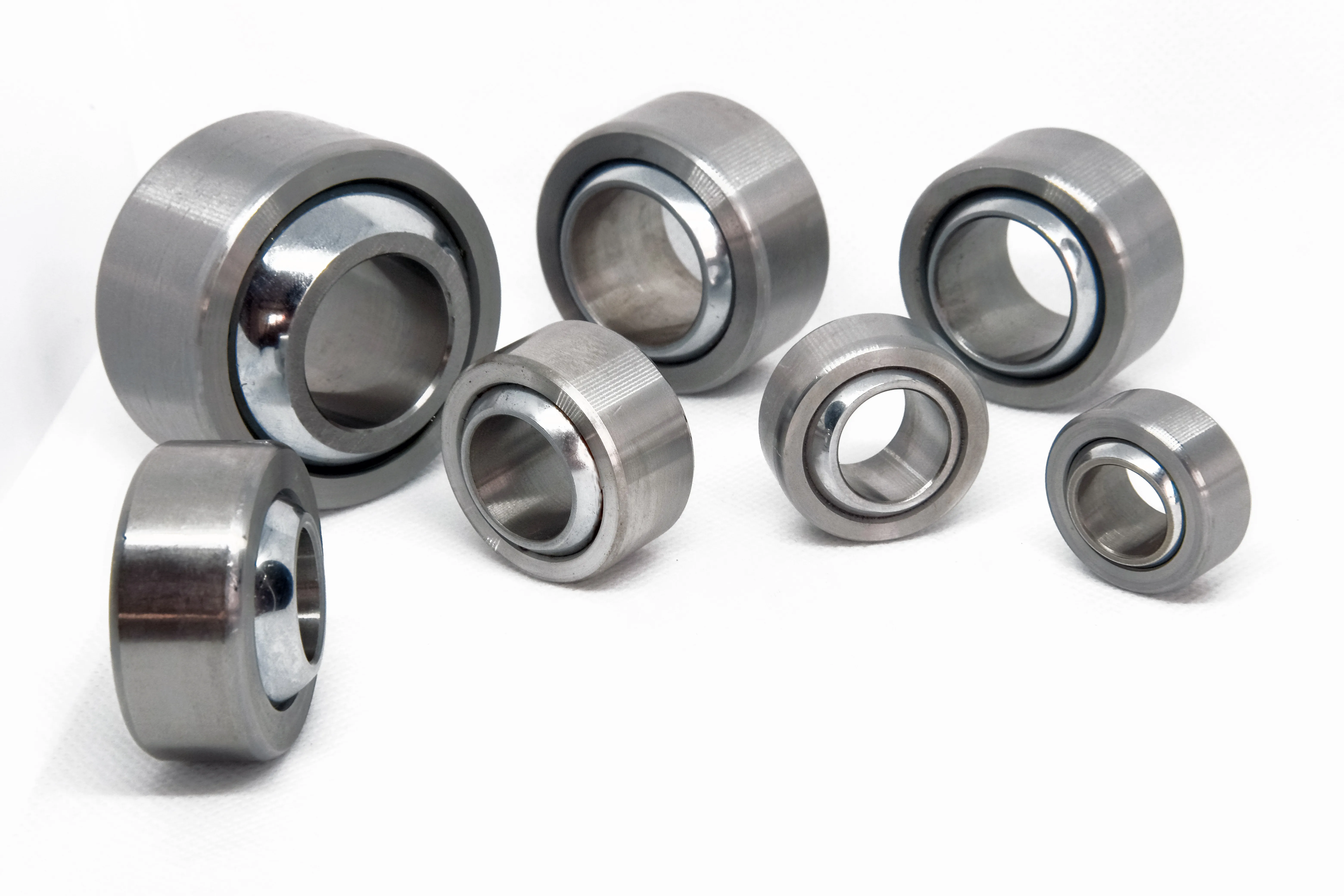

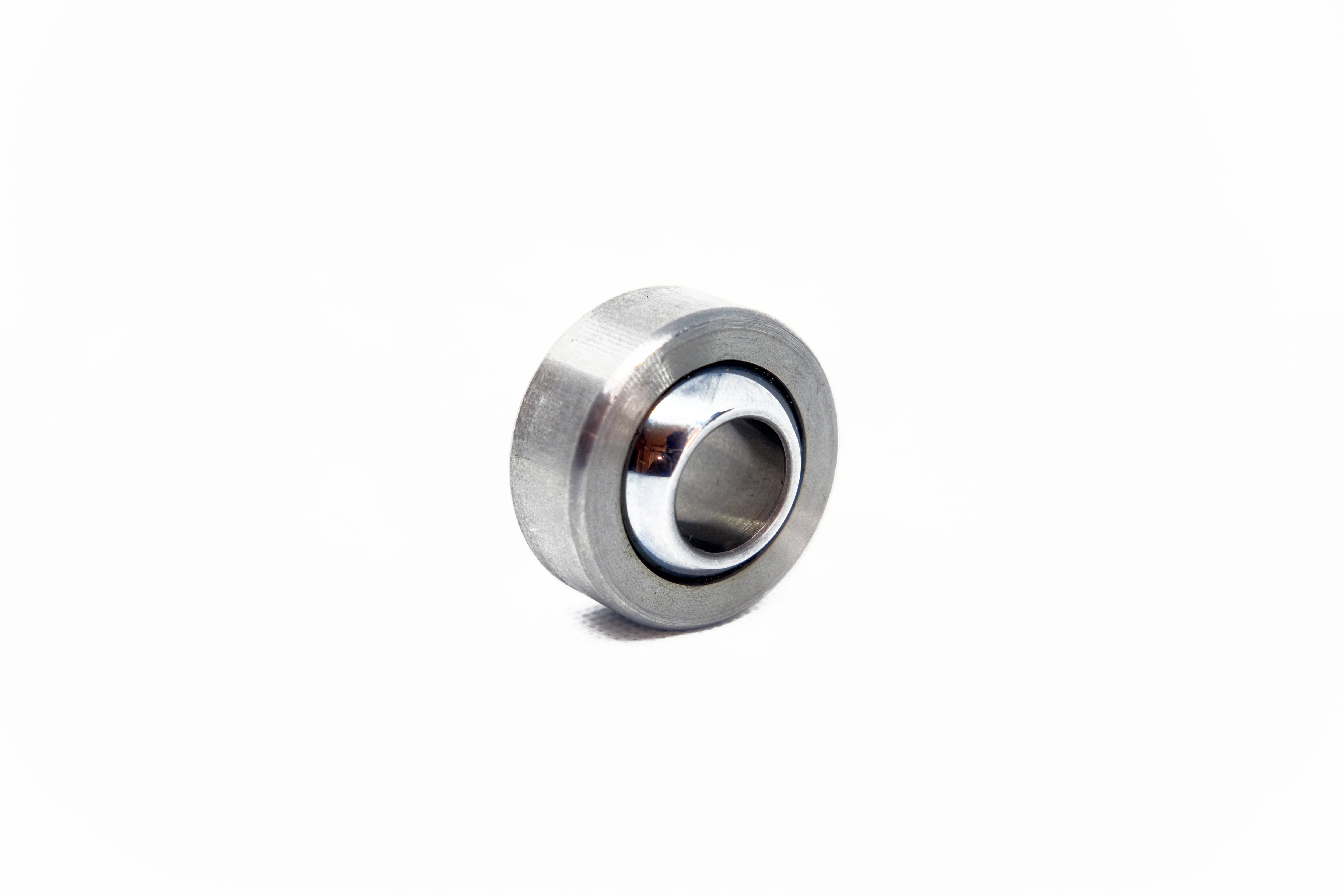

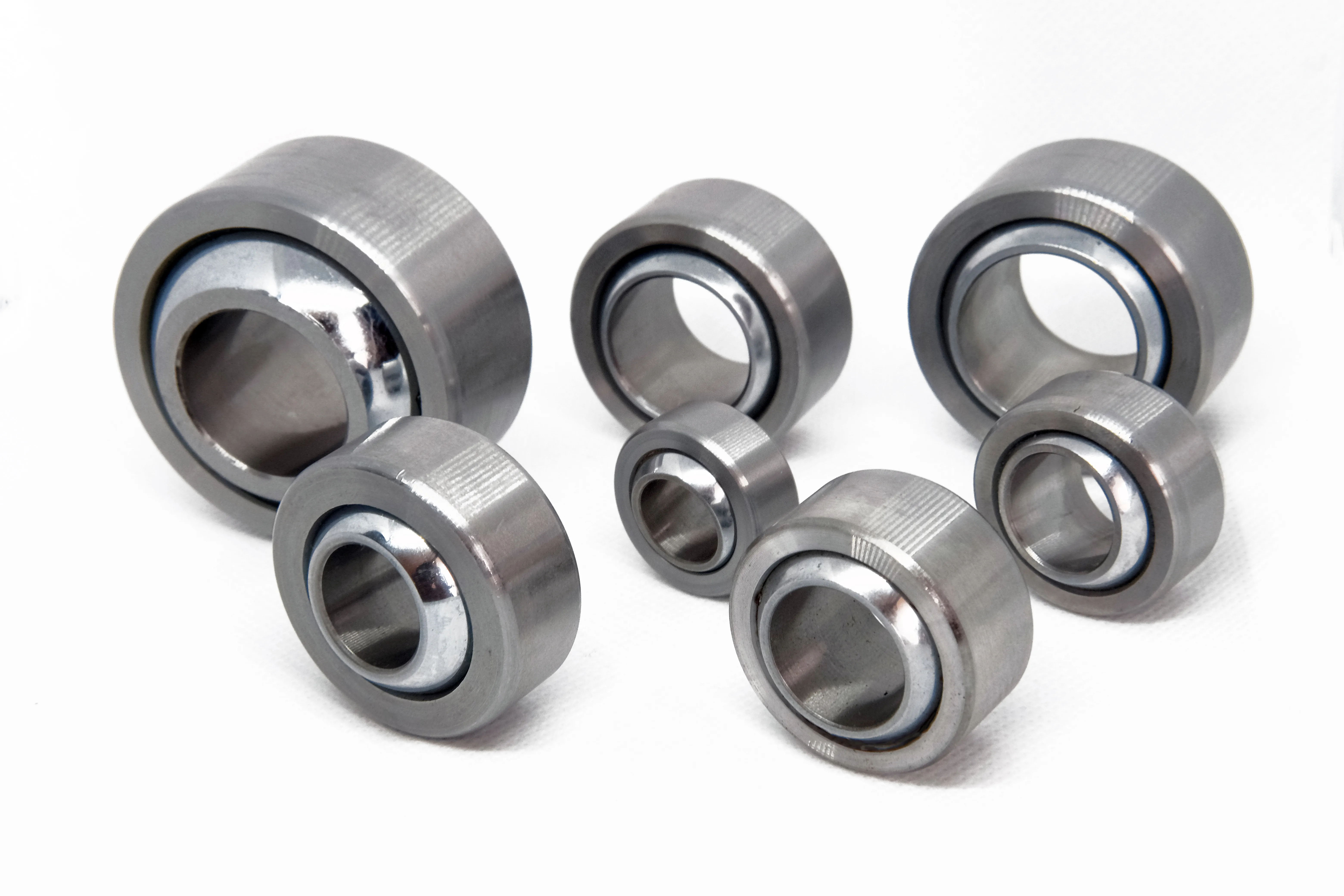

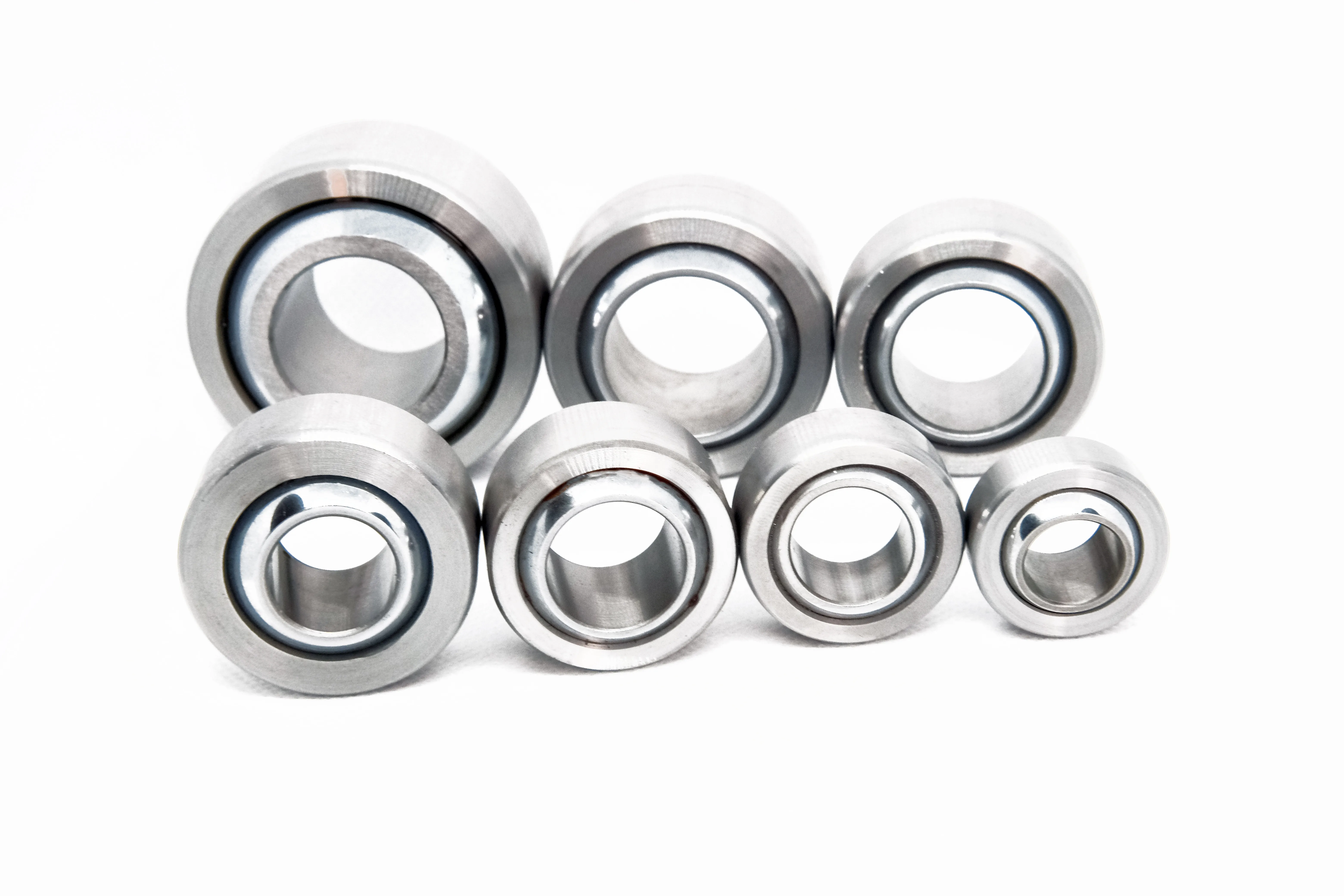

Hot Sale Best Suppliers Lubricated Spherical Joint Bearing COM10



									MATERIAL
									BALL	RACE
									52100 STEEL	52100 STEEL
									HEAT TREATED
									HARD CHROME PLATED	OIL COATED
BEARING PART NO.	B DIA.	D DIA.	W WIDTH	T WIDTH	O DIA.	BALL DIA.	F CHAMFER	a MIA ANG.
	+.0015 -.0005	+.0000 -.0007	+.005 -.005	+.005 -.005	REF.	REF.	REF.	REF.
COM3	.1900	.5625	.281	.218	.293	.406	.015	11	3,250	.014
COM4	.2500	.6562	.343	.250	.364	.500	.022	13.5	4,950	.022
COM5	.3125	.7500	.375	.281	.419	.562	.032	12	6,475	.030
COM6	.3750	.8125	.406	.312	.516	.656	.032	10	8,400	.038
COM7	.4375	.9062	.437	.343	.530	.687	.032	8	9,454	.047
COM8	.5000	1.0000	.500	.390	.600	.781	.032	9.5	13,250	.065
COM9	.5625	1,0937	.562	.437	.671	.875	.032	9.5	16,630	.086
COM10	.6250	1,1875	.625	.500	.739	.968	.032	8.5	21,280	.110
COM12	.7500	1.4375	.750	.593	.920	1.187	.044	9	31,920	.204
COM14	.8750	1.5625	.875	.703	.980	1.312	.044	9.5	41,960	.263
COM16	1.0000	1.7500	1.000	.797	1.118	1.500	.044	10	55,200	.386
COMH16	1.0000	2.0000	1.000	.781	1.360	1.687	.032	9	70,820	.553
COMH19	1.1875	2.3750	1.187	.937	1.610	2.000	.032	8.5	100,730	.895
COMH20	1.2500	2.3750	1.187	.937	1.610	2.000	.032	8.5	100,730	.895



BEARING COMES STANDARD WITH SNAP RING AND TEFLON LINER. CONTACT ENGINEERING FOR FURTHER INFORMATION.

BORE TOLERANCE: +.0025 -.0005

NOTES:

LUBRICATION GROOVES IN I.D. & O.D. OF RACE

FOR PTFE LINER ADD "T" TO SUFFIX. ~EXAMPLE: COM12T

(UNITS WITH *TEFLON LINERS HAVE NO LUBRICATION HOLES OR GROOVES IN RACE.)
