12 В 24 В DC Бесщеточный Водяной насос Бытовая техника водяной насос
- Category: Pumps >>>
- Supplier: Dongguan Desun Technology Development Co. Ltd.
Share on (60761861476):
Product Overview
Description
Products Description

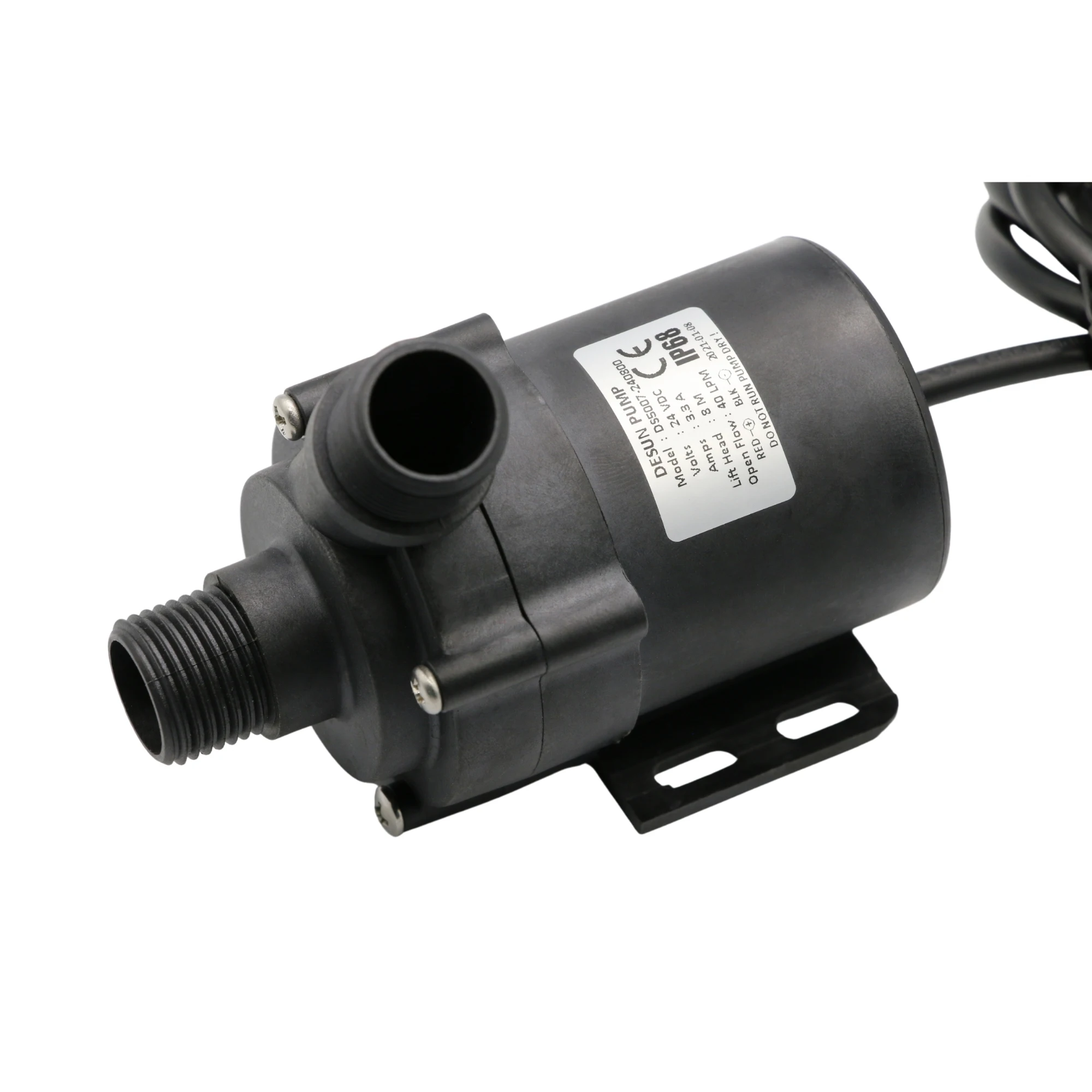

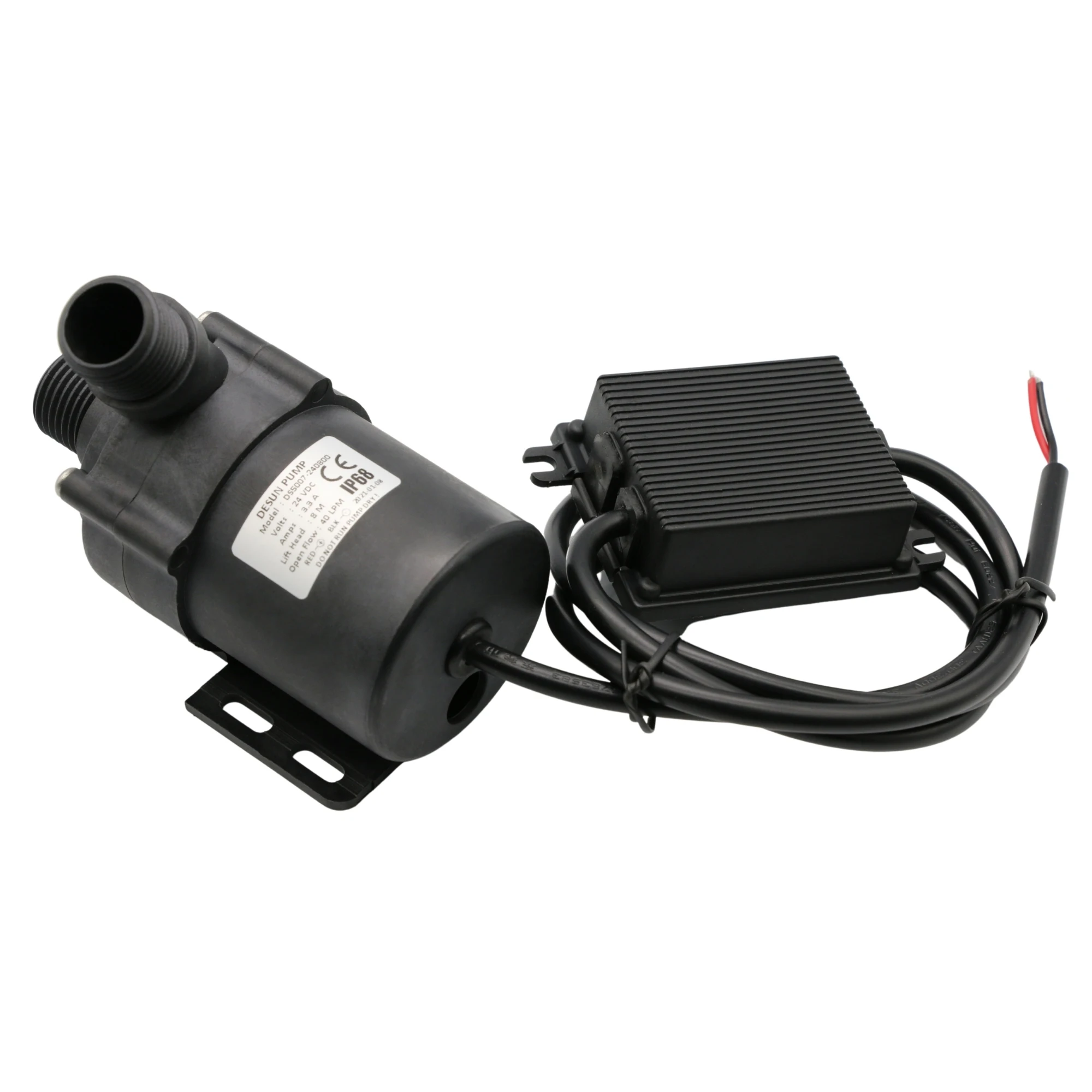

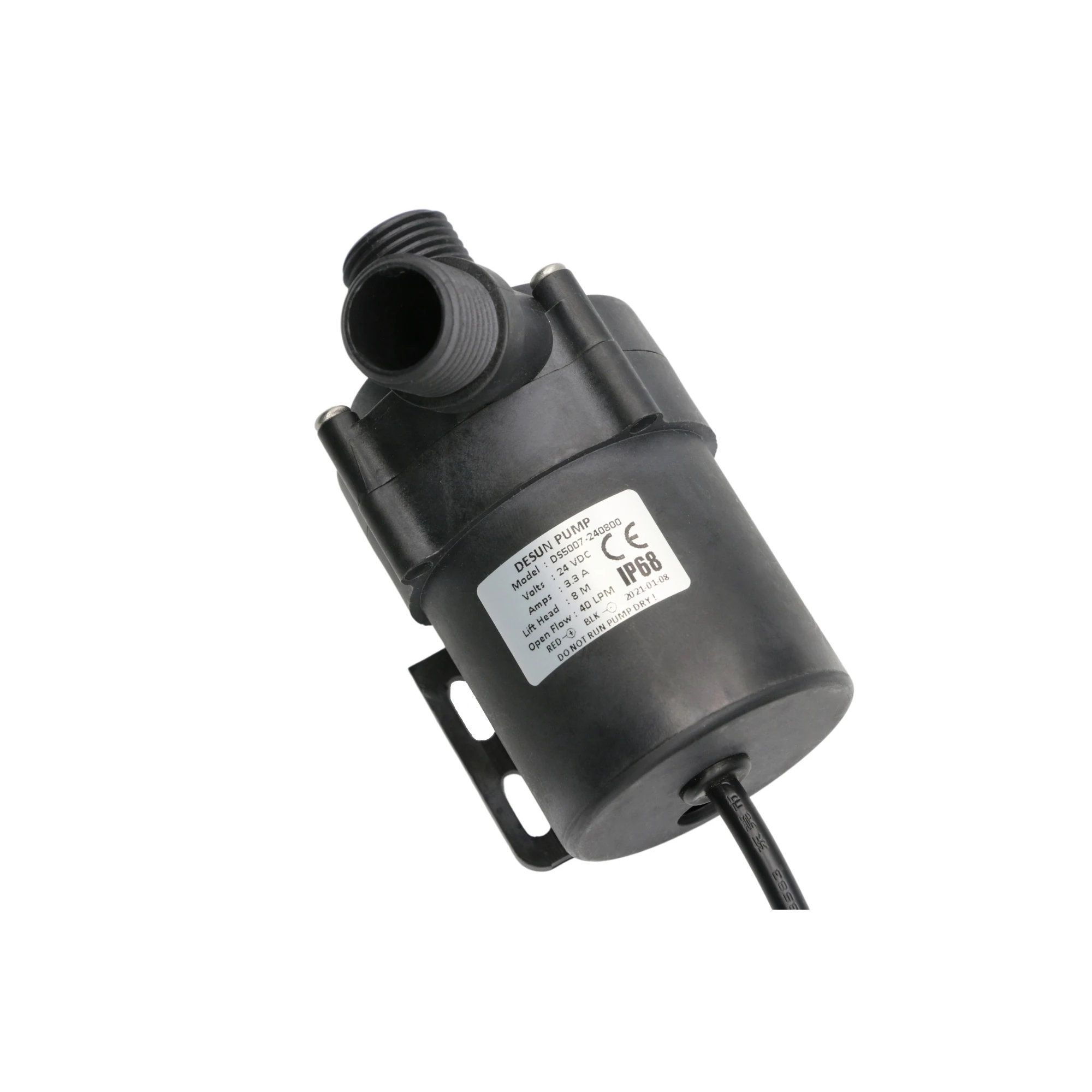

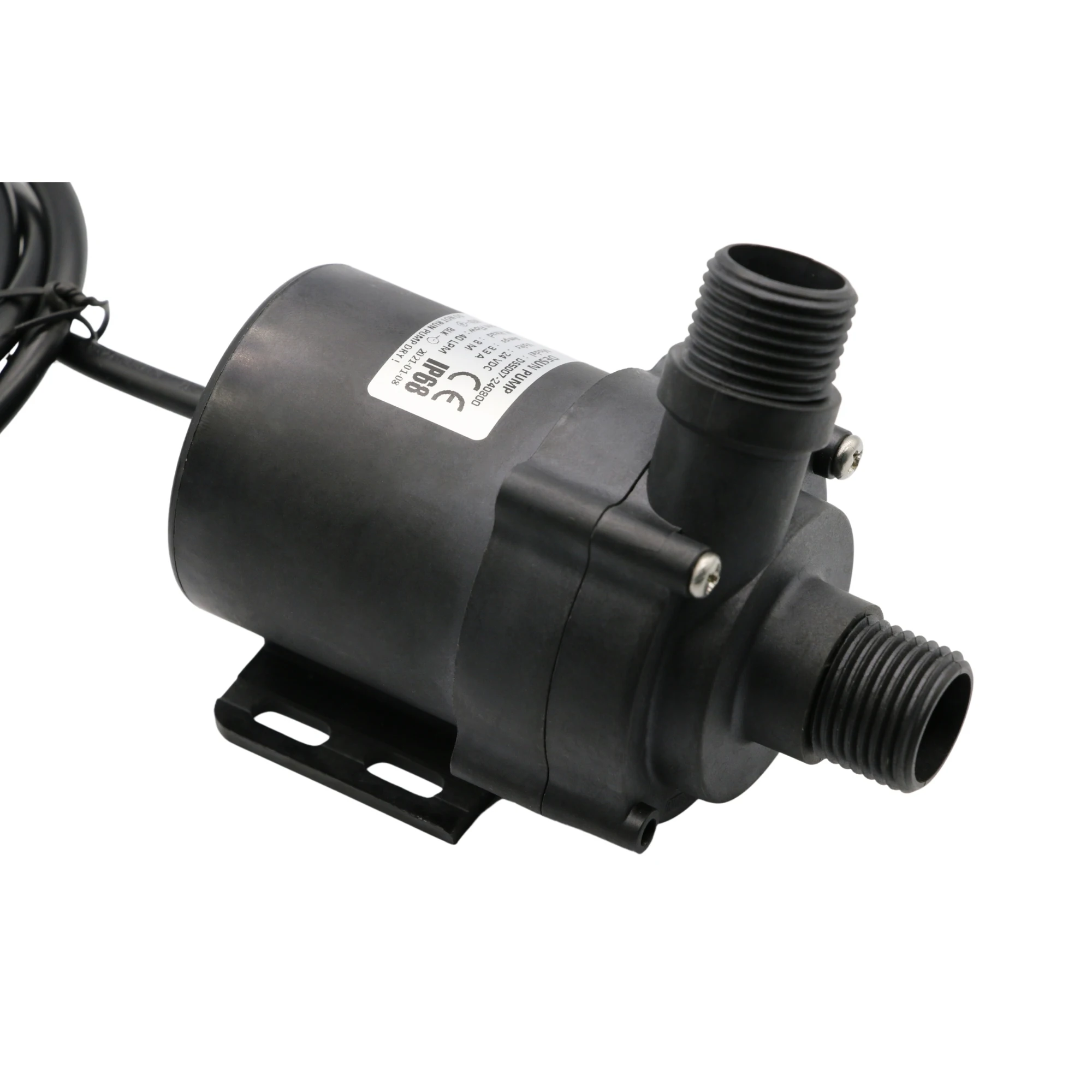

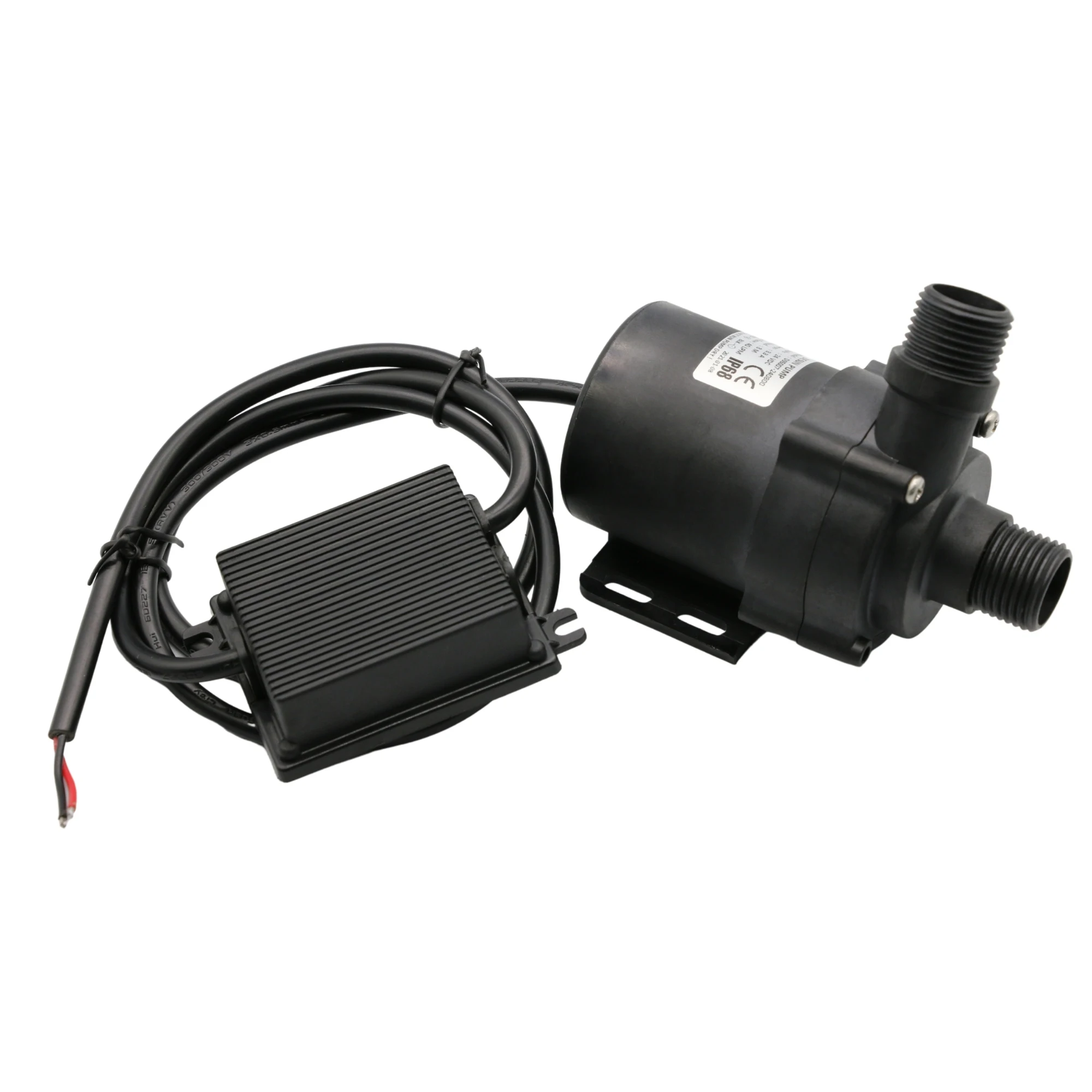

DS5007 CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Brushless motor, long life span； Expected life span is about 20000 hours.
2. Low noise: ≤35dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install；
5. Epoxy potting, IP68 waterproof rating；
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
2. Low noise: ≤35dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install；
5. Epoxy potting, IP68 waterproof rating；
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS5007 |
Working voltage | 12/24V(DC) |
Max. flowrate | 40L/min （634 gph） |
Max. head | 8M |
Working temp. | ≤100℃ |
Material | PPS |
Water proof level | IP68 |
Noise | ≤45dB |
Lifetime | 20000H |
Inlet diameter | G1/2 |
Outlet diameter | G1/2 |
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS5007-1280 | 12 | 6.5 | 40 | 8 | 78 |
DS5007-2480 | 24 | 3.3 | 40 | 8 | 80 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

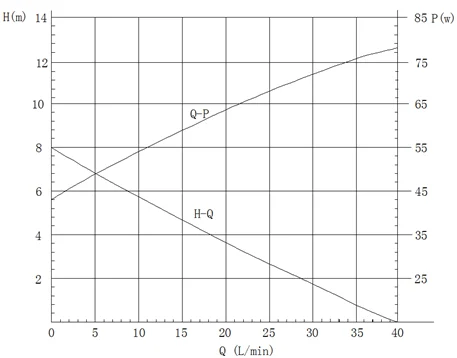

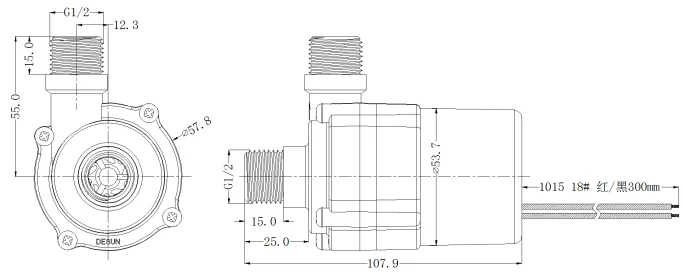

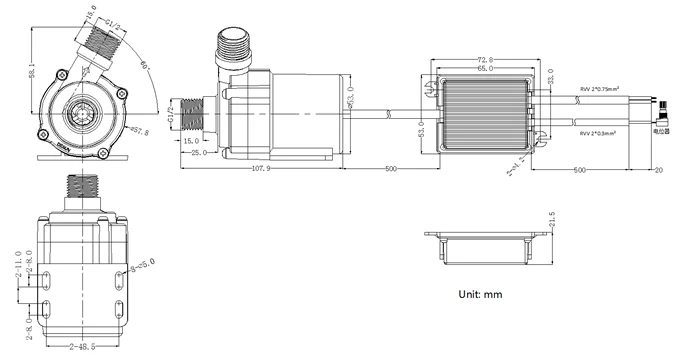

Dimensional drawing and working curve diagram
PCB BOAR
Can be done inside and outside of pump
application scope pictures are only for reference.
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc...
We supply Full Customization Service, please contact us for the details.
Suppot both submersible and unsubmersible installation
Our Advantages
Category
Company Profile
Packaging
FAQ
Do you accept OEM/ODM Service?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, Paypal, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs, Reach. Parts of pumps met UL.
How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
What's your port of loading?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, Paypal, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs, Reach. Parts of pumps met UL.
How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
What's your port of loading?
Shenzhen port, Dongguan port, Guangzhou port, for other we can communicate it.
