2000w EV dc-dc converter with wide input and Communication protocol.

Product Description

Place of Origin :Hebei, China (Mainland)

Brand name: Dilong electrical DC converter

Description:

DE2KM17B-560S28RC is a high-power, small-size DC / DC converter specially designed for pure electric vehicles. It is easy to integrate with a charger and an electric drive.

Converter with a wide input range, can work in the input voltage 200Vdc to 750Vdc, to solve the different models need to use a variety of DC converter trouble, to avoid duplication of design, to achieve universal, modular purpose.

Using digital processing technology, own CAN communication, can report data to the CAN bus, while accepting CAN bus switch command, real-time control and monitoring of DC

Specification





Input

Rated input voltage

560Vdc

Input voltage range

200Vdc ~750Vdc

Max input current

10A @Vin=270V (Peak power)

Start the rush current

<7A@DC560V

Static high-voltage input power

<1.5mA @DC560V

Output

Rated input voltage

28VDC

Rated output current

72A

Input 270V ~ 750V full power, input 270V ~ 200V current drop to 35A

Peak output current

85A

Input 300V ~ 750V work 6 minutes

Rated output power

2000w

Input 270V ~ 750V full power, input 270V ~ 200V power drop to 1000W

Peak output power

2400W

Input 300V ~ 750V work 6 minutes

Constant current point

72A-80A First limiting current, Then shut down

Heavy over-current protection

90A

Shutdown protection

Regulator accuracy

≤±1%Vo

Input 270V ~ 750V, output 10% -100% load

Load effect

≤±0.5% Vo

Rated input, output 10% -100% load condition test

Source effect

≤±0.5% Vo

Input 270V ~ 750V, rated output condition test

Output ripple

≤500mv

20M bandwidth, twisted pair plus 250V / 10u-CBB capacitor

Efficiency

≥95%

η_max

Functional protection

Input under-voltage protection

DC185~198V

Automatic recovery

Input over-voltage protection

DC755~765V



Automatic recovery

Output over-voltage protection

DC32V~36V

Automatic recovery

Over-temperature protection

≥95℃

85℃-95℃ Shut down,

70℃ restore

Input reverse protection

Input reverse, DC does not work

Output reverse protection

No (Reverse will cause permanent damage!)

Signal & Alarm

Power switch signal (continuous)

1. Access 10V-16V activation signal, DC standby

2. CAN enabled

Power status signal

According to the communication protocol reported power status, waiting for the boot command

Safety protection

Isolation voltage

Input-Output

2800VDC/1min

Leak current≤1mA

Input-Frame

2800VDC/1min

Leak current≤1mA

Output-Frame

500VDC/1min

Leak current≤1mA

Insulation resistance

>10MΩ

Use environment

Operating temperature

-40℃~85℃

Storage temperature

-40℃~105℃

Operating humidity

5%~85%RH

Store humidity

5%~95%RH

Cooling method

Air-cooled

Degree of protection

IP67

vibration

QC/T413-2002

volume

316*194.5*108.5 mm

weight

≤5Kg

Installation Guide

 Instructions on the use of the circuit:

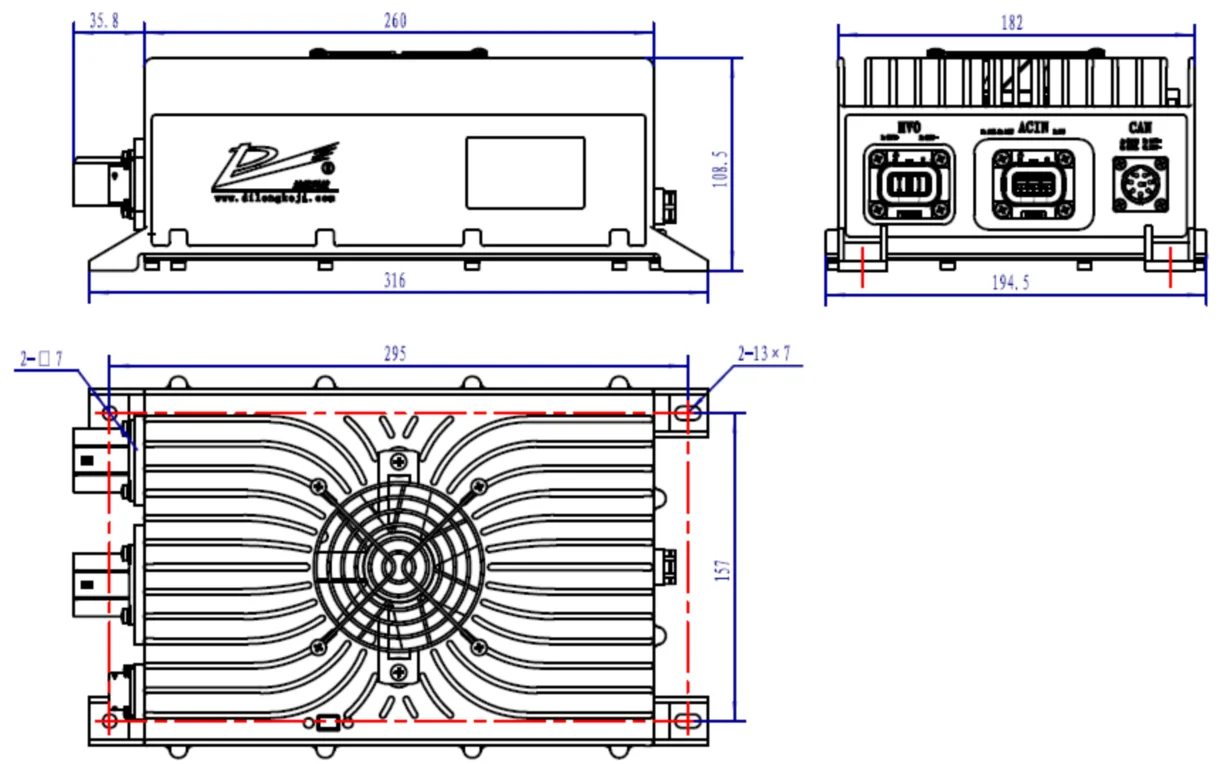

Mounting dimension:

M17 dimensions.png

More Products

Dilong Product Manuals2.jpg



FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: What are your main products?

A: We mainly produce electric vehicle power supply, including OBC, dc converter and integrated power supply.

Q: how long is your delivery time?

A: Within 15 days, small sample order 5-7 days.

Q: What is your production capacity?

A: The monthly output of the product is 5,000 to 10000.

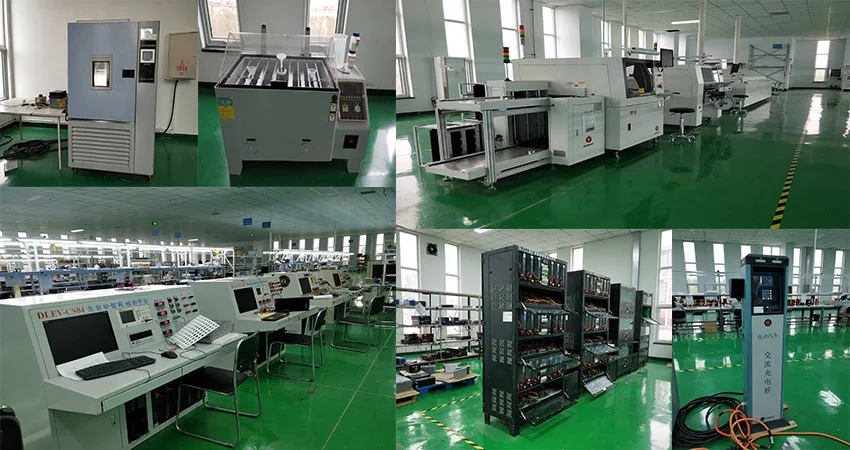

Company Information
