Arch Curved Roof Panel Roll Forming Machine
- Category: >>>
- Supplier: Yingkou Longshun Machinery Manufacturing Co. Ltd.
Share on (60761978319):
Product Overview
Description
</h2>
Arch Curved Roof Panel Roll Forming Machine 750 </h2>
Company Information
1. Professional in producing arch roof machine for more than 20 years.
2. OEM & ODM are welcomed here.
3. MOQ: 1 set
4. Customized size and color
5. Competitive price with top quality
6. Quick delivery time.
Yingkou Longshun Machinery Manufacturing Co.,Ltd. is specialized in producing Longshun K Arch Span machine, and arch roof building forming machine. There are engineers, production line and sales team. OEM is welcomed here. Any requirements just no hesitate to contact with us, we must try our best to satisfy your needs. Reasonable price and best service will be provided to you. Welcome to visit our factory.
Product Description

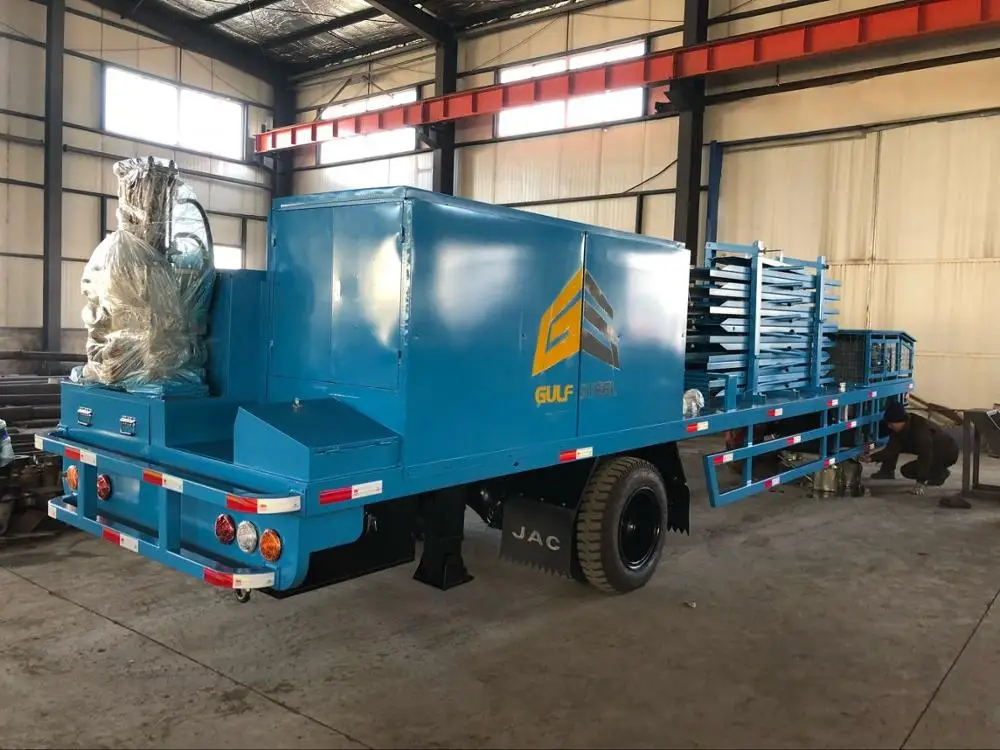

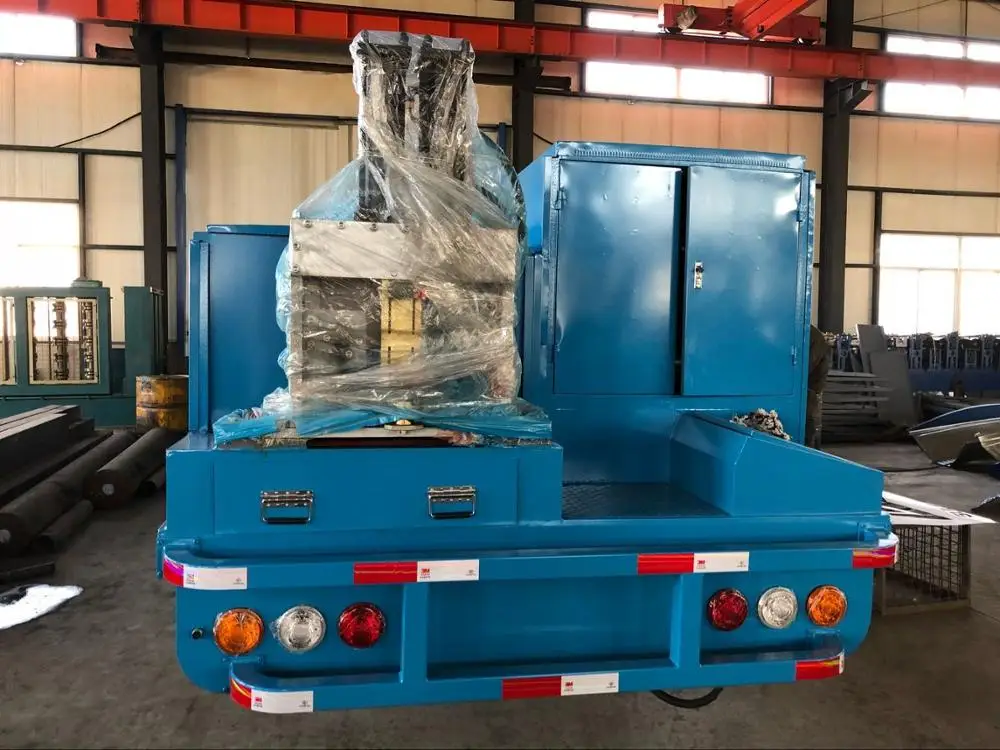

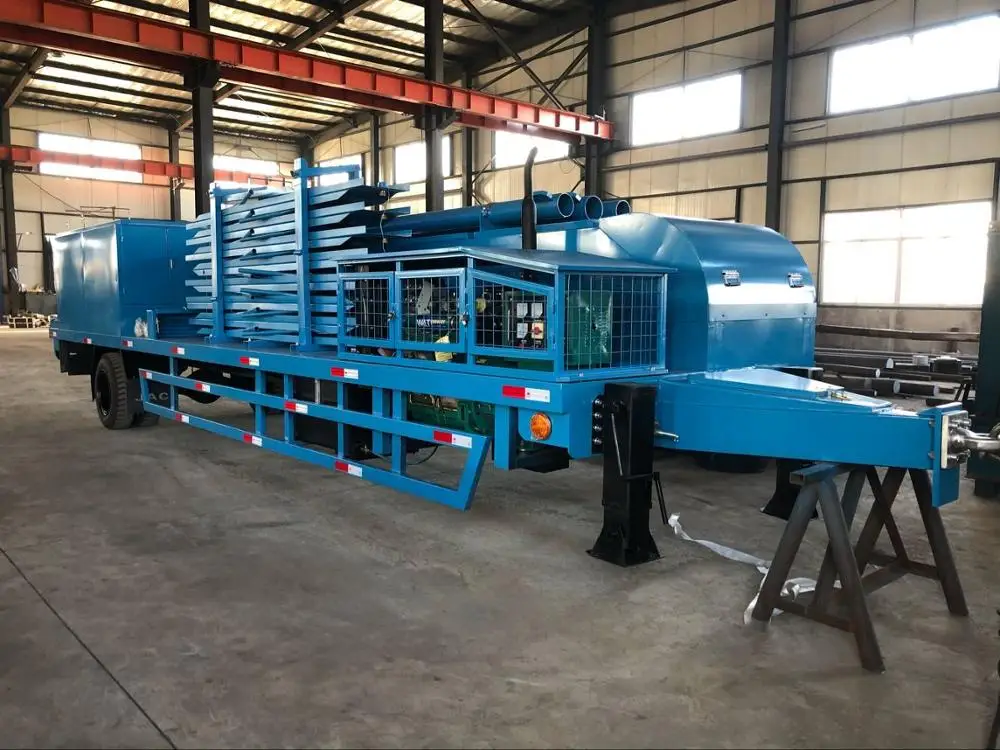

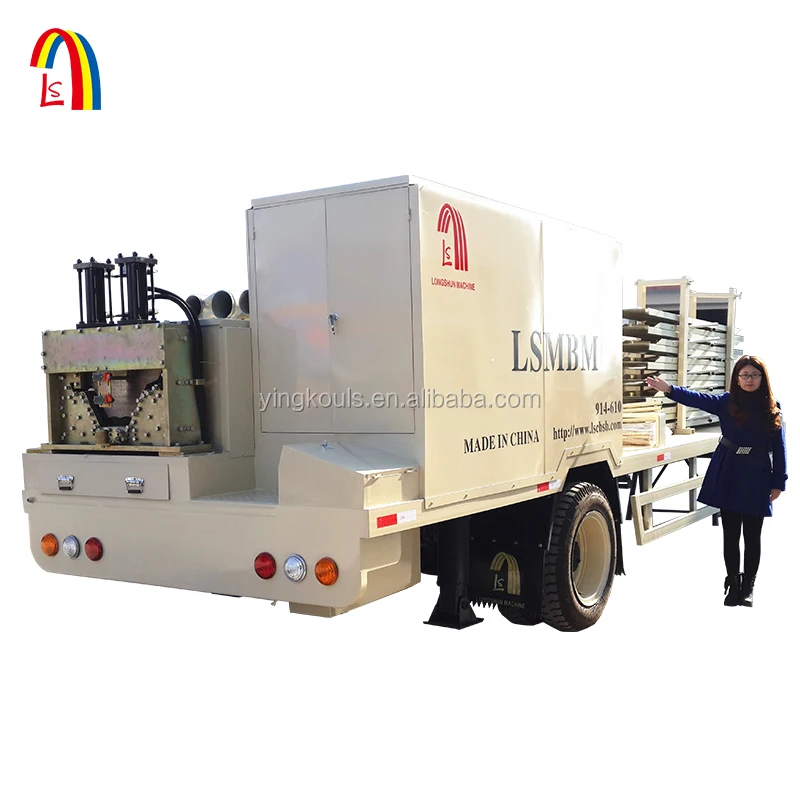

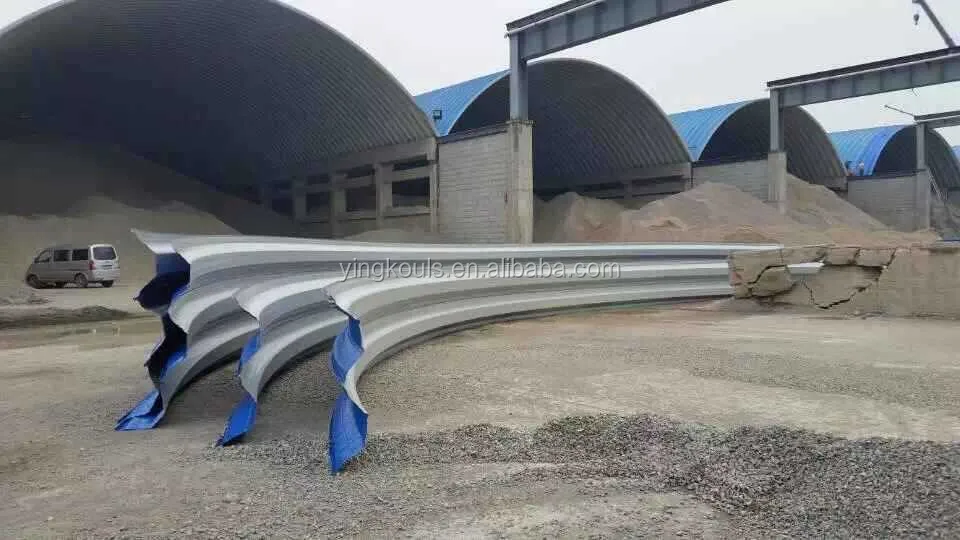

Arch Curved Roof Panel Roll Forming Machine
Arch Curved Roof Panel Roll Forming Machine
No. | Specification | |
1 | Suitable material | Color Steel plate, galvanized sheet |
2 | Feeding width | 914mm |
3 | Rows of rollers | 14 rows |
4 | Main power | 7.5kw |
5 | Hydraulic power | 4.0kw |
6 | Thickness of raw material | 0.8-1.5mm |
7 | Cutting Blades Material | Cr.12 |
8 | Cutting system | Hydraulic cutting with double pumps |
9 | Effective Width | 750mm |
10 | OEM | Available |
11 | Material of shaft | 45# steel forged by the Carbon at high temperature |
12 | Roller material | 40Cr steel polished and coated with chrome HRC55-60° |
13 | SProduction | Longshun K Arch Span machine |
14 | Voltage | 380V 50Hz/60Hz 3phases or as you need |
15 | Control system |
PLC Control System with 7" touch screen |
16 | Total Weight | 12 tons
|
Model List for Trussless Longshun k arch span Metal Roof forming machine
| Model | Feeding Width | Effective Width | Suitable coil thickness | Max Building Width | Use Ratio | The Depth of the Groove |
| LS600-305 (120) | 600mm | 305mm | 0.8-1.5mm | 24m | 51% | 109mm |
| LS914-400 | 914mm | 400mm | 0.8-1.5mm | 40m | 43.7% | 210mm |
| LS914-610 (240) | 914mm | 610mm | 0.8-1.5mm | 38m | 66.7% | 203mm |
| LS914-650 | 914mm | 650mm | 0.8-1.5mm | 26m | 71% | 181mm |
| LS914-700 | 914mm | 700mm | 0.8-1.5mm | 24m | 76.5% | 123mm |
| LS914-750 | 914mm | 750mm | 0.8-1.5mm | 20m | 82% | 86mm |
| LS1000-400 | 1000mm | 400mm | 0.8-1.5mm | 45m | 40% | 253mm |
| LS1000-550 | 1000mm | 550mm | 0.8-1.5mm | 32m | 55% | 187.5mm |
| LS1000-610 | 1000mm | 610mm | 0.8-1.5mm | 40m | 61% | 243mm |
| LS1000-680 | 1000mm | 680mm | 0.8-1.5mm | 35m | 68% | 223mm |
| LS1000-700 | 1000mm | 700mm | 0.8-1.5mm | 25m | 70% | 175mm |
| LS1000-750 | 1000mm | 750mm | 0.8-1.5mm | 22m | 75% | 138mm |
| LS1000-800 | 1000mm | 800mm | 0.8-1.5mm | 14m | 80% | 114mm |
| LS1200-800 | 1200mm | 800mm | 0.8-1.5mm | 42m | 66.7% | 294mm |
| LS1220-610 | 1220mm | 610mm | 0.8-1.5mm | 45m | 50% | 320mm |
| LS1220-800 | 1220mm | 800mm | 0.8-1.5mm | 42m | 65.5% | 302mm |
| LS1250-800 | 1250mm | 800mm | 0.8-1.5mm | 42m | 64% | 320mm |
Packaging & Shipping Arch Metal Roof Panel Bend Roll Forming Machine LS914-750
Payment | 30% T/T in advance |
Packaging | standard seaworthy packing |
Delivery | within 25 days |
Guarantee | 18 months free service/ pay service all the machine life |
Installation and training | If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. to teach you to install and operate. please arrange board and lodging and other necessary things. |
