Product Overview

Description

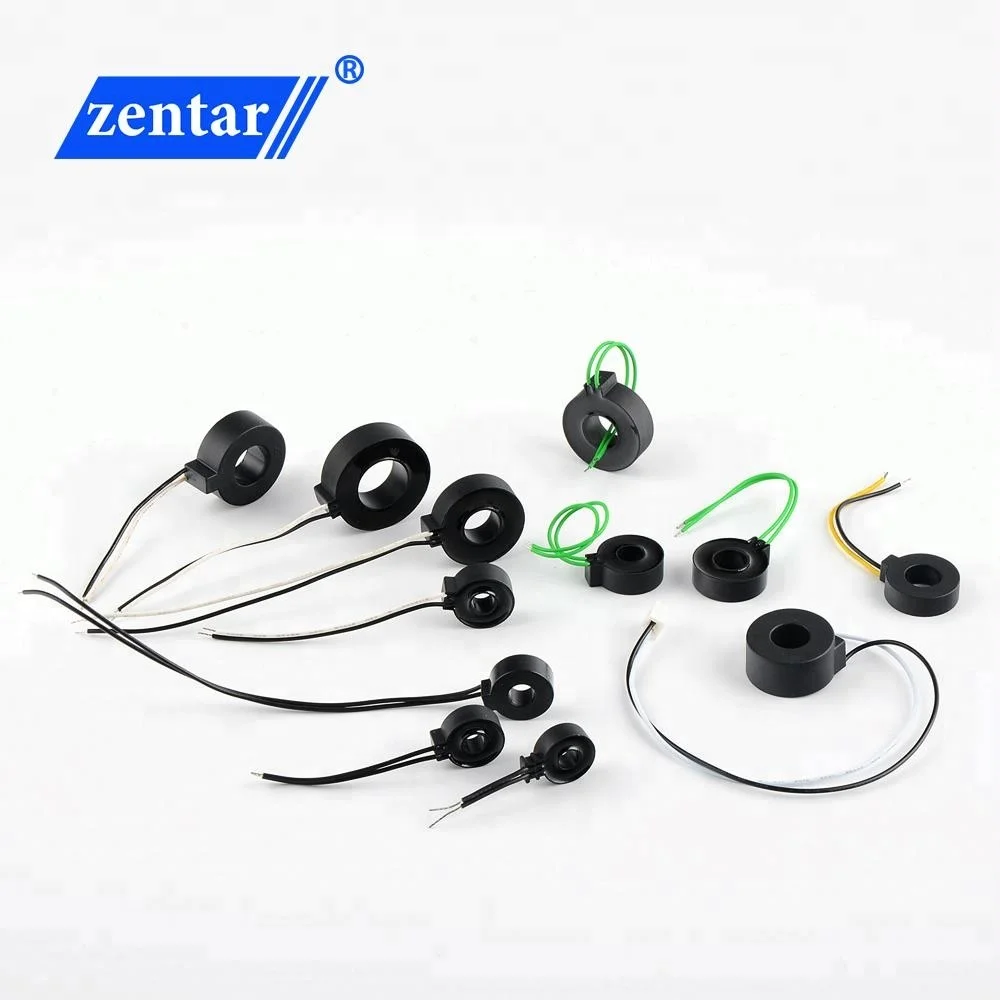

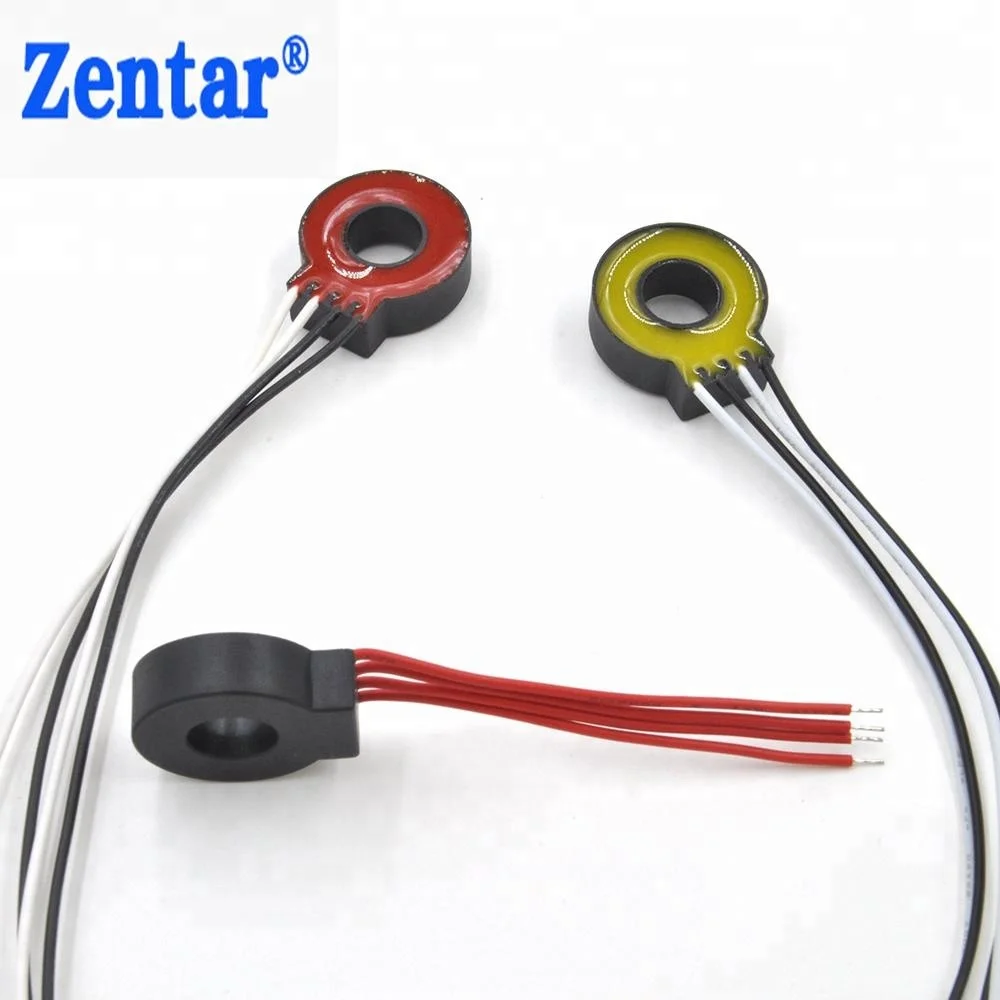

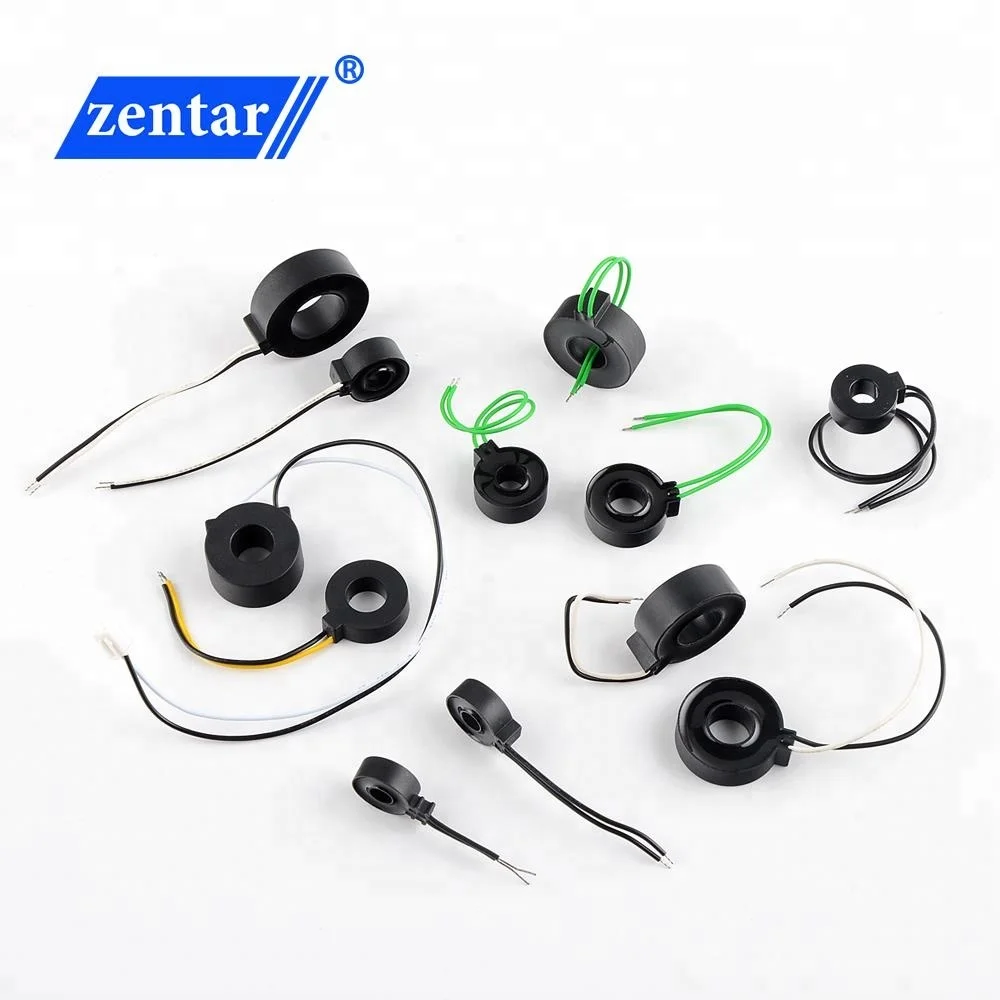

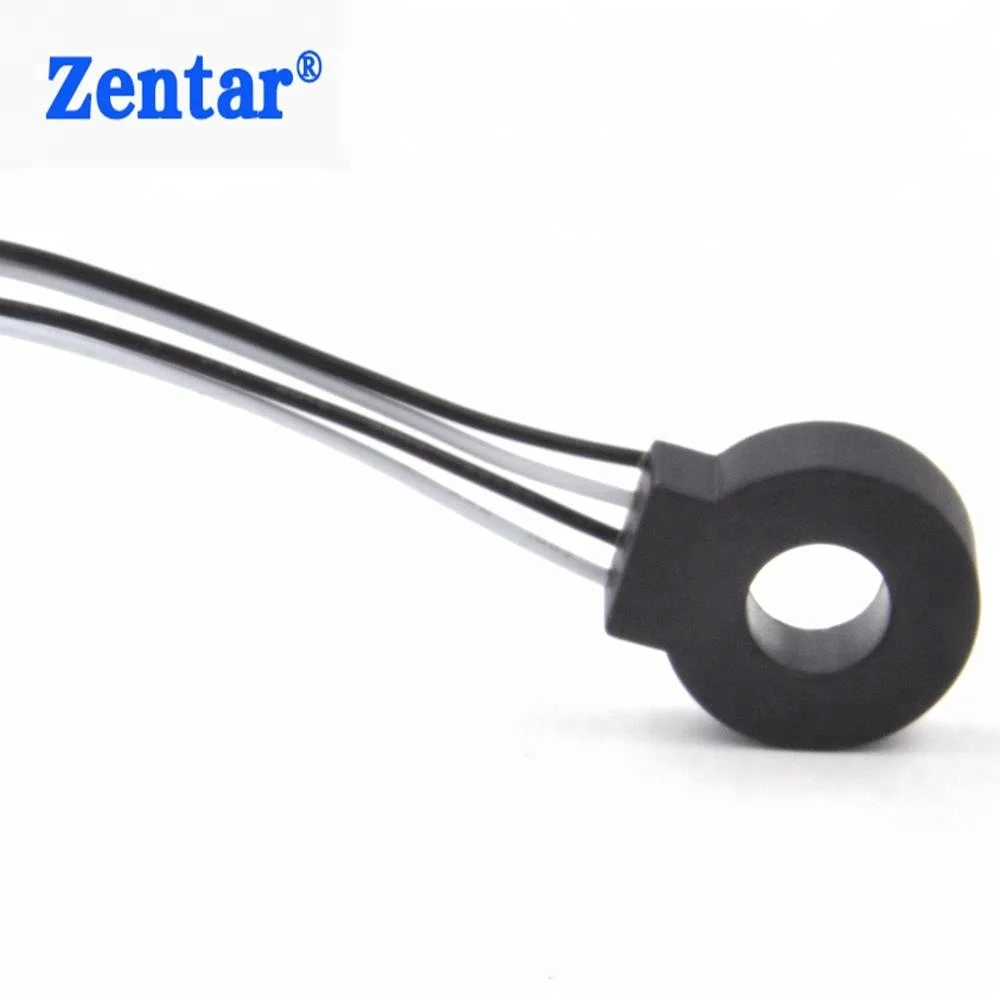

Product name: Zentar 50A Wire Lead Leakage Current Sensor For DC AC Current

Rated current : 50A

Rated Output :17 mV
Operating frequncy : 50Hz/60Hz
Dielectric withstanding voltage(Hi-pot): 2500Vrms (between outside/sec.)
Accuracy(0.1A-60A): linearity:0.5%

DC resistance: 40+4 ohms



APPLICATIONS

-Residual current circuit breaker

-Earth Leakage protection switch

-Leakage circuit protection Breaker

-Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI)



Features:

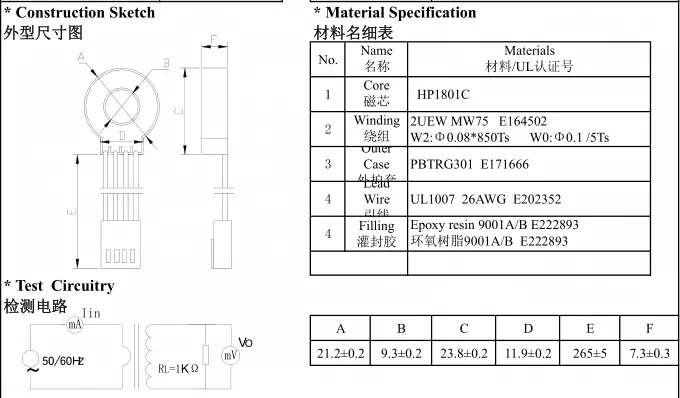

Epoxy encapsulated and has a polypropylene resin case

RoHs compliant

-High sensitivity
-Close to zero load shift and zero phase shift
-Excellent in balance
-Perfect in temperature stability
-Small change in output voltage
