Dual Layer Foil Coil Winding for Transformer BRJ1400-2 is used to wind transformer foil coils and similar products, the foil conductor can be copper or aluminum strip. This kind of foil winding machine can windone or two layers offoil conductorand one or two layers of insulation material(such as paper or similar material).Bus bars are welded with TIG welding process. The automatic foil edge alignment makes sure that the coil edges are straight and smooth.Control system is based on PLC. It is easy to operate the machine through a touch screen.
Main Components
1.Main frame
2.Winding unit
3.Foil decoiler
4.Insulation decoiler
5.End-fill strip feeder
6.Cleaning system
7.Cutting system
8.Foil deburring system
9.Edge alignment system
10.Automatic welding unit
11.Electronic control system
12.Pneumatic system
Technical Parameters
Typical standard specificationsof BRJ1400-2 are shown below, however these can be easily modified as requested.
Axial Length (foil width):
1,400mm
Finished Coil Shape:
oval, round and rectangular
Conductor Decoiler Shaft:
adjustable Dia. range 455-515mm
Max.Coil Weight:
2,500KG
Winding Spindle:
80×80×1750 mm
Number of Insulation Decoiler:
2
Insulation Material OD.:
≤400mm
Insulation Material ID.:
76mm
Insulation Decoiler shaft:
Expandable (pneumatic open/close action)
User Interface:
10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range:
0 - 9999.9

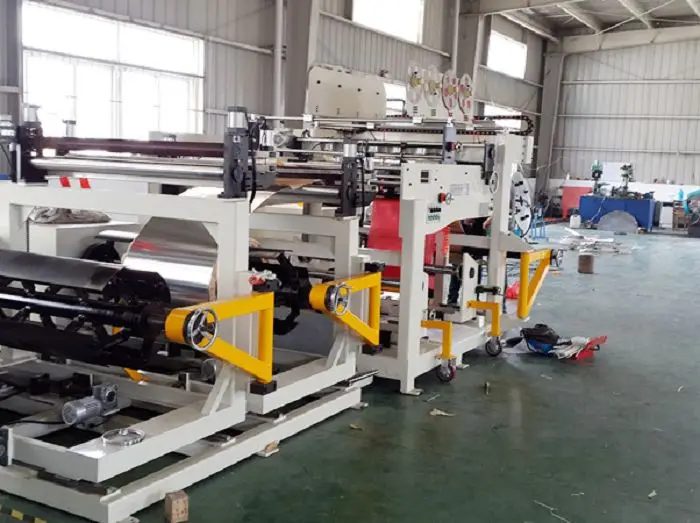

Figure 1:Dual Layer Foil Coil Winding for Transformer BRJ1400-2's full view

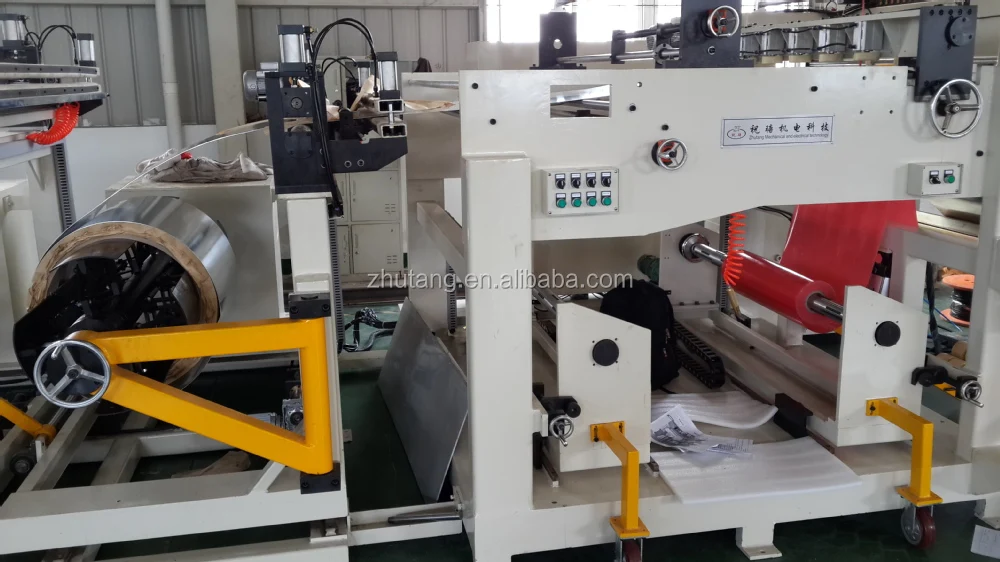

Figure 2:Dual Layer Foil Coil Winding for Transformer BRJ1400-2's side view

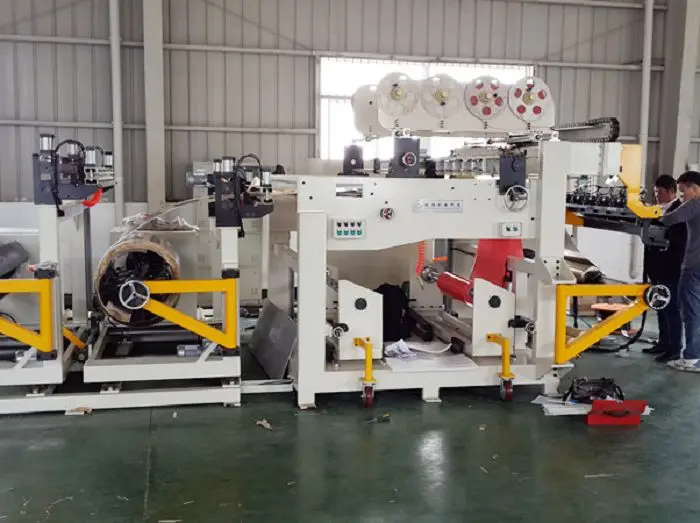

Figure 3:Dual Layer Foil Coil Winding for Transformer BRJ1400-2's back view
