13500lbs Heavy Duty 12v electric winch 4x4 winch for sale
- Category: Winches >>>
- Supplier: Yuhuan Jiansu Electromechanical Manufacturing Co. Ltd. [Zhejiang China]Yuhuan Ltd.
Share on (60762523699):
Product Overview
Description

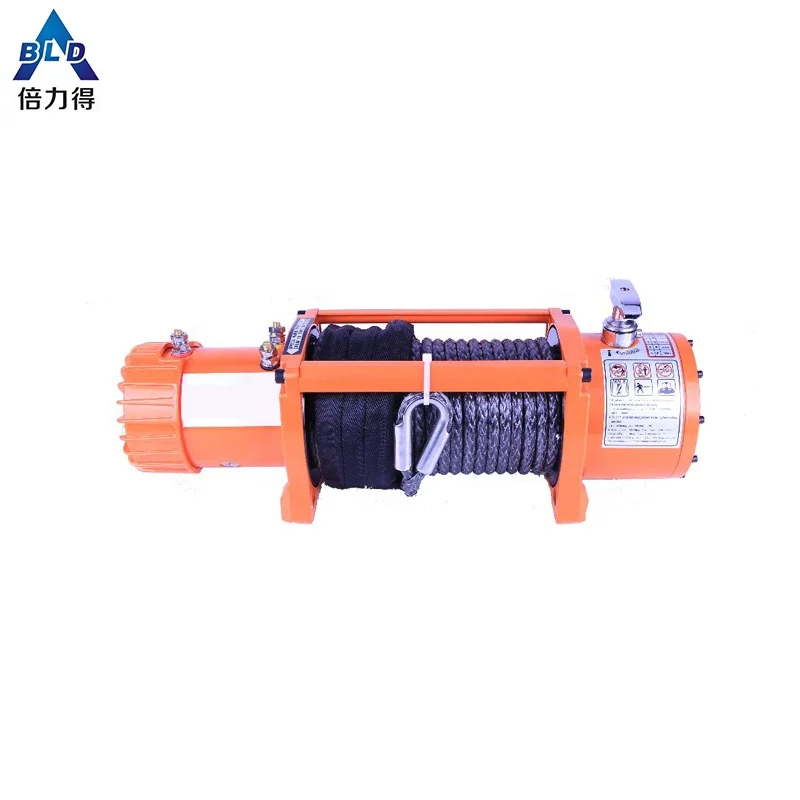

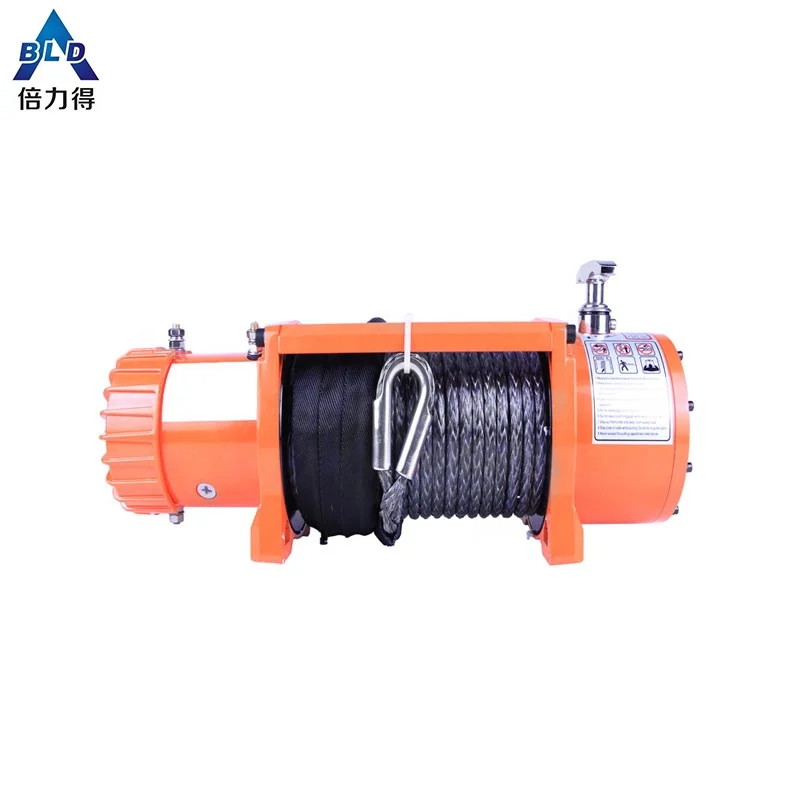

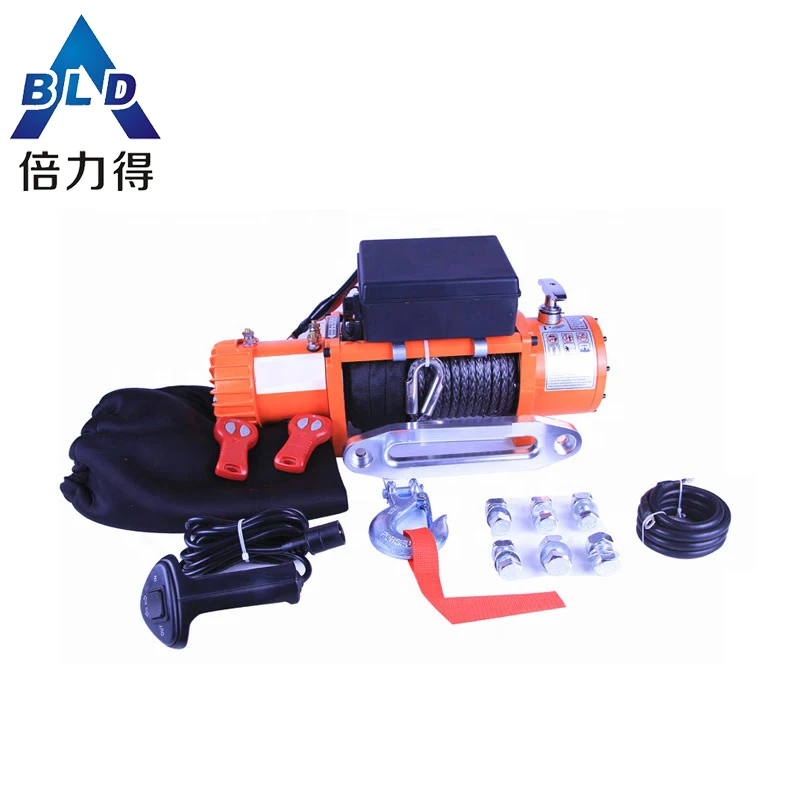

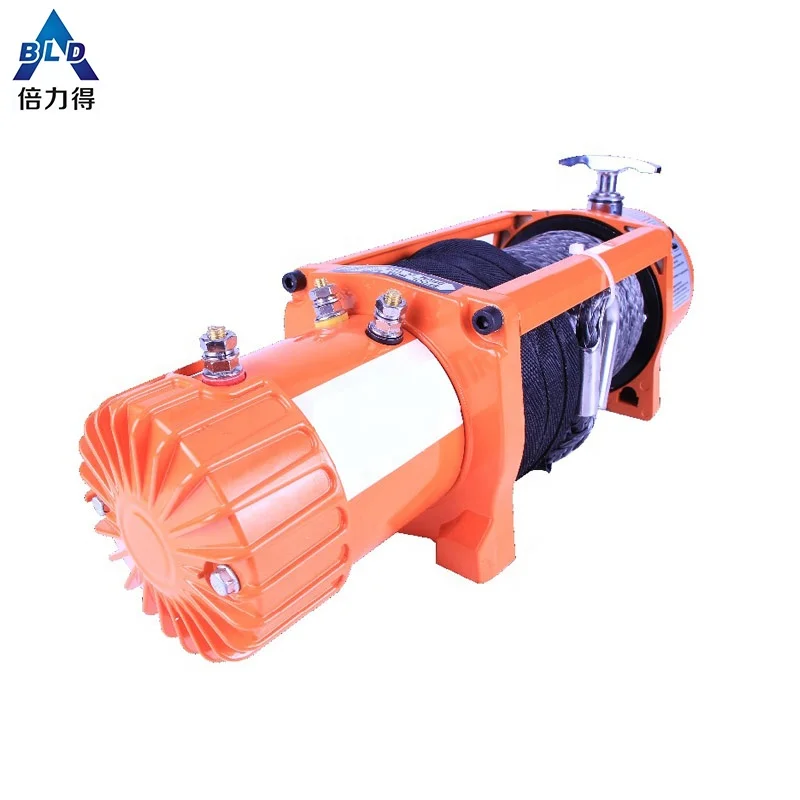

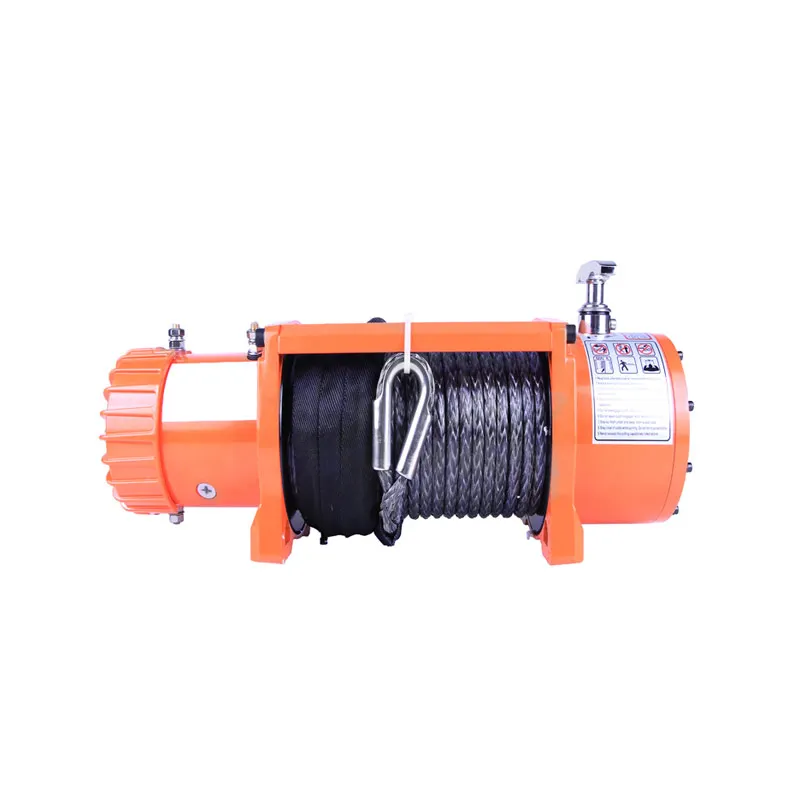

13500lbs Heavy Duty 12v electric winch 4x4 winch for sale
Specification
| Single line rated pull | 13500lbs(5889kg) | Motor | 6.0hp/4.5kw,series wound |
| Control | Remote Switch | Gear train | 3 Stage Planetary |
| Gear reduction ratio | 265:1 | Clutch | Sliding Ring Gear |
| Braking Action | Automatic In The Drum | Drum size | Diameter 64mm (2.5")Length 233.5mm(8.82”) |
| Cable | Φ9.5mm*26m | Fairlead | 4-Way Roller Fairlead |
| Battery | Recommended 650CCA | Battery Leads | 2 gauge, 1.83m (72”) 25mmsq - 6.5mm Diameter |
| Finish | Orange | Weight | GW 39KG |
| Overall Dimensions(LxWxH) | 20.8” x 6.5” x 8.6” (526 x 160x 218mm) | Mounting Bolt Pattern | 10.00”±0.015"x4.50”±0.010"(255x114mm) |
| Motor Current | 65-400A | No Load Line Speed | 6.5m/min (21.3 ft/min) |
