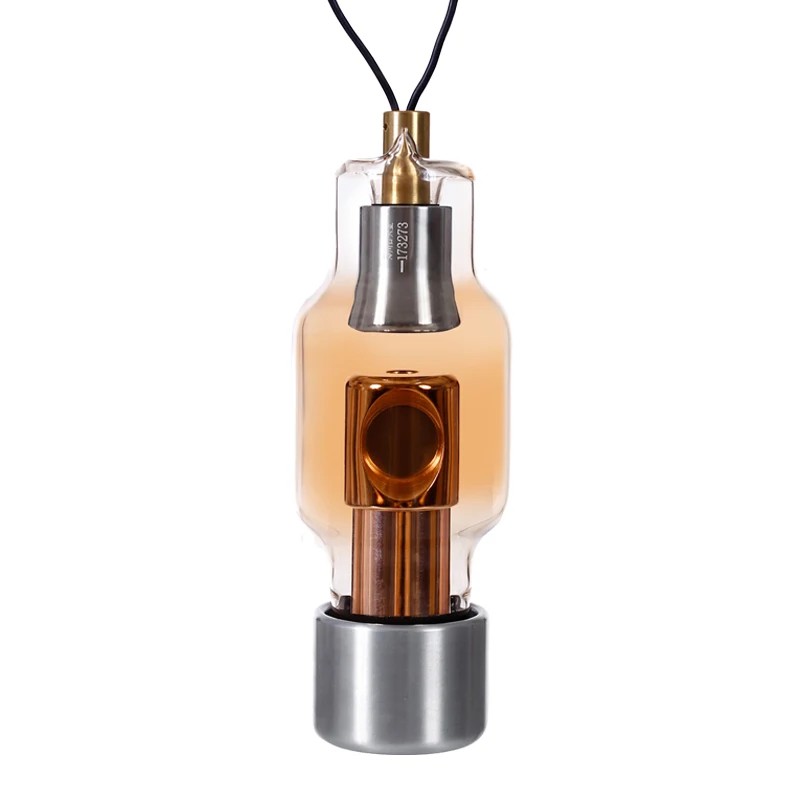

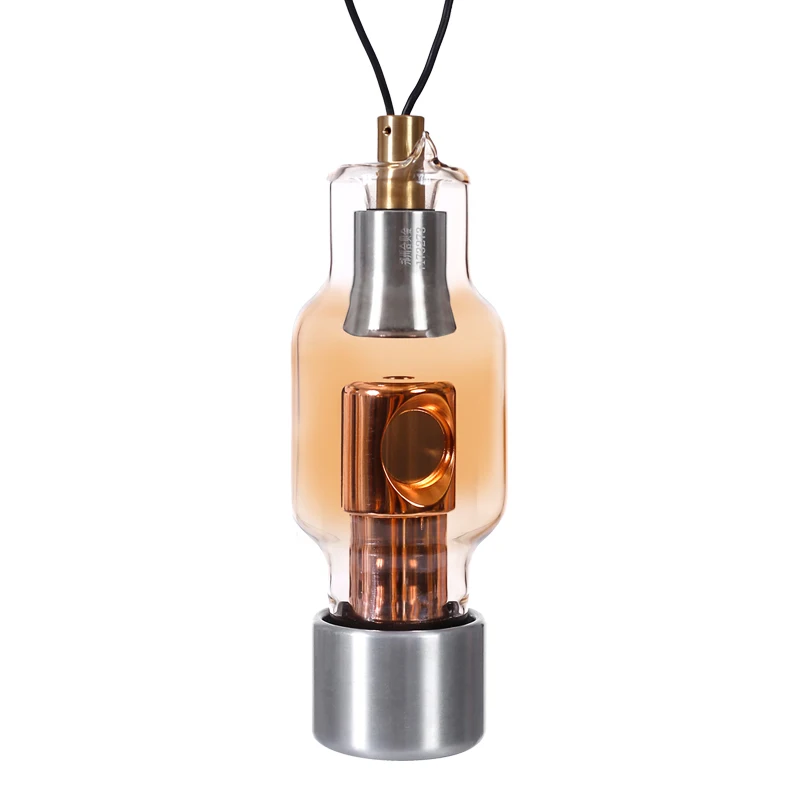

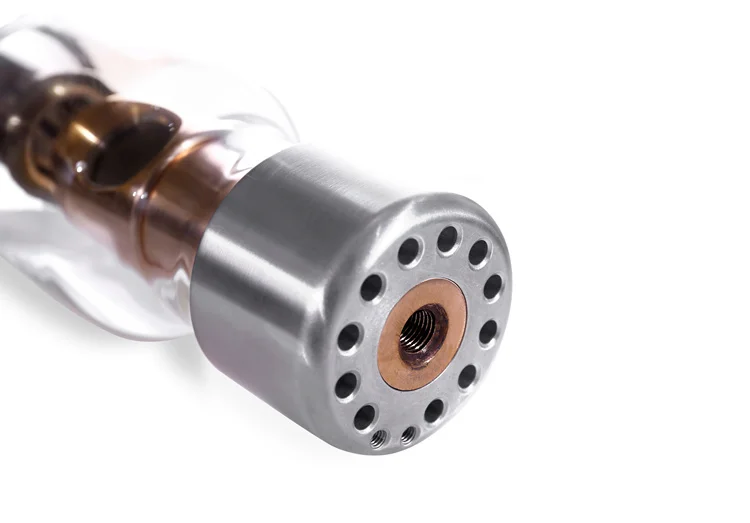

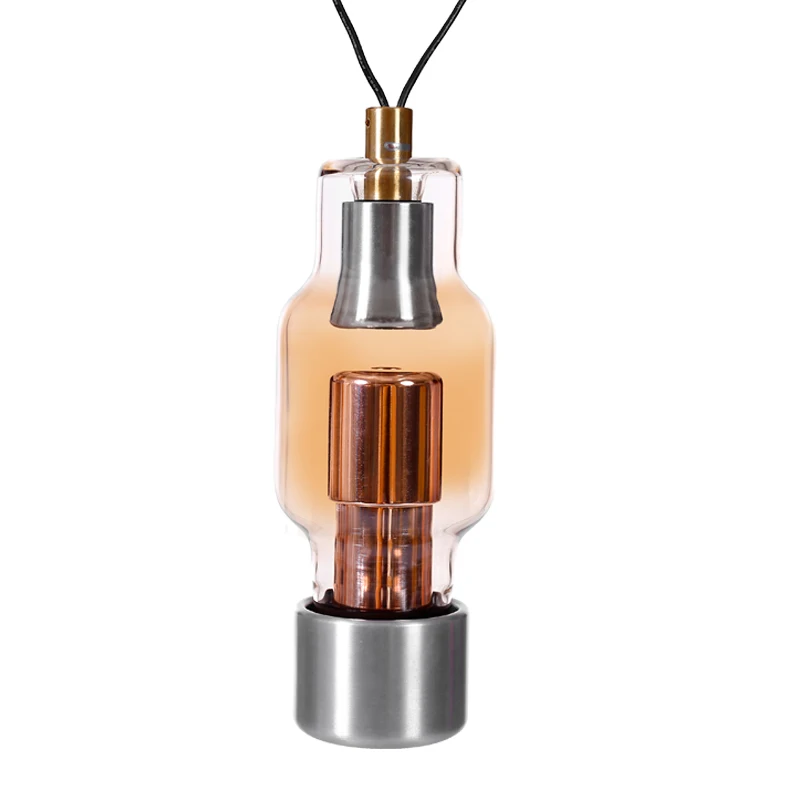

X Ray Generator Baggage Scanner Security Inspection System high frequency x ray Insert Equipment Portable X ray Tube

Product Overview

Description



                                      Models 160 and 160A are the same product



                 Technical data                                                     Type:160

Property	Specification	Standard
Nominal x-ray tube voltage	160KV	IEC60613-2010
Operating tube voltage	50-160KV
Max tube current	2mA
Max anode input power	320W
Max filament current	3.7A
Filament voltage	3.5±0.2V
Focal spot size	0.8mm	EN12543-1999
Inherent filtration	0.8/mm Be,1.5-2.0mm glass
Target material	Tungsten
Axial maximum radiation angle	60°	IEC/TR 60788-2004
Radial maximum radiation angle	80°
Cooling method	Oil immersed(70℃ Max)and Convection oil cooling
Weight	1100g







Limits	Operation Limits	Transport and Storage Limits
Ambient temperature	From 10°C to 70°C	From -40°C to 70°C
Relative humidity	/	From 10% to90%
Barometric pressure	From 70kPa to106 kPa	From 50kPa to 106kPa





































We offer customized x ray tube as customer request
