6000bph newest tech mineral water treatment and filling plant / bottling and labeling machine

        6000bph newest tech mineral water treatment and filling plant / bottling and labeling machine

1. The mineral water treatment and filling plant is main for filling drinking water into pet bottle from 300ml-2000ml with same cap diameter and design

2. The mineral water treatment and filling plant includes rinsing filling capping multifuctions together.

3. Our mineral water treatment and filling plant intergrates  cap online sterilizer / lubricant oil loading/water-oil separator system together.

4.Our factory supply 2000-40000bottles per hour,

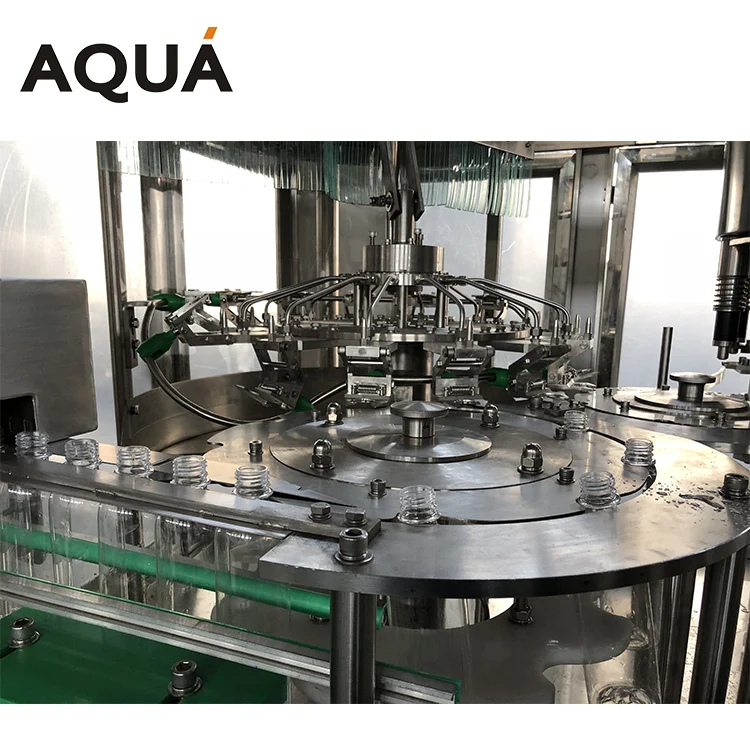

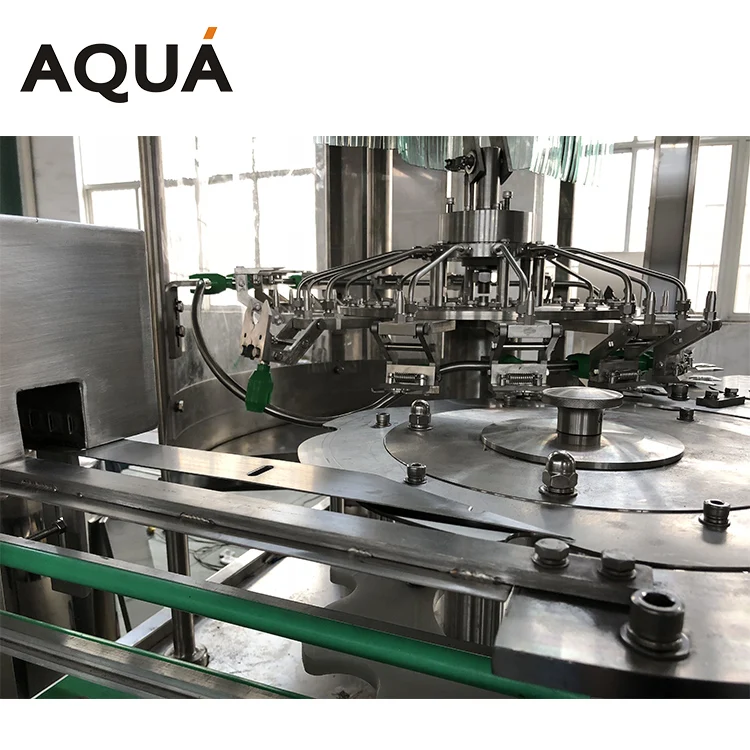

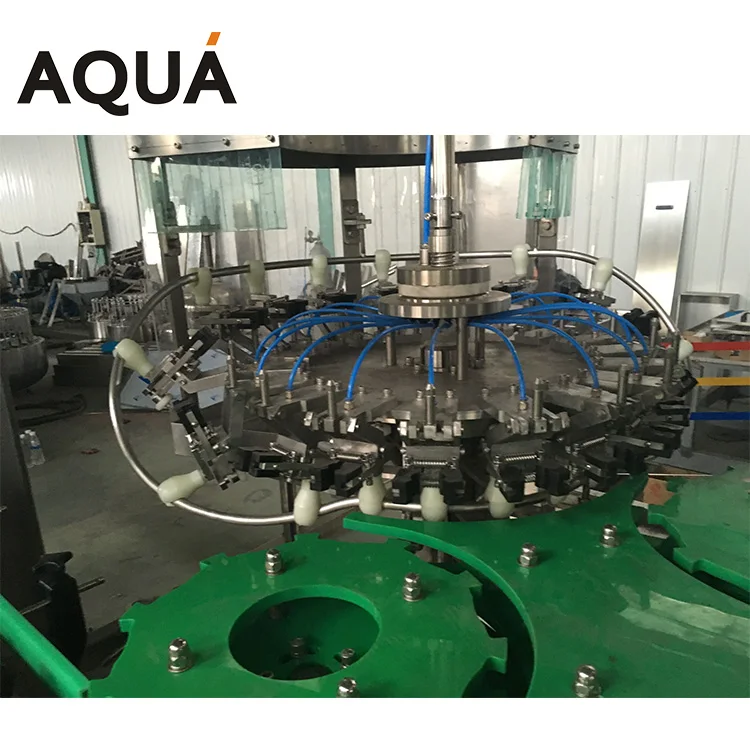

Rinser:

1.The rinsing part using high-strength stainless steel bottles pipe to rinse each bottles..

2.The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

3. Adopt neck holder to transfer each bottles to next station.

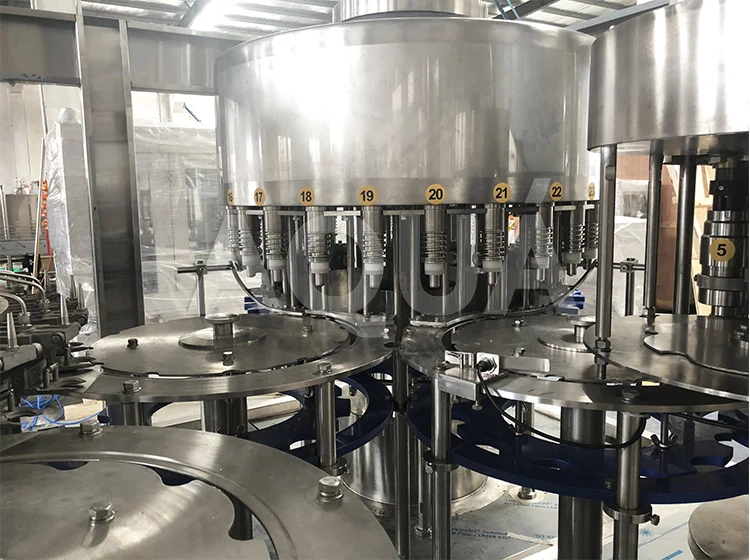

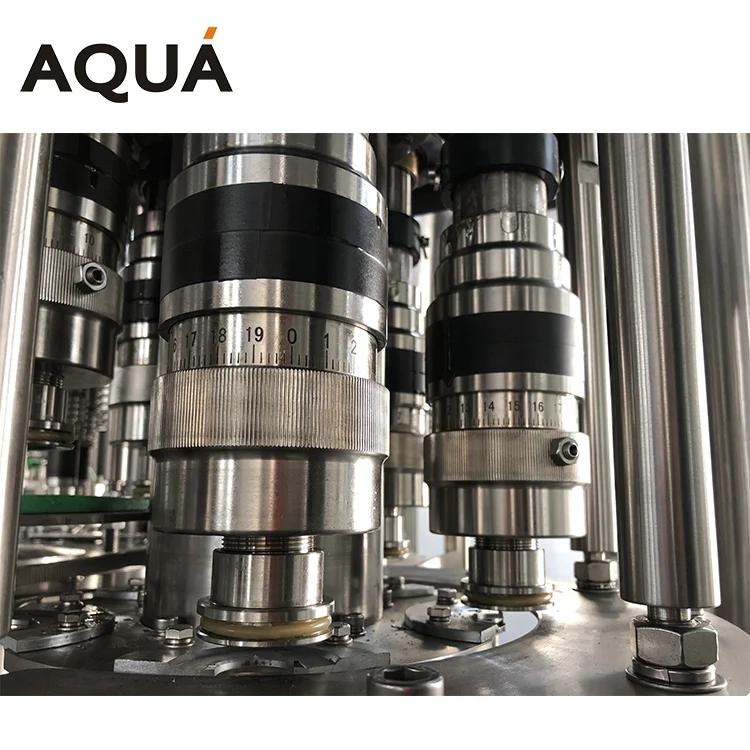

Filler :

1.The mineral water treatment and filling plant Filling part with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features

2.Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional.

3. Adopt twice valve open, to keep each bottle with same liquid level.

Capper :

1.The capping use hot water bubble set to displace bottle necks air, ensuring the oxygen content of less than 0.15mg / L.

2.The caps are free from deforming,and can flow smoothly in large quantities during transmission

3.The capper has the function of automatic de loading,which helps lower the bottle breakage.

4. The capper head with precision size for screw sealing.

The mineral water treatment and filling plant includes five sections

a. Empty bottle feeding air conveyor wit air filter

b. Online cap sterilizer

c. Washing filling capping part

d. Automatic cap loader with unscrambler

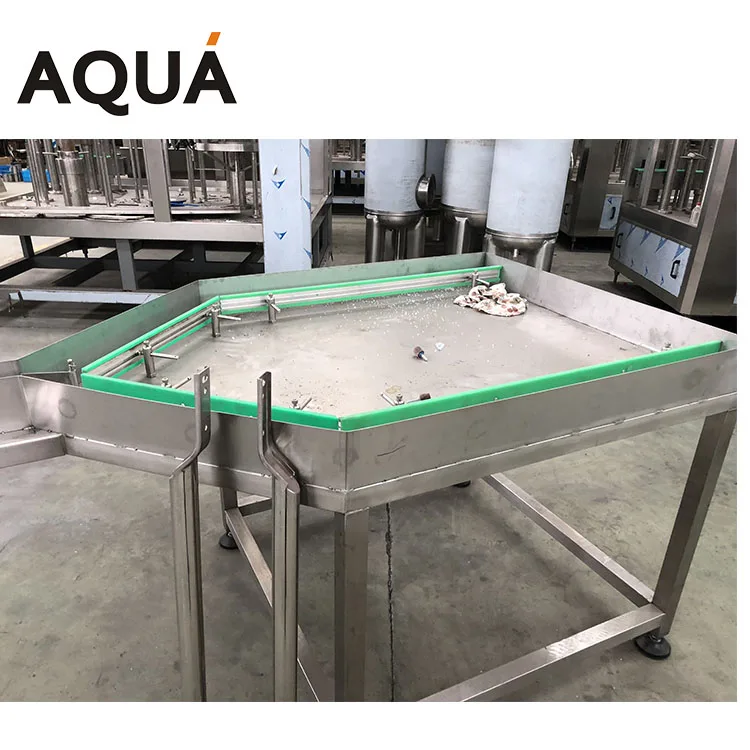

e. Filled bottle out conveyor

 Technical Dates of mineral water treatment and filling plant

6000bph newest tech mineral water treatment and filling plant / bottling and labeling machine

flowchart :

PET preform injeciton machine -PET bottle blowing machine--Water treatment system- 3 IN 1 rinse filler capper machine - automatic sleeve labeling machine-- batch coder--PE film wrapping machine
