2kg/h Laboratory Powder Spray Dryer Drying Machine Fast Shipping
- Category: Spray Drying Equipment >>>
- Supplier: Xian Toption Instrument Co. Ltd.
Share on (60763544124):
Product Overview
Description
Products Description

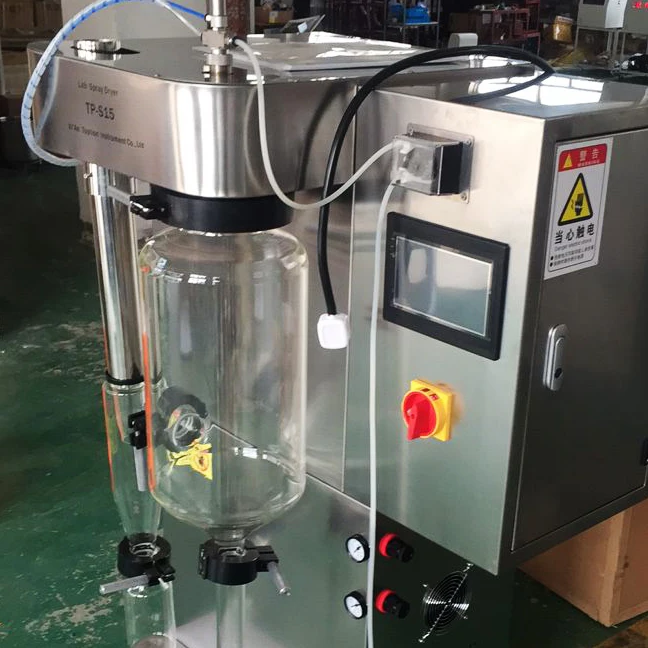

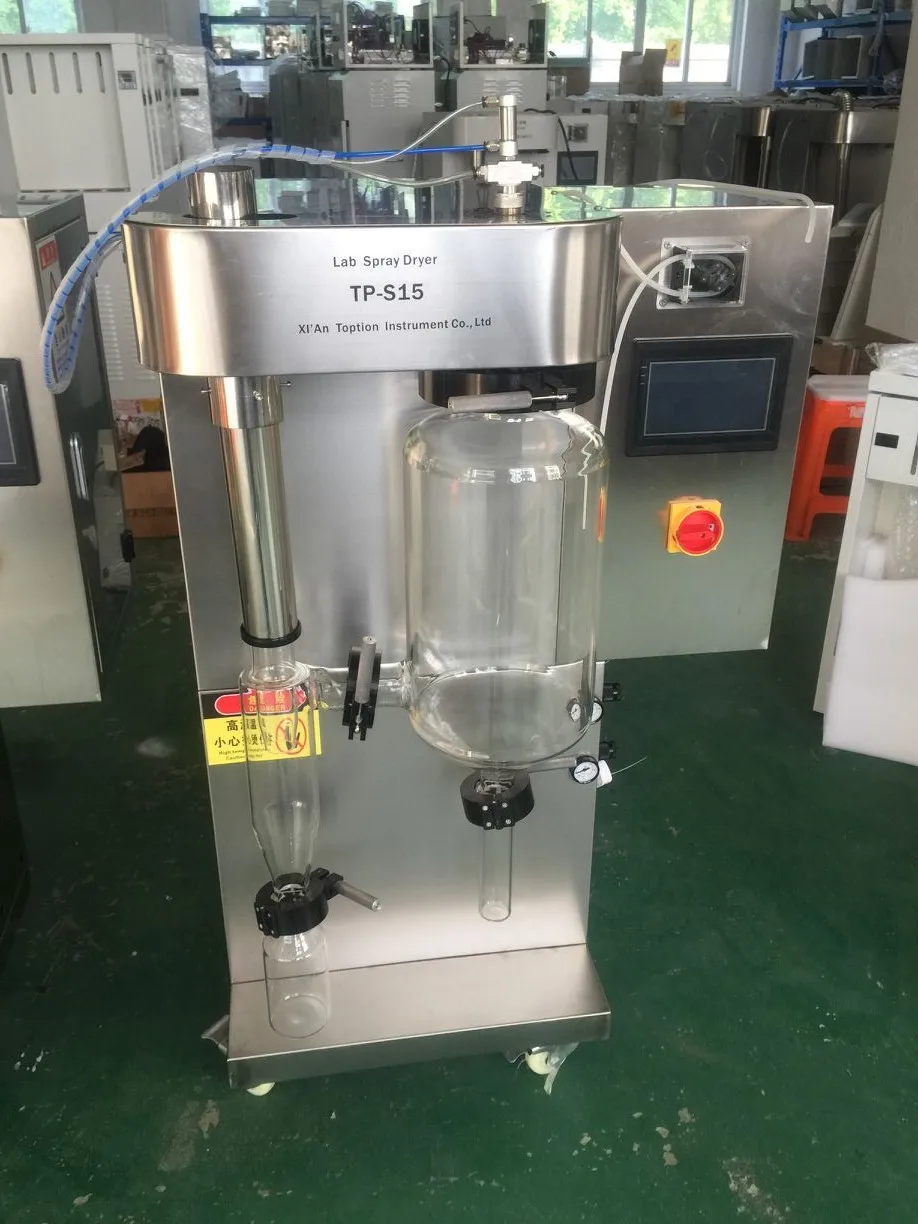

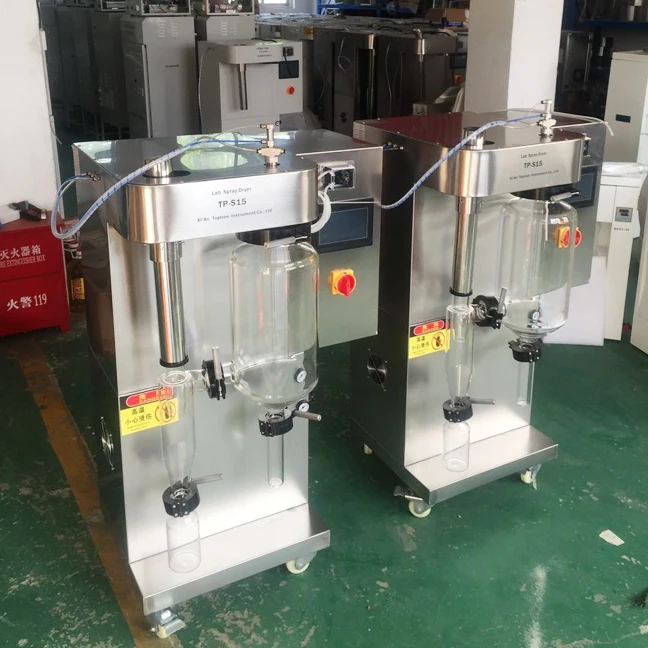

Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts. TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
Model | TP-S15 | TP-S30 | TP-S50 | TP-S100 | |||
Max capacity | 1500-2000 ml/h | 3000 ml/h | 5000 ml/h | 10000 ml/h | |||
Temperature range of inlet air | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 140°C ~ 300°C | 50°C ~ 300°C | |||
Temperature range of outlet air | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 80°C ~ 90°C | 30°C ~ 150°C | |||
Spray system | Two-fluid nozzle | Centrifugal nozzle | Centrifugal nozzle | Centrifugal nozzle | |||
Precision of temp | ±1 ℃ | ||||||
Dryer time | 1.0 ~ 1.5 S | ||||||
Speed of squirt pump | 50 ~ 2000 | 3000 | 5000 | 10000 | |||
Nozzle size | 0.5/0.7/0.75/1.0/1.5/2.0mm | \\ | \\ | \\ | |||
Spray direction | Downwards co-current | ||||||
Heater Power | 3KW 220V | ||||||
Total power | 10KW 380V | ||||||
Heat source | Electric | ||||||
Function
Application
Certificate

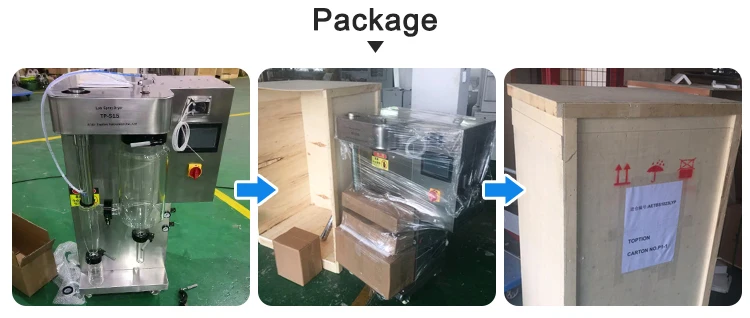

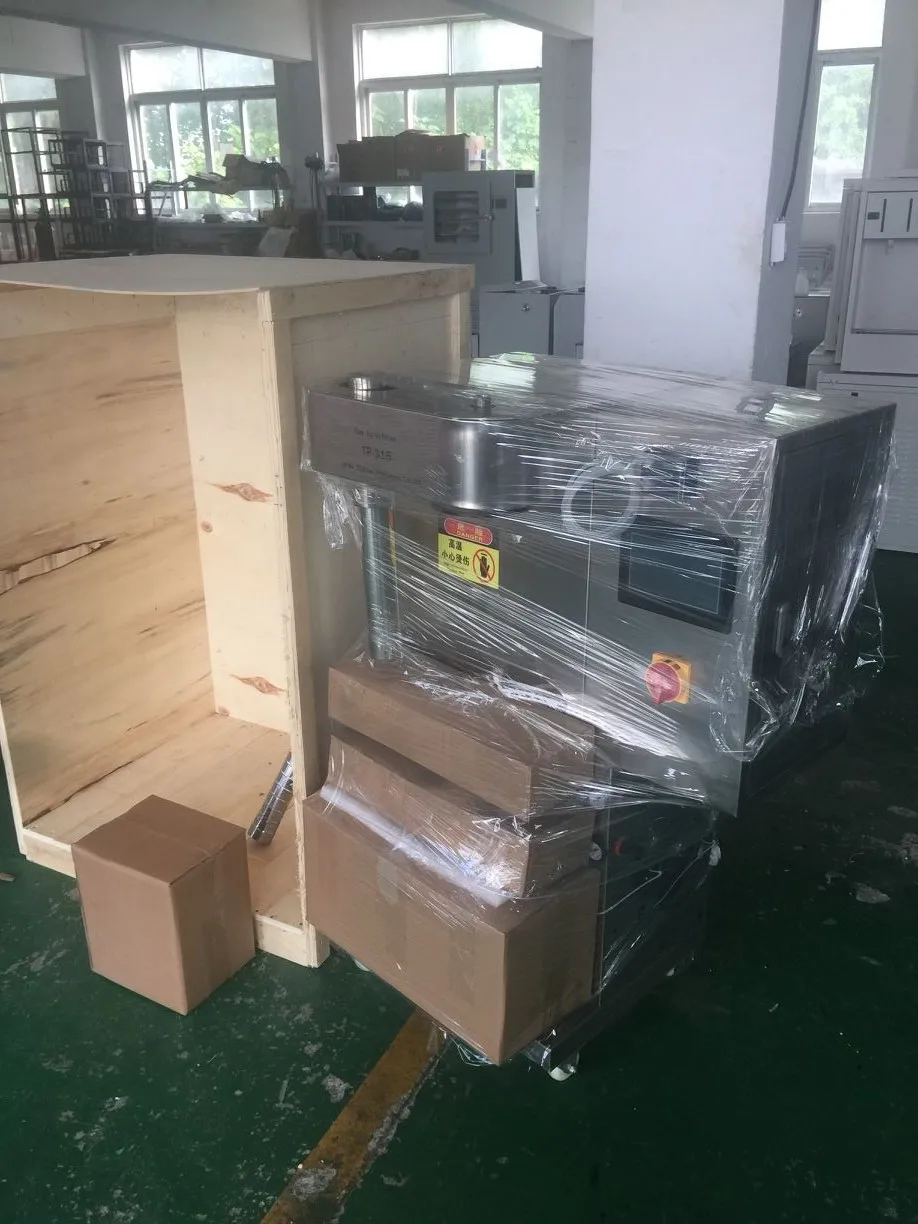

Package
Our factory
Exhibition
