EJ-FG13 Waterproof DC 12V 24V 36V 48V 60V 72V 84V 96V Acid lead/Lithium polymer/Lithium iron phosphate/NiMH Battery Capacity Indicator with TTL232, RS485

ADVANTAGES

---

(1) Remaining power of the real capacity, high-precision capacity indicator
(2) LCD Green Backlight automatically open
(3) Power-down memory
(4) Adapt to the ultra- high-power load
(5) High sensitivity
(6) Low power consumption

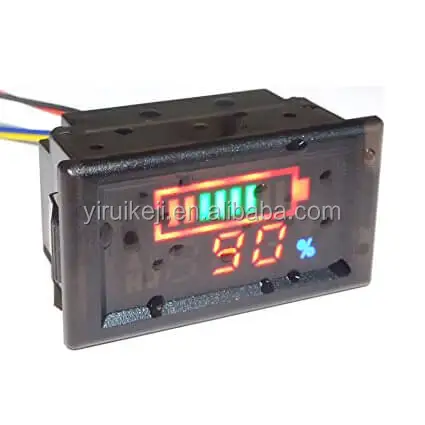

DISPLAY

---

(1)  Battery SOC;
(3) Battery voltage;
(4) Battery current;

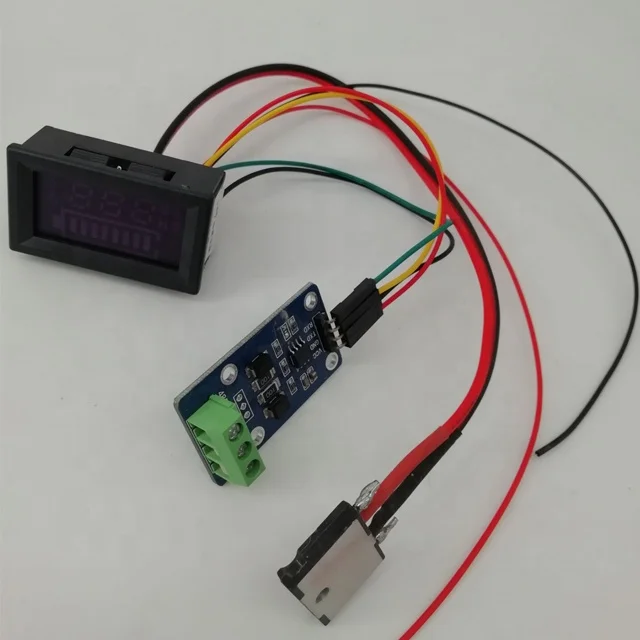

The following are 50A, 100A, 350A three specifications sampler:

Work Current:< 5-15mA (with backlight)
Energy Resolution:1%
Voltmeter Accuracy: 1%
Temperature: -20~70°C
Humidity:10-80%

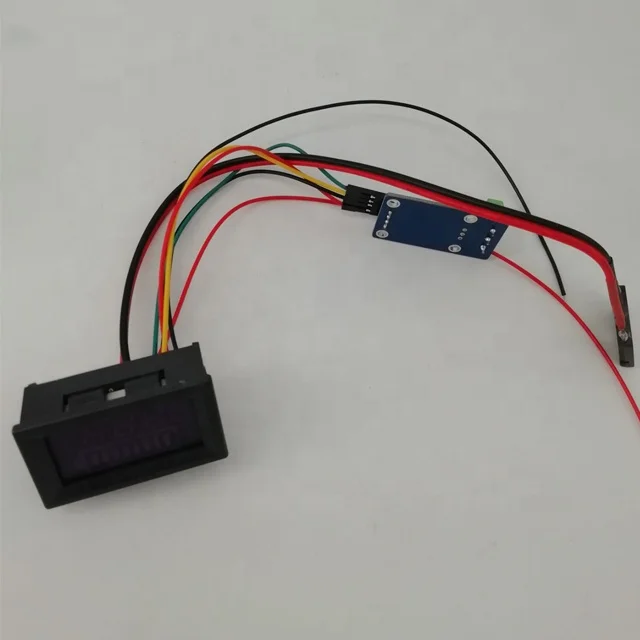

Black wire connected to negative, red to positive

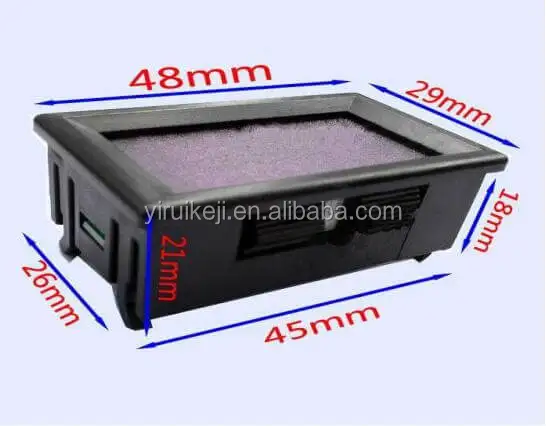

External Dimension:48×29×21 mm
Hole Dimensions: 45.5×26.5 mm

With a shell, easy to use stand-alone or embedded in the panel on the product.

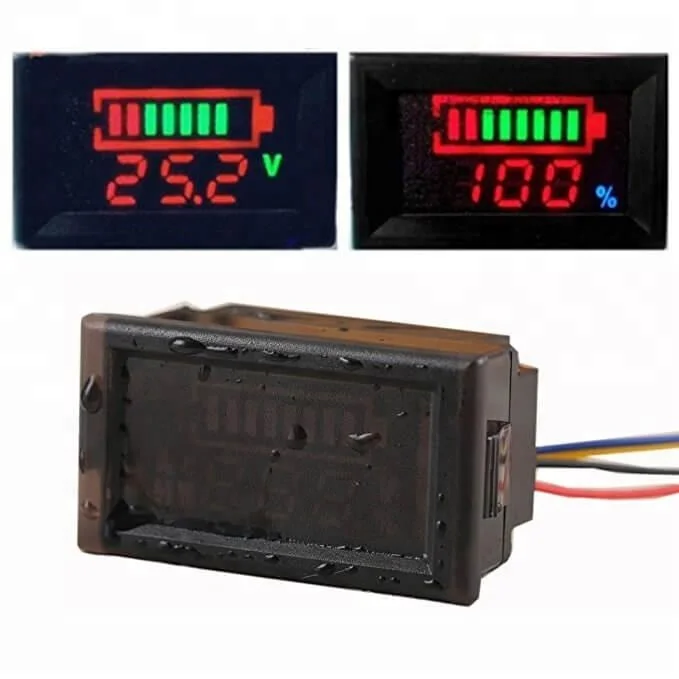

Display Mode:Battery +voltage,Battery +Percentage
Supply voltage: DC6-120V (maximum)
Test voltage: DC6 ~ 120V

How to use:

1. Push the white button on the backside for about 3s until it shows “1-U” and release it. Push it again for 1s it shows “2-b” and release it. Push it again for another 1s it shows “3-c” and release it. Push it again for another 1s it shows “4-d”.

2. When it shows “1-U”, push the white button for 3s then you can adjust the voltage admeasuring apparatus. Push it for a longer time, the voltage goes up. Then push it for another longer time, the voltage goes down. Do it again and again. To save and exit Automatically after the screen is twinkling.

3. When it shows “2-b”, you can change the type of battery.
12V: 1pc 12V Lead-acid battery
3.7V: 1pc 3.7V Lithium polymer battery
3.2V: 1pc 3.2V Lithium iron phosphate battery
1.2V: 1pc 1.2V NiMH battery
4.When it shows “3-c”, you can adjust the number of batteries.
Please refer to the following:
12V Lead-acid battery: 1-10pcs
3.7V Lithium polymer battery: 2-28pcs
3.2V Lithium iron phosphate battery: 3-32pcs
1.2V NiMH battery: 10-70pcs
5. When it shows “4-d”, you can adjust the display mode. “V” is voltage mode. “%” is percentage mode. “V %” is voltage& percentage cycle mode.

Package includes:
Digital Battery Capacity LED Tester Voltmeter

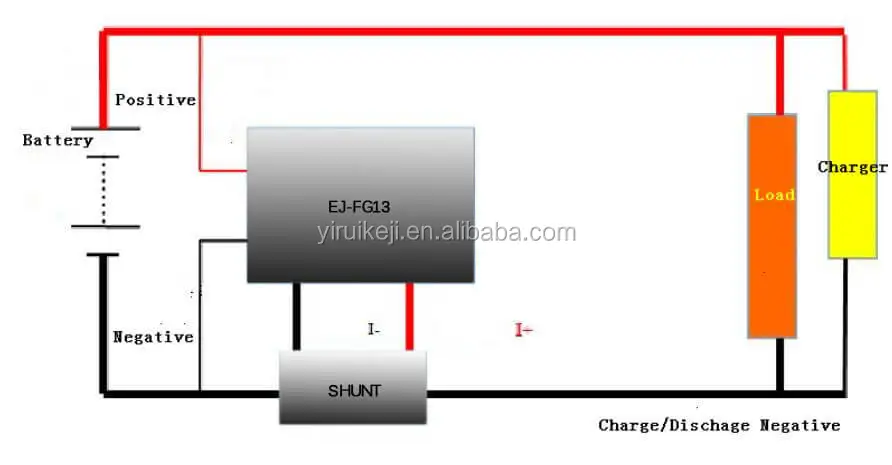

Connect:
