Сварной прямой Штекерный разъем 7/16 для гибкого радиочастотного Кабеля 1/2 дюйма
- Category: Telecom Parts >>>
- Supplier: Jiangsu Xixia Communication Technology Co. Ltd.
Share on (60764044862):
Product Overview
Description
Product Description
2. Product Description

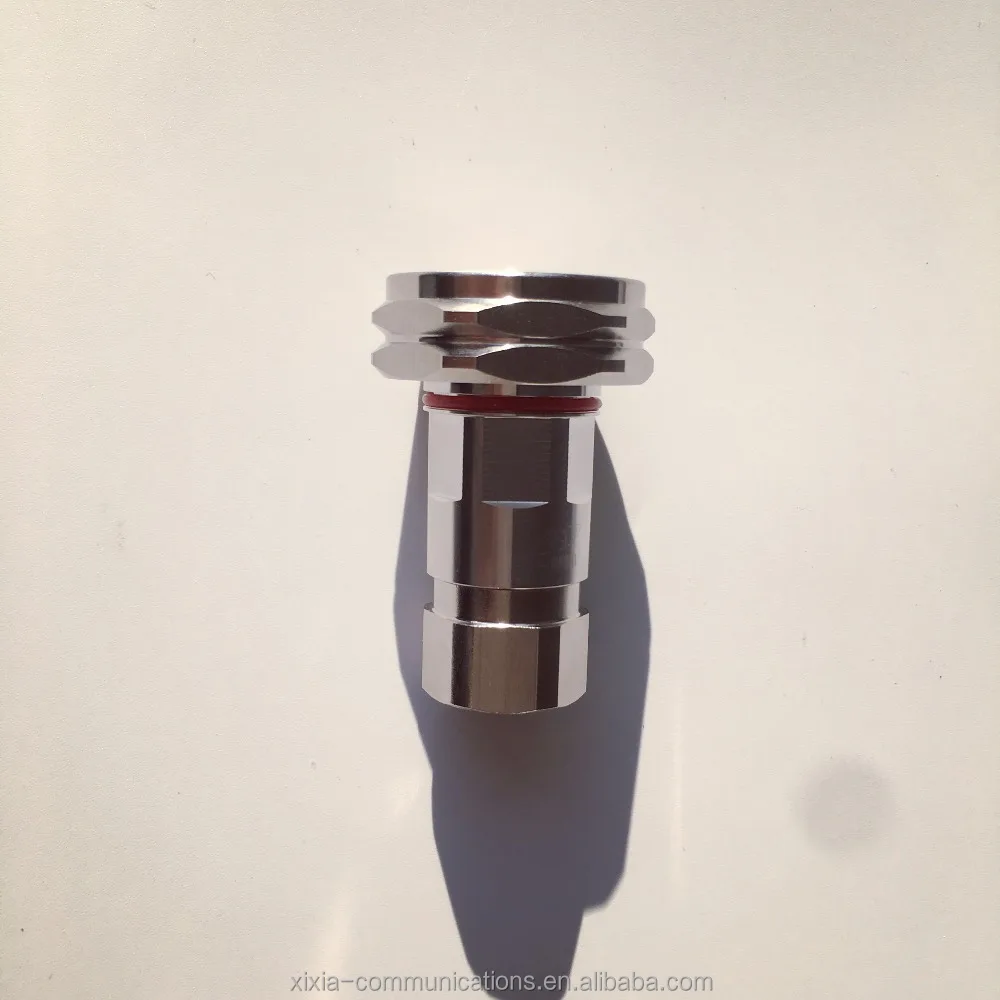

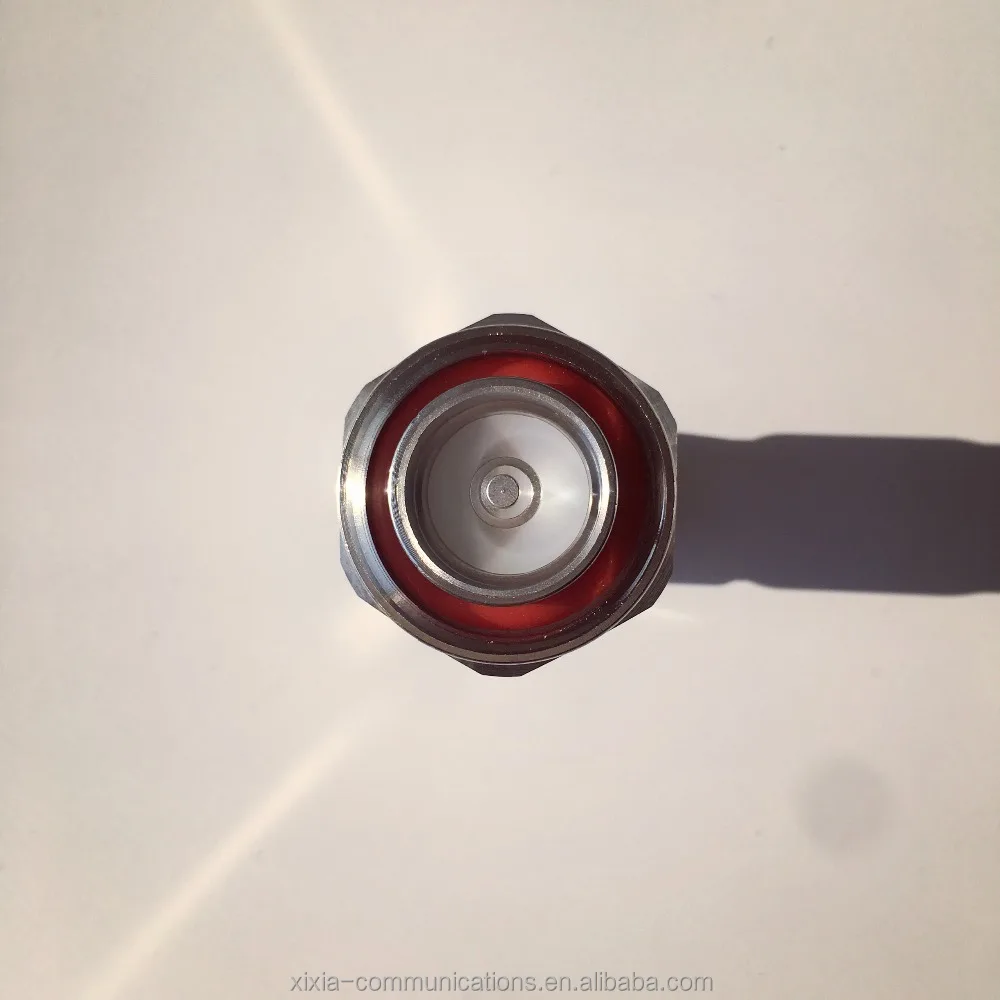

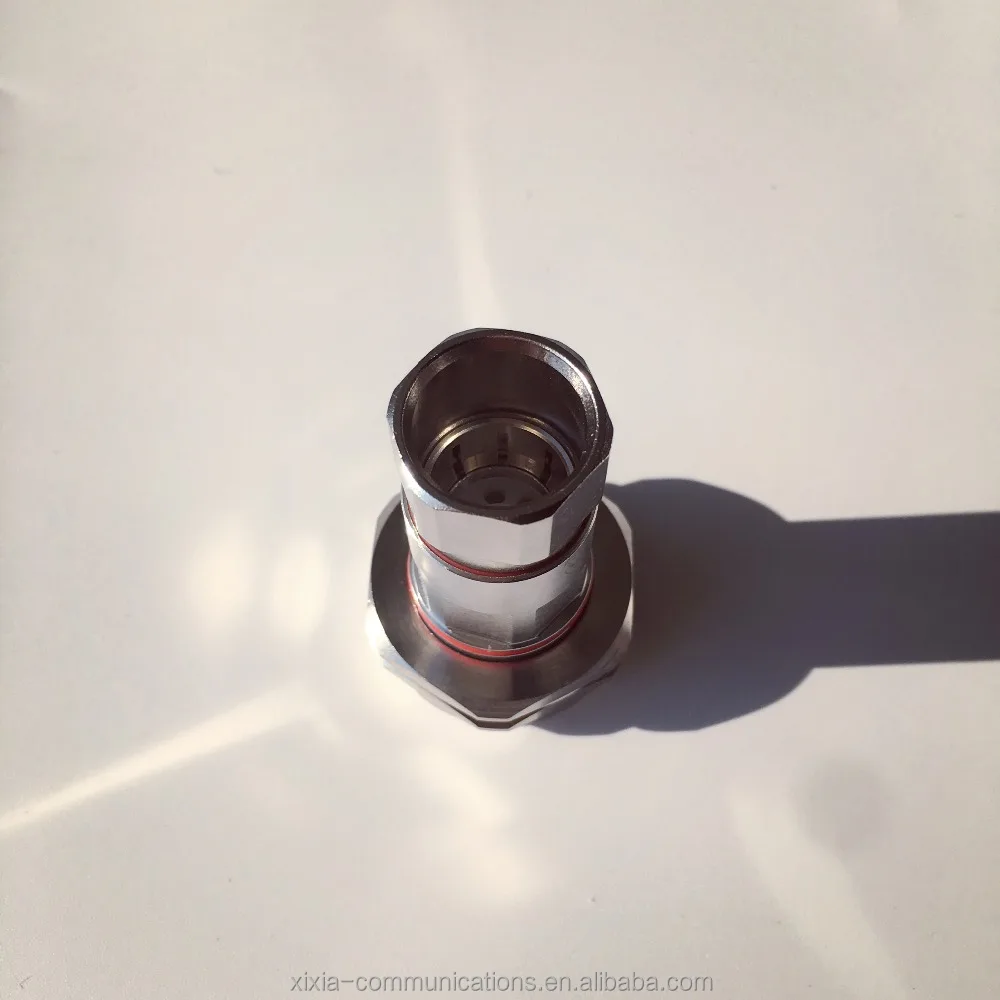

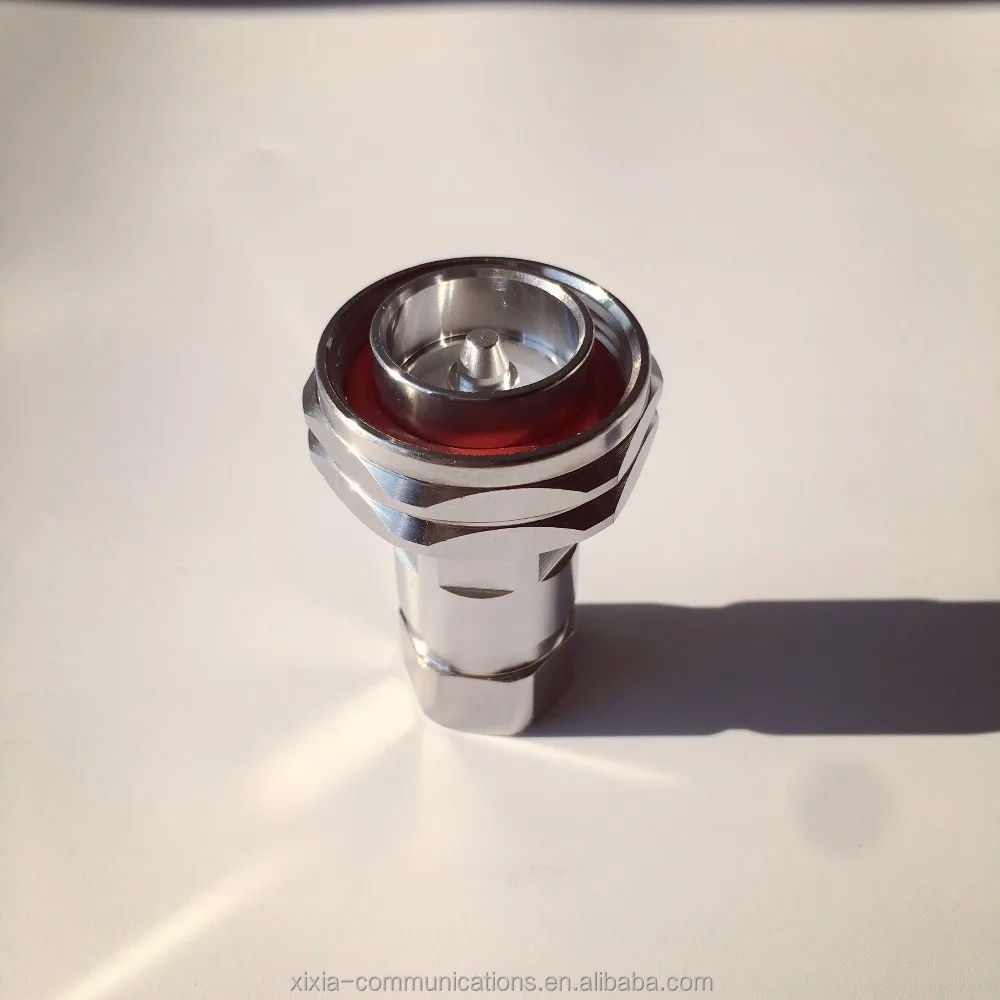

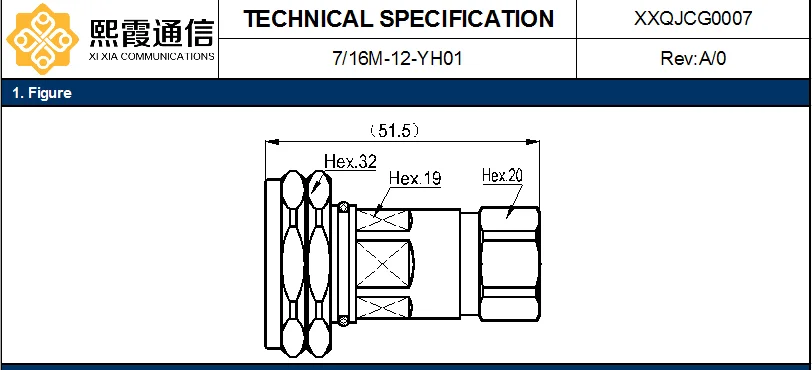

7/16M-1/2"L 7/16 Straight male Connector for 1/2" Flexible RF Cable
3. Material and Plating
Inner Conductor Pin Brass / Silver Plating
Inner Conductor Socket Tin Bronze / Silver Plating
Insulator PTFE/TPX
Body & Outer Conductor Brass / Trimetal Plating
Gasket Silicon Rubber
Nut Brass/Nickel Plating
4. Electrical Characteristics
Characteristics Impedance 50 Ohm
Frequency Range DC~7.5GHz
Insulation Resistance ≥10000MΩ
Center contact resistance ≤0.40 mΩ
Outer contact resistance ≤0.20 mΩ
Dielectric Withstanding Voltage 4000V rms(AC)
Insertion Loss @3 GHz ≤0.10dB
VSWR @0.8-1.0 GHz ≤1.10
@1.7-2.5 GHz ≤1.10
@2.5-3.0 GHz ≤1.15
PIM3 ≤-155dBc
5. Environmental and Mechanical Specifications
Durability (matings) ≥500 cycles
Mechanical Shock Test Method MIL-STD-202, Method 213, Test Condition D
Vibration Test Method MIL-STD-202, Meth. 204, Cond. A
Temperature Range -40°C to +85°C
RoHS Compliant
Sealing Class IP68
Our Company
About us
Jiangsu Xixia Communication technology Co., Ltd. was founded in July, 2006, owning three physical factories in Yixing, Nanjing, Zhenjiang, is dedicated in the research, manufacture and sale of RF coaxial cable connector, surge arrester, cable assembly, and other accessories for antenna feeder system. Products have been widely used in wireless communication base station, indoor & outdoor signal coverage, rail transit, defense & military, radio & TV broadcasting, equipment test, etc.
Xixia communications is a famous enterprise in R&D, production and sales of RF coaxial connectors, surge arresters, cable assemblies (Jumper cables) and antenna feeder clamps, leaky cable clamps. Our products are widely used in the field of mobile communications, like China Mobile, China Unicom GSM, CDMA, 4G TD/LTE base stations, microwave communication devices and rail transit communication network construction.

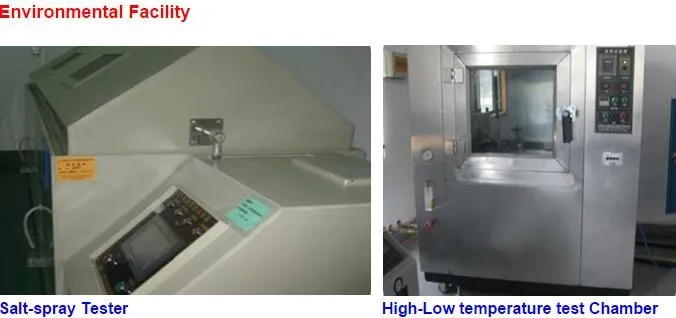

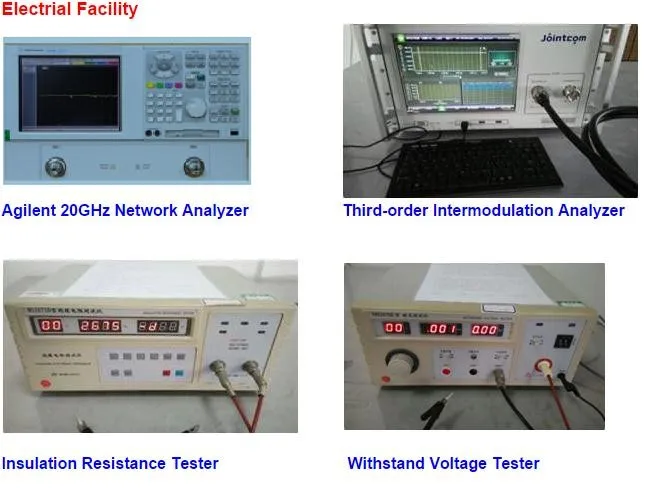

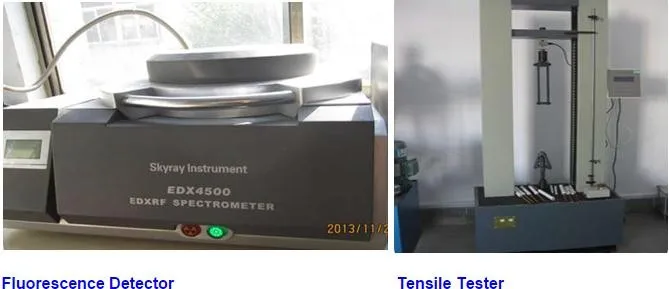

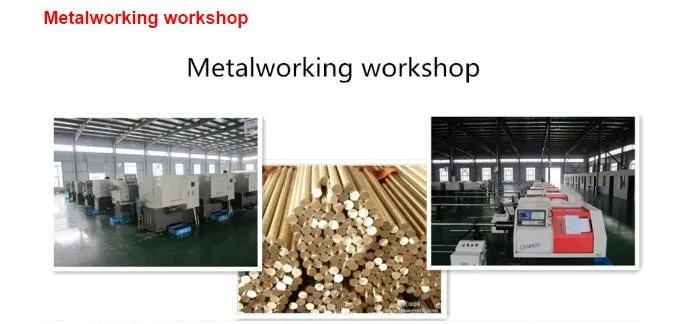

The company has equipped the advanced equipment to reliably guarantee the quality.We have bought the production machines from Tsugami Japan, Kitamura Japan, and the testing facilities of Agilent network analyzers, Jointcom third-order intermodulation analyzer,FISCHER fluorescent composition analyzer, and testers for insulation resistance,withstanding voltage, high-low temperature,salt spray etc.
The company adopts the advanced systems management of ISO9001 system control, "5S"on-site management, materials management system to protect the company's product quality and ensure the production operations.
Certifications

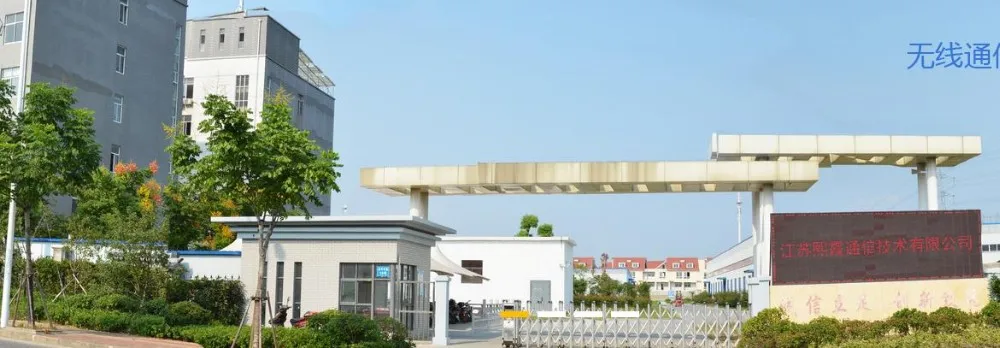

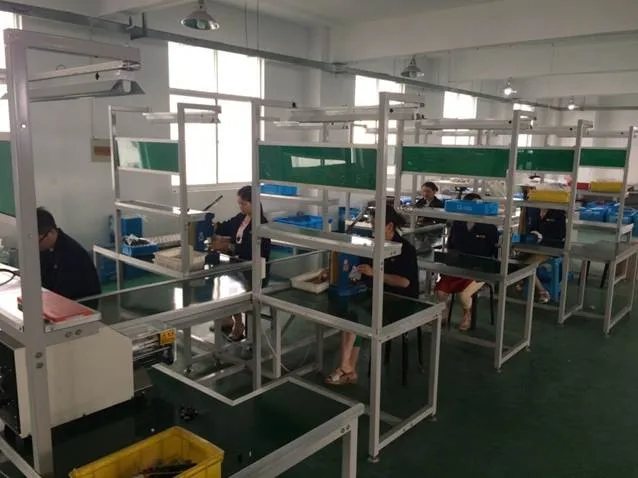

Our Factory

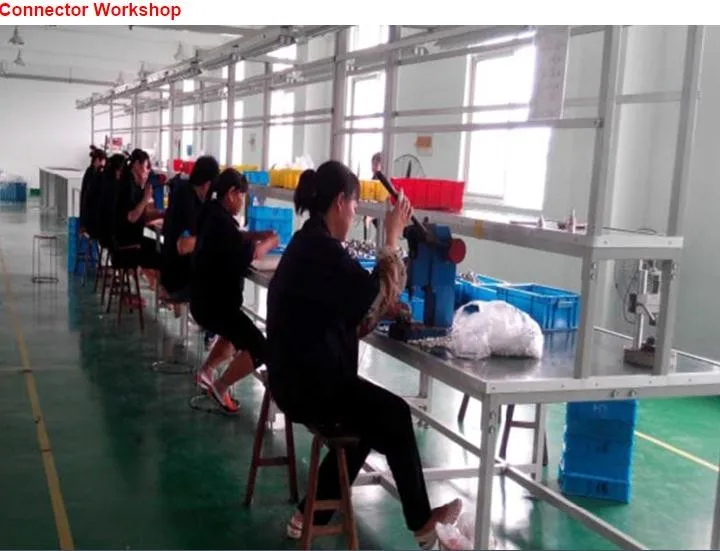

Connector Workshop

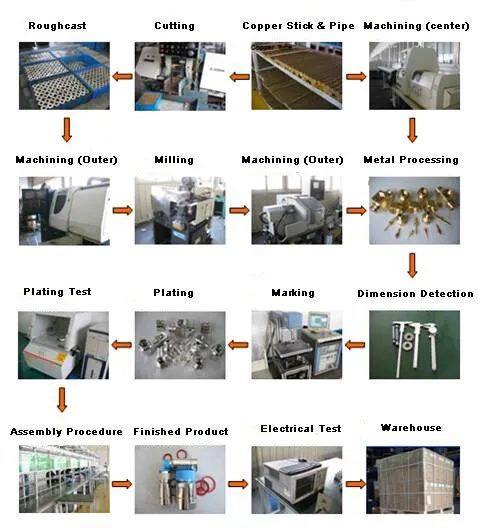

Product Flow
Our Show

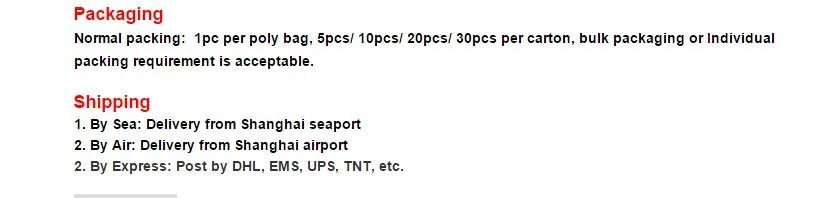

Packing & Delivery
