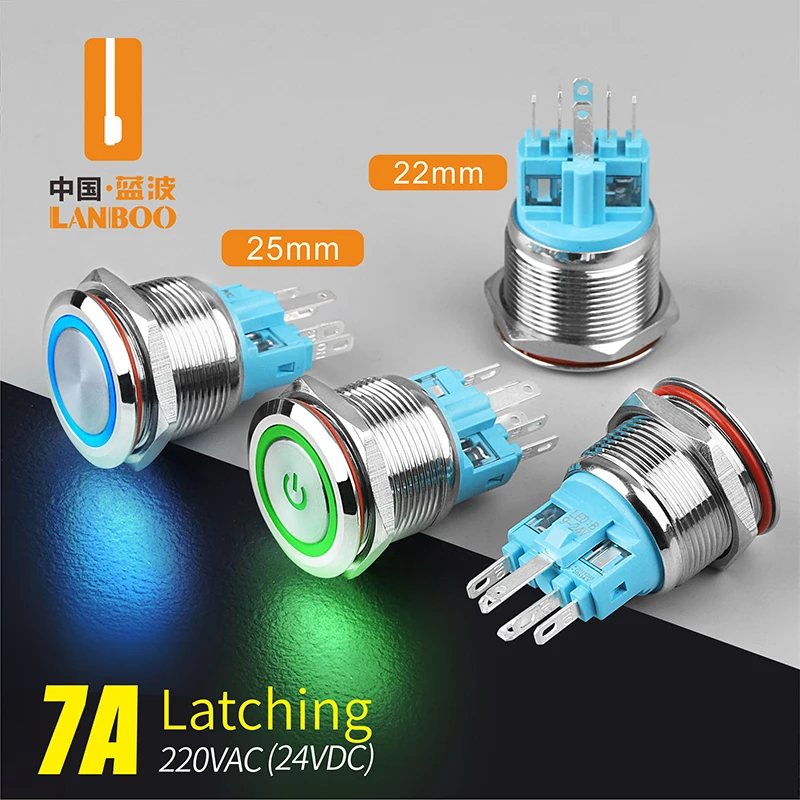

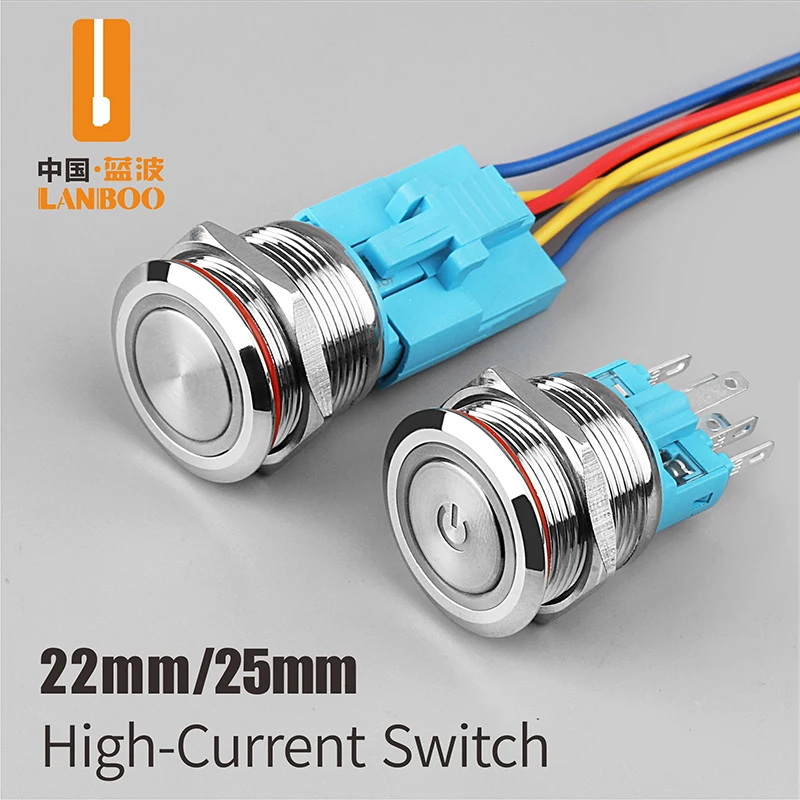

Сильноточный экономичный металлический кнопочный переключатель LANBOO, 22/25 мм, 7A, водонепроницаемый фиксатор/Мгновенный Переключатель на выбор с L
- Category: Push Button Switches >>>
- Supplier: Yueqing Branch Of Guangdong Lanbo Button Manufacturing Co. Ltd.
Share on (60764164684):
Product Overview
Description
Product Description
| Model Description | |

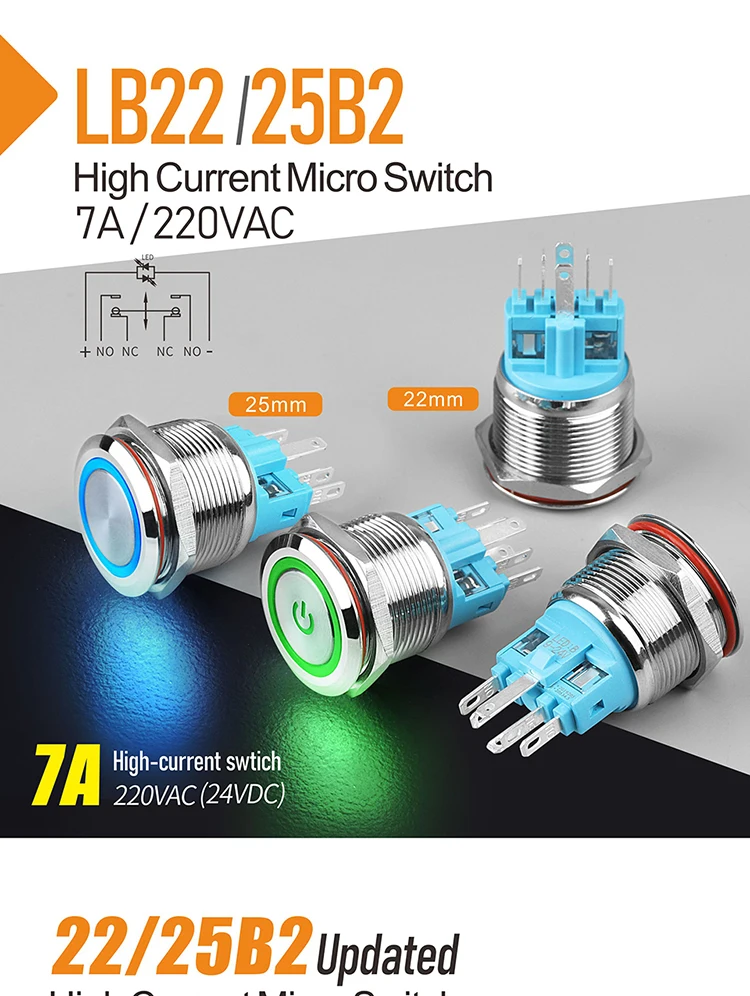

| Model NO. | LB22/25B2 metal push button switch |

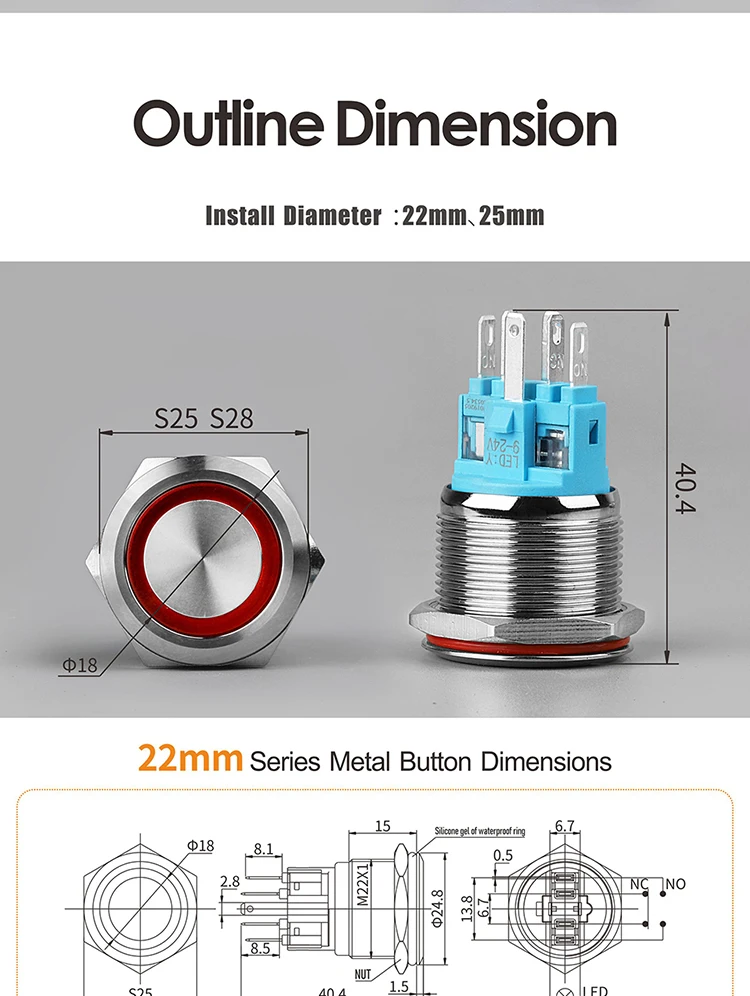

| Mounting diameter | 22mm/25mm |
| Head shape | Flat Head/High Head |
| Switch Combination | 1NO1NC |
| Operation type | Momentary/Latching |

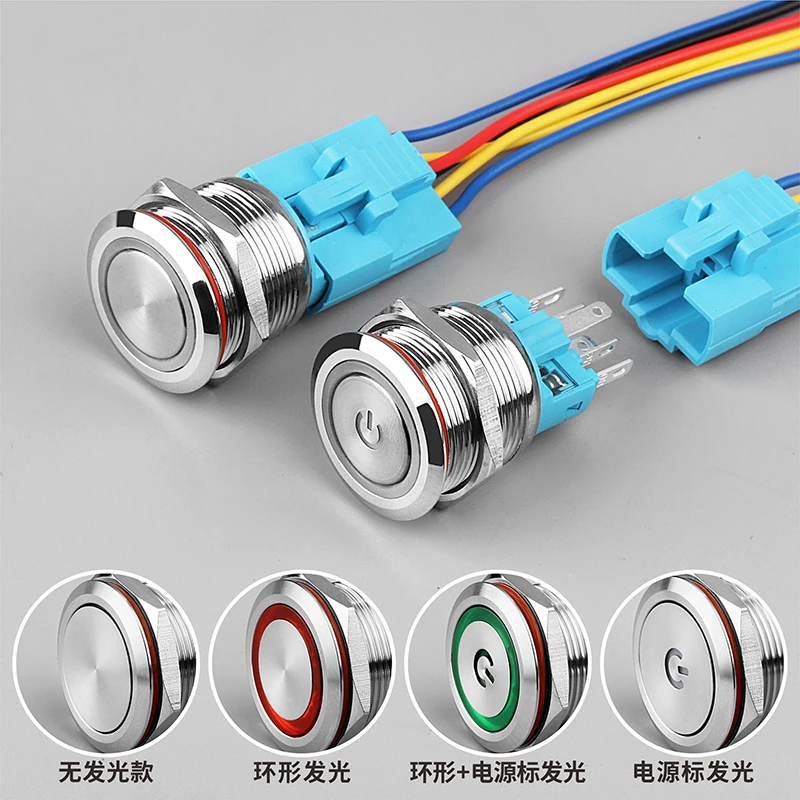

| Illuminating type | Ring LED/Ring+Symbol LED/Symbol LED/Dot LED |

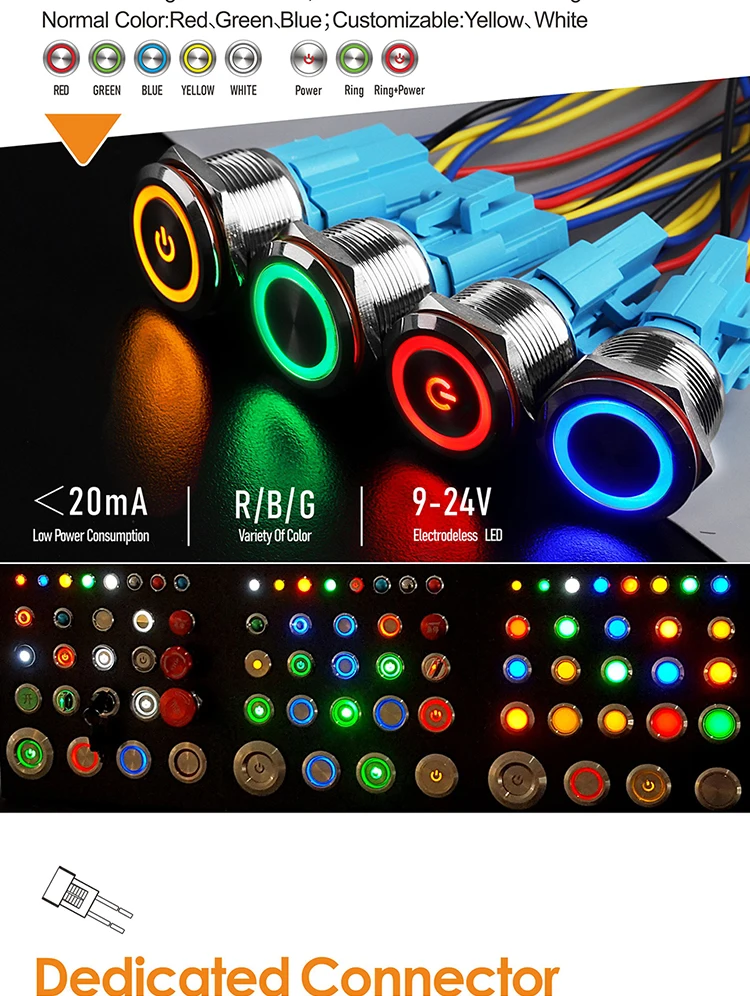

| Illuminating color | red,green,blue,yellow,white |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Chromium plated brass/Stainless Steel |
Specification
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow acting double contact | Operation Schedule | Connected:1.6+0.2mm,Total:3.2±0.1mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 6±0.5N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤12mm. |
| Dielectric Strength | 2000VAC,50HZ,1min | Nut torque | 0.8~1.2N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | 304/316 Stainless Steel |
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life | Impedance load AC220V/7A, DC24V/7A: 20,000 times; | Nut
Base Seat/ Bottom Seat | H57/59 Nickel plated brass
PA66 |
| Mechanical Life | Latching: 300,000 times, |

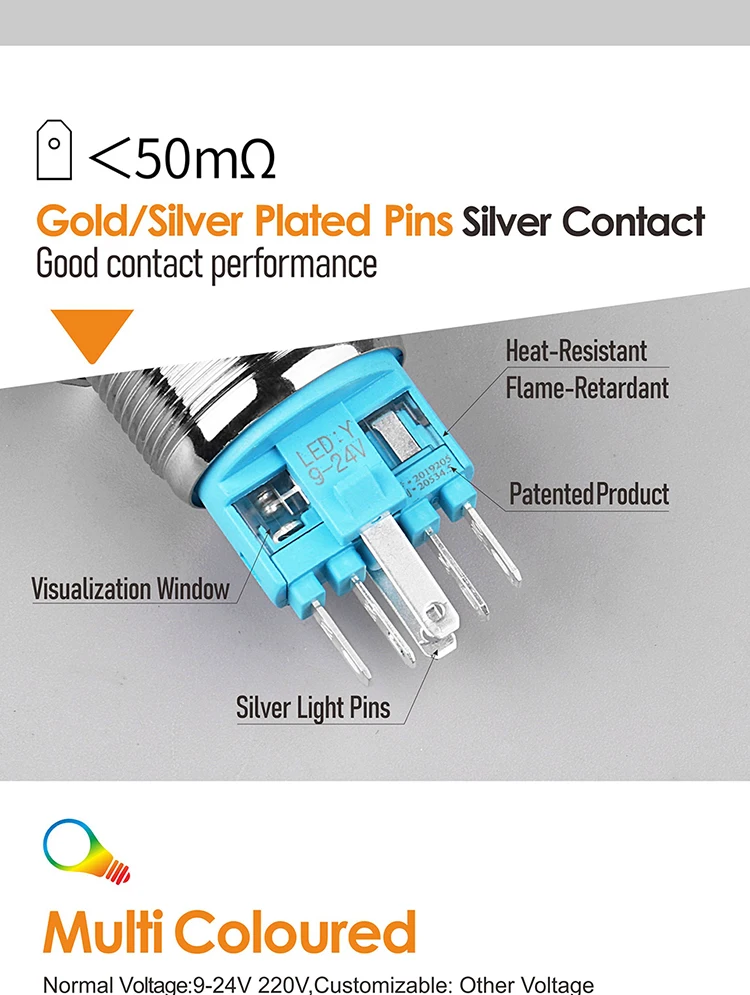

Pins Contact | H65 Silver Plated AgSnO2(RoHS) |
| Waterproof | IP67 | Spring | Improved steel wire |
| Switch Rated Load | ||||||
Project | Parameter | |||||
| Reated Insulation Voltage | AC250V | |||||
| Fusing Current | 5A | |||||
| Rated Voltage | DC12V | DC24V | DC110V | AC110V | AC220V | |
| Rated Current | Nonreactive Load | 7A | 7A | - | 5A | 7A |
| Inductive Load | - | - | 2.5A | 2.5A | 2.5A | |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,White |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 50,000hours |
Packaging & Shipping
Company Information
FAQ
Q1: What's the payment terms?
A1: We accept TT,Western Union,L/C,PAYPAL, 30% deposit and 70% balance against copy of BL.
Q2: How's the delivery time ?
A2: It rests with the quantity you need,1-30days usually
Q3: Tell me the standard of package?
A3: For the small capacity, small box and EPS as inner package and carton as delivery package. But also we can pack it according to your requirment.
Q4: How about the logo? Would you accept to use our logo ?
A4: Our logo is LANBOO. If your order has good quantity, it absolute no problem to do OEM. But you use our logo LANBOO will be high appreciated.
Q5: How do it know that you have sent the products out?
A5: Onece the products already finished ,We will send pictures ,video to you .Also a tracking number will be provided so that you can check where your goods at all time.
Q6: Could you offer Form A or C/O ?
A6: It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q7: We want to know month capacity?
A7: It depends on which model.For example for 16mm metal button switch , month capacity can reach near 500,000pcs
Q8: Where is your market?
A8: Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q9: What kind of certificate you have ?
A9: Our company already Obtained RoHS,CQC,CE,CCC,IP67,IK10 ,design and technical patents certificates
Q10: Can I ask for a sample?
A10: Of course ,my friends. It’s free for you .
Now pls feel free contact with us asap. J
