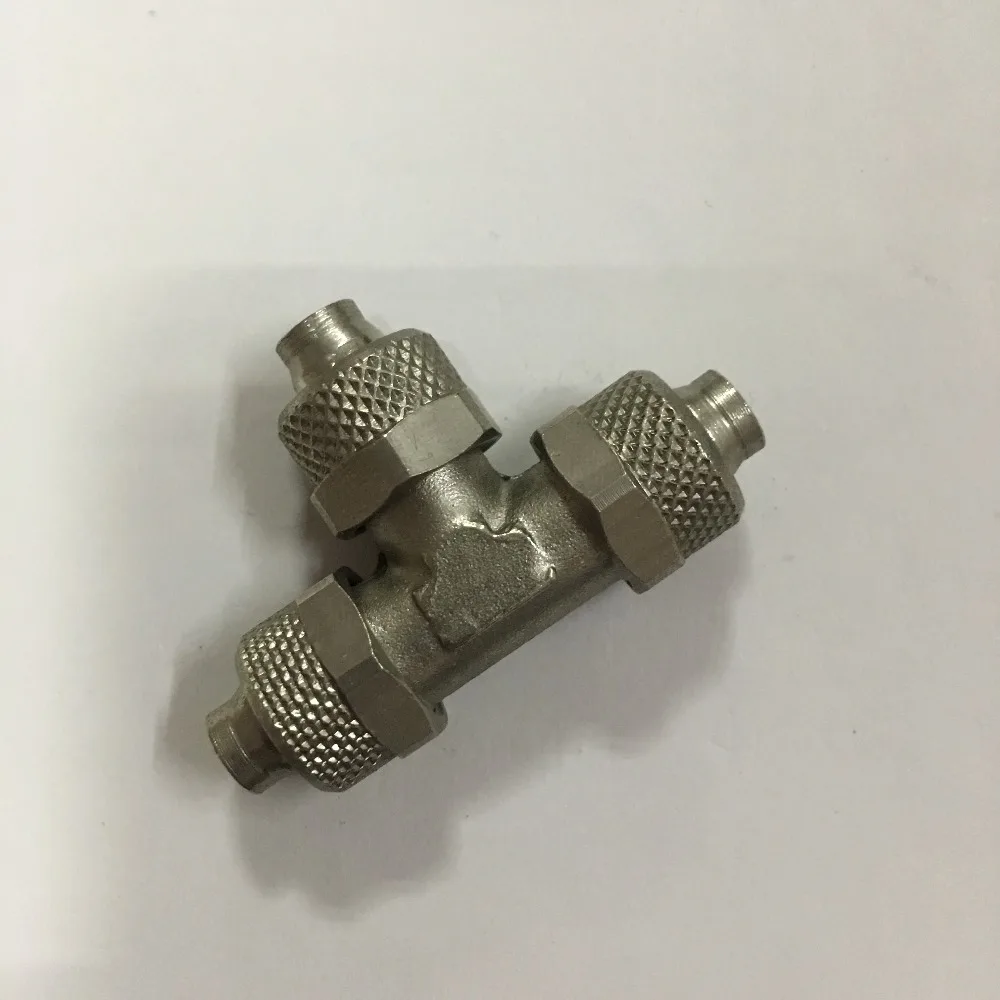

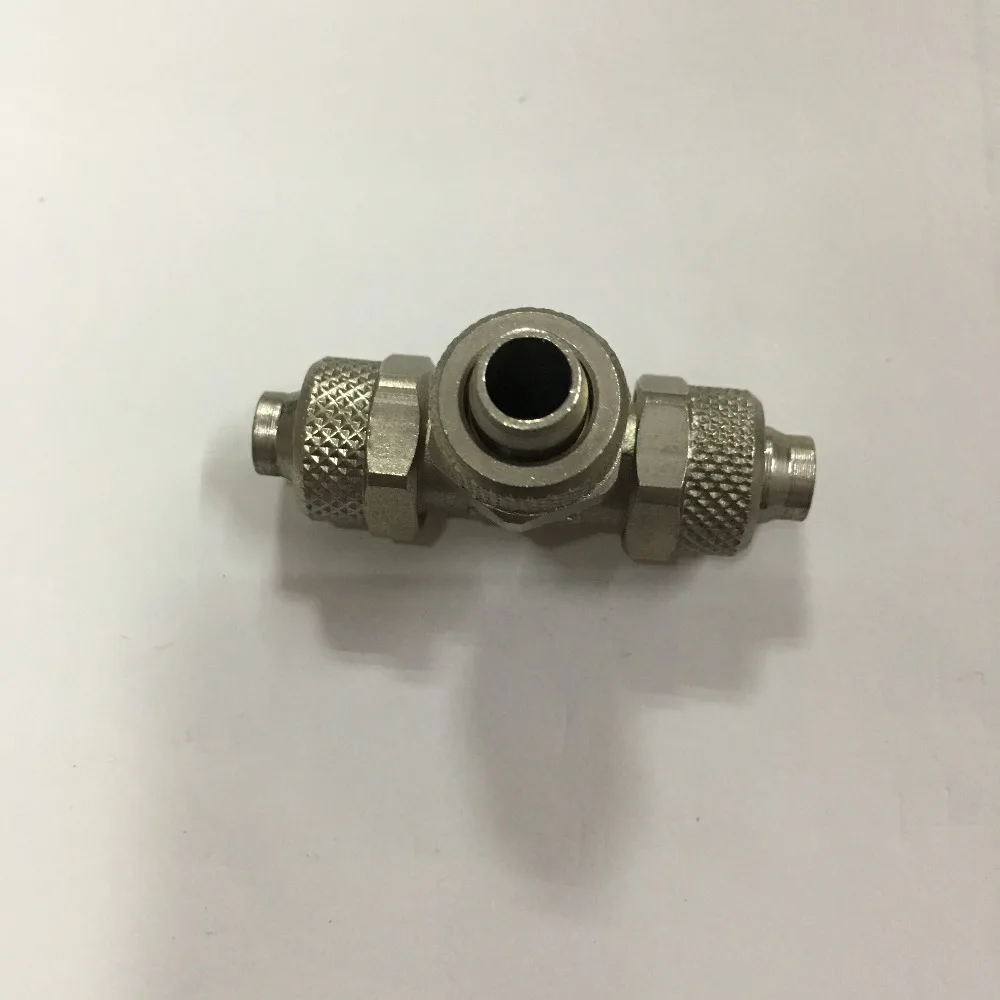

RPUT Pneumatic Rapid Fittings for plastic tubes

Product Overview

Description

Features:

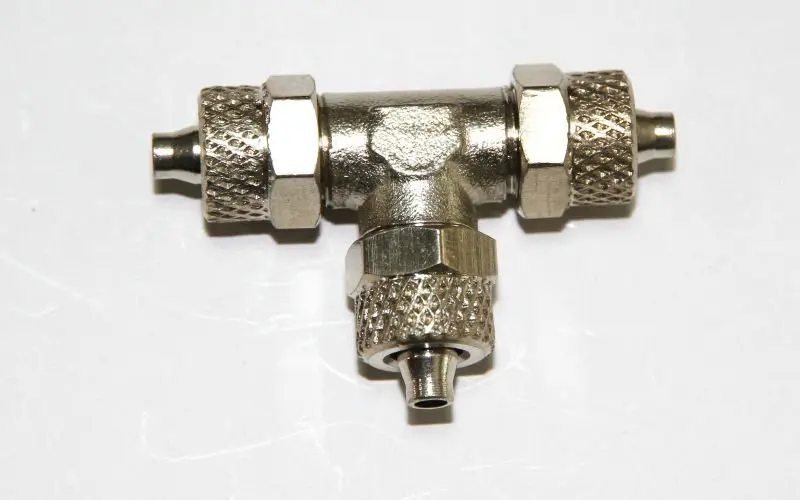

RPUT--Union Tee



Rapid Fittings For Plastic Tubes is easy to connect tube installed in the pipe fittings, generally do not need to use the wrench. You can also use a hard nylon tubes. Locking nut can be tightened by hand, also can be tightened by wrench. Connector orientation on the cone to ensure that the tube is not accidentally cut off.



Tube OD*ID: 5*3, 6*4, 8*6, 10*8, 12*10, 15*12.5 mm
Fluid: Compressed Air Low Pressure Fluids.
Working pressure: 15 Bar









PART NO.			L1	L2	CH
Info	Tube
RPUT	5*3		43	21.5	8
	6*4		45	22.5	8
	8*6		45	22.5	10
	10*8		51	25.5	11
	12*10		60	30	14
	15*12.5		68	34	17
