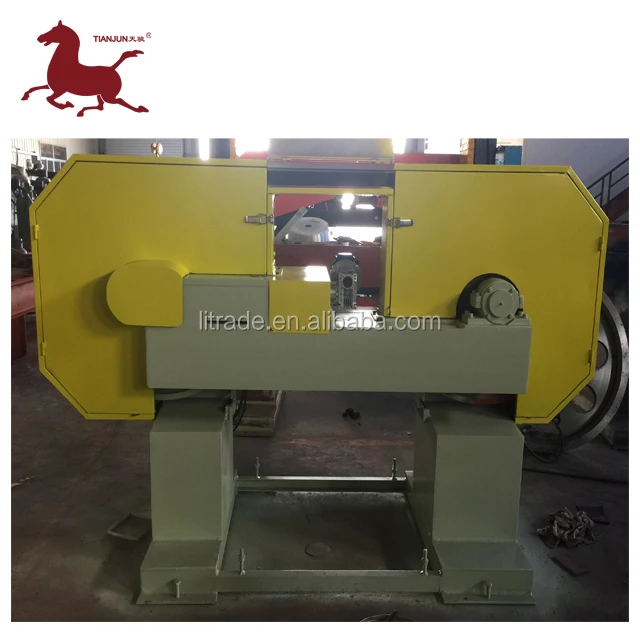

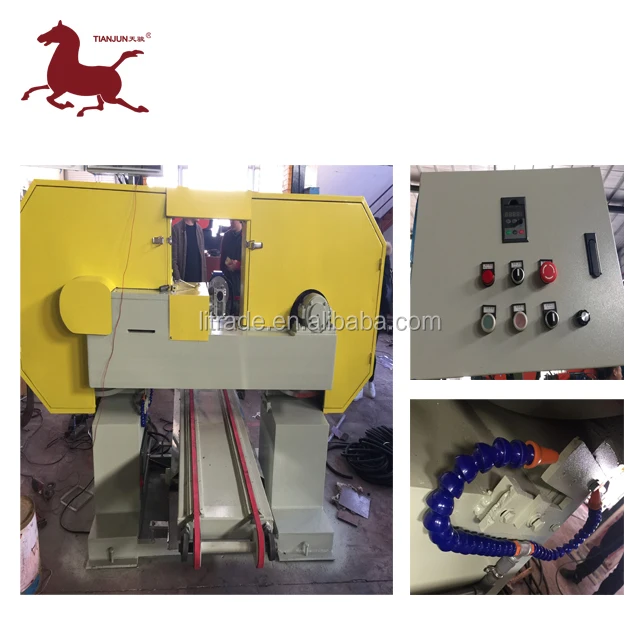

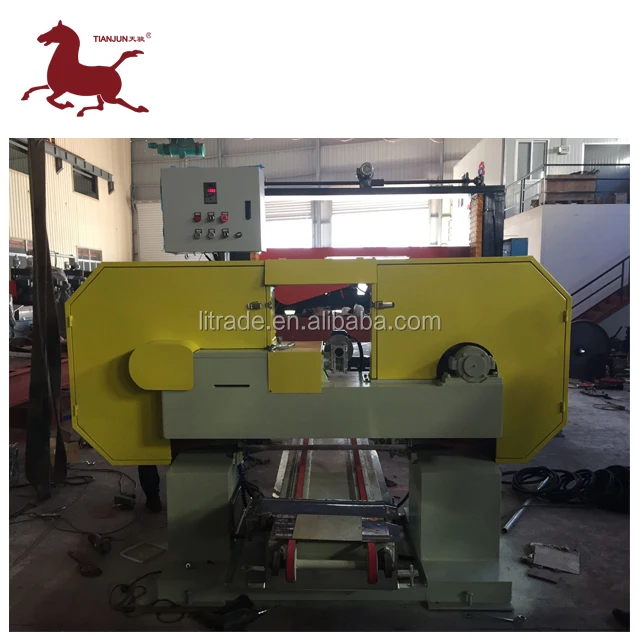

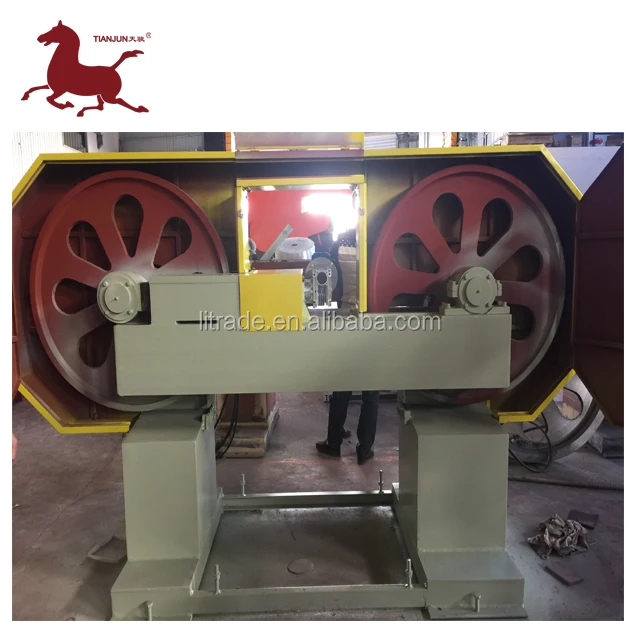

TJWK 1200 Horizontal Thin Plate Cutting Machine(Continuous Style)

Product Overview

Description

Horizontal Thin Plate Cutting Machine



Model		TJWK-1200
Max. Processing Width	mm	1250
Travel height	mm	80
Max. Processing Thickness	mm	160
Main Motor Power	kW	7.5
Total power	kw	8.5
Voltage/Frequency	V/Hz	380/50
Knife thickness	mm	2
water consumption	m3/h	2
out put	m2/h	3-5
Overall Dimensions(L*W*H)	mm	4200*3100*2200
Gross Weight	kg	2200

1. For marble, the outout is about 20 to 30 square meters 8 hours a day.

But it is up to the hardness of the stone and the operation of the workers.

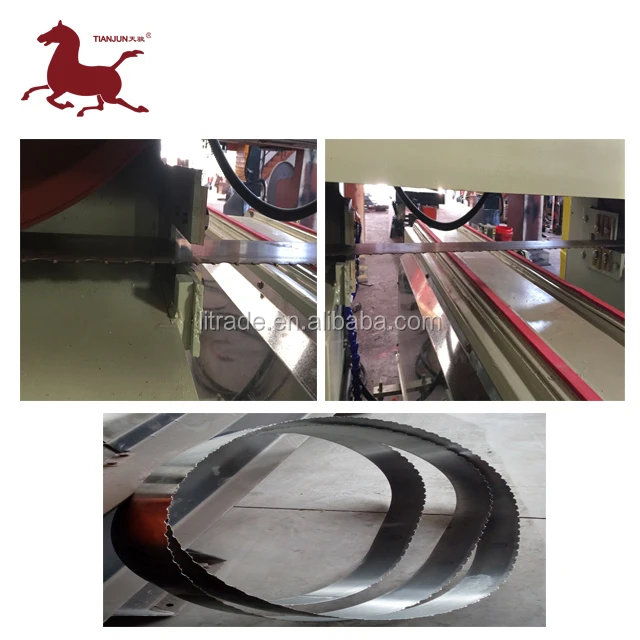

The length of blades is 5950mm, thickness is 0.9mm.

2. If you want to cut granite this machine need to be adjusted accordingly and add some money for wire saw to cut granite.

The output will be a little lower than marble.



3. This machine has low maintence cost, only need to change the blades. Add lubrication oil to lubricate the machine.



It can bring you high interests and low cost .
